10891 - FTR34(RHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

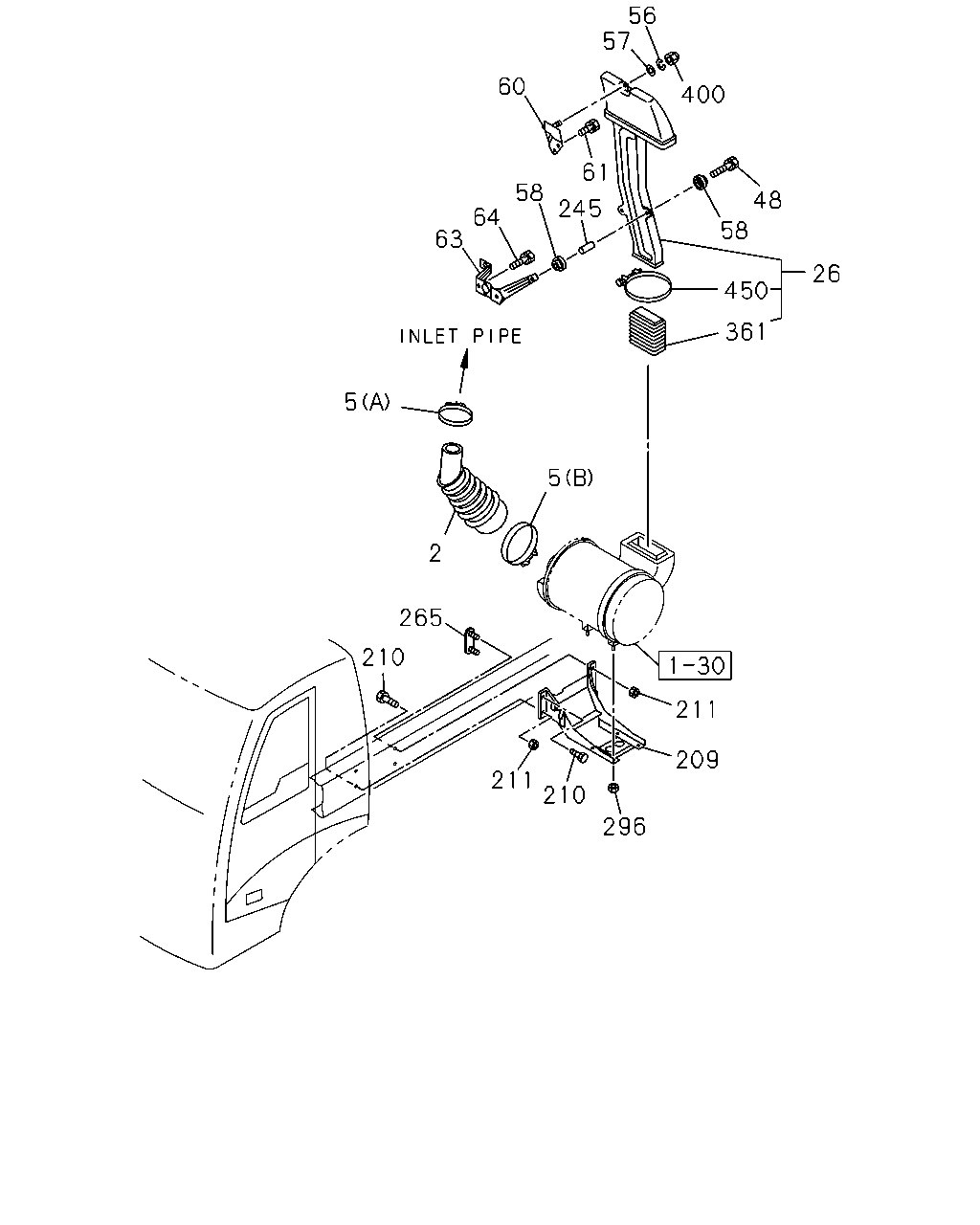

1-31 — AIR DUCT
(#30625) — 29 parça
56
57
60
400
61
58
48
245
64
58
63
26
450
361
5
5
2
265
210
211
209
211
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-983-1
01
1
0107-0108
2
HOSE; ACL
1-14232-126-0
01
1
0109-
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-114-0
01
1
0107-0212
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-198-0
01
1
0301-0810
5
CLIP; AIR DUCT
(A) ID=75-95
8-98133-357-0
01
1
0811-
5
CLIP; AIR DUCT
(B) ID=130-169
1-09707-157-0
01
1
0107-0212
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
01
1
0301-0810
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
0811-
26
DUCT; AIR INT
1-14230-173-2
01
1
0107-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0107-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0107-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0107-
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0107-
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
0107-
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0107-
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
0107-
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0107-
209
BRACKET; ACL
1-53497-525-0
01
1
0107-
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28681-235-0
02
1
0107-0512
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28651-235-0
02
1
0601-
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0107-0602
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
0603-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0107-
265
BRACKET; STUD,ACL
1-53497-454-1
01
1
0107-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0107-0602
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0603-
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0107-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0107-
450
CLAMP; HOSE
9-09915-504-1
01
1
0107-
