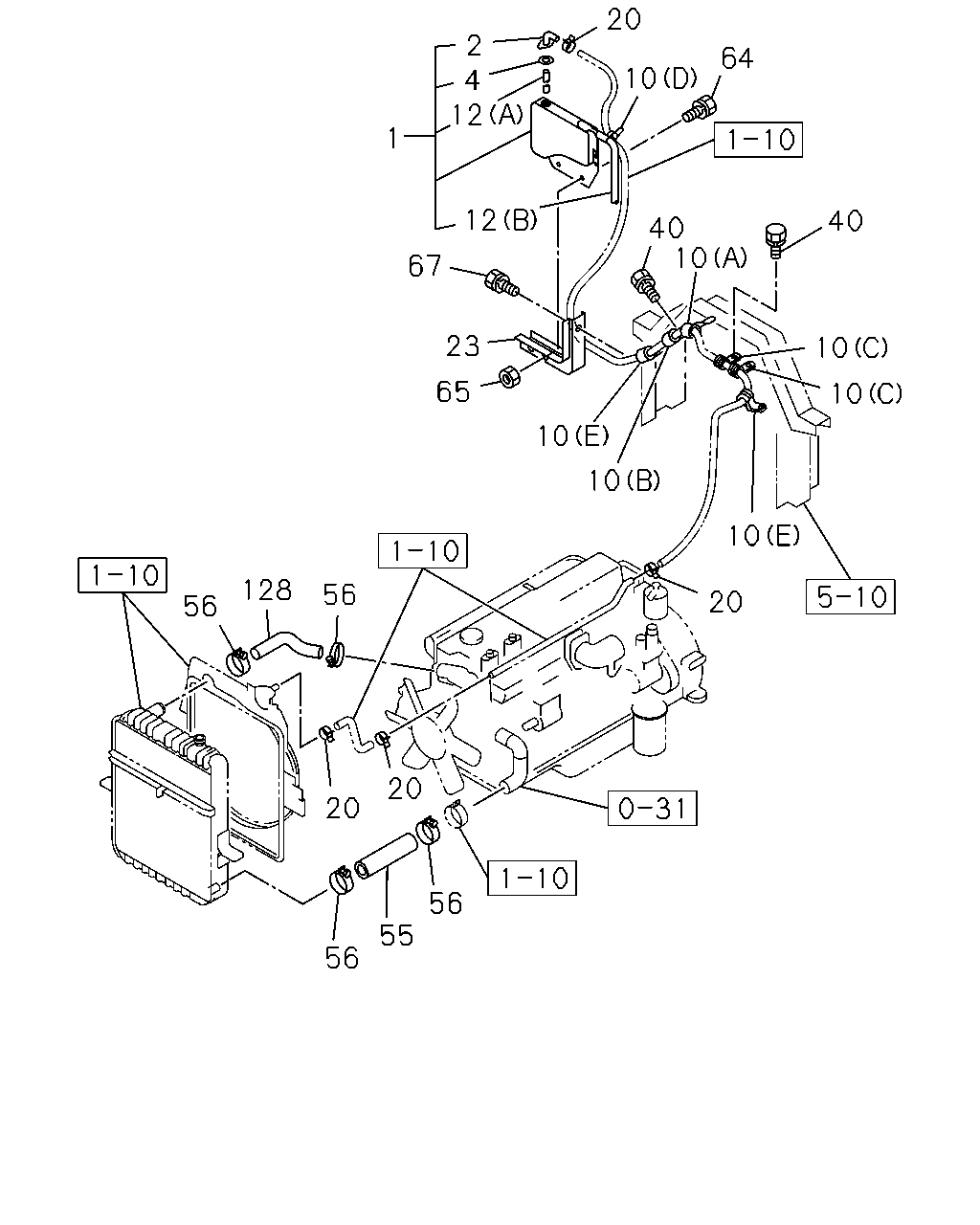

1-11 — RADIATOR HOSE AND SUB TANK
(#30623) — 25 parça
20
2
4
12
64
10
1
12
40
40
10
67
23
10
65
10
10
10
10
128
56
20
56
20
20
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-104-1
01
1
0107-
2
CAP; SURGE TANK
1-21483-008-0
01
1
0107-
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0107-
10
CLIP; RUBBER HOSE
(B) ID=12 L=70
1-09700-097-1
01
1
0107-
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0107-
10
CLIP; RUBBER HOSE
(C) ID=14.5 L=40
1-09701-014-0
02
1
0107-
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-1
01
1
0107-
10
CLIP; RUBBER HOSE
(E) ID=13 L=20
9-09525-235-0
01
1
0107-0606
10
CLIP; RUBBER HOSE
(E) ID=13 L=20
0-95235-235-0
01
1
0607-
10
CLIP; RUBBER HOSE
(A) ID=14 L=44
9-09917-427-0
01
1
0107-
12
HOSE; SURGE TANK
(A)
1-21489-203-0
01
1
0107-
12
HOSE; SURGE TANK
(B) L=300
1-09366-199-0
01
1
0107-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
0107-
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
0107-
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
05
1
0107-0512
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
0601-
55
HOSE; WATER,RAD OUTLET
1-21437-870-1
01
1
0107-
56
CLIP; WATER HOSE,RAD
ID=63
1-09704-067-0
04
1
0107-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0107-0707
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0708-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91150-108-0
04
1
0107-0602
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
04
1
0603-
67
BOLT; BRKT
M10X20 FLANGE
0-28681-020-0
02
1
0107-0512
67
BOLT; BRKT
M10X20 FLANGE
0-28651-020-0
02
1
0601-
128
HOSE; WATER,RAD INL
1-21437-757-0
01
1
0107-
