1-10 — RADIATOR (#30622) — 53 parça

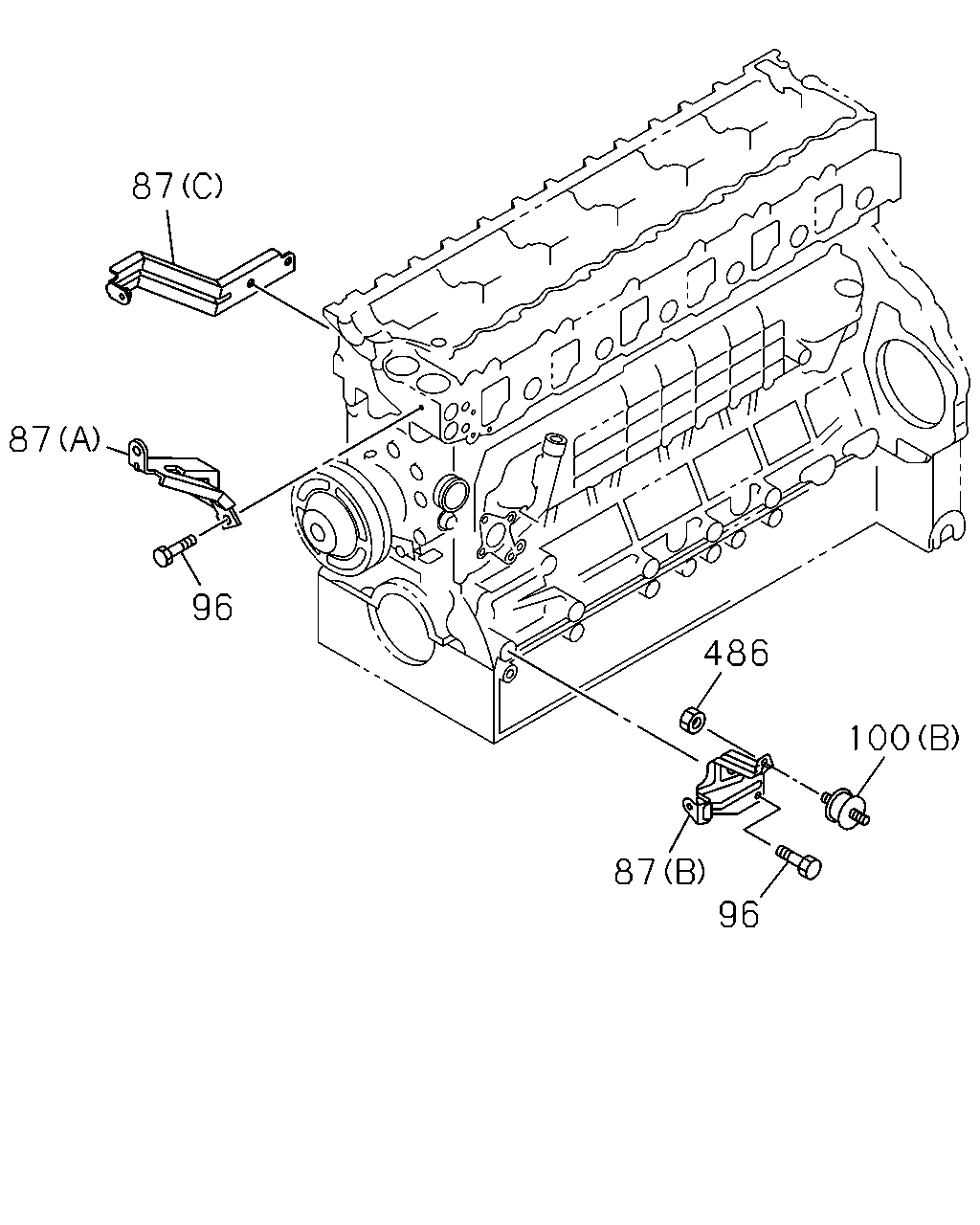

çizim 21181
87 87 96 486 100 87 96
BalonParca AdiParca NoAdetTipApplied Date
87 STAY; FAN GUIDE
(A) 		8-94393-776-1 01 1 0107-
87 STAY; FAN GUIDE
(B) 		8-94393-778-2 01 1 0107-
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0107-
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0107-0512
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601-
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0107-0910
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911-
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107-
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603-
çizim 81273
79 25 22 1 16 80 22 25 51
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM 1-21410-863-0 01 1 0107-
16 CAP; RAD 1-21450-097-2 01 1 0107-
22 BRACKET; RAD MTG
(B) 		1-21464-739-0 01 1 0107-
22 BRACKET; RAD MTG
(A) 		1-21464-738-0 01 1 0107-
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 16 1 0107-
25 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
25 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0107-
79 GUIDE; FAN,RAD 1-21551-468-0 01 1 0107-
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 06 1 0107-

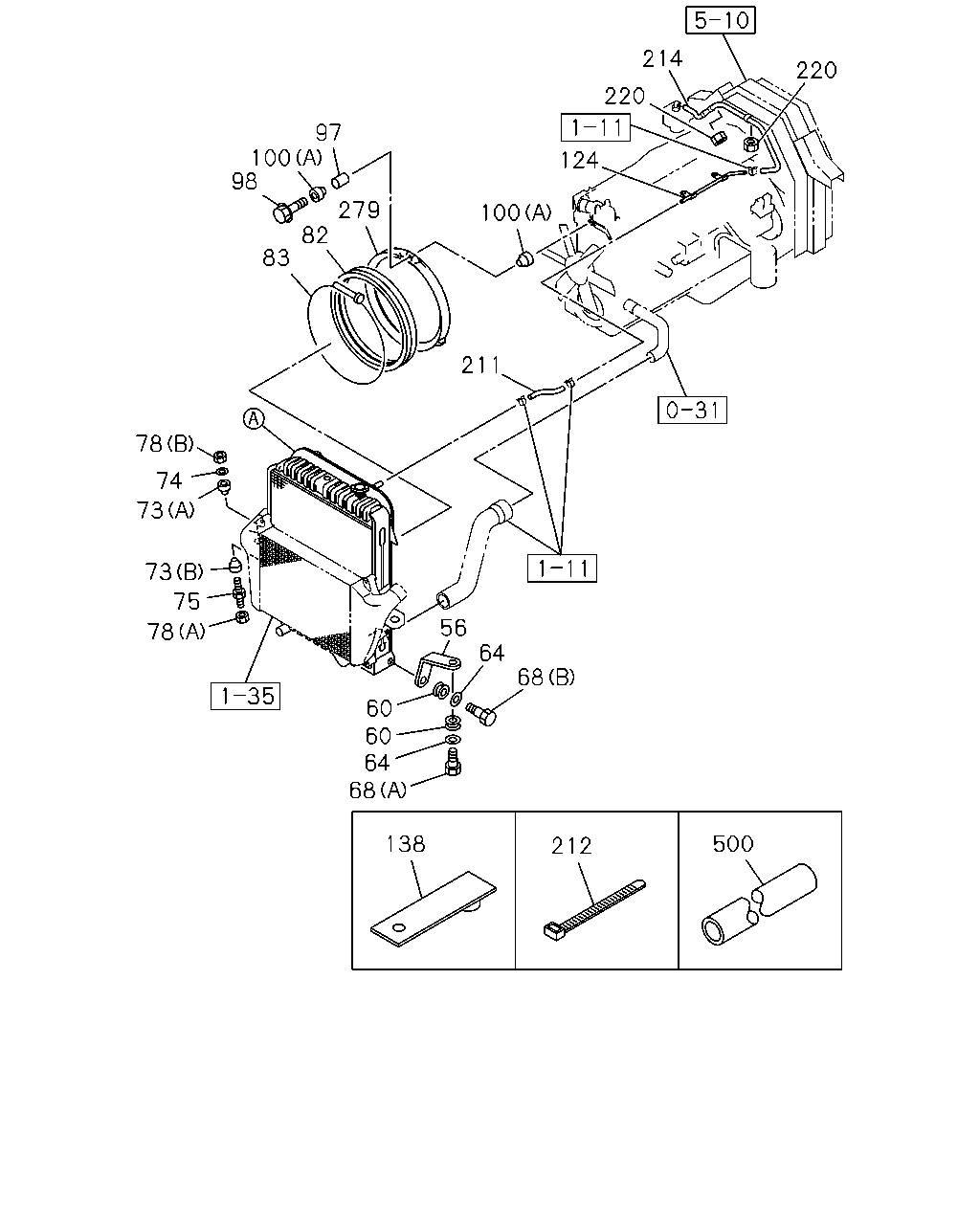

çizim 82721
214 220 220 97 100 98 124 279 82 100 83 211 78 74 73 73 75 56 78 64 68 60 60 64 68 500 138 212
BalonParca AdiParca NoAdetTipApplied Date
56 STAY; RAD 1-21464-711-0 01 1 0107-
56 STAY; RAD 1-21464-710-0 01 1 0107-
60 GROMMET 1-09332-117-0 04 1 0107-
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606-
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0107-
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0107-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0107-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0107-
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0107-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0107-
78 NUT; CUSHION RUBBER
(A) M12 FLANGE 		0-91150-212-0 02 1 0107-0602
78 NUT; CUSHION RUBBER
(A) M12 FLANGE 		0-91180-212-0 02 1 0603-
78 NUT; CUSHION RUBBER
(B) M10 FLANGE 		5-09440-006-0 02 1 0107-
82 COVER; FAN,RAD 1-21559-321-0 01 1 0107-
83 CLIP; FAN COVER 1-09707-177-2 01 1 0107-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0107-
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 0107-0512
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28050-830-0 03 1 0601-
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0107-0910
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911-
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107-
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0107-
138 BRACKET; CLIP 1-47476-881-0 01 1 0107-
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0107-
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0107-0602
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603-
279 BELL MOUTH 8-97601-172-1 01 1 0107-
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0107-0107
