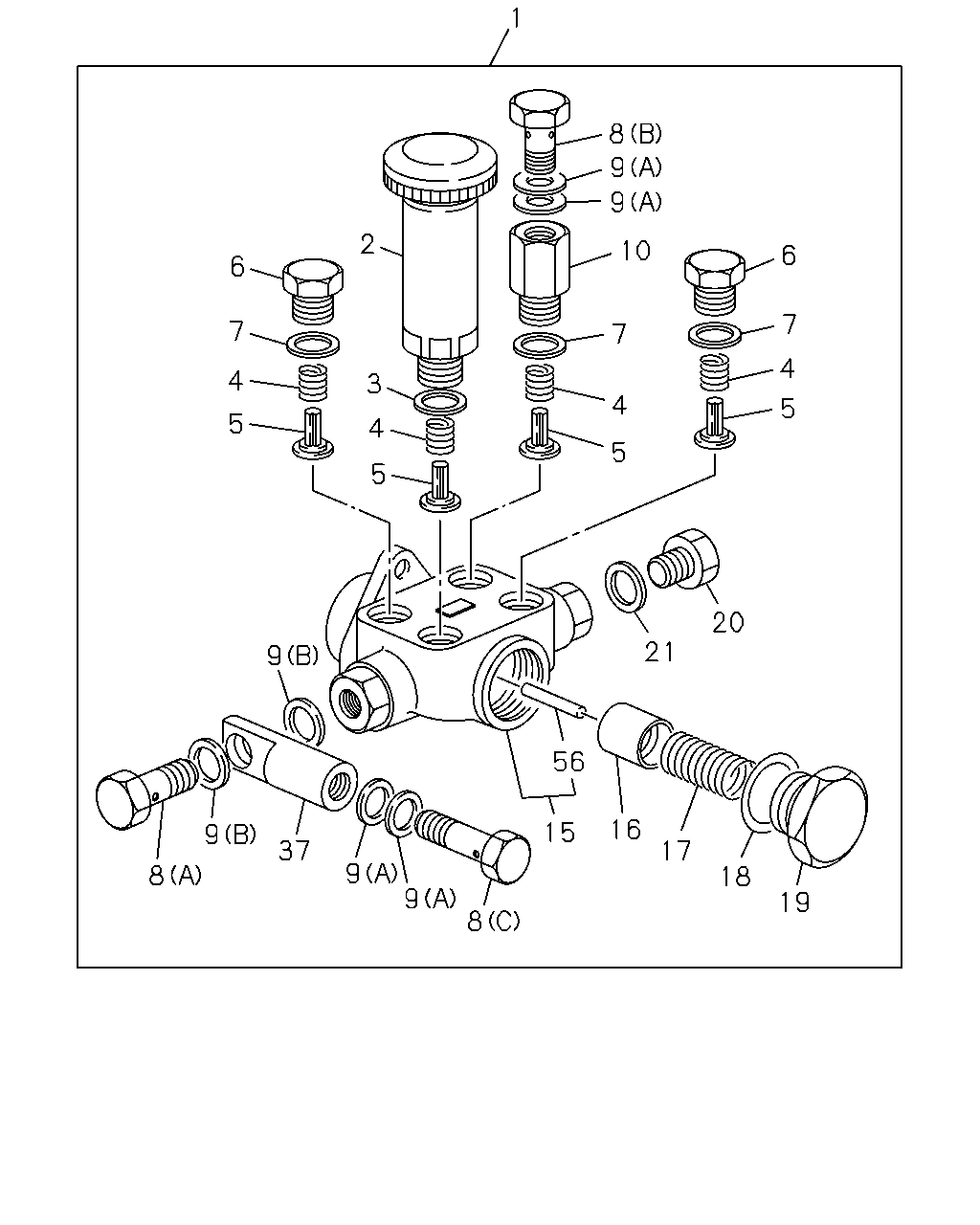

0-84 — FEED PUMP; INJECTION PUMP (#30619) — 22 parça

1 8 9 9 2 10 6 6 7 7 7 4 4 3 4 5 5 4 5 5 20 21 9 56 16 15 9 37 17 9 9 8 18 8 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97600-665-4	1-15750-140-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-19623-016-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-97600-665-4	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: A = 8-97600-665-4	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP M14X30 ASM PART: A = 8-97600-665-4	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: A = 8-97600-665-4	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: A = 8-97600-665-4	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15759-067-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15751-036-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15752-001-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15753-005-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15759-042-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	9-81215-182-1	01	1	-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: A = 8-97600-665-4	1-15759-050-0	01	1	-
56	PUSH ROD ASM PART: A = 8-97600-665-4	1-15759-074-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
