0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#30613) — 50 parça
◀
[060A] FIXING;ENG CONT UNIT AND BRACKET (9 parça)
[060A] FIXING;STARTER,GENERATOR,SENSOR,SWITCH (23 parça)
[060A] FIXING;TEMP SENSOR,STARTER RELAY (14 parça)
[060A] RELAY;EXH SHUTTER (4 parça)
▶

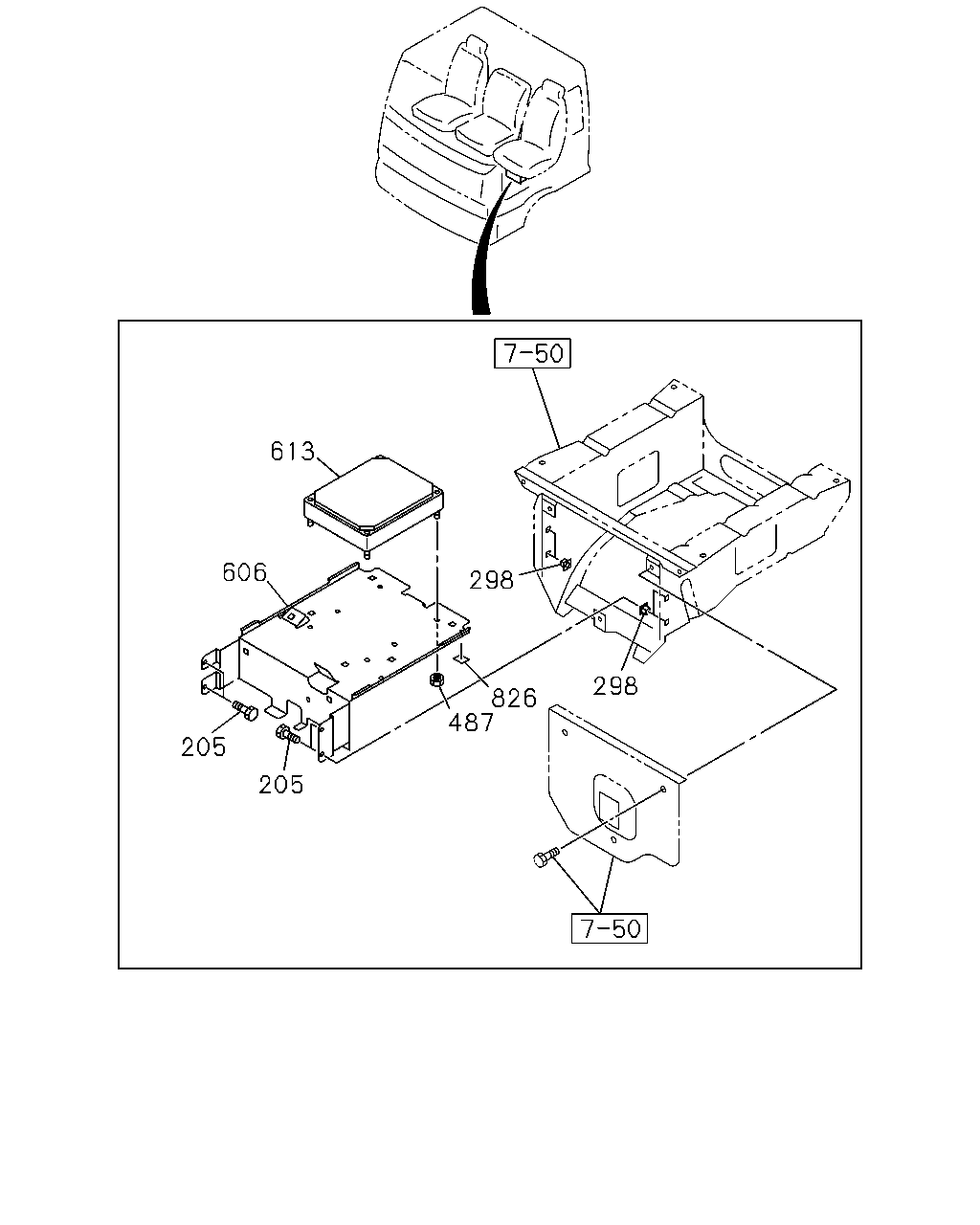

613
606
298
298
826
487
205
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
205
SCREW; BRKT
M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0107-
298
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0107-
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0107-0602
487
NUT
M6 FLANGE
0-91180-106-0
04
1
0603-
606
BRACKET; CONT UNIT
1-75558-534-9
01
1
0107-
613
CONTROL UNIT; ENG
8-97601-782-2
01
1
0107-
826
SEAL; NOISE INSULATION
30X30
8-97866-626-0
03
1
0107-0309
826
SEAL; NOISE INSULATION
30X30
1-74998-128-1
03
1
0310-0908
826
SEAL; NOISE INSULATION
30X30
8-98142-344-0
03
1
0909-

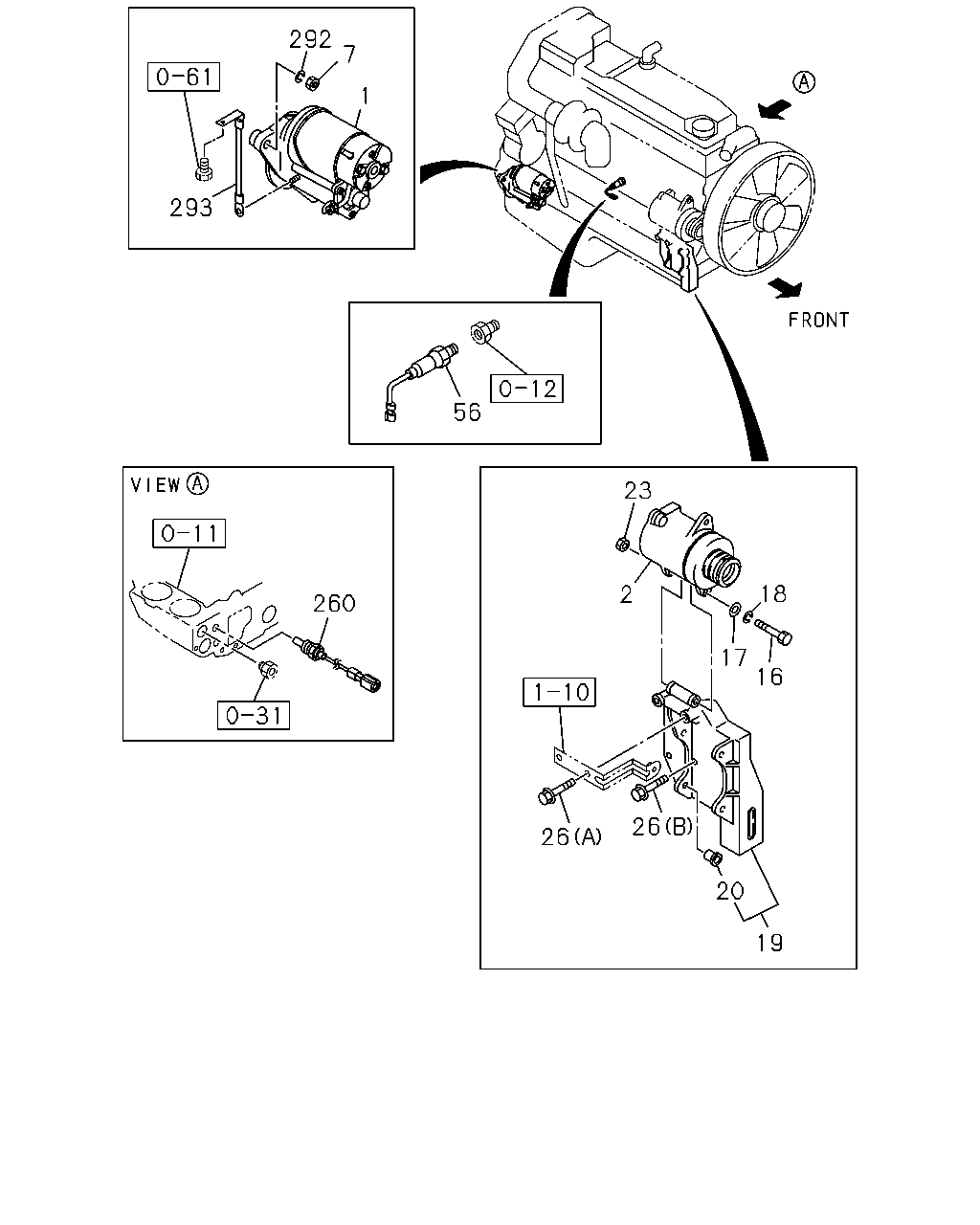

292
7
1
293
56
23
18
2
260
17
16
26
26
20
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
8-94394-151-2
01
1
0107-0108
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
8-97602-169-1
01
1
0109-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
1-81200-599-5
01
1
0107-
7
NUT; STARTER
M14
9-99110-414-0
02
1
0107-0512
7
NUT; STARTER
M14
0-91110-514-0
02
1
0601-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0107-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0107-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0107-0603
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
19
BRACKET; GEN
8-94395-470-4
01
1
0107-
20
COLLAR; BRKT,GEN
8-94201-057-1
02
1
0107-1302
23
NUT; GEN
M14
9-99110-414-0
01
1
0107-0512
23
NUT; GEN
M14
0-91110-514-0
01
1
0601-
26
BOLT; GEN BRKT
(B) M10X40 FLANGE
0-28181-040-0
02
1
0107-0512
26
BOLT; GEN BRKT
(B) M10X40 FLANGE
0-28151-040-0
02
1
0601-
26
BOLT; GEN BRKT
(A) M10X80 FLANGE
0-28181-080-0
02
1
0107-0512
26
BOLT; GEN BRKT
(A) M10X80 FLANGE
0-28151-080-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0107-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0107-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0107-0603
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
293
CABLE; STARTER EARTH
L=320
1-82650-324-0
01
1
0107-

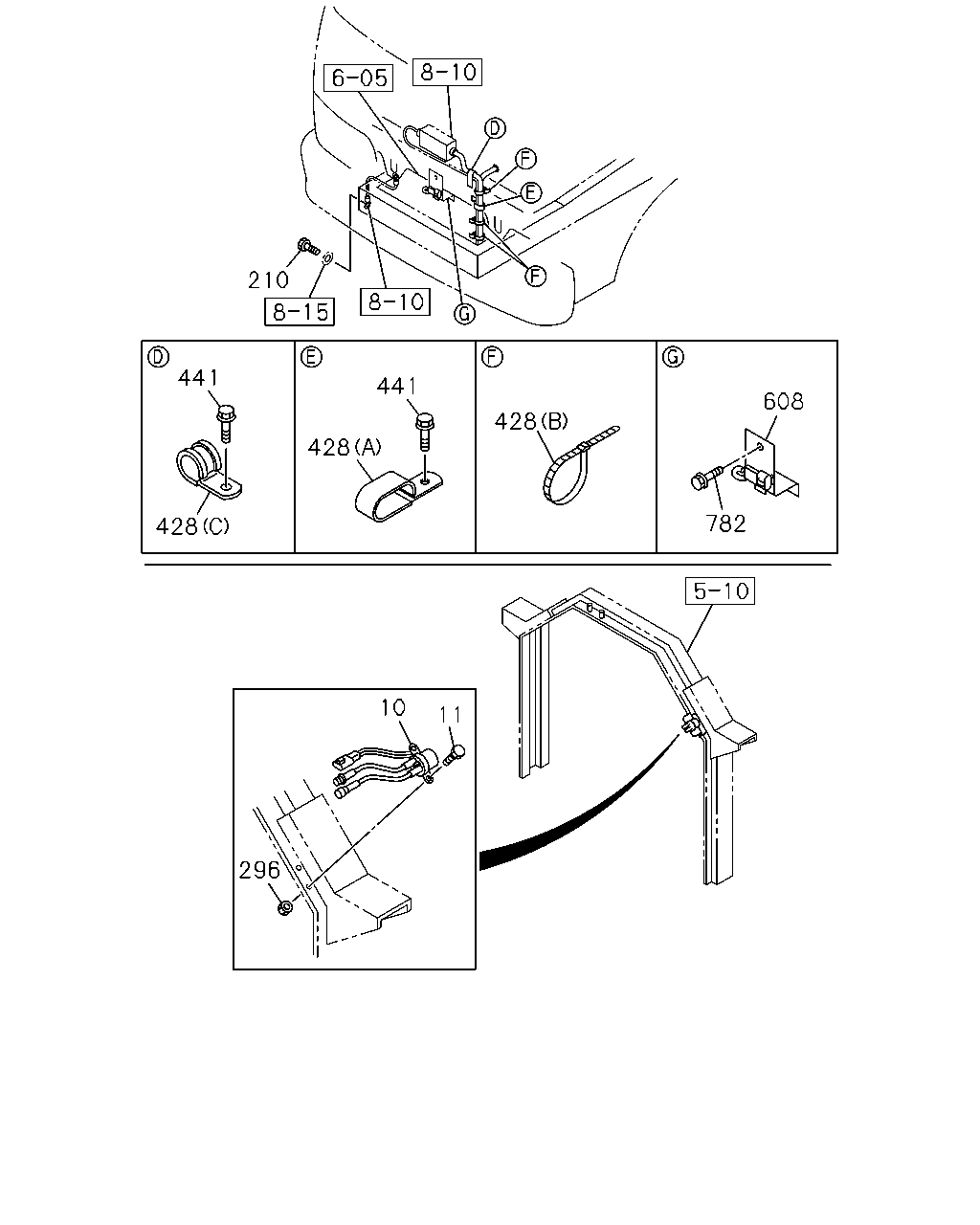

210
441
441
608
428
428
782
428
10
11
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0107-
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28680-820-0
02
1
0107-0512
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28650-820-0
02
1
0601-
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0107-1201
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1202-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0107-0602
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0603-
428
CLIP; HARNESS
(A) ID=35 L=50
1-09701-214-0
01
1
0107-
428
CLIP; HARNESS
(C) ID=30X2 L=28
1-09701-266-0
01
1
0107-
428
CLIP; HARNESS
(B) L=300
1-09707-001-1
04
1
0107-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28650-825-0
02
1
0601-
608
SENSOR; AIR TEMP
1-83544-031-0
01
1
0107-
782
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0201-

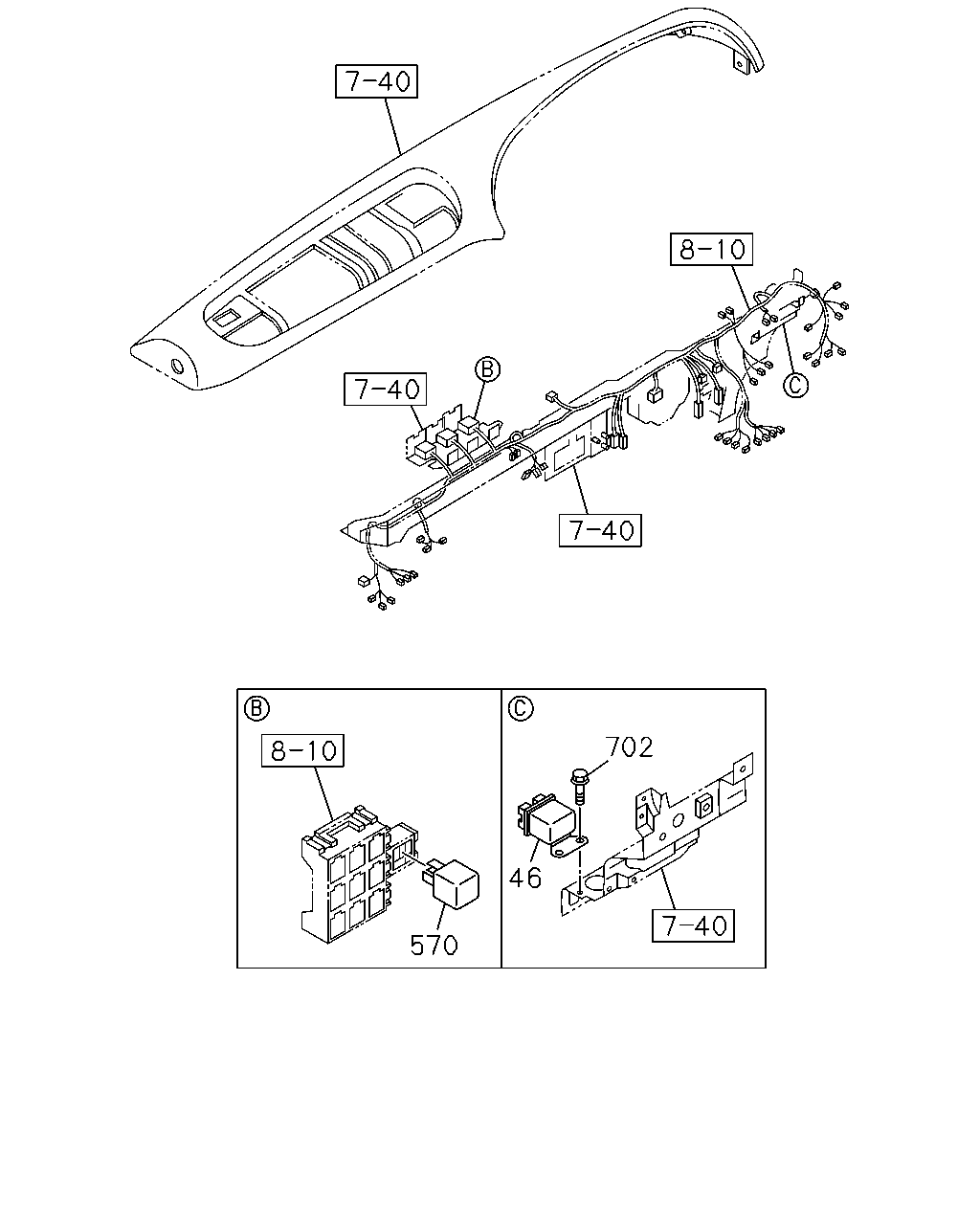

702
46
570
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0107-
570
RELAY; EXH SHUTTER
24V 12.5A MITUBA
8-97062-815-1
01
1
0107-0111
570
RELAY; EXH SHUTTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
702
BOLT; RELAY
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0107-
