Isuzu WW
▶
TRUCKS
▶
FTR
▶
10891 - FTR34(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

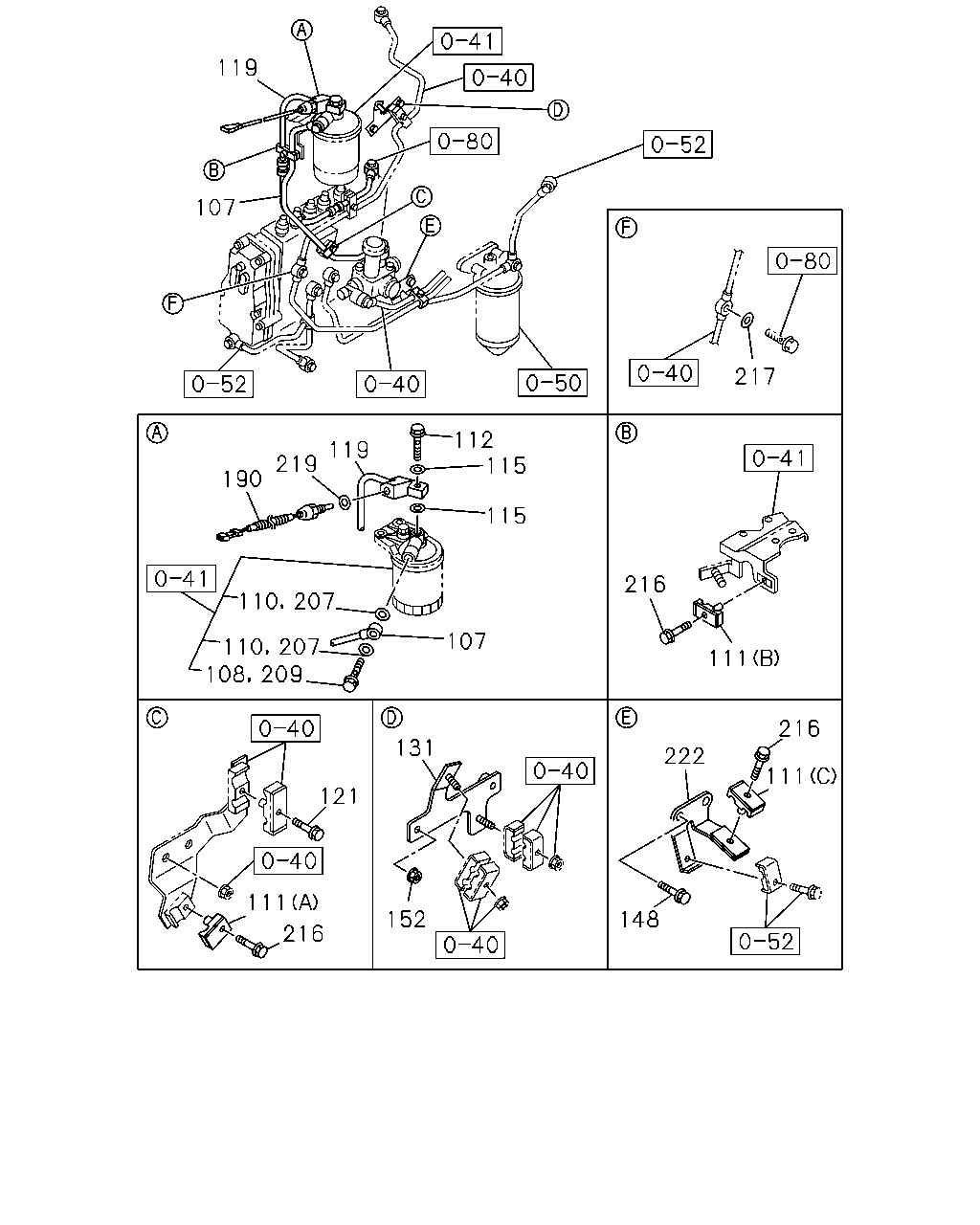

0-42 — FUEL PUMP AND PIPE
(#30608) — 28 parça
119
107
217
112
115
119
219
190
115
216
110
107
207
209
111
216
131
222
111
121
111
152
148
216
207
110
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97600-824-0
01
1
0107-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0201-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0201-1312
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
111
CLIP; FUEL PIPE
(A)
1-15419-215-1
01
1
0107-
111
CLIP; FUEL PIPE
(B) L=48
5-09709-103-0
01
1
0107-
111
CLIP; FUEL PIPE
(C) ID=6.0 & 9.5
8-94100-359-0
01
1
0107-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0107-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0107-1312
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97601-120-0
01
1
0107-
121
BOLT; CLIP
M6X30 W/LK WASHER
0-50040-630-0
01
1
0107-0512
121
BOLT; CLIP
M6X30 W/LK WASHER
0-50540-630-0
01
1
0601-
131
BRACKET; FUEL PIPE CLIP
8-97601-488-0
01
1
0107-
148
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
148
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0601-
152
NUT; BRKT
M6 FLANGE
0-91150-206-0
02
1
0107-0602
152
NUT; BRKT
M6 FLANGE
0-91180-206-0
02
1
0603-
190
SENSOR; FUEL TEMP
8-97601-754-3
01
1
0107-
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
0107-0112
209
BOLT; EYE,FUEL FILTER
1-15619-310-0
01
1
0107-0112
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
03
1
0107-0512
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50540-630-0
03
1
0601-
217
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0107-1312
217
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
219
GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2
1-09630-084-0
01
1
0107-1312
219
GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2
8-98251-344-0
01
1
1401-
222
BRACKET; CLIP
8-94395-079-2
01
1
0107-
