0-40 — FUEL INJECTION SYSTEM
(#30606) — 78 parça
◀

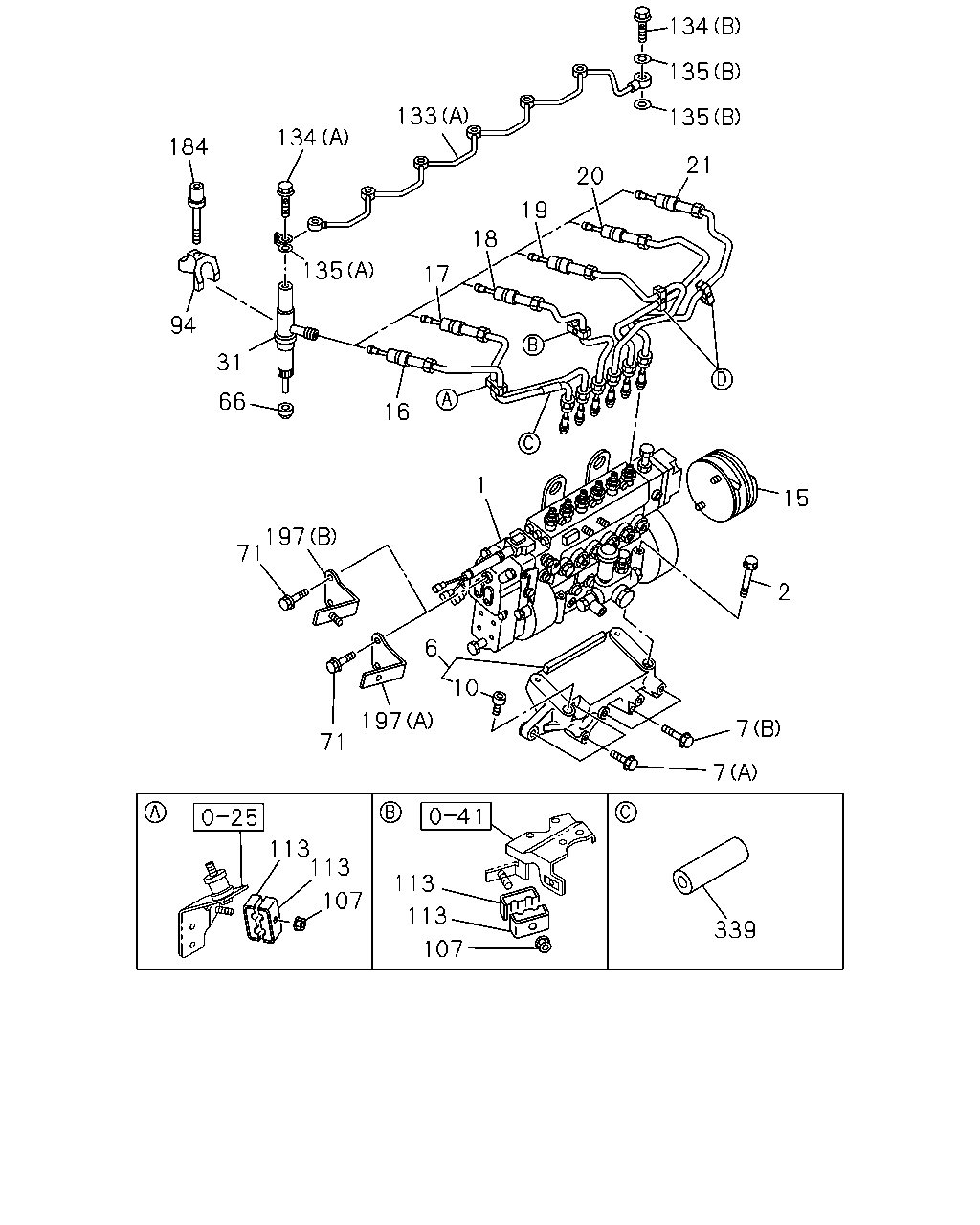

[040A] PUMP,NOZZLE AND PIPE (42 parça)
[040A] COMPONENT;NOZZLE (19 parça)

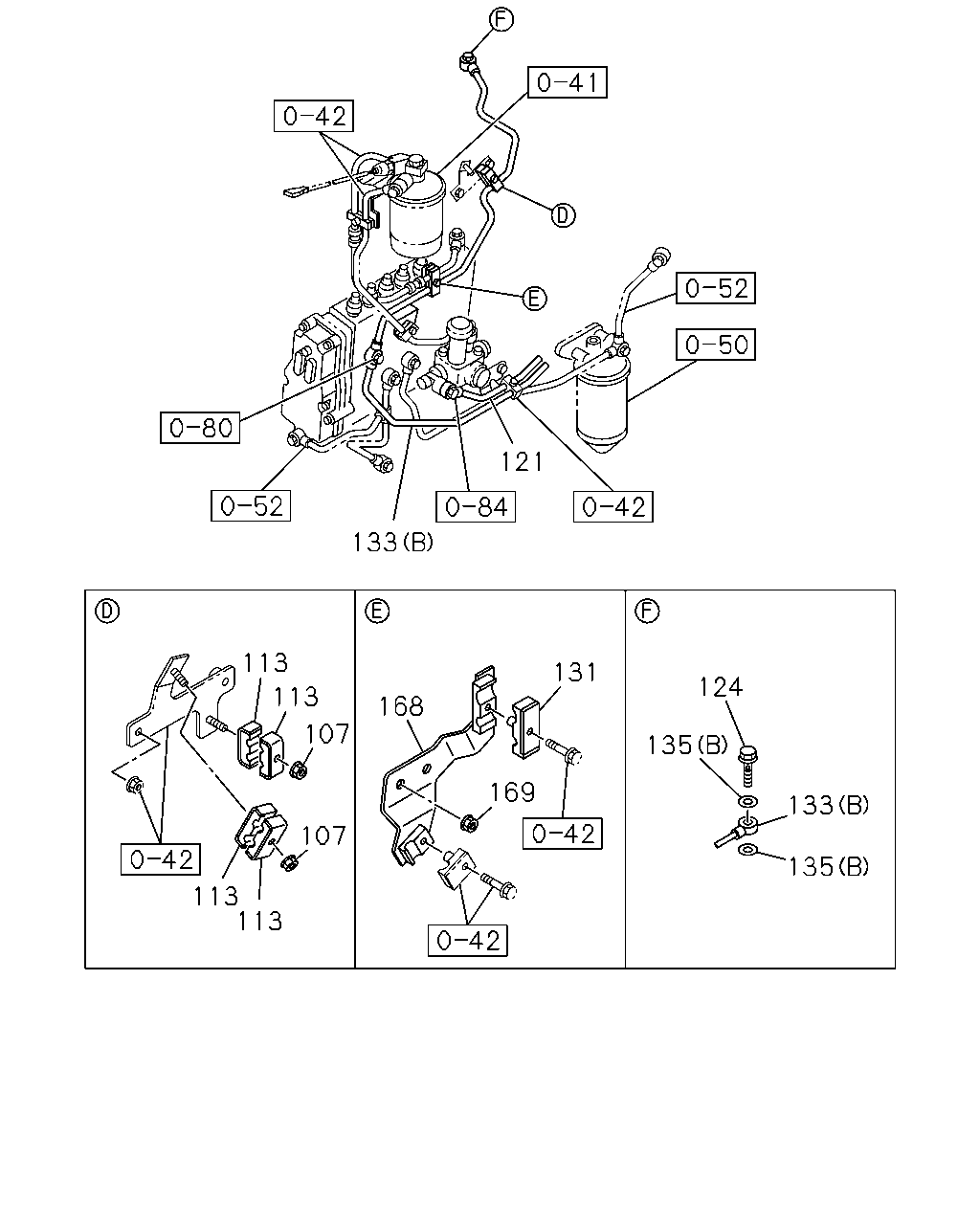

[040A] DETAIL;PIPE,BRKT AND CLIP (17 parça)
▶
134
135
133
135
134
184
21
20
19
18
135
17
94
31
66
16
1
15
197
71
2
6
10
197
7
71
7
113
113
113
107
113
339
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97600-665-4
01
1
0107-
2
BOLT; INJ PUMP
M8X80 FLANGE
0-28080-880-0
04
1
0107-0512
2
BOLT; INJ PUMP
M8X80 FLANGE
0-28050-880-0
04
1
0601-
6
BRACKET; INJ PUMP TO C/BL
8-94395-540-1
01
1
0107-
7
BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE
0-28181-040-0
03
1
0107-0512
7
BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE
0-28151-040-0
03
1
0601-
7
BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE
0-28181-080-0
03
1
0107-0512
7
BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE
0-28151-080-0
03
1
0601-
10
DOWEL; INJ PUMP
OD=14 L=9
9-19759-019-1
02
1
0107-
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
8-94396-483-1
01
1
0107-
16
PIPE; INJ NO.1
8-97600-667-0
01
1
0107-
17
PIPE; INJ NO.2
8-97600-668-0
01
1
0107-
18
PIPE; INJ NO.3
8-97600-669-0
01
1
0107-
19
PIPE; INJ NO.4
8-97600-670-0
01
1
0107-
20
PIPE; INJ NO.5
8-97600-671-1
01
1
0107-
21
PIPE; INJ NO.6
8-97600-672-0
01
1
0107-
31
NOZZLE ASM; INJ
8-97600-666-0
06
1
0107-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-97601-447-2
06
1
0107-0909
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-98079-248-0
06
1
0910-
71
BOLT; BRKT
M6X12 FLANGE
0-28080-612-0
02
1
0107-0512
71
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
02
1
0601-
94
BRACKET; INJ NOZZLE
8-94390-988-0
06
1
0107-0410
94
BRACKET; INJ NOZZLE
8-97306-074-1
06
1
0411-0606
94
BRACKET; INJ NOZZLE
8-98028-999-1
06
1
0607-
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91150-106-0
04
1
0107-0602
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91180-106-0
04
1
0603-
113
CLIP; INJ PIPE
1-09701-132-1
08
1
0107-1202
113
CLIP; INJ PIPE
1-09701-240-0
08
1
1203-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-94390-451-0
01
1
0107-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97600-692-2
01
1
0107-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
0107-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
01
1
0107-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
0909-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2
1-09630-083-0
04
1
0107-0908
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2
1-09630-083-0
02
1
0909-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3
8-97600-925-0
06
1
0107-0908
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3
8-98065-992-0
06
1
0909-
184
BOLT; NOZZLE HOLDER
8-94390-989-1
06
1
0107-0412
184
BOLT; NOZZLE HOLDER
M8X54
8-98008-895-0
06
1
0501-
197
BRACKET; FUEL CUT CABLE
(A)
8-97600-860-0
01
1
0107-0308
197
BRACKET; FUEL CUT CABLE
(B)
8-97603-534-0
01
1
0309-
339
RUBBER; COVER
ID=6 OD=10 L=70
1-09376-512-0
01
1
0107-
31
32
42
145
140
44
141
46
146
46
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
NOZZLE ASM; INJ
8-97600-666-0
06
1
0107-
32
HOLDER ASM; NOZZLE
8-97602-022-0
06
1
0107-
33
NOZZLE; INJ
8-97602-021-0
06
1
0107-
35
NUT; NOZZLE RET,NOZZLE HOLDER
1-15349-142-0
06
1
0107-
42
GASKET; INL CONNECTOR,NOZZLE HOLDER
9-09561-112-0
06
1
0107-
44
SPRING; NOZZLE,NOZZLE HOLDER
5-15345-003-0
06
1
0107-
46
PIN; NOZZLE SET,NOZZLE HOLDER
(A)
1-15347-001-1
12
1
0107-
46
PIN; NOZZLE SET,NOZZLE HOLDER
(B)
9-15347-003-0
12
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40
1-15349-120-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50
1-15349-121-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52
1-15349-122-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54
1-15349-123-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56
1-15349-124-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58
1-15349-125-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60
1-15349-126-0
AR
1
0107-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70
1-15349-127-0
AR
1
0107-
141
ROD; PUSH,UPR,NOZZLE HOLDER
1-15349-132-0
06
1
0107-
145
GASKET; RET NUT
ID=23.3
8-94173-412-0
06
1
0107-
146
SPACER; NOZZLE
1-15349-133-0
06
1
0107-
121
133
113
131
124
113
168
107
135
169
133
107
135
113
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91150-106-0
04
1
0107-0602
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91180-106-0
04
1
0603-
113
CLIP; INJ PIPE
1-09701-132-1
08
1
0107-1202
113
CLIP; INJ PIPE
1-09701-240-0
08
1
1203-
121
PIPE; FUEL,FEED PUMP,SUCTION
8-94395-043-2
01
1
0107-
124
BOLT; EYE LEAK OFF PIPE
M10X21 FLANGE
8-94396-711-0
01
1
0107-
131
CLIP; OVERFLOW LEAK OFF
L=48
5-09709-103-0
01
1
0107-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-94390-451-0
01
1
0107-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97600-692-2
01
1
0107-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
0909-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2
1-09630-083-0
04
1
0107-0908
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2
1-09630-083-0
02
1
0909-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3
8-97600-925-0
06
1
0107-0908
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3
8-98065-992-0
06
1
0909-
168
BRACKET; FUEL PIPE
8-97602-186-0
01
1
0107-
169
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
169
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
