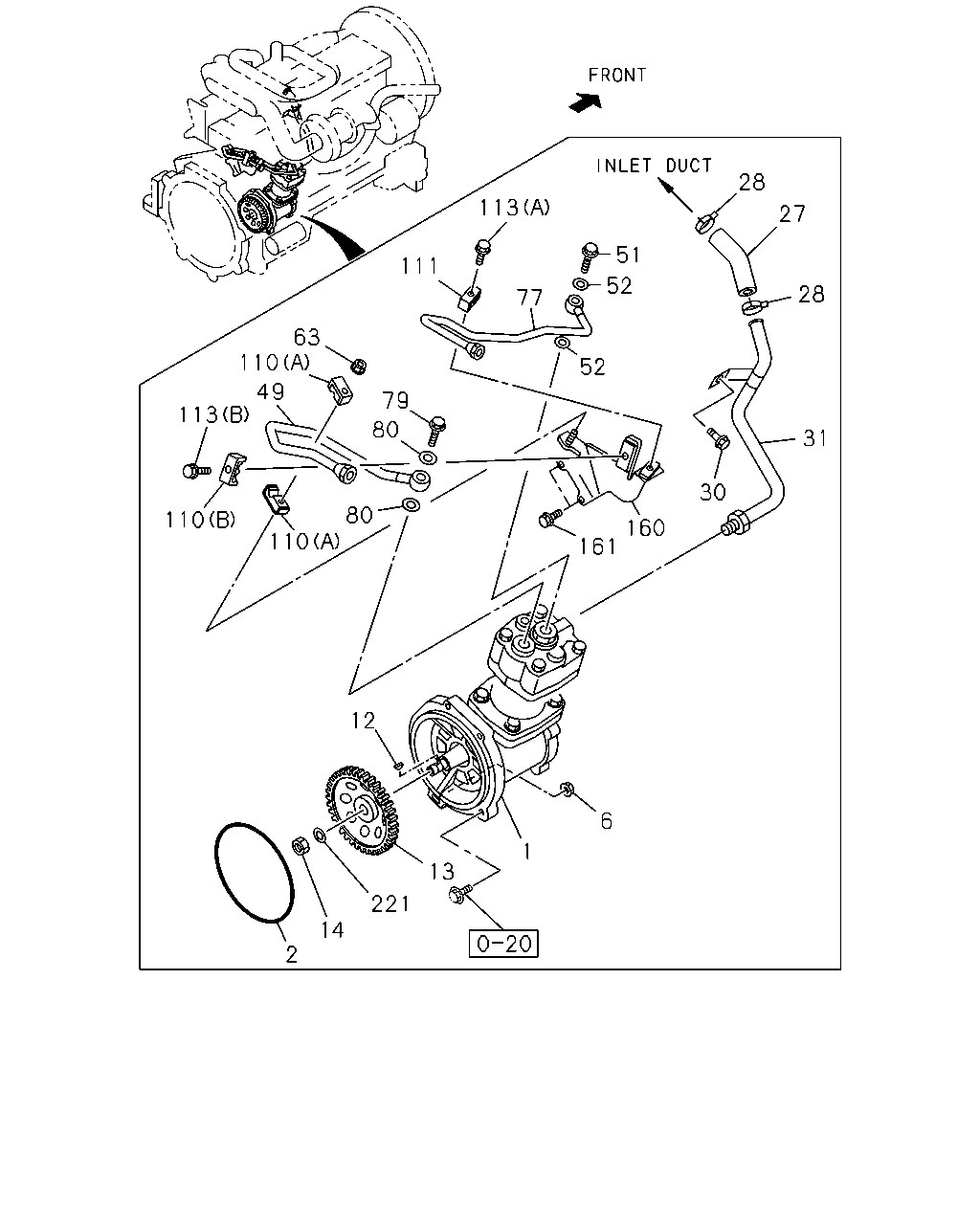

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#30604) — 37 parça
çizim 81086
28 113 27 51 111 52 28 77 63 110 52 49 113 79 80 31 30 80 110 160 110 161 12 6 1 13 221 14 2
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94394-039-4 01 1 0107-1107
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98187-298-0 01 1 1108-1202
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97642-294-0 01 1 1203-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6 		1-09623-570-0 01 1 0107-
6 NUT; AIR CMPR
M12 FLANGE 		0-91150-212-0 01 1 0107-0602
6 NUT; AIR CMPR
M12 FLANGE 		0-91180-212-0 01 1 0603-
12 KEY; AIR CMPR GEAR 9-08055-516-0 01 1 0107-
13 GEAR; AIR CMPR DRIVE
Z=49 		8-94394-511-4 01 1 0107-
14 NUT; GEAR
M20 		9-99110-520-0 01 1 0107-0512
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601-
27 HOSE; AIR CMPR,SUCTION 8-97602-063-1 01 1 0107-
28 CLIP; HOSE,AIR CMPR
ID=26 		1-09707-091-0 02 1 0107-
30 BOLT; PIPE CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0107-0512
30 BOLT; PIPE CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0601-
31 PIPE; AIR,AIR CMPR SUCTION 8-97602-059-0 01 1 0107-
49 PIPE; AIR,CHARGE 8-97602-182-0 01 1 0107-
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 0107-1404
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1405-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0107-
63 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0107-0602
63 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603-
77 PIPE; AIR,GOV 8-97602-183-0 01 1 0107-
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0107-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0107-1312
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
110 CLIP; AIR PIPE
(A) 		1-09701-282-0 02 1 0107-
110 CLIP; AIR PIPE
(B) 		8-94393-037-0 01 1 0107-
111 CLIP; AIR PIPE 8-94396-371-0 01 1 0107-
113 BOLT; CLIP,AIR PIPE
(A) M6X20 FLANGE 		0-28080-620-0 01 1 0107-0512
113 BOLT; CLIP,AIR PIPE
(A) M6X20 FLANGE 		0-28050-620-0 01 1 0601-
113 BOLT; CLIP,AIR PIPE
(B) M6X40 FLANGE 		0-28080-640-0 01 1 0107-0512
113 BOLT; CLIP,AIR PIPE
(B) M6X40 FLANGE 		0-28050-640-0 01 1 0601-
160 BRACKET; AIR PIPE 8-97601-489-0 01 1 0107-
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 0107-0605
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606-
