1 |

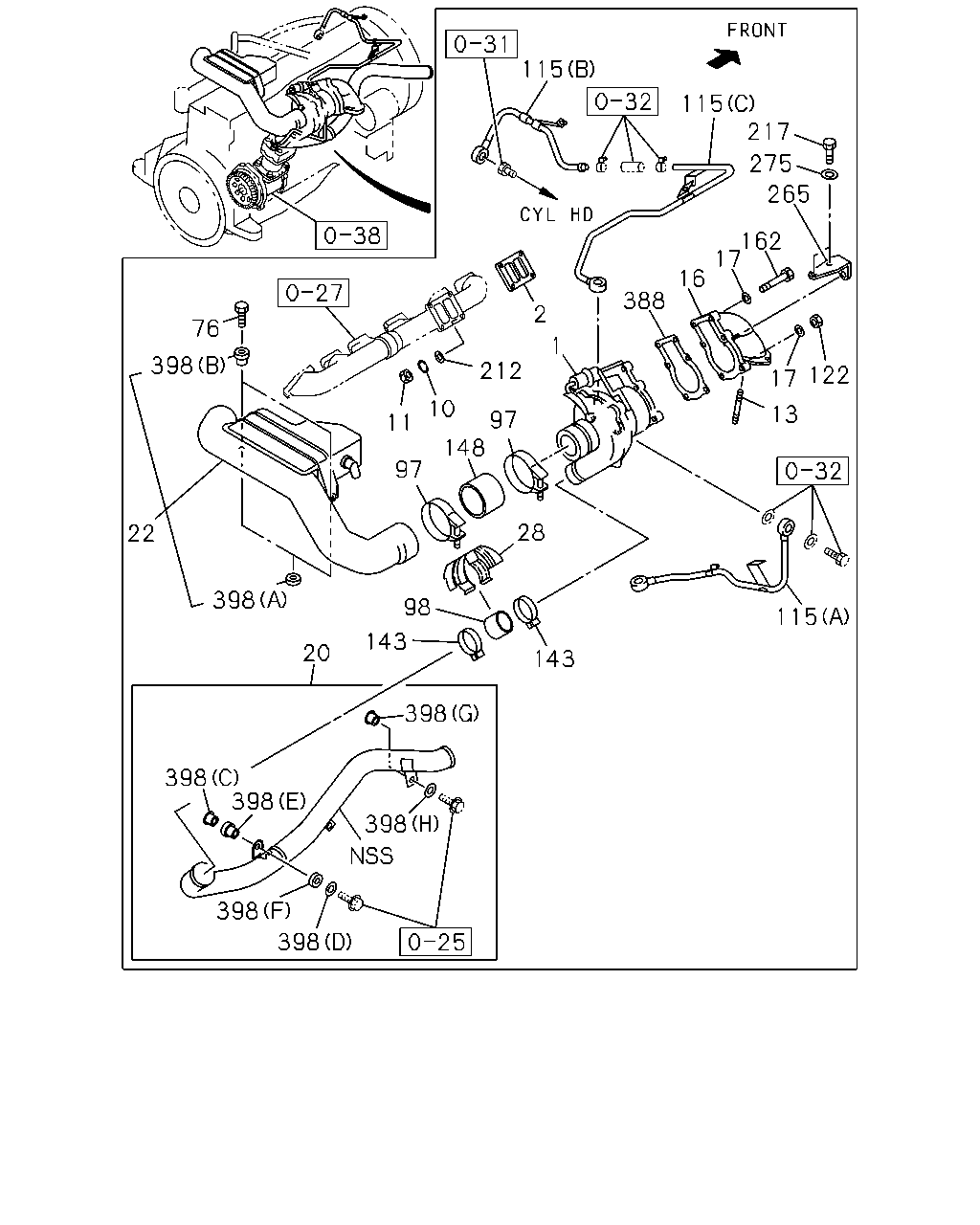

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-97601-835-1 |
01 |
1 |
0107- |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94390-044-0 |
01 |
1 |
0107- |
| |
10 |
WASHER; LK,TURBOCHARGER
T=2.2
|
1-09556-015-0 |
02 |
1 |
0107- |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
04 |
1 |
0107- |
| |
13 |
STUD; EXH PIPE
M12X103 L=123
|
8-94394-656-0 |
01 |
1 |
0107- |
| |
16 |
ADAPTER; EXH PIPE
|
8-94395-767-0 |
01 |
1 |
0107- |
| |
17 |
WASHER; PL,ADAPTER
T=1.9
|
5-09500-012-0 |
06 |
1 |
0107- |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
|
8-94392-961-0 |
01 |
1 |
0107- |
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
|
8-97600-662-1 |
01 |
1 |
0107- |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
|
8-94393-182-0 |
01 |
1 |
0107- |
| |
76 |
BOLT; AIR DUCT
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
0107-0512 |
| |
76 |
BOLT; AIR DUCT
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0601- |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
|
1-09707-144-0 |
02 |
1 |
0811-0811 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
|
1-09707-144-0 |
04 |
1 |
0812- |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=100
|
9-09915-599-0 |
02 |
1 |
0107-0211 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
|
1-09707-144-0 |
02 |
1 |
0212-0306 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
|
1-09707-199-0 |
04 |
1 |
0307-0810 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
|
1-09707-199-0 |
02 |
1 |
0811-0811 |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
1-09360-797-1 |
01 |
1 |
0107-1408 |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
8-98245-240-0 |
01 |
1 |
1409- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
(C)
|
8-94392-949-0 |
01 |
1 |
0107- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
(A)
|
8-94395-453-2 |
01 |
1 |
0107- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
(B)
|
8-97601-491-0 |
01 |
1 |
0107-0201 |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
(B)
|
8-97602-490-0 |
01 |
1 |
0202- |
| |
122 |
NUT; ADAPTER
M8
|
1-09400-118-1 |
01 |
1 |
0107- |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
|
8-94126-771-0 |
02 |
1 |
0107-0306 |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0307-0811 |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
|
8-94126-771-0 |
02 |
1 |
0812- |
| |
148 |
HOSE; TURBOCHARGER,INL
ID=89 L=80
|
1-09360-356-1 |
01 |
1 |
0107- |
| |
162 |
BOLT; ADAPTER
M8X57
|
5-09000-275-0 |
05 |
1 |
0107- |
| |
212 |
WASHER; PL,TURBOCHARGER
ID=10
|
1-09503-033-1 |
04 |
1 |
0107- |
| |
217 |
BOLT; BRKT
M12X30
|
8-94394-324-0 |
03 |
1 |
0107- |
| |
265 |
BRACKET; EXH PIPE
|
8-94395-764-2 |
01 |
1 |
0107- |
| |
275 |
WASHER; PL
ID=12.2
|
1-09503-008-0 |
03 |
1 |
0107- |
| |
388 |
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94394-248-2 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(F)
|
8-94160-177-0 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(A)
ID=19.5
|
8-94202-456-3 |
02 |
1 |
0107- |
| |
398 |
MOUNTING
(C)
|
8-94390-551-1 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(D)
|
8-94394-504-0 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(E)
|
8-94394-529-0 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(H)
|
8-94395-766-0 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(G)
OD=23
|
8-97105-689-6 |
01 |
1 |
0107- |
| |
398 |
MOUNTING
(B)
|
8-97600-053-0 |
02 |
1 |
0107- |
