◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#3060) — 93 parça

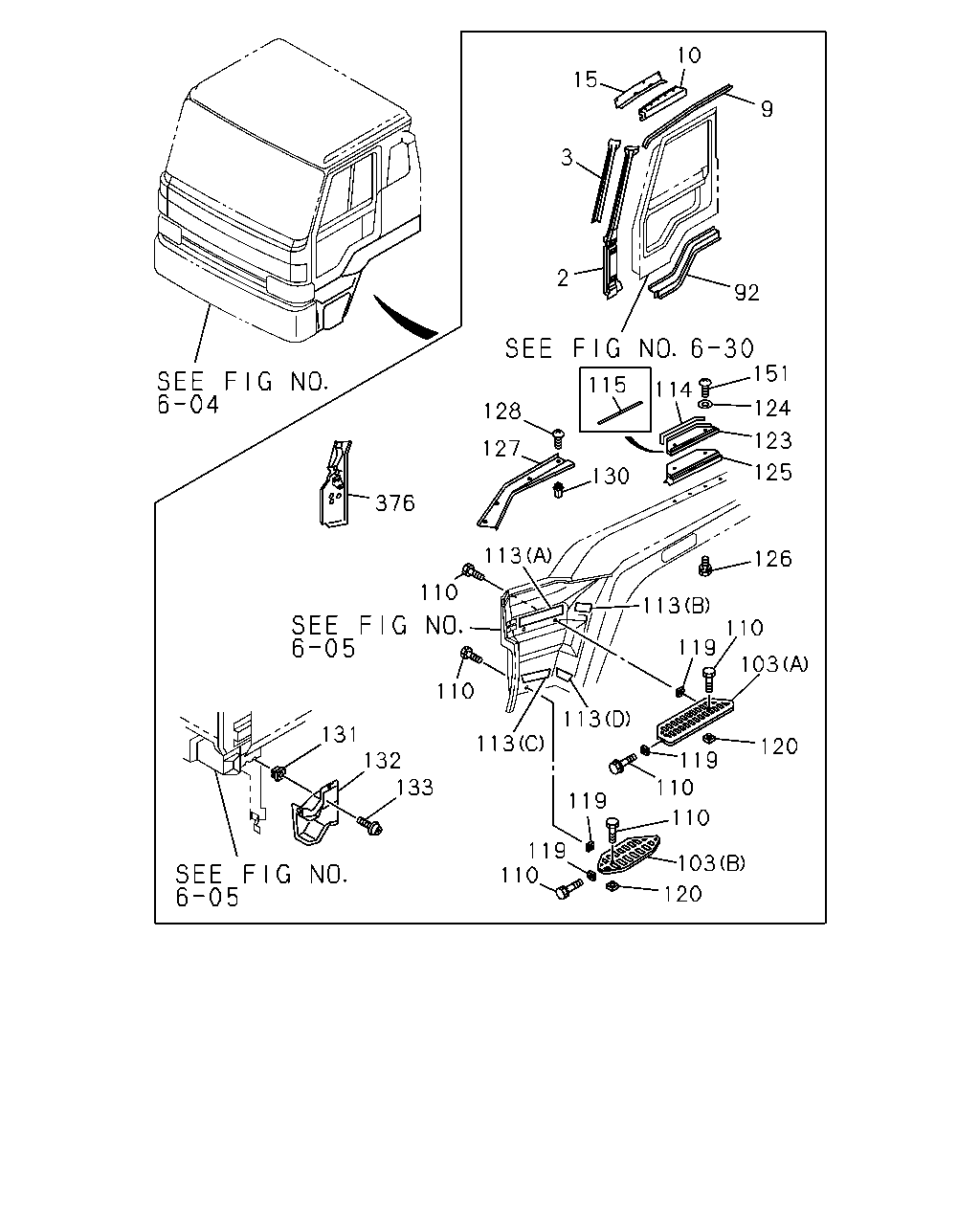

çizim 5013
120 103 110 119 119 110 110 119 120 103 119 110 113 126 113 113 110 133 132 131 110 113 376 130 127 128 115 114 151 124 123 125 92 2 3 15 10 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PILLAR; FRT 1-61270-647-0 01 1 9002-9103 ● ●
2 PILLAR; FRT 1-61270-756-1 01 1 9104- ● ●
2 PILLAR; FRT 1-61270-645-0 01 1 9002- ● ●
2 PILLAR; FRT 1-61270-648-2 01 1 9002- ● ●
2 PILLAR; FRT 1-61270-646-0 01 1 9002- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61270-541-5 01 1 9002- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61270-540-5 01 1 9002- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9002- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9002- ● ● ● ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9002- ● ● ● ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9002- ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61270-557-8 01 1 9002- ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61270-556-8 01 1 9002- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61270-561-4 01 1 9002- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61270-560-4 01 1 9002- ● ● ● ●
103 PLATE; STEP
(A) 		1-53414-034-0 02 1 9002- ● ● ● ●
103 PLATE; STEP
(B) 		1-53414-035-0 02 1 9002- ● ● ● ●
110 BOLT; 1ST STEP PLATE
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ● ● ●
110 BOLT; 1ST STEP PLATE
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(C) L=289 		1-71267-132-0 02 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(A) L=333.5 		1-71267-129-0 01 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(B) L=177 		1-71267-131-0 01 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(D) L=154 		1-71267-134-0 01 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(A) L=333.5 		1-71267-128-0 01 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(B) L=177 		1-71267-130-0 01 1 9002- ● ● ● ●
113 PROTECTOR; 1ST STEP
(D) L=154 		1-71267-133-0 01 1 9002- ● ● ● ●
114 PROTECTOR; FENDER RR STEP
GRIP OUT SIDE<W52> 		1-71267-127-0 02 1 9002- ● ● ● ●
115 PROTECTOR; STAND STEP
GRIP OUT SIDE<W52> 		1-71267-138-0 02 1 9002- ● ● ● ●
119 CAP; STEP 1-65570-180-0 16 1 9002- ● ● ● ●
120 SPACER; 1ST STEP 1-65570-170-1 04 1 9002- ● ● ● ●
123 STEP; FENDER REAR TRAVERSE
GRIP OUT SIDE<W52> 		1-71997-441-3 02 1 9002-9202 ● ● ● ●
123 STEP; FENDER REAR TRAVERSE
GRIP OUT SIDE<W52> 		1-71907-022-1 02 1 9203- ● ● ● ●
124 WASHER; PL,STEP,FENDER RR
GRIP OUT SIDE<W52> ID=5.3 OD=16 T=1.2 		1-09985-154-0 04 1 9002-9202 ● ● ● ●
124 WASHER; PL,STEP,FENDER RR
GRIP OUT SIDE<W52> ID=5.3 OD=16 T=1.2 		1-09985-154-0 06 1 9203- ● ● ● ●
125 STAND; STEP,FENDER RR
GRIP OUT SIDE<W52> 		1-71997-714-2 02 1 9002- ● ● ● ●
126 BOLT; STEP STAND
GRIP OUT SIDE<W52> M6X20 		1-09980-279-0 06 1 9002- ● ● ● ●
127 PROTECTOR; FENDER 1-71267-125-1 01 1 9002- ● ● ● ●
127 PROTECTOR; FENDER 1-71267-124-1 01 1 9002- ● ● ● ●
128 SCREW; PROTECTOR,FENDER
M5X16 TAPPING 		0-71090-516-0 08 1 9002- ● ● ● ●
130 GROMMET; SCREW,PROTECTOR 8-94279-039-0 08 1 9002- ● ● ● ●
131 GROMMET; SCREW,AIR GUIDE 1-09983-081-0 04 1 9002-9306 ● ● ● ●
131 GROMMET; SCREW,AIR GUIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-09983-081-0 06 1 9307- ●
131 GROMMET; SCREW,AIR GUIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-09983-081-0 04 1 9307- ●
131 GROMMET; SCREW,AIR GUIDE 1-09983-081-0 04 1 9307- ●
132 GUIDE ASM; AIR FENDER STEP 1-71997-744-0 01 1 9002-9306 ● ● ● ●
132 GUIDE ASM; AIR FENDER STEP 1-71997-743-0 01 1 9002-9306 ● ● ● ●
132 GUIDE ASM; AIR FENDER STEP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71907-127-1 01 1 9307- ●
132 GUIDE ASM; AIR FENDER STEP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71907-126-1 01 1 9307- ●
132 GUIDE ASM; AIR FENDER STEP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71997-744-0 01 1 9307- ●
132 GUIDE ASM; AIR FENDER STEP 1-71997-744-0 01 1 9307- ●
132 GUIDE ASM; AIR FENDER STEP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71997-743-0 01 1 9307- ●
132 GUIDE ASM; AIR FENDER STEP 1-71997-743-0 01 1 9307- ●
133 SCREW; AIR GUIDE
M5X16 		1-09981-465-0 06 1 9002- ● ● ● ●
151 SCREW; STEP,FENDER RR
GRIP OUT SIDE<W52> M5X16 TAPPING 		0-71090-516-0 04 1 9002-9202 ● ● ● ●
151 SCREW; STEP,FENDER RR
GRIP OUT SIDE<W52> M5X16 TAPPING 		0-71090-516-0 06 1 9203- ● ● ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-586-4 01 1 9002- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9002- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-587-4 01 1 9002- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-583-4 01 1 9002- ● ●
çizim 36099
478 70 67 68 467 73 71 72 66 129 67 70 66 467 72 71 73
BalonParca AdiParca NoAdetTipApplied Date A B C D
66 PANEL; BACK SIDE INNER 1-61270-666-1 01 1 9002- ● ● ● ●
66 PANEL; BACK SIDE INNER 1-61270-665-0 01 1 9002-9103 ● ● ● ●
66 PANEL; BACK SIDE INNER 1-61270-741-0 01 1 9104- ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-678-3 01 1 9002-9008 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-750-0 01 1 9009-9103 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-675-4 01 1 9002-9501 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9502- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9104- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-731-1 01 1 9002- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-734-0 01 1 9002-9103 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-050-0 01 1 9104- ● ●
68 PANEL; BACK SIDE OUTER 1-61270-547-9 01 1 9002-9103 ● ●
68 PANEL; BACK SIDE OUTER 1-61270-727-1 01 1 9104-9306 ● ●
68 PANEL; BACK SIDE OUTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-61270-685-1 01 1 9002-9306 ● ●
68 PANEL; BACK SIDE OUTER
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-61270-569-9 01 1 9002-9103 ● ●
68 PANEL; BACK SIDE OUTER
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-61270-759-0 01 1 9104-9306 ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-672-5 01 1 9002-9103 ● ● ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9104- ● ● ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-671-5 01 1 9002-9103 ● ● ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-745-0 01 1 9104- ● ● ● ●
71 COVER; SIDE PANEL UPR
WHITE 		1-65471-051-0 01 1 9002- ● ● ● ●
71 COVER; SIDE PANEL UPR
WHITE 		1-65471-050-0 01 1 9002- ● ● ● ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9002- ● ● ● ●
73 SCREW; SIDE PANEL COVER
M8X25 		1-09981-429-0 04 1 9002- ● ● ● ●
129 NUT; SPIRE,SPD INDICATOR
MARKER LAMP THREE AMBER<WD9> 		1-09984-101-0 06 1 9002-9306 ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-625-0 01 1 9002- ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-727-1 01 1 9307- ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-587-3 01 1 9002- ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-759-0 01 1 9307-9310 ● ●
467 PANEL; OUTER,BACK CORNER
EXC. CHINA EQUIPMENT(YT2) 		1-61270-759-0 01 1 9311-9507 ●
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-61270-759-0 01 1 9508- ●
467 PANEL; OUTER,BACK CORNER
CHINA EQUIPMENT(YT2) 		1-61270-685-1 01 1 9311-9507 ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-61270-685-1 01 1 9508- ●
478 SEAL; RR PILLAR
OD=25 		1-76798-019-0 03 1 9307- ● ●
