◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#30585) — 25 parça

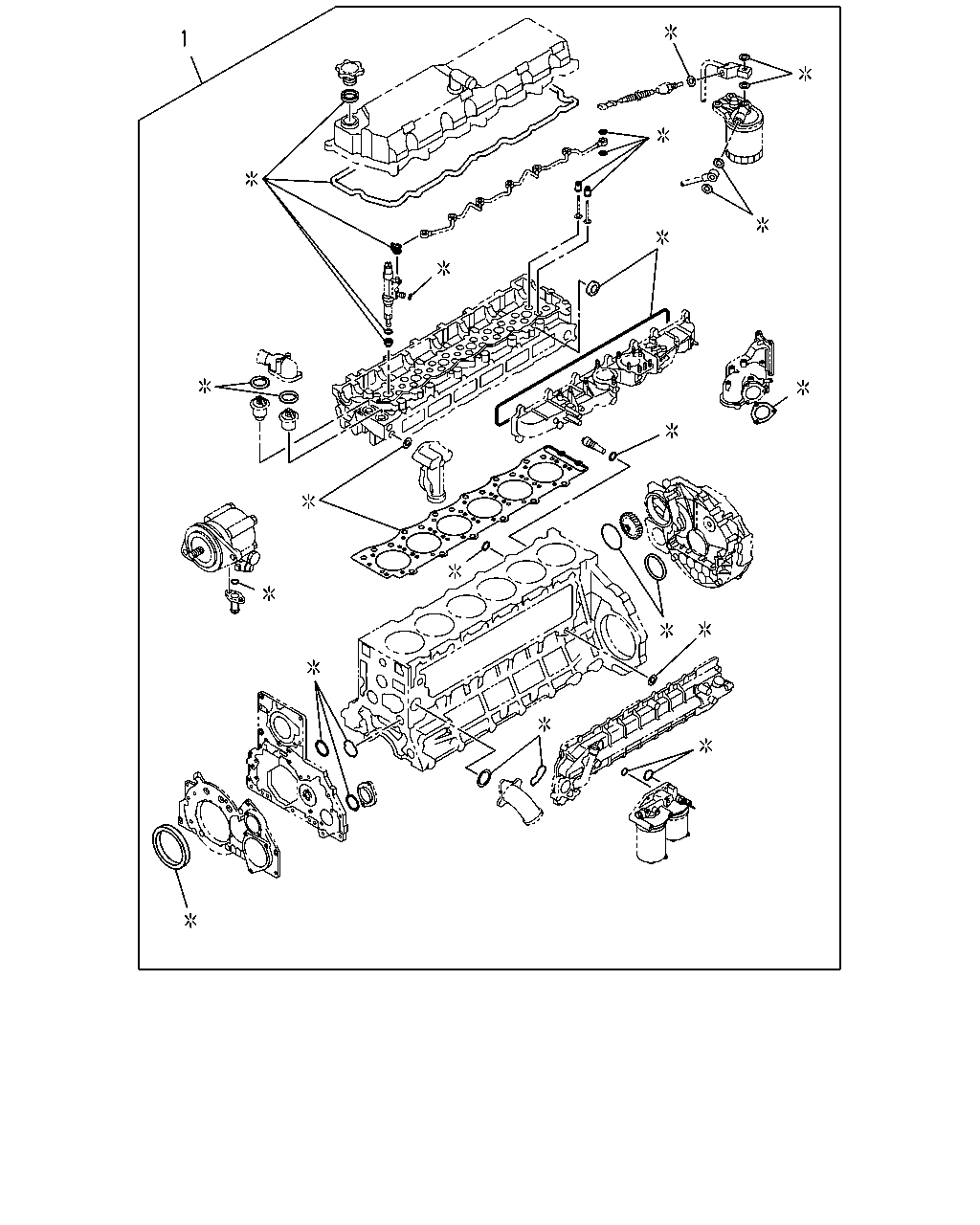

çizim 22592
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87812-175-0 01 1 0107-0112
1 GASKET SET; ENG OVERHAUL 1-87812-334-1 01 1 0201-0207
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0208-0410
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409-

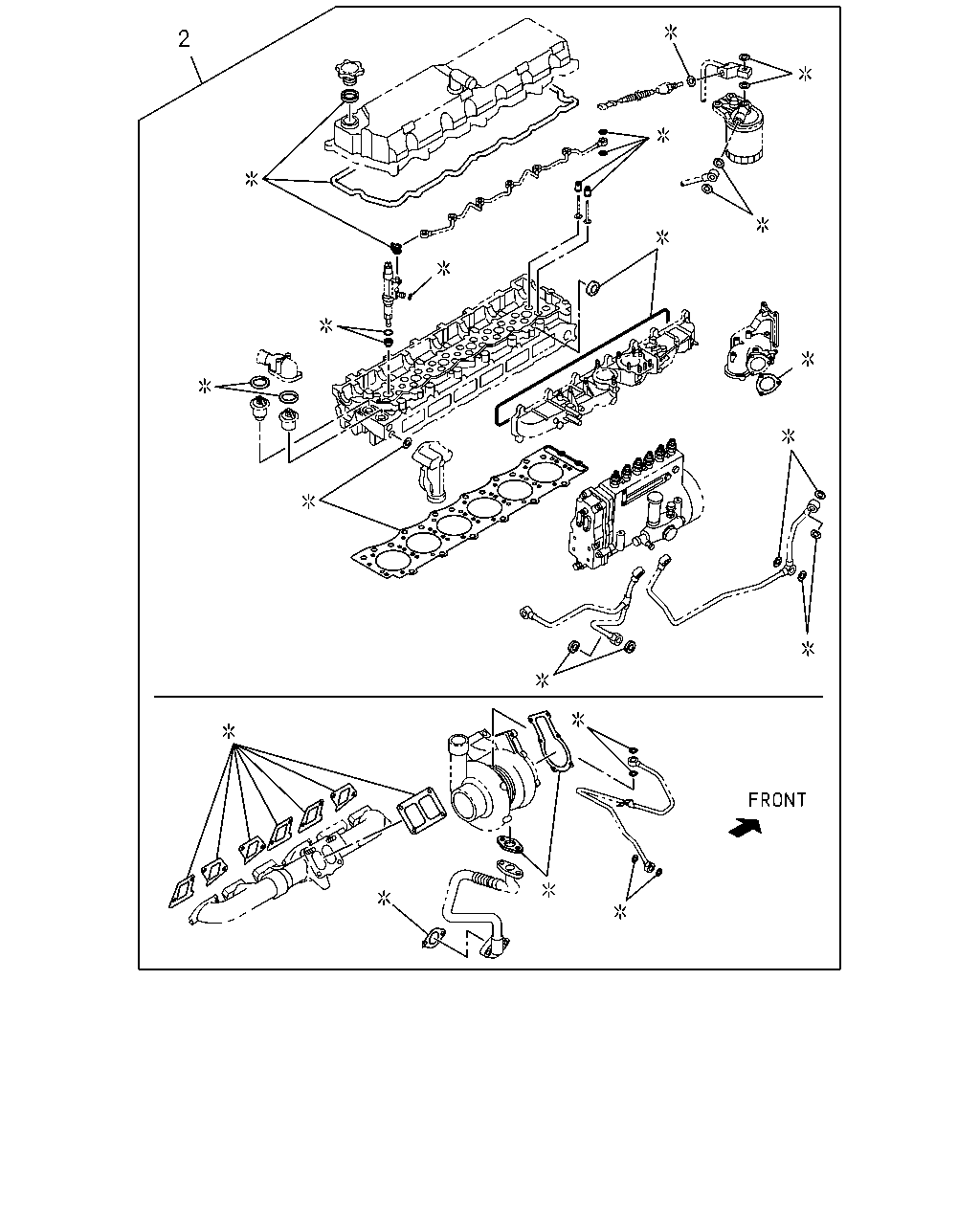

çizim 23460
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL 1-87812-176-1 01 1 0107-0207
2 GASKET SET; ENG HD OVERHAUL 1-87812-356-1 01 1 0208-0410
2 GASKET SET; ENG HD OVERHAUL 1-87812-916-2 01 1 0411-0707
2 GASKET SET; ENG HD OVERHAUL 1-87813-268-0 01 1 0708-0908
2 GASKET SET; ENG HD OVERHAUL 1-87813-454-3 01 1 0909-1312
2 GASKET SET; ENG HD OVERHAUL 1-87814-200-0 01 1 1401-1408
2 GASKET SET; ENG HD OVERHAUL 1-87814-855-0 01 1 1409-

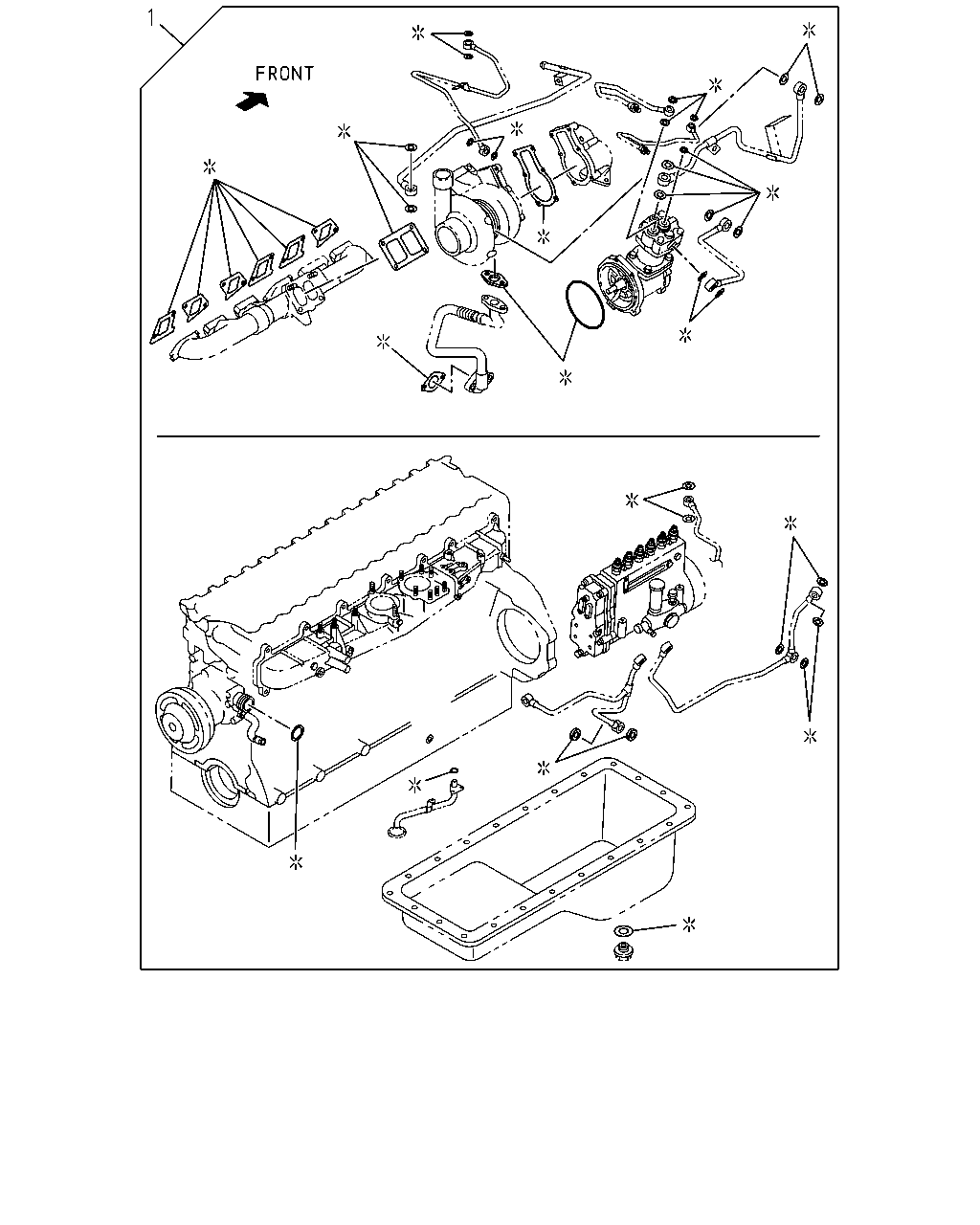

çizim 82782
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87812-175-0 01 1 0107-0112
1 GASKET SET; ENG OVERHAUL 1-87812-334-1 01 1 0201-0207
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0208-0410
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
