Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

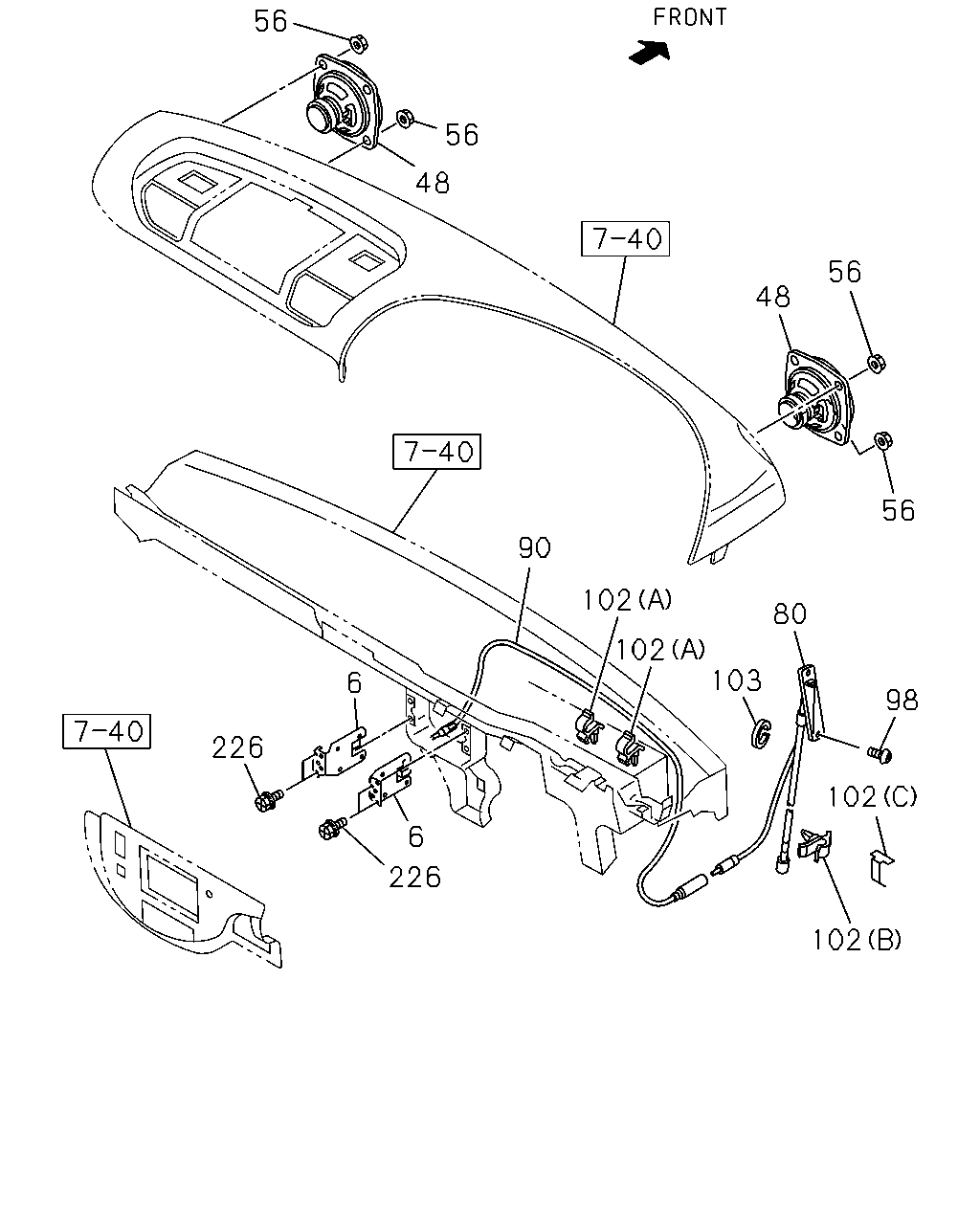

8-90 — RADIO AND TV
(#30582) — 14 parça
56
56
48
48
56
56
90
102
102
103
80
98
102
102
6
6
226
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0107-0612
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
0701-
48
SPEAKER; AUDIO
1-84114-062-0
02
1
0107-0605
48
SPEAKER; AUDIO
8-98046-216-0
02
1
0606-
56
NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE
1-09984-170-0
04
1
0107-
80
ANTENNA
1-84115-055-2
01
1
0107-1203
80
ANTENNA
8-98210-874-1
01
1
1204-
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
0107-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0107-
102
CLIP; CABLE
(C) L=20
1-09987-246-2
01
1
1410-
102
CLIP; CABLE
(B) W/PACKING ID=4.8
1-73907-618-0
05
1
0107-
102
CLIP; CABLE
(A) WO/PACKING ID=4.8
8-94128-483-0
02
1
0107-
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
0107-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
