Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#30575) — 43 parça
◀

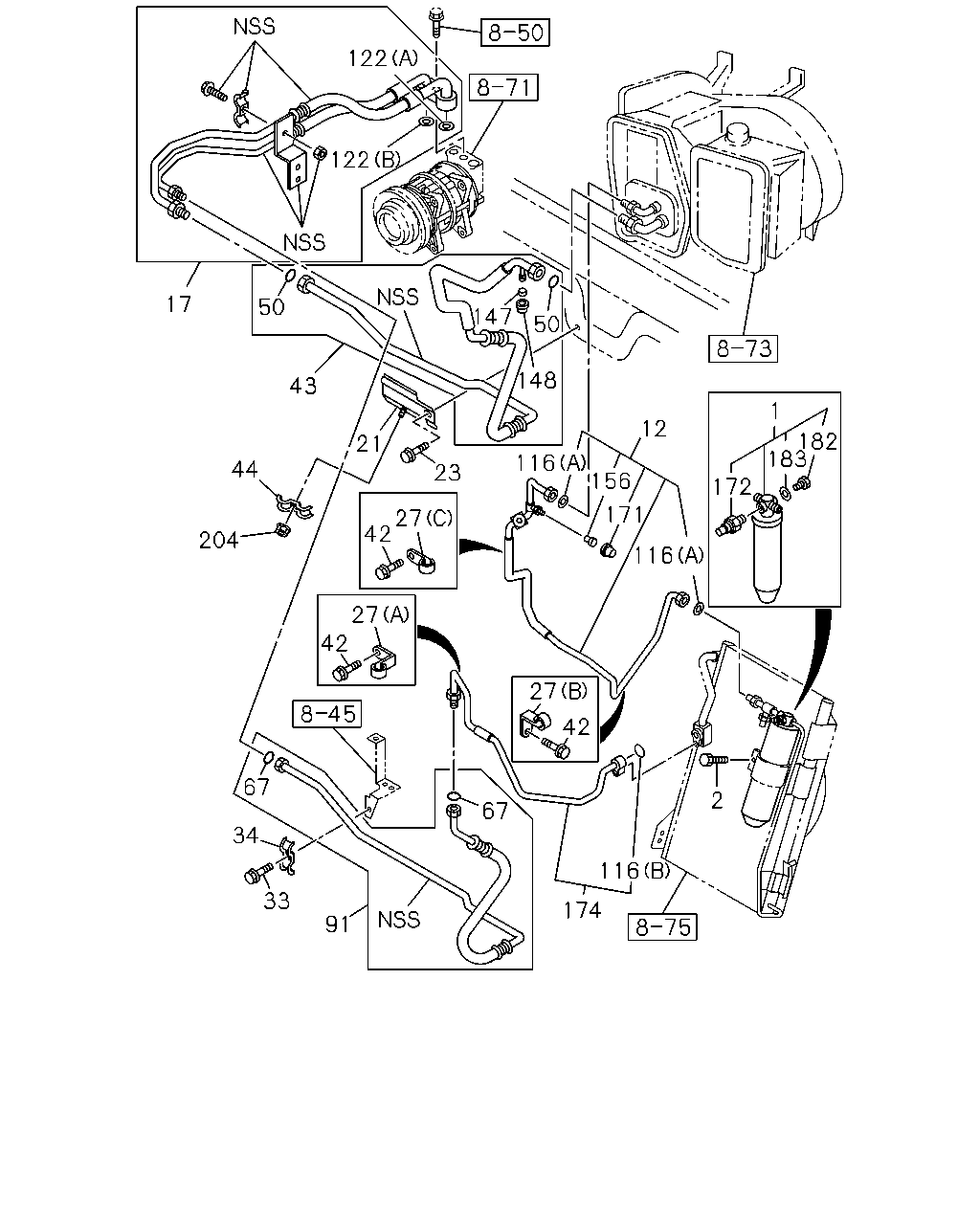

[852A] FRAME SIDE (41 parça)
[852A] CAB SIDE (2 parça)
▶
122
122
17
50
147
50
148
43
1
12
182
183
21
116
156
44
23
172
171
27
42
204
116
27
42
27
42
67
2
67
34
116
33
174
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; RECEIVER
1-83535-084-0
01
1
0107-
2
BOLT; RECEIVER TANK
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0107-
12
PIPE; COOLER,EVAP TO TANK
1-83567-662-0
01
1
0107-
17
HOSE; FLEX,CMPR TO PIPE
1-83572-863-1
01
1
0107-0301
17
HOSE; FLEX,CMPR TO PIPE
1-83572-919-0
01
1
0302-
21
BRACKET; COOLER HOSE
1-83571-831-4
01
1
0107-
23
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
23
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
01
1
0601-
27
CLIP; COOLER PIPE
(A) ID=13 H=18 L=20
1-09700-813-0
01
1
0107-
27
CLIP; COOLER PIPE
(B) ID=11 H=20 L=20
5-09700-351-0
01
1
0107-0707
27
CLIP; COOLER PIPE
(B) ID=11 H=20 L=20
8-98033-780-0
01
1
0708-
27
CLIP; COOLER PIPE
(C) ID=13 L=20
9-09525-235-0
01
1
0107-0606
27
CLIP; COOLER PIPE
(C) ID=13 L=20
0-95235-235-0
01
1
0607-
33
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
33
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
34
CLIP; COOLER PIPE
ID=12.2 & 16.2
1-83574-190-0
01
1
0107-
42
SCREW; CLIP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0107-0904
42
SCREW; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
43
HOSE; FLEX,A/C,EVAP TO CMPR
1-83572-516-2
01
1
0107-0301
43
HOSE; FLEX,A/C,EVAP TO CMPR
1-83572-915-0
01
1
0302-
44
CLIP; FLEX HOSE
ID=12.2 & 16.2
1-83574-190-0
01
1
0107-
50
GASKET; FLEX HOSE,A/C
ID=18.3
8-97161-778-0
02
1
0107-
67
GASKET; FLEX HOSE
ID=15.5
8-97161-777-0
02
1
0107-
91
HOSE; FLEX,CMPR
1-83572-518-1
01
1
0107-0301
91
HOSE; FLEX,CMPR
1-83572-917-0
01
1
0302-
116
GASKET; PIPE
(A)
8-97161-776-0
02
1
0107-
116
GASKET; PIPE
(B) ID=15.5
8-97161-777-0
01
1
0107-
122
GASKET
(B) ID=15.5
8-97161-777-0
01
1
0107-
122
GASKET
(A) ID=18.3
8-97161-778-0
01
1
0107-
147
CAP; FLEX HOSE
CAP MARK L
8-97083-102-0
01
1
0107-
148
VALVE; FLEX HOSE
8-97083-100-0
01
1
0107-0109
148
VALVE; FLEX HOSE
8-97083-892-0
01
1
0110-0209
148
VALVE; FLEX HOSE
8-97083-100-0
01
1
0210-
156
VALVE; PIPE
8-97083-100-0
01
1
0107-
171
CAP; PIPE
CAP MARK H
8-97083-101-0
01
1
0107-
172
SWITCH; PRESS,RECEIVER TANK
1-83544-047-0
01
1
0107-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
1-83567-663-1
01
1
0107-
182
PLUG; RECEIVER TANK
1-83539-226-0
01
1
0107-
183
GASKET; PLUG
8-94154-048-0
01
1
0107-
204
NUT
M8 FLANGE
0-91150-108-0
01
1
0107-0602
204
NUT
M8 FLANGE
0-91180-108-0
01
1
0603-
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CLIP; BAND,EVAP DRAIN HOSE
ID=20
8-94410-200-0
01
1
0107-
15
HOSE; DRAIN
1-83572-635-0
01
1
0107-
