Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#30569) — 34 parça
◀

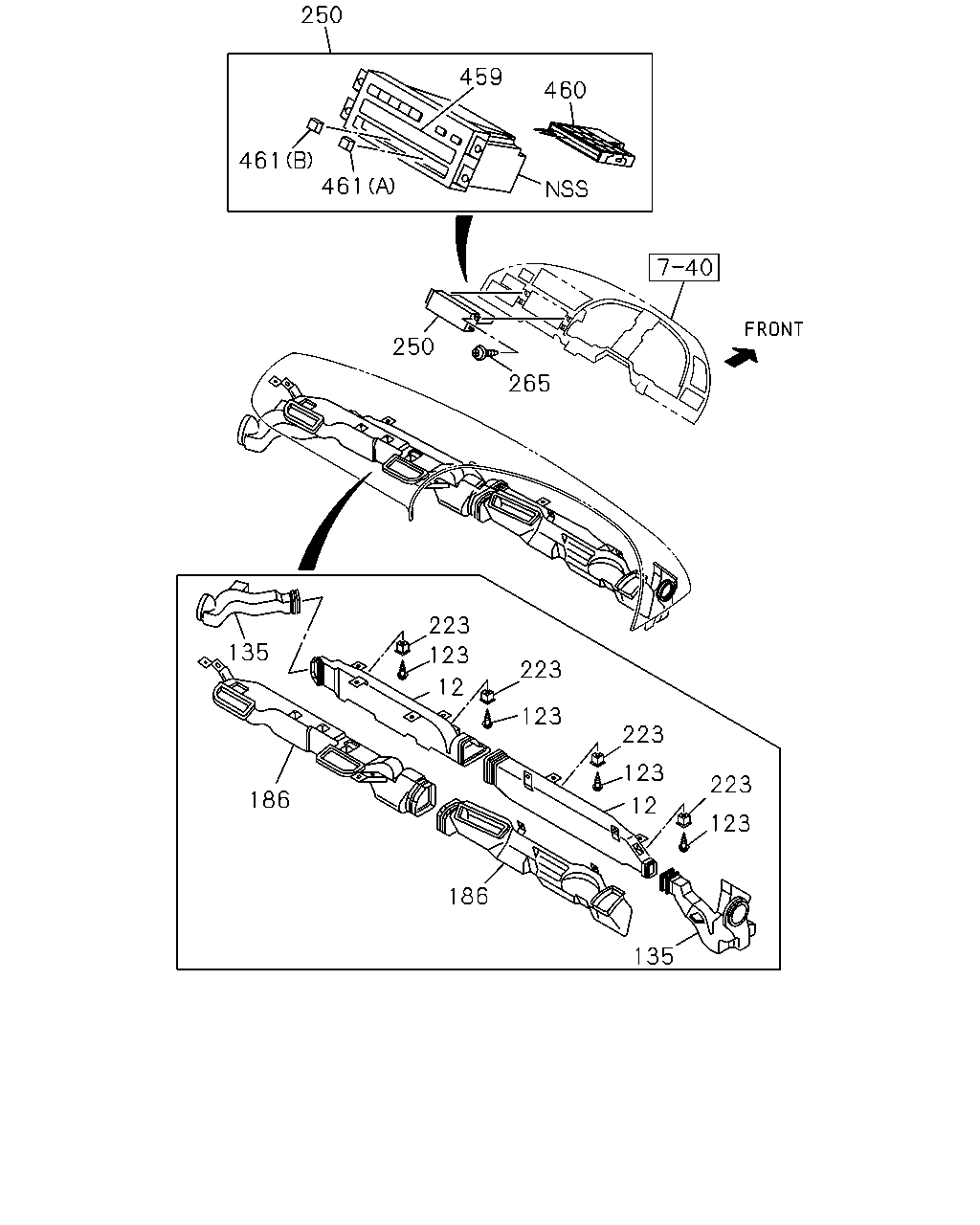

[840A] DUCT NO.1 AND A/C CONTROL ASM (16 parça)

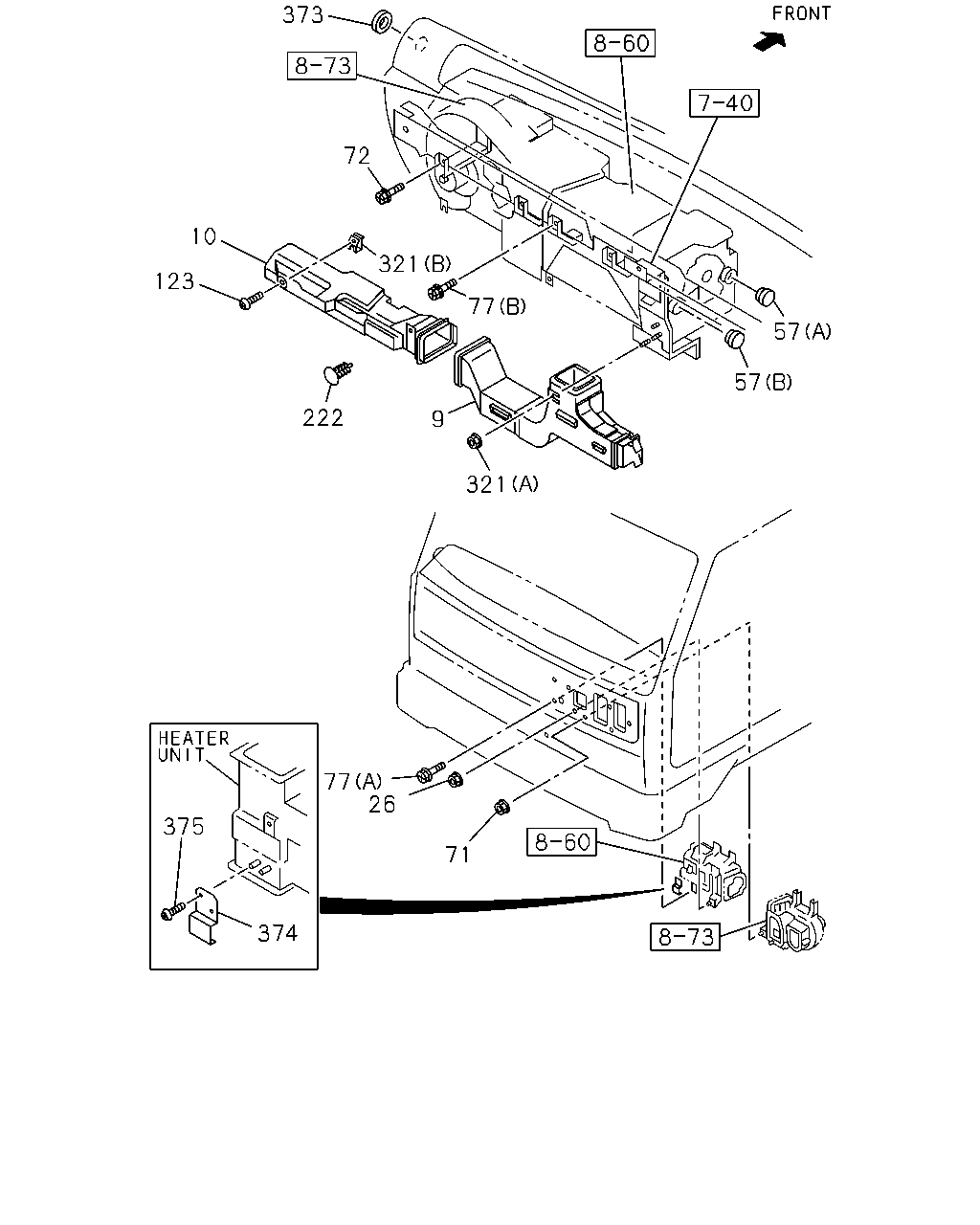

[840A] DUCT NO.2 AND OTHER PARTS (18 parça)
▶
250
459
460
461
461
250
265
223
135
123
223
12
123
223
123
223
186
12
123
186
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76378-321-6
01
1
0107-
12
NOZZLE; DEFROSTER
1-76377-172-7
01
1
0107-
123
SCREW; DUCT
M5X14
8-94279-325-0
10
1
0107-
135
HOSE; DEFROSTER
1-76378-253-4
01
1
0107-
135
HOSE; DEFROSTER
1-76378-252-7
01
1
0107-
186
DUCT; VENTILATOR
1-76378-418-0
01
1
0107-
186
DUCT; VENTILATOR
1-76377-173-6
01
1
0107-0710
186
DUCT; VENTILATOR
1-76377-246-0
01
1
0711-
223
GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0107-
250
CONTROL ASM; A/C
1-83543-050-0
01
1
0107-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74110-620-0
01
1
0107-0604
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
01
1
0605-
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0107-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0107-
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
0107-
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
0107-
373
72
10
321
123
77
57
57
222
9
321
77
26
375
71
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
DUCT; HTR AIR,FOOT CENTER
1-76378-426-2
01
1
0107-
10
DUCT; HTR AIR,ASSIST FOOT
1-76378-413-0
01
1
0107-
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0107-
57
COVER; INL DUCT
(A)
1-83579-617-0
02
1
0107-
57
COVER; INL DUCT
(B)
1-83579-618-0
01
1
0107-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0107-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0107-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0107-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0107-
123
SCREW; DUCT
M5X14
8-94279-325-0
10
1
0107-
222
FASTENER; DUCT
ID=6 OD=16 L=18
8-94178-705-0
01
1
0107-
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91150-106-0
01
1
0107-0602
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91180-106-0
01
1
0603-
321
NUT; DUCT FIX
(B) M5
1-09984-150-0
01
1
0107-0409
321
NUT; DUCT FIX
(B) M5
1-09984-196-0
01
1
0410-
373
RUBBER; JOINT
1-76378-291-0
02
1
0107-
374
HOLDER; DUCT
1-76398-012-1
01
1
0107-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
0107-
