Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#30566) — 27 parça
◀

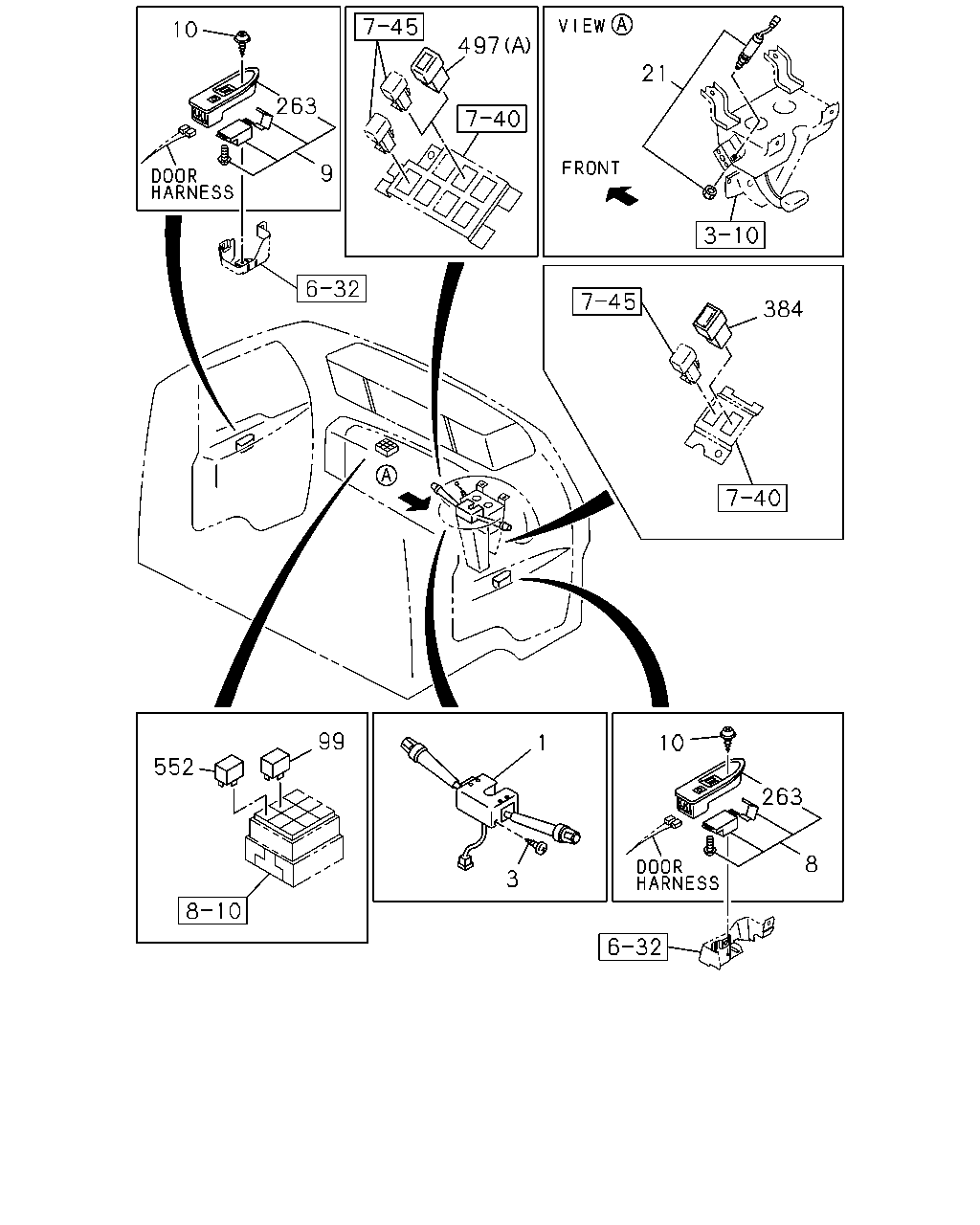

[825A] DOOR AND PARKING BRAKE SWITCH (3 parça)
[825A] INST PANEL AND DOOR SIDE (20 parça)
[825A] CLUSTER METER SIDE (4 parça)
▶
353
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0107-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0107-
353
SWITCH ASM; PARKING BRAKE
1-82410-163-1
01
1
0107-
10
497
21
263
9
384
99
10
1
552
263
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-619-0
01
1
0107-0312
1
SWITCH; COMB
1-82360-715-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0107-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-155-4
01
1
0107-
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-154-3
01
1
0107-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0107-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82440-116-1
01
1
0107-0608
21
SWITCH; CLU
1-82440-126-1
01
1
0609-
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
0107-0111
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
0107-
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
0107-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0107-
497
SWITCH; HSA
(A) HSA OFF
1-82340-408-1
01
1
0107-
497
SWITCH; HSA
(B) HSA ADJUST
1-82350-237-2
01
1
0107-
497
SWITCH; HSA
(C) HSA RESET
8-97076-356-0
01
1
0107-
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA
8-97062-815-1
01
1
0107-0111
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
77
497
497
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

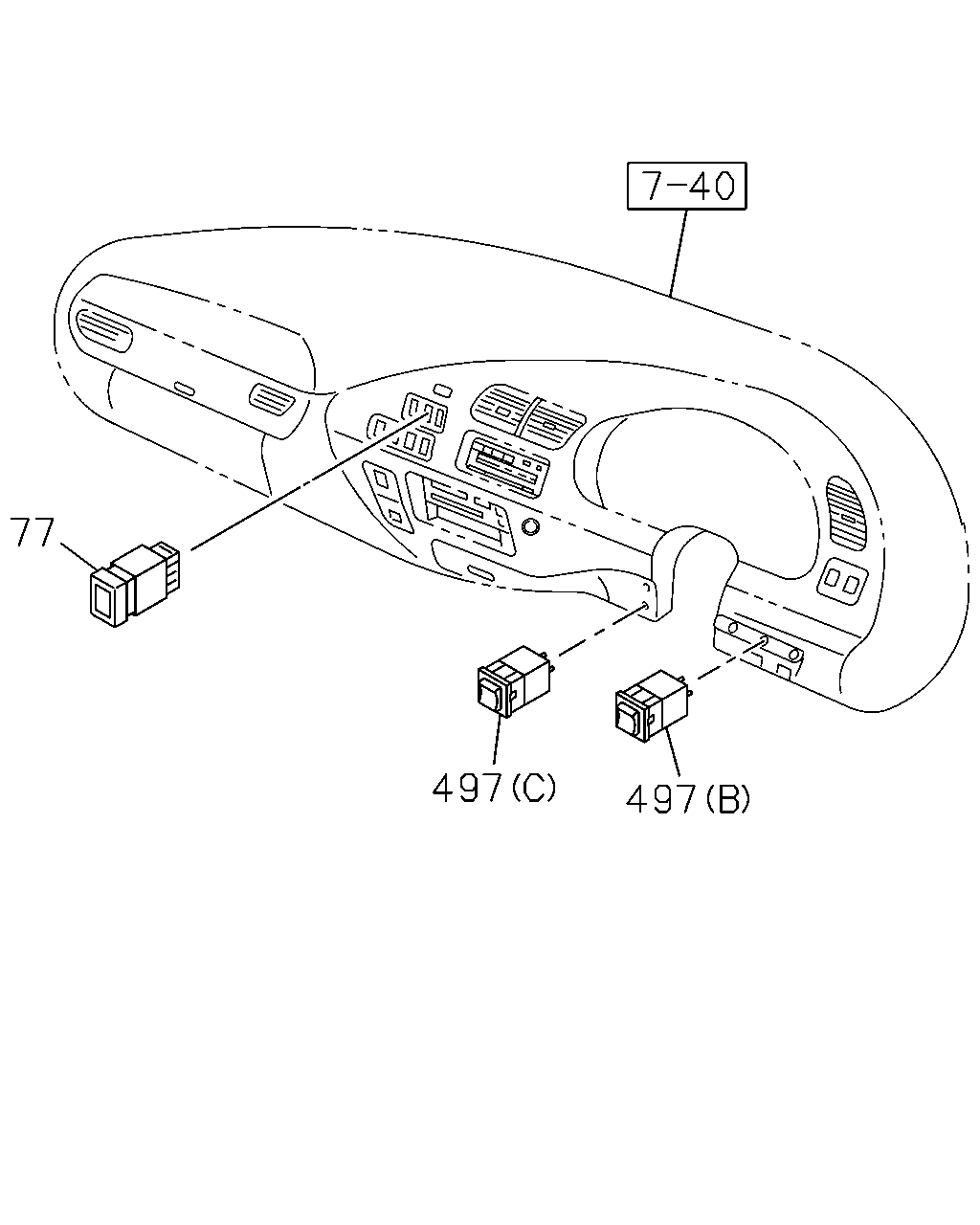

77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
0107-
497
SWITCH; HSA
(A) HSA OFF
1-82340-408-1
01
1
0107-
497
SWITCH; HSA
(B) HSA ADJUST
1-82350-237-2
01
1
0107-
497
SWITCH; HSA
(C) HSA RESET
8-97076-356-0
01
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
