◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#3056) — 31 parça

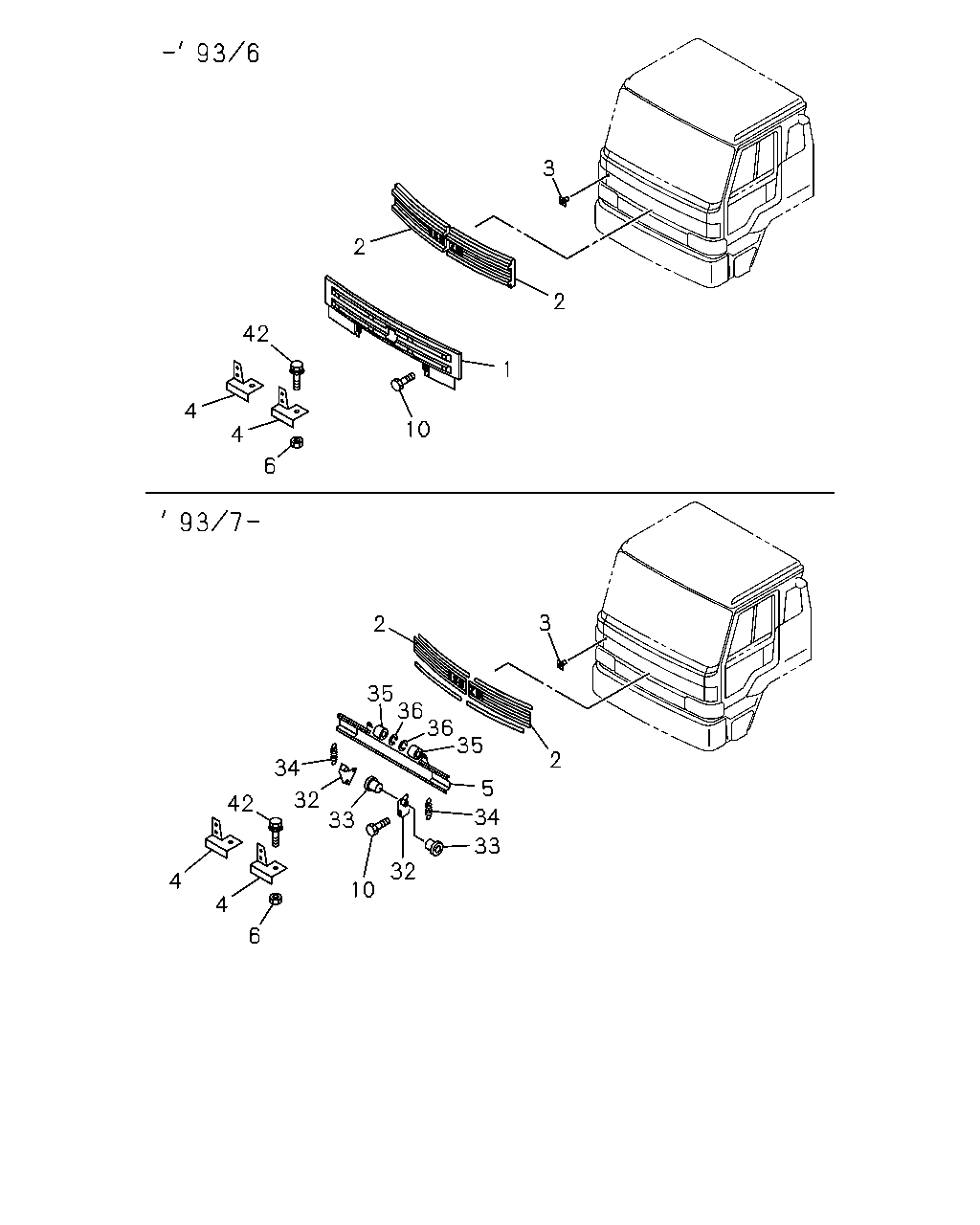

çizim 36566
33 34 5 2 35 36 36 35 34 32 33 32 10 6 4 4 42 6 4 4 42 10 1 2 3 2 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
EXC. CAB SUSPENSION RIGID<W71>,RADIATOR PROTECTOR<YC6> 		1-76210-518-4 01 1 9002-9306 ● ● ● ●
1 GRILLE; RAD
RADIATOR PROTECTOR<YC6> EXC. CAB SUSPENSION RIGID<W71> 		1-76210-570-2 01 1 9002-9306 ● ● ● ●
1 GRILLE; RAD
CAB SUSPENSION RIGID<W71> RADIATOR PROTECTOR<YC6> 		1-76210-571-2 01 1 9002-9306 ● ● ●
1 GRILLE; RAD
CAB SUSPENSION RIGID<W71> EXC. RADIATOR PROTECTOR<YC6> 		1-76210-505-4 01 1 9002-9306 ● ● ●
2 GRILLE; ORNAMENT 1-76217-085-5 01 1 9002- ●
2 GRILLE; ORNAMENT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-76217-085-5 01 1 9002- ●
2 GRILLE; ORNAMENT 1-76217-084-5 01 1 9002- ●
2 GRILLE; ORNAMENT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-76217-084-5 01 1 9002- ●
2 GRILLE; ORNAMENT 1-76217-087-4 01 1 9002- ● ●
2 GRILLE; ORNAMENT 1-76217-086-4 01 1 9002- ● ●
3 CLIP; GRILLE
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-09987-056-1 13 1 9002- ● ● ● ●
4 BRACKET; RAD GRILLE
CAB SUSPENSION RIGID<W71> 		1-53459-514-3 01 1 9002-9306 ● ● ●
4 BRACKET; RAD GRILLE
CAB SUSPENSION RIGID<W71> 		1-53459-514-3 01 1 9307- ●
4 BRACKET; RAD GRILLE
CAB SUSPENSION RIGID<W71> 		1-53459-515-3 01 1 9002-9306 ● ● ●
4 BRACKET; RAD GRILLE
CAB SUSPENSION RIGID<W71> 		1-53459-515-3 01 1 9307- ●
5 GRILLE; RAD,SUB 1-76211-069-1 01 1 9307- ● ●
6 NUT
CAB SUSPENSION RIGID<W71> M10 		9-09110-510-0 02 1 9002-9306 ● ● ●
6 NUT
CAB SUSPENSION RIGID<W71> M10 		9-09110-510-0 02 1 9307- ●
10 BOLT; HINGE BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 04 1 9002- ● ● ● ●
32 HINGE; RAD GRILLE 1-76211-032-1 01 1 9307- ●
32 HINGE; RAD GRILLE
EXC. CAB SUSPENSION RIGID<W71> 		1-76211-032-1 01 1 9307- ●
32 HINGE; RAD GRILLE 1-76211-033-1 01 1 9307- ●
32 HINGE; RAD GRILLE
EXC. CAB SUSPENSION RIGID<W71> 		1-76211-033-1 01 1 9307- ●
32 HINGE; RAD GRILLE
CAB SUSPENSION RIGID<W71> 		1-76211-038-1 01 1 9307- ●
32 HINGE; RAD GRILLE
CAB SUSPENSION RIGID<W71> 		1-76211-039-1 01 1 9307- ●
33 BUSHING; GRILLE 1-76211-040-0 04 1 9307- ● ●
34 SPRING; GRILLE 1-09583-215-1 02 1 9307- ● ●
35 ROLLER 1-71170-021-1 02 1 9307- ● ●
36 RING; SNAP
ID=4 		9-09185-404-0 04 1 9307- ● ●
42 BOLT; BRKT FIX
CAB SUSPENSION RIGID<W71> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9002-9306 ● ● ●
42 BOLT; BRKT FIX
CAB SUSPENSION RIGID<W71> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9307- ●
