Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶
7-70 — SEPARATER AND BED
(#30558) — 26 parça
◀

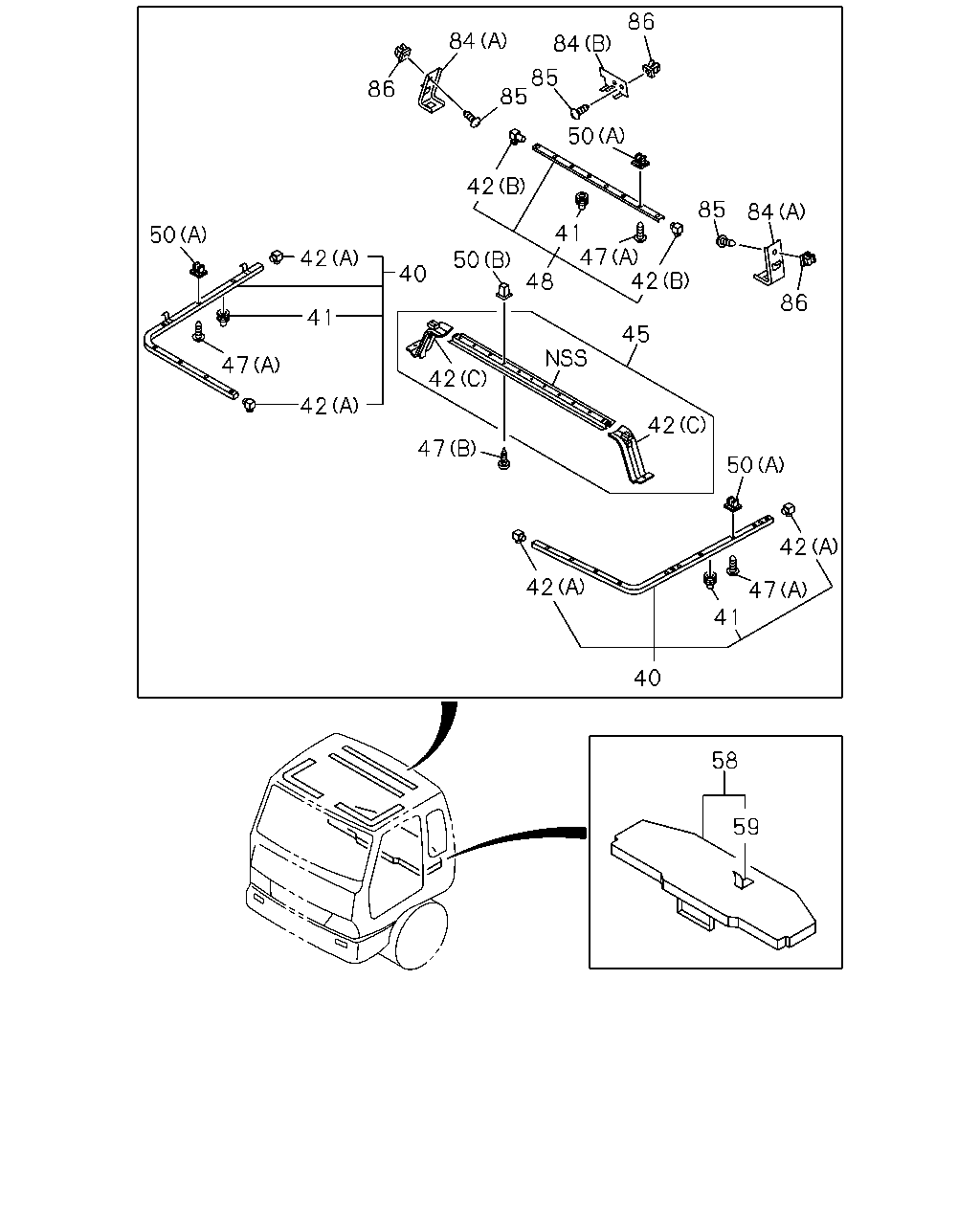

[770A] CURTAIN RAIL AND BED (18 parça)

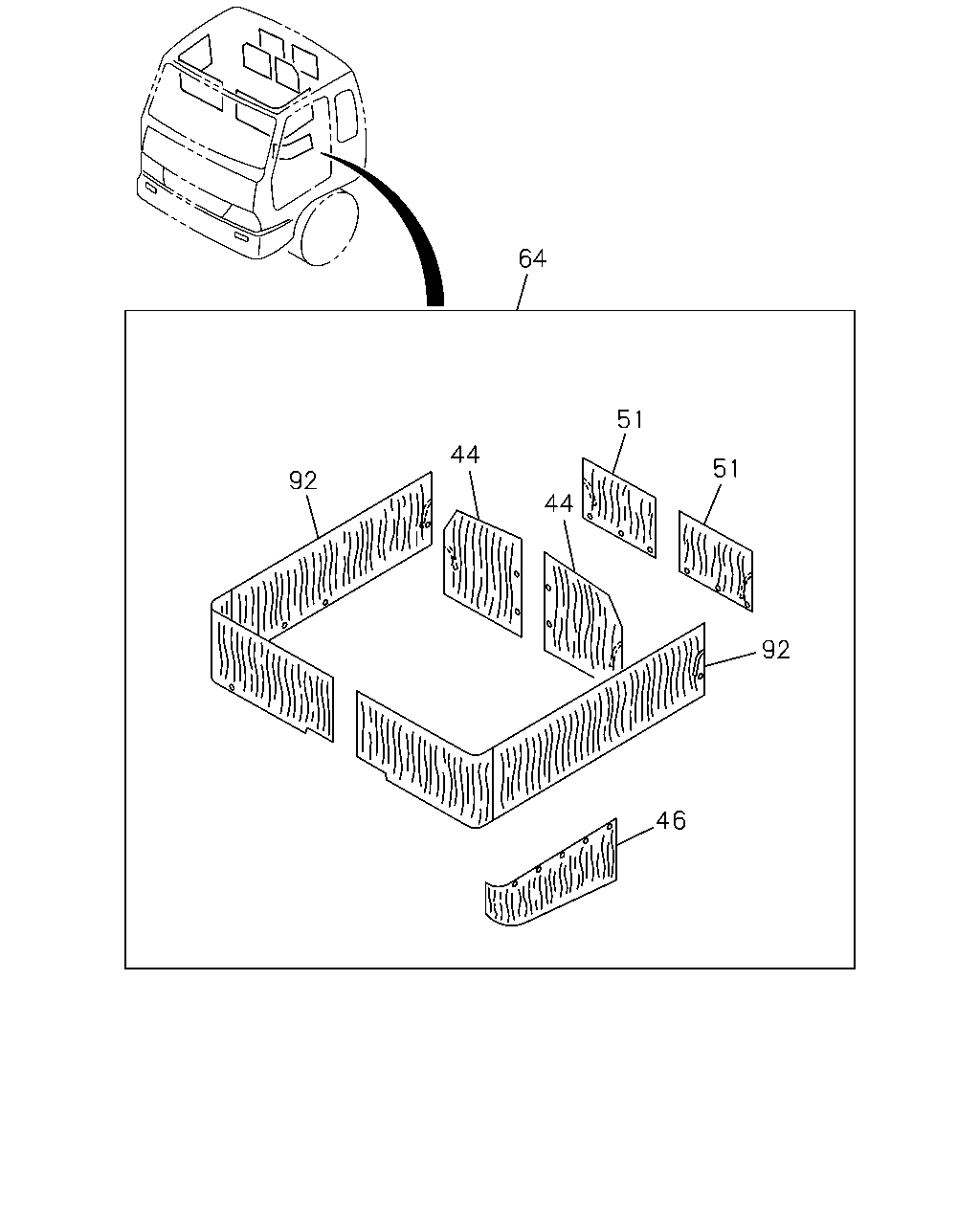

[770A] CURTAIN KIT (8 parça)
▶
86
84
84
85
85
86
50
42
85
84
41
47
50
42
42
50
40
48
86
41
45
47
42
42
42
47
50
42
42
47
41
40
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73996-368-1
01
1
0107-
40
RAIL; CURTAIN,SIDE
1-73996-367-1
01
1
0107-
41
HOOK; CURTAIN RAIL
H=14.5 WHITE
1-73996-398-0
54
1
0107-
42
STOPPER; CURTAIN RAIL
(A)
1-73996-393-0
04
1
0107-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-399-0
02
1
0107-
42
STOPPER; CURTAIN RAIL
(C)
1-73996-402-0
02
1
0107-
45
RAIL; CURTAIN,FRT
1-73996-370-1
01
1
0107-
47
SCREW; CURTAIN RAIL
(A) M5X20
5-09981-059-0
25
1
0107-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0107-
48
RAIL; CURTAIN,BACK
1-73996-386-1
01
1
0107-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0107-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5
8-94279-078-0
25
1
0107-
58
BED; MAT
1-75116-531-1
01
1
0107-
59
COVER ASM; TRIM,BED MAT
1-75116-700-1
01
1
0107-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0107-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0107-
85
SCREW; BRKT
M5X20
5-09981-059-0
09
1
0107-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5
8-94279-078-0
09
1
0107-
64
51
44
51
92
44
92
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
CURTAIN ASM; CABIN CENTER
1-73908-207-1
01
1
0107-
44
CURTAIN ASM; CABIN CENTER
1-73908-208-1
01
1
0107-
46
CURTAIN ASM; DOOR
1-73907-303-0
01
1
0107-
51
CURTAIN; BACK
1-73908-211-1
01
1
0107-
51
CURTAIN; BACK
1-73908-212-1
01
1
0107-
64
CURTAIN KIT
1-73908-205-1
01
1
0107-
92
CURTAIN ASM; ROUND
1-73908-215-1
01
1
0107-
92
CURTAIN ASM; ROUND
1-73908-216-1
01
1
0107-
