Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#3055) — 198 parça

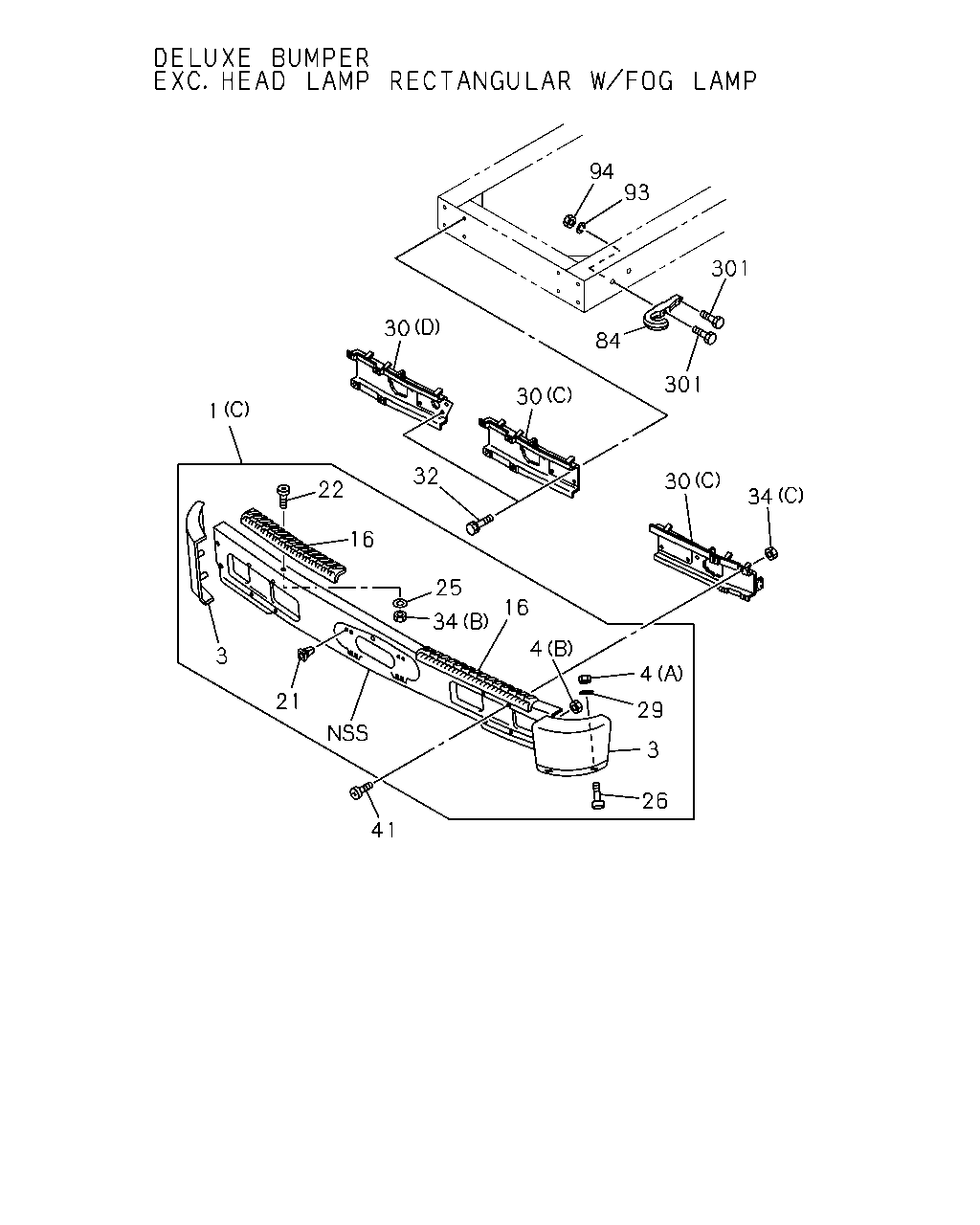

26 3 29 4 4 16 34 25 41 21 3 16 22 1 32 30 30 30 34 301 84 301 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71210-238-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-		●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-431-1	01	1	9002-	●	●	●	●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-430-1	01	1	9002-	●	●	●	●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	02	1	9002-	●	●	●	●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M10 FLANGE	5-09440-006-0	04	1	9002-	●	●	●	●
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9002-	●	●	●	●
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9002-	●	●	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-	●	●	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-	●	●	●	●
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09060-008-0	02	1	9002-	●	●	●	●
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=12.5 OD=32	9-09160-712-0	02	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-71230-122-1	02	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-137-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-136-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-115-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-168-1	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-116-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-169-0	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-206-2	01	1	9307-		●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-205-2	01	1	9307-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9307-				●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9307-				●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 FLANGE	0-28081-025-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-		●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-		●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-		●
84	HOOK	1-57181-024-0	01	1	9002-9006	●	●	●	●
84	HOOK	1-57181-027-1	01	1	9007-	●	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK CONCRETE PUMP<RA5> M16	9-99110-416-0	02	1	9002-				●
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-			●
94	NUT; HOOK EXC. CONCRETE PUMP<RA5> M16	9-99110-416-0	01	1	9002-				●
301	BOLT; HOOK TO FRAME M16X70	9-91051-670-0	01	1	9002-9005	●	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9006-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306	●	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●		●

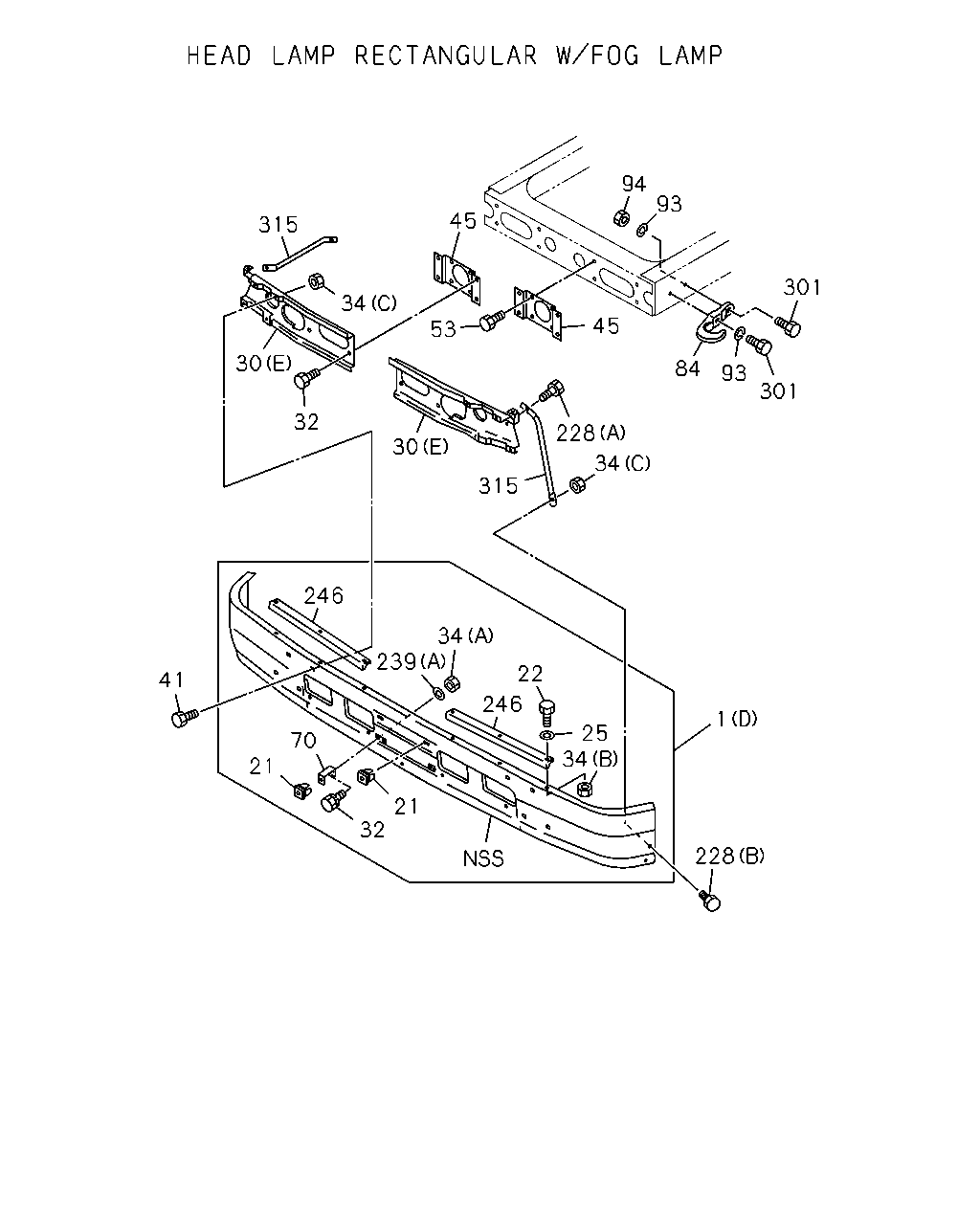

228 1 34 25 22 246 21 32 21 70 41 246 34 239 315 30 32 30 315 34 53 45 94 93 301 301 93 84 45 228 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71210-238-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-		●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-	●	●	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-71230-122-1	02	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-137-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-136-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-115-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-168-1	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-116-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-169-0	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-206-2	01	1	9307-		●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-205-2	01	1	9307-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9307-				●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9307-				●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 FLANGE	0-28081-025-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-		●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-		●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-		●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-538-1	02	1	9307-		●
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-		●
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-		●
84	HOOK	1-57181-024-0	01	1	9002-9006	●	●	●	●
84	HOOK	1-57181-027-1	01	1	9007-	●	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK CONCRETE PUMP<RA5> M16	9-99110-416-0	02	1	9002-				●
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-			●
94	NUT; HOOK EXC. CONCRETE PUMP<RA5> M16	9-99110-416-0	01	1	9002-				●
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	0-28080-820-0	02	1	9307-		●
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M8X30	1-09164-023-0	02	1	9307-		●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (B) ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●	●	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) ID=8.4 OD=22	9-09160-708-0	02	1	9307-		●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-		●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-		●
301	BOLT; HOOK TO FRAME M16X70	9-91051-670-0	01	1	9002-9005	●	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9006-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306	●	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●		●
315	STAY; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-307-0	02	1	9307-		●

30 43 42 1 34 34 30 41 30 41 32 301 301 84 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71210-238-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-71230-122-1	02	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-137-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-136-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-115-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-168-1	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-116-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-169-0	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-206-2	01	1	9307-		●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-205-2	01	1	9307-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9307-				●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9307-				●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 FLANGE	0-28081-025-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-		●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-		●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-		●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	04	1	9002-	●	●	●	●
84	HOOK	1-57181-024-0	01	1	9002-9006	●	●	●	●
84	HOOK	1-57181-027-1	01	1	9007-	●	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK CONCRETE PUMP<RA5> M16	9-99110-416-0	02	1	9002-				●
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-			●
94	NUT; HOOK EXC. CONCRETE PUMP<RA5> M16	9-99110-416-0	01	1	9002-				●
301	BOLT; HOOK TO FRAME M16X70	9-91051-670-0	01	1	9002-9005	●	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9006-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306	●	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●		●

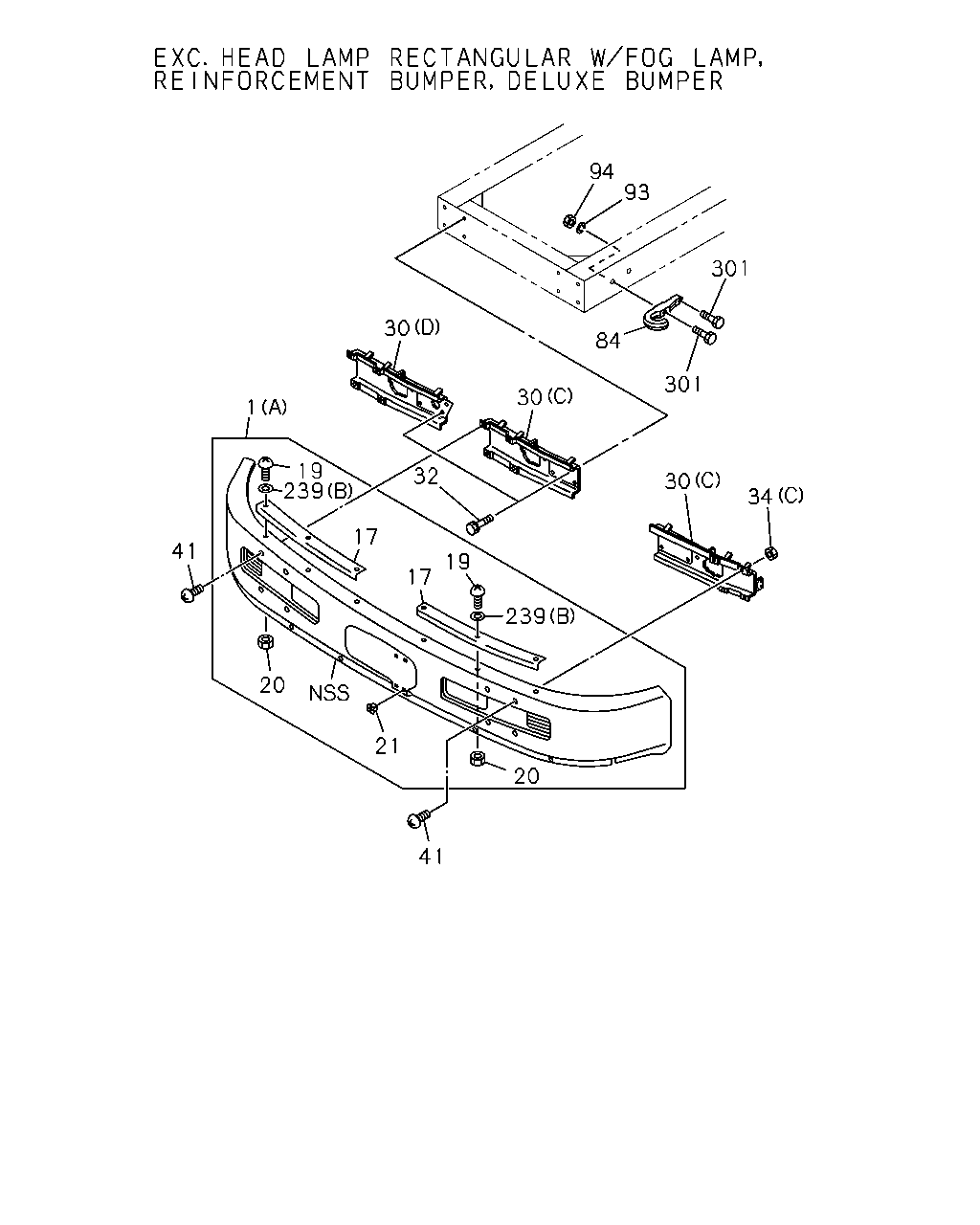

34 30 301 301 84 93 94 30 30 32 19 1 239 41 20 21 41 20 239 19 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71210-238-2	01	1	9002-	●	●	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-		●
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	9002-	●	●	●	●
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	9002-	●	●	●	●
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	9002-9310	●	●	●	●
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	9-03486-410-0	06	1	9311-		●		●
20	NUT; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	9002-	●	●	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-71230-122-1	02	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-137-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-136-0	01	1	9002-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-115-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-168-1	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-116-3	01	1	9002-9003	●	●	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID<W71> (C)	1-71230-169-0	01	1	9004-	●	●	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-206-2	01	1	9307-		●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (E)	1-71230-205-2	01	1	9307-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-150-1	01	1	9307-				●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9002-9306		●	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID<W71> (D)	1-71230-151-1	01	1	9307-				●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 FLANGE	0-28081-025-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-		●		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-		●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-		●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-		●
84	HOOK	1-57181-024-0	01	1	9002-9006	●	●	●	●
84	HOOK	1-57181-027-1	01	1	9007-	●	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK CONCRETE PUMP<RA5> M16	9-99110-416-0	02	1	9002-				●
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-			●
94	NUT; HOOK EXC. CONCRETE PUMP<RA5> M16	9-99110-416-0	01	1	9002-				●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (B) ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●	●	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) ID=8.4 OD=22	9-09160-708-0	02	1	9307-		●
301	BOLT; HOOK TO FRAME M16X70	9-91051-670-0	01	1	9002-9005	●	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9006-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008	●	●	●	●
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306	●	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
