Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

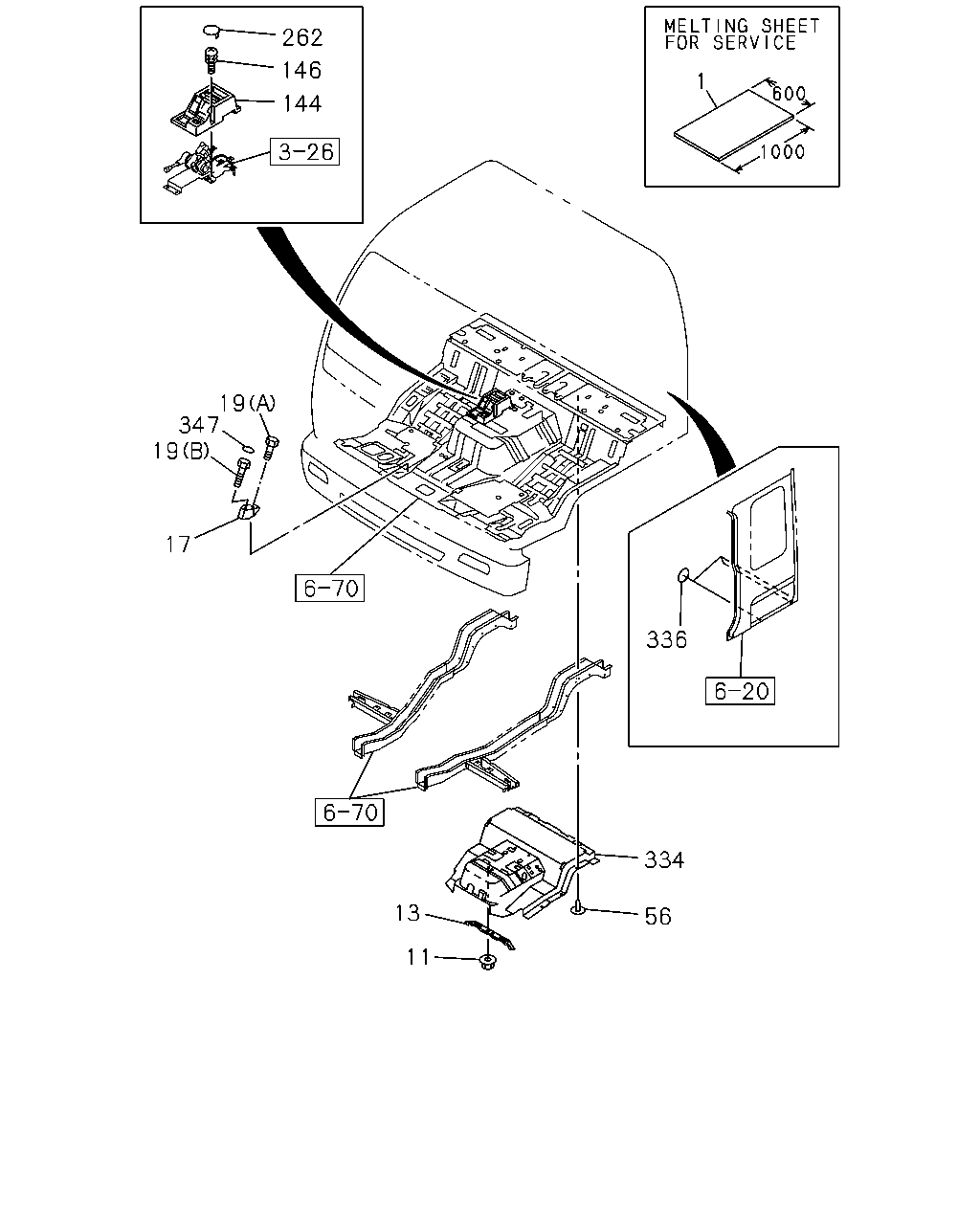

6-76 — FLOOR EQUIPMENT AND SEALING
(#30543) — 15 parça
262
146
1
144
19
347
19
17
336
334
13
56
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
0107-
11
NUT; HEAT INSULATOR
M8 FLANGE
8-94279-518-0
02
1
0107-0401
11
NUT; HEAT INSULATOR
M8 FLANGE
1-75538-207-0
02
1
0402-
13
PLATE; HEAT INSULATOR
1-71998-812-4
01
1
0107-
17
REST; FOOT,DRIVER
1-73907-176-1
01
1
0107-
19
BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0107-
19
BOLT; FOOT REST
(B) M6X47
8-94407-876-1
01
1
0107-
56
CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4
8-97808-623-0
17
1
0107-
144
COVER; HAND BRK VLV
1-73908-307-2
01
1
0107-
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0107-
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0107-
262
COVER; CHECK HOLE
1-76337-461-0
04
1
0107-
334
INSULATOR; ENG HOOD
1-71996-034-4
01
1
0107-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
06
1
0107-
347
SEAL; FOOT RESTR
OD=25 BLACK
1-76798-019-0
02
1
0107-
