◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#3053) — 69 parça

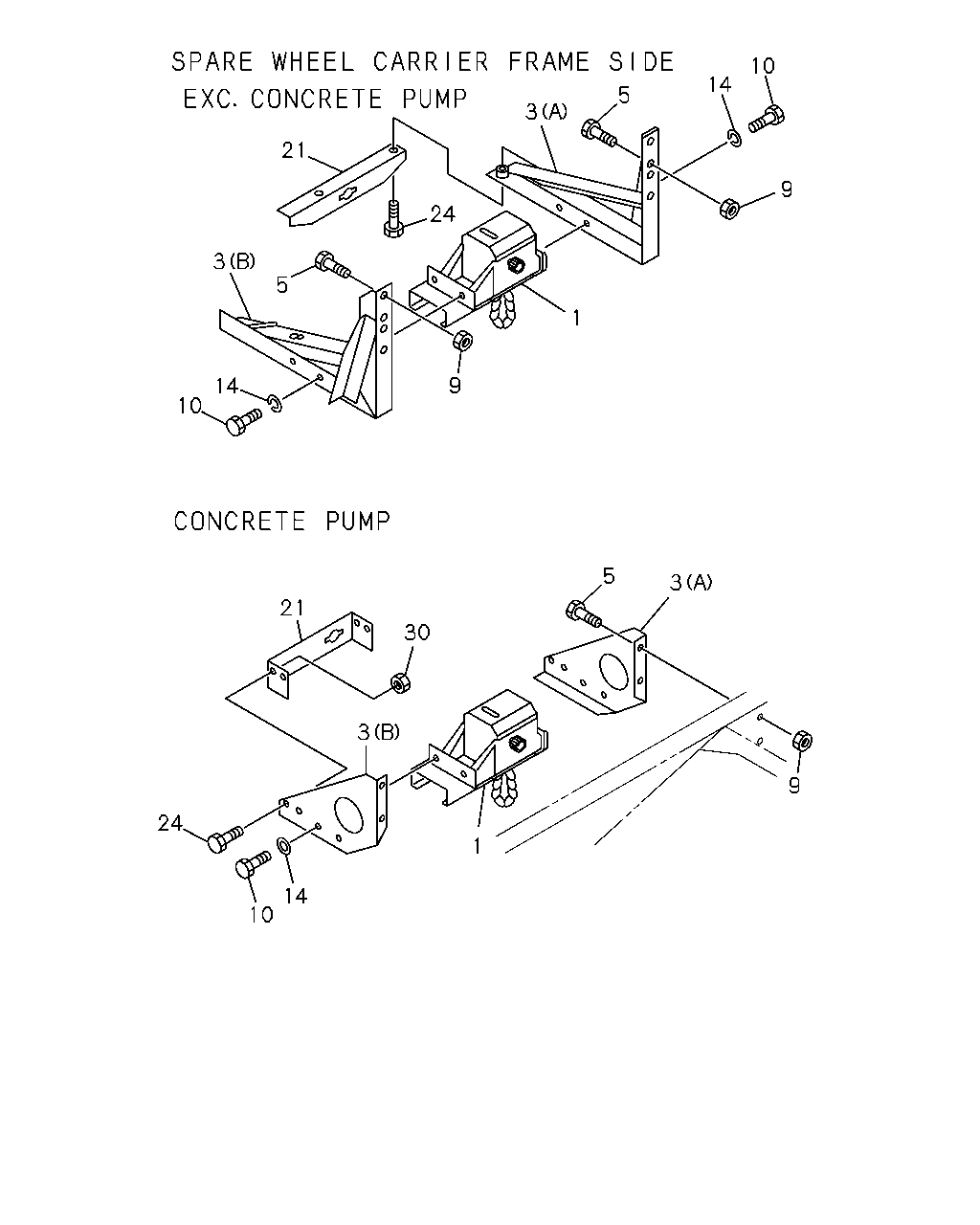

çizim 36258
10 14 24 3 1 9 3 5 30 21 10 14 5 3 21 24 9 1 9 10 14 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9002-9402 ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> CAUTIONS CHINESE<SL7> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS CHINESE<SL7> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,CAUTIONS CHINESE<SL7> 		1-53630-146-1 02 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,CAUTIONS CHINESE<SL7> 		1-53630-146-1 01 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9002- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9002- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-176-8 01 1 9002-9306 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-207-0 01 1 9002-9306 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> (A) 		1-53631-283-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> (B) 		1-53631-284-0 01 1 9002- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 		9-01911-235-0 06 1 9002-9005 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 W/LK WASHER 		0-50041-235-0 06 1 9006-9306 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M12X35 		9-01911-235-0 04 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006-9307 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M12X35 FLANGE 		0-28081-235-0 04 1 9308- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-412-0 06 1 9002-9304 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9305-9306 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M12 		9-99110-412-0 04 1 9002-9304 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M12 		9-99110-512-0 04 1 9305- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006-9306 ● ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M16X30 		0-20801-630-0 04 1 9307- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9307- ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002-9306 ● ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2 		9-09150-516-0 04 1 9307- ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9002-9306 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> 		1-53631-278-1 01 1 9002- ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		9-92041-480-0 02 1 9002-9204 ● ● ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		0-20801-480-0 02 1 9205- ● ● ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 		9-01911-225-0 02 1 9002-9005 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9006-9306 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8X25 W/LK WASHER 		9-01910-825-0 04 1 9002-9005 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9006-9302 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8X25 FLANGE 		0-28080-825-0 04 1 9303- ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14 		9-99110-414-0 02 1 9002- ● ● ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8 		9-09110-408-0 04 1 9002- ●
çizim 36930
31 30 30 31 29 28 24 20 19 1 20 19 10 14 15 14 10 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9002-9402 ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> CAUTIONS CHINESE<SL7> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS CHINESE<SL7> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,CAUTIONS CHINESE<SL7> 		1-53630-146-1 02 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,CAUTIONS CHINESE<SL7> 		1-53630-146-1 01 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9002- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9002- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006-9306 ● ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M16X30 		0-20801-630-0 04 1 9307- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9307- ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002-9306 ● ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2 		9-09150-516-0 04 1 9307- ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9307- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-201-0 02 1 9002- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X28 W/LK WASHER 		0-50041-028-0 08 1 9002- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9305- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		9-92041-480-0 02 1 9002-9204 ● ● ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		0-20801-480-0 02 1 9205- ● ● ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 		9-01911-225-0 02 1 9002-9005 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9006-9306 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8X25 W/LK WASHER 		9-01910-825-0 04 1 9002-9005 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9006-9302 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8X25 FLANGE 		0-28080-825-0 04 1 9303- ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9002- ● ● ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9002- ● ● ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14 		9-99110-414-0 02 1 9002- ● ● ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CONCRETE PUMP<RA5> M8 		9-09110-408-0 04 1 9002- ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 9002- ● ● ● ●
