5-20 — BATTERY CARRIER (#3052) — 97 parça

1 1 2 81 81 44 69 87 26 15 80 26 44 51 51 29 29 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CARRIER; BATTERY CONCRETE PUMP<RA5>	9-53613-587-1	02	1	9002-	●
2	BRACKET; BATTERY	1-53613-274-3	01	1	9002-9306		●	●	●
2	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-274-3	01	1	9002-9306	●
2	BRACKET; BATTERY	1-53613-379-2	01	1	9307-			●
2	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-379-2	01	1	9307-	●
2	BRACKET; BATTERY CONCRETE PUMP<RA5>	1-53613-077-1	01	1	9002-	●
15	BRACKET; BATTERY	1-53613-268-4	01	1	9002-9306		●	●	●
15	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-268-4	01	1	9002-9306	●
15	BRACKET; BATTERY	1-53613-347-1	01	1	9307-			●
15	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-347-1	01	1	9307-	●
15	BRACKET; BATTERY CONCRETE PUMP<RA5>	1-53613-267-0	01	1	9002-	●
26	NUT; BRKT M14	9-99110-414-0	04	1	9002-		●	●	●
26	NUT; BRKT EXC. CONCRETE PUMP<RA5> M14	9-99110-414-0	04	1	9002-	●
26	NUT; BRKT CONCRETE PUMP<RA5> M12	9-99110-412-0	06	1	9002-9304	●
26	NUT; BRKT CONCRETE PUMP<RA5> M12	9-99110-512-0	06	1	9305-	●
29	BOLT; BRKT TO FRAME M14X45	9-92051-445-0	04	1	9002-9005		●	●	●
29	BOLT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M14X45	9-92051-445-0	04	1	9002-9005	●
29	BOLT; BRKT TO FRAME M14X45	0-20801-445-0	04	1	9006-		●	●	●
29	BOLT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M14X45	0-20801-445-0	04	1	9006-	●
29	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X35	9-01911-235-0	06	1	9002-9005	●
29	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X35 W/LK WASHER	0-50041-235-0	06	1	9006-	●
44	SPACER; BATTERY CONCRETE PUMP<RA5> (A)	1-53619-035-0	01	1	9002-	●
44	SPACER; BATTERY CONCRETE PUMP<RA5> (B)	1-53619-036-0	01	1	9002-	●
51	COVER; BATTERY	1-53612-033-0	01	1	9002-9106		●	●	●
51	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53612-033-0	01	1	9002-9106	●
51	COVER; BATTERY	1-53612-040-1	01	1	9107-		●	●	●
51	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53612-040-1	01	1	9107-	●
51	COVER; BATTERY CONCRETE PUMP<RA5>	9-53612-065-0	02	1	9002-	●
69	NUT; SPACER,BATTERY CARRIER CONCRETE PUMP<RA5> M14	9-99110-414-0	04	1	9002-	●
80	BOLT; BATTERY CONCRETE PUMP<RA5>	1-53616-111-0	02	1	9002-	●
81	NUT; BATTERY CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-	●
84	BOLT; SPACER TO FRAME CONCRETE PUMP<RA5> M14X38	9-92051-438-0	04	1	9002-9005	●
84	BOLT; SPACER TO FRAME CONCRETE PUMP<RA5> M14X38	0-20801-438-0	04	1	9006-	●
87	WASHER; LK CONCRETE PUMP<RA5> ID=14.2	9-09150-514-0	04	1	9002-	●

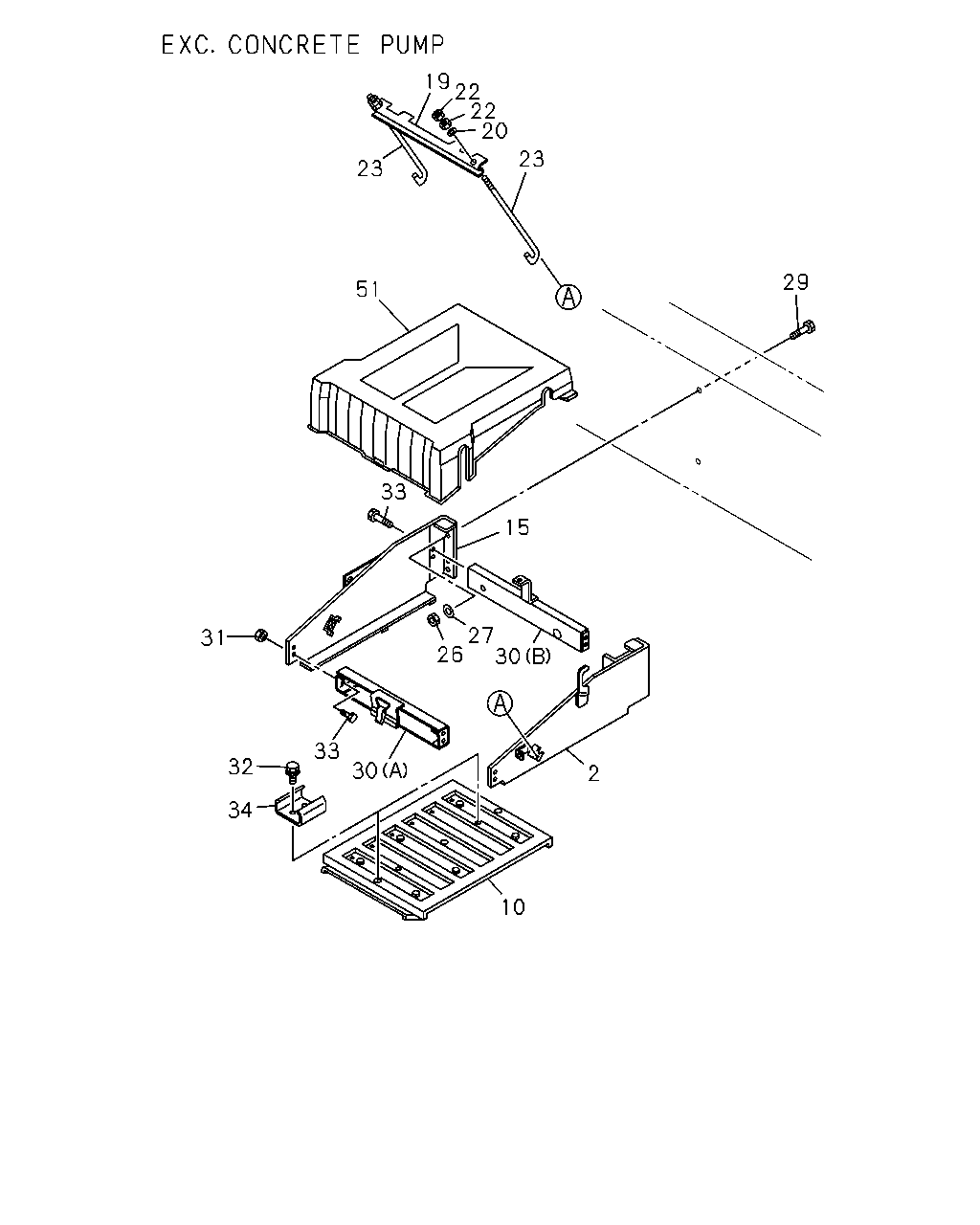

10 2 30 33 32 34 31 26 27 30 33 15 51 23 19 22 22 20 23 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BRACKET; BATTERY	1-53613-274-3	01	1	9002-9306		●	●	●
2	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-274-3	01	1	9002-9306	●
2	BRACKET; BATTERY	1-53613-379-2	01	1	9307-			●
2	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-379-2	01	1	9307-	●
2	BRACKET; BATTERY CONCRETE PUMP<RA5>	1-53613-077-1	01	1	9002-	●
10	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53619-063-0	01	1	9002-9106	●	●	●	●
10	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53619-062-1	01	1	9107-9306	●	●	●	●
10	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53619-082-0	01	1	9307-	●		●
15	BRACKET; BATTERY	1-53613-268-4	01	1	9002-9306		●	●	●
15	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-268-4	01	1	9002-9306	●
15	BRACKET; BATTERY	1-53613-347-1	01	1	9307-			●
15	BRACKET; BATTERY EXC. CONCRETE PUMP<RA5>	1-53613-347-1	01	1	9307-	●
15	BRACKET; BATTERY CONCRETE PUMP<RA5>	1-53613-267-0	01	1	9002-	●
19	STAY; BATTERY	1-53618-039-1	01	1	9002-		●	●	●
19	STAY; BATTERY EXC. CONCRETE PUMP<RA5>	1-53618-039-1	01	1	9002-	●
20	WASHER; PL,STAY ID=8.4 OD=22	9-09164-708-0	02	1	9002-		●	●	●
20	WASHER; PL,STAY EXC. CONCRETE PUMP<RA5> ID=8.4 OD=22	9-09164-708-0	02	1	9002-	●
22	NUT; STAY M8	9-09110-408-0	04	1	9002-		●	●	●
22	NUT; STAY EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-	●
23	BOLT; STAY L=250 L=260	1-53616-109-0	02	1	9002-		●	●	●
23	BOLT; STAY EXC. CONCRETE PUMP<RA5> L=250 L=260	1-53616-109-0	02	1	9002-	●
26	NUT; BRKT M14	9-99110-414-0	04	1	9002-		●	●	●
26	NUT; BRKT EXC. CONCRETE PUMP<RA5> M14	9-99110-414-0	04	1	9002-	●
26	NUT; BRKT CONCRETE PUMP<RA5> M12	9-99110-412-0	06	1	9002-9304	●
26	NUT; BRKT CONCRETE PUMP<RA5> M12	9-99110-512-0	06	1	9305-	●
27	WASHER; LK,BRKT ID=14.2	9-09150-514-0	04	1	9002-		●	●	●
27	WASHER; LK,BRKT EXC. CONCRETE PUMP<RA5> ID=14.2	9-09150-514-0	04	1	9002-	●
29	BOLT; BRKT TO FRAME M14X45	9-92051-445-0	04	1	9002-9005		●	●	●
29	BOLT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M14X45	9-92051-445-0	04	1	9002-9005	●
29	BOLT; BRKT TO FRAME M14X45	0-20801-445-0	04	1	9006-		●	●	●
29	BOLT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M14X45	0-20801-445-0	04	1	9006-	●
29	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X35	9-01911-235-0	06	1	9002-9005	●
29	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X35 W/LK WASHER	0-50041-235-0	06	1	9006-	●
30	PLATE; BATTERY (B)	1-53619-058-0	01	1	9002-9306		●	●	●
30	PLATE; BATTERY EXC. CONCRETE PUMP<RA5> (B)	1-53619-058-0	01	1	9002-9306	●
30	PLATE; BATTERY (A)	1-53619-060-0	01	1	9002-9106		●	●	●
30	PLATE; BATTERY EXC. CONCRETE PUMP<RA5> (A)	1-53619-060-0	01	1	9002-9106	●
30	PLATE; BATTERY (A)	1-53619-085-0	01	1	9107-		●	●	●
30	PLATE; BATTERY EXC. CONCRETE PUMP<RA5> (A)	1-53619-085-0	01	1	9107-	●
31	NUT; PLATE M8	9-09110-408-0	04	1	9002-		●	●	●
31	NUT; PLATE EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-	●
32	BOLT; PLATE TO SPACER BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●
32	BOLT; PLATE TO SPACER BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9302	●	●	●	●
32	BOLT; PLATE TO SPACER BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> EXC. CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	04	1	9303-	●	●	●	●
33	BOLT; PLATE TO BRKT M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204		●	●	●
33	BOLT; PLATE TO BRKT EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●
33	BOLT; PLATE TO BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302		●	●	●
33	BOLT; PLATE TO BRKT EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●
33	BOLT; PLATE TO BRKT M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204		●	●	●
33	BOLT; PLATE TO BRKT EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●
33	BOLT; PLATE TO BRKT M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302		●	●	●
33	BOLT; PLATE TO BRKT EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302	●
33	BOLT; PLATE TO BRKT M8X25 FLANGE	0-28080-825-0	04	1	9303-9306		●	●	●
33	BOLT; PLATE TO BRKT EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9303-9306	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-		●	●	●
33	BOLT; PLATE TO BRKT EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	04	1	9303-	●
34	SPACER; BATTERY BRKT BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> EXC. CONCRETE PUMP<RA5>	1-53619-061-0	02	1	9002-9106	●	●	●	●
34	SPACER; BATTERY BRKT BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> EXC. CONCRETE PUMP<RA5>	1-53619-084-0	02	1	9107-	●	●	●	●
51	COVER; BATTERY	1-53612-033-0	01	1	9002-9106		●	●	●
51	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53612-033-0	01	1	9002-9106	●
51	COVER; BATTERY	1-53612-040-1	01	1	9107-		●	●	●
51	COVER; BATTERY EXC. CONCRETE PUMP<RA5>	1-53612-040-1	01	1	9107-	●
51	COVER; BATTERY CONCRETE PUMP<RA5>	9-53612-065-0	02	1	9002-	●
