◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#30518) — 93 parça

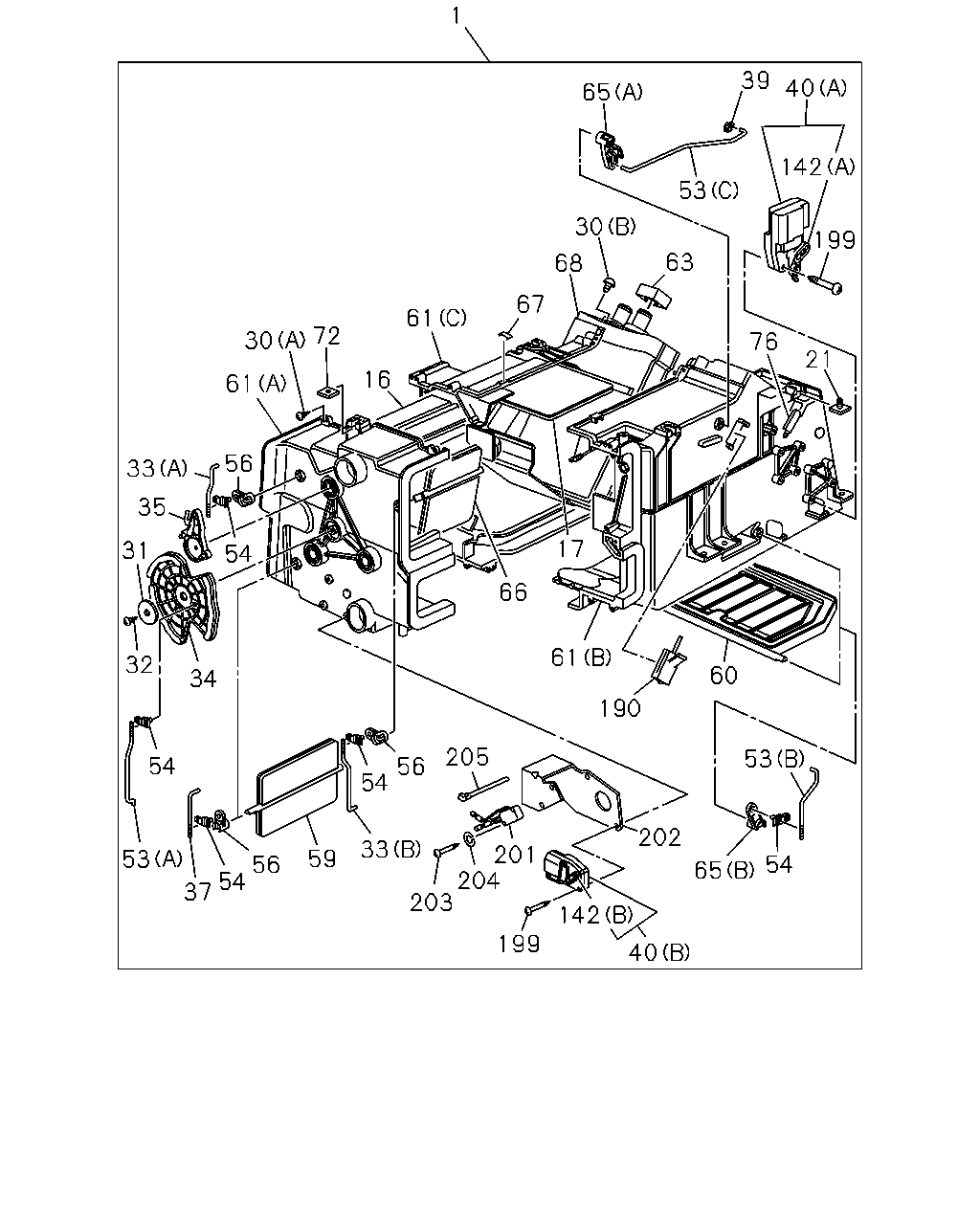

çizim 104369
1 65 39 40 142 53 199 21 76 63 30 68 67 61 16 72 30 61 56 33 35 31 54 34 32 66 17 61 190 60 53 54 65 202 40 142 199 201 204 203 205 56 54 33 59 56 54 37 53 54
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0512-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410-
1 HEATER UNIT 1-83511-182-1 01 1 0407-0511
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0512-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0407-0511
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-625-1 01 1 0512-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0407-0511
17 SHUTTER; HTR UNIT,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-628-1 01 1 0512-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0407-0511
21 BOLT; CASE,HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-657-2 02 1 0512-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0407-0511
30 SCREW; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16 		8-94324-850-0 12 1 0512-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0407-0511
30 SCREW; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20 		9-09829-324-1 01 1 0512-1409
30 SCREW; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0407-0511
31 WASHER; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94129-950-0 01 1 0512-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0407-0511
32 SCREW; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20 		9-09829-324-1 01 1 0512-1409
32 SCREW; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0407-0511
33 ROD; SHUTTER LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-619-0 01 1 0512-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0407-0511
33 ROD; SHUTTER LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-621-0 01 1 0512-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0407-0511
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-326-0 01 1 0512-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0407-0511
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94389-502-1 03 1 0512-
37 ROD; LEVER 1-83579-620-1 01 1 0407-0511
37 ROD; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-620-1 01 1 0512-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0407-0511
39 CLIP; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-136-0 01 1 0512-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0512-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0407-0511
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-650-1 01 1 0512-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 0407-0511
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0512-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0407-0511
53 ROD; SHUTTER LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-622-0 01 1 0512-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0407-0511
53 ROD; SHUTTER LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-623-0 01 1 0512-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0407-0511
53 ROD; SHUTTER LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-624-0 01 1 0512-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0407-0511
54 CLIP; SHUTTER LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94248-794-0 05 1 0512-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0407-0511
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-325-0 03 1 0512-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0407-0511
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-626-2 01 1 0512-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0407-0511
60 DOOR; MIX,HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83578-084-0 01 1 0512-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0512-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0512-
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0407-0511
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0512-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0407-0511
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83564-346-3 01 1 0512-
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0407-0511
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0512-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0407-0511
63 LINING; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-557-0 02 1 0512-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0407-0511
65 LEVER; MIX,DOOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-327-0 01 1 0512-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0407-0511
65 LEVER; MIX,DOOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-328-1 01 1 0512-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0407-0511
66 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-680-0 01 1 0512-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0407-0511
67 CLIP; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-148-0 01 1 0512-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0407-0511
68 CORE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83562-078-1 01 1 0512-1409
68 CORE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0407-0511
72 NUT; CASE,HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-659-4 02 1 0512-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0407-0511
76 BRACKET; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83571-874-0 01 1 0512-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0512-
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 0407-0511
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0512-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0407-0511
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-414-0 01 1 0512-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0407-0511
190 SENSOR; HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-658-1 01 1 0512-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0407-0511
199 SCREW; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-94348-809-0 04 1 0512-
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410-
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410-
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410-
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410-
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410-
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 0407-0511
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 0512-1409
