8-52 — PIPING; AIR CONDITIONING (#30517) — 237 parça

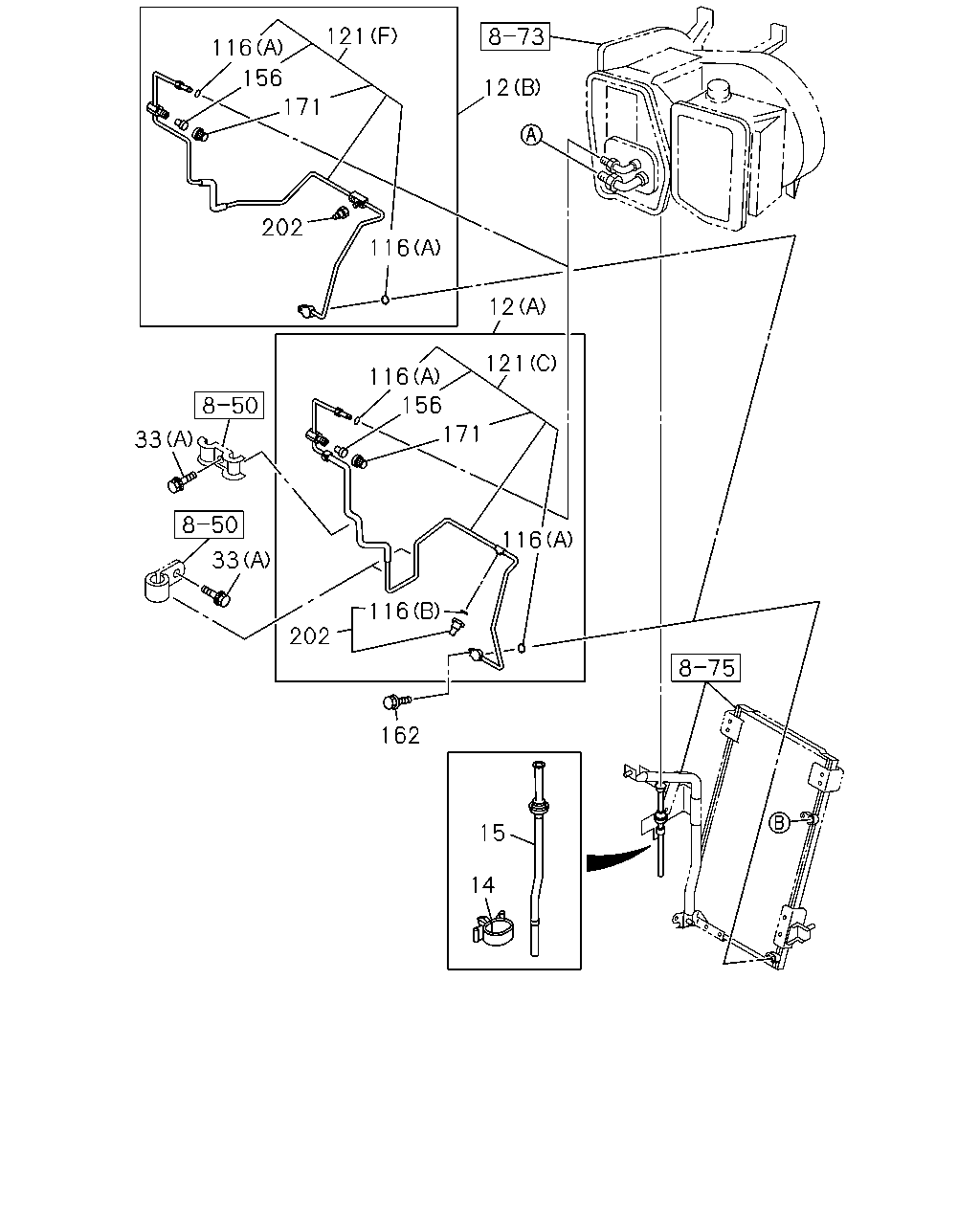

çizim 87463
121 116 156 12 171 202 116 12 121 116 156 171 33 116 33 116 202 162 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83567-852-1 01 1 0407-0511
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-877-1 01 1 0512-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 		8-94410-200-0 01 1 0407-0511
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 		8-94410-200-0 01 1 0512-
15 HOSE; DRAIN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83572-635-0 01 1 0407-0511
15 HOSE; DRAIN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-635-0 01 1 0512-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
33 BOLT; CLIP
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
33 BOLT; CLIP
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0704-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=7.4 		8-97095-906-0 02 1 0407-0511
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=7.4 		8-97095-906-0 02 1 0512-
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		8-97178-772-0 01 1 0407-0511
121 HOSE; COOLER
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0512-0703
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0704-
121 HOSE; COOLER
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0512-0703
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0704-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F) 		1-83567-863-1 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-055-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-086-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83572-953-0 01 1 0407-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83572-954-0 01 1 0407-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0512-
156 VALVE; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-97095-909-0 01 1 0407-0511
156 VALVE; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 0512-
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28680-625-0 02 1 0407-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0511
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28080-625-0 02 1 0512-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
171 CAP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAP MARK H 		8-97095-911-0 01 1 0407-0511
171 CAP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK H 		8-97095-911-0 01 1 0512-
202 SWITCH; PRESSURE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83564-392-0 01 1 0407-0511
202 SWITCH; PRESSURE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-392-1 01 1 0512-

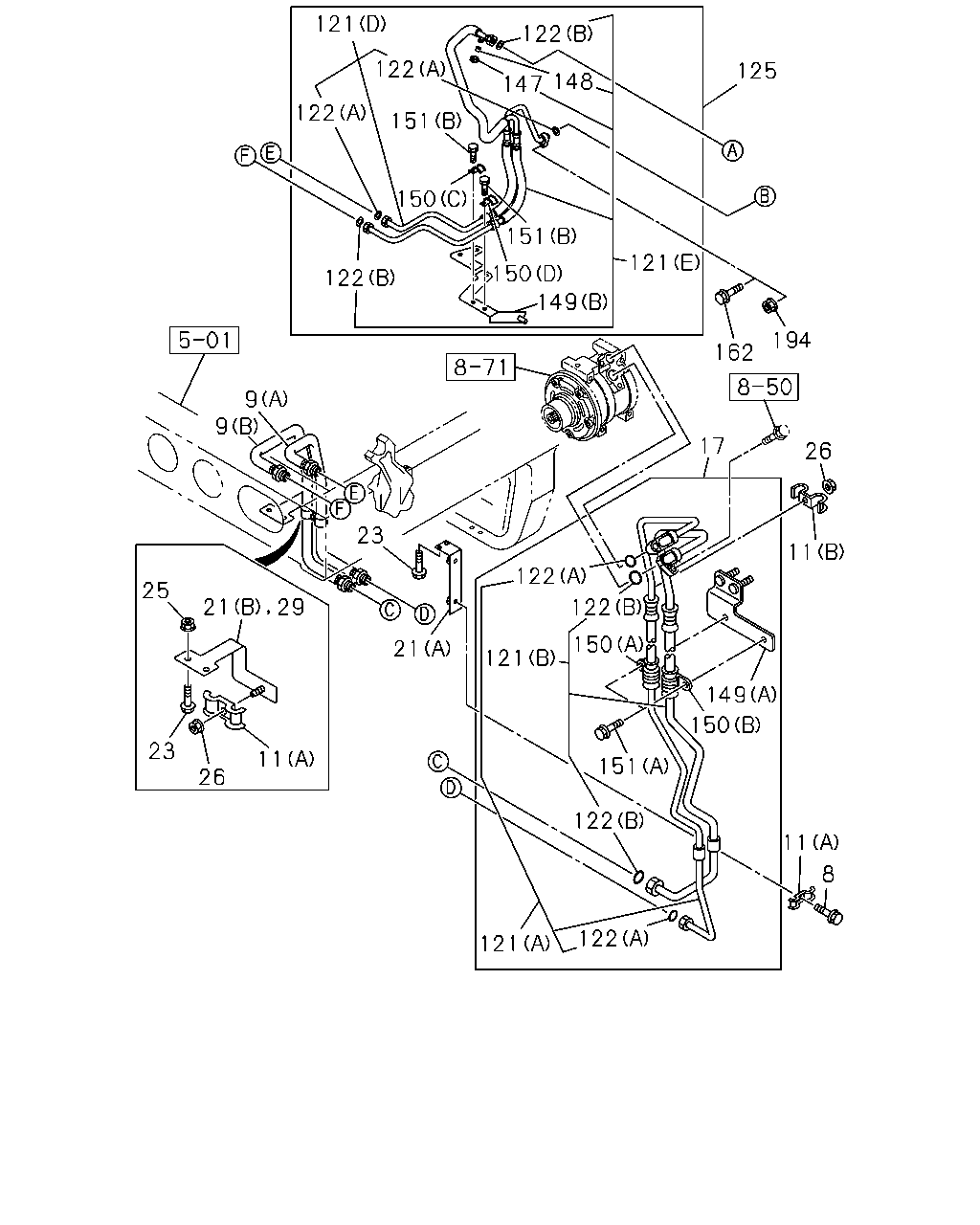

çizim 104273
121 122 122 125 148 147 122 151 150 151 150 121 122 149 194 162 9 17 26 23 11 122 25 122 150 21 121 149 150 23 11 151 26 122 11 8 122 121 21 9 29
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
8 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83567-888-0 01 1 0512-0703
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83567-888-0 01 1 0704-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83567-889-1 01 1 0512-0703
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83567-889-1 01 1 0704-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83567-841-0 01 1 0407-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-841-0 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83567-842-0 01 1 0407-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-842-0 01 1 0512-
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=20 & 20 		1-83574-195-1 01 1 0407-0511
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20 		1-83574-195-1 02 1 0512-
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0407-0511
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0512-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 0512-0703
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 0704-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		1-83572-928-1 01 1 0407-0511
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-928-2 01 1 0512-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. MJX M/T<Y9N> (B) 		1-83573-202-0 01 1 0704-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-282-1 01 1 0512-0703
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) MJX M/T<Y9N> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-282-1 01 1 0704-
21 BRACKET; COOLER HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 0512-0703
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 0704-
21 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-249-0 01 1 0407-0511
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-249-0 01 1 0512-
23 BOLT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
23 BOLT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0703
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 0704-
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
25 NUT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511
25 NUT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
25 NUT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0603-0703
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0704-
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 02 1 0603-
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0603-
29 BRACKET; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83573-282-1 01 1 0407-0511
121 HOSE; COOLER
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0512-0703
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0704-
121 HOSE; COOLER
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0512-0703
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0704-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F) 		1-83567-863-1 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-055-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-086-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83572-953-0 01 1 0407-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83572-954-0 01 1 0407-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0512-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		1-83572-940-0 01 1 0407-0511
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-026-1 01 1 0512-
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> CAP MARK L 		8-97095-910-0 01 1 0407-0511
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK L 		8-97095-910-0 01 1 0512-
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		8-97095-909-0 01 1 0407-0511
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 0512-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83573-255-0 01 1 0407-0511
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 0512-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 0512-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83573-265-0 01 1 0407-0511
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-265-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83574-249-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-249-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-249-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (C) 		1-83574-262-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83574-262-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83574-263-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83574-263-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83574-264-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-264-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-264-0 01 1 0512-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83539-336-0 02 1 0407-0511
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83539-336-0 02 1 0512-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83578-098-0 02 1 0407-0511
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 0512-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 0512-
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28680-625-0 02 1 0407-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0511
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28080-625-0 02 1 0512-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
194 NUT; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6 FLANGE 		0-91150-106-0 01 1 0407-0511

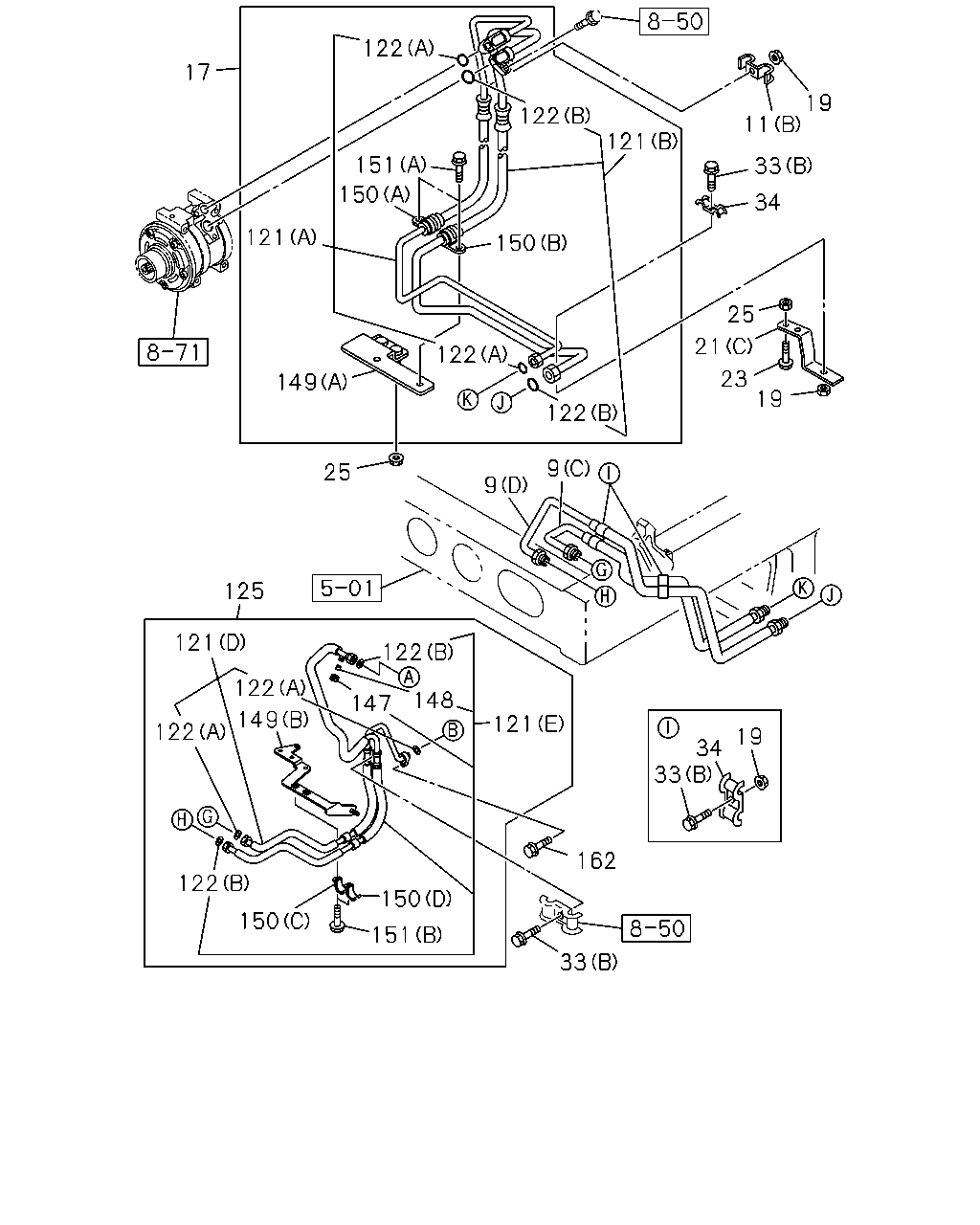

çizim 104818
122 17 19 11 122 121 151 33 150 34 121 150 25 21 122 23 149 19 122 9 25 9 125 121 122 148 122 147 149 121 122 19 34 33 162 122 150 150 151 33
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83567-888-0 01 1 0512-0703
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83567-888-0 01 1 0704-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83567-889-1 01 1 0512-0703
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83567-889-1 01 1 0704-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83567-841-0 01 1 0407-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-841-0 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83567-842-0 01 1 0407-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-842-0 01 1 0512-
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=20 & 20 		1-83574-195-1 01 1 0407-0511
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20 		1-83574-195-1 02 1 0512-
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0407-0511
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0512-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 0512-0703
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 0704-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		1-83572-928-1 01 1 0407-0511
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-928-2 01 1 0512-
19 NUT; CLIP FIX
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 01 1 0407-0511
19 NUT; CLIP FIX
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
19 NUT; CLIP FIX
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0603-0703
19 NUT; CLIP FIX
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0704-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. MJX M/T<Y9N> (B) 		1-83573-202-0 01 1 0704-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-282-1 01 1 0512-0703
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) MJX M/T<Y9N> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-282-1 01 1 0704-
21 BRACKET; COOLER HOSE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 0512-0703
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 0704-
21 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-249-0 01 1 0407-0511
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-249-0 01 1 0512-
23 BOLT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
23 BOLT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0703
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 0704-
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
25 NUT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511
25 NUT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
25 NUT; BRKT
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0603-0703
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0704-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
33 BOLT; CLIP
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
33 BOLT; CLIP
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0704-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
34 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 & 20 		1-83574-195-1 01 1 0407-0511
34 CLIP; COOLER PIPE
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 & 20 		1-83574-195-1 03 1 0512-0703
34 CLIP; COOLER PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 & 20 		1-83574-195-1 03 1 0704-
121 HOSE; COOLER
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0512-0703
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0704-
121 HOSE; COOLER
6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0512-0703
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0704-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F) 		1-83567-863-1 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-055-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0407-0511
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-086-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83572-953-0 01 1 0407-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0512-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83572-954-0 01 1 0407-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0512-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0512-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		1-83572-940-0 01 1 0407-0511
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-026-1 01 1 0512-
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> CAP MARK L 		8-97095-910-0 01 1 0407-0511
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK L 		8-97095-910-0 01 1 0512-
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		8-97095-909-0 01 1 0407-0511
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 0512-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83573-255-0 01 1 0407-0511
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 0512-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 0512-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83573-265-0 01 1 0407-0511
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-265-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83574-249-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-249-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-249-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (C) 		1-83574-262-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83574-262-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83574-263-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83574-263-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83574-264-0 01 1 0407-0511
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-264-0 01 1 0512-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-264-0 01 1 0512-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83539-336-0 02 1 0407-0511
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83539-336-0 02 1 0512-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83578-098-0 02 1 0407-0511
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 0512-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 0512-
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28680-625-0 02 1 0407-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0511
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28080-625-0 02 1 0512-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
