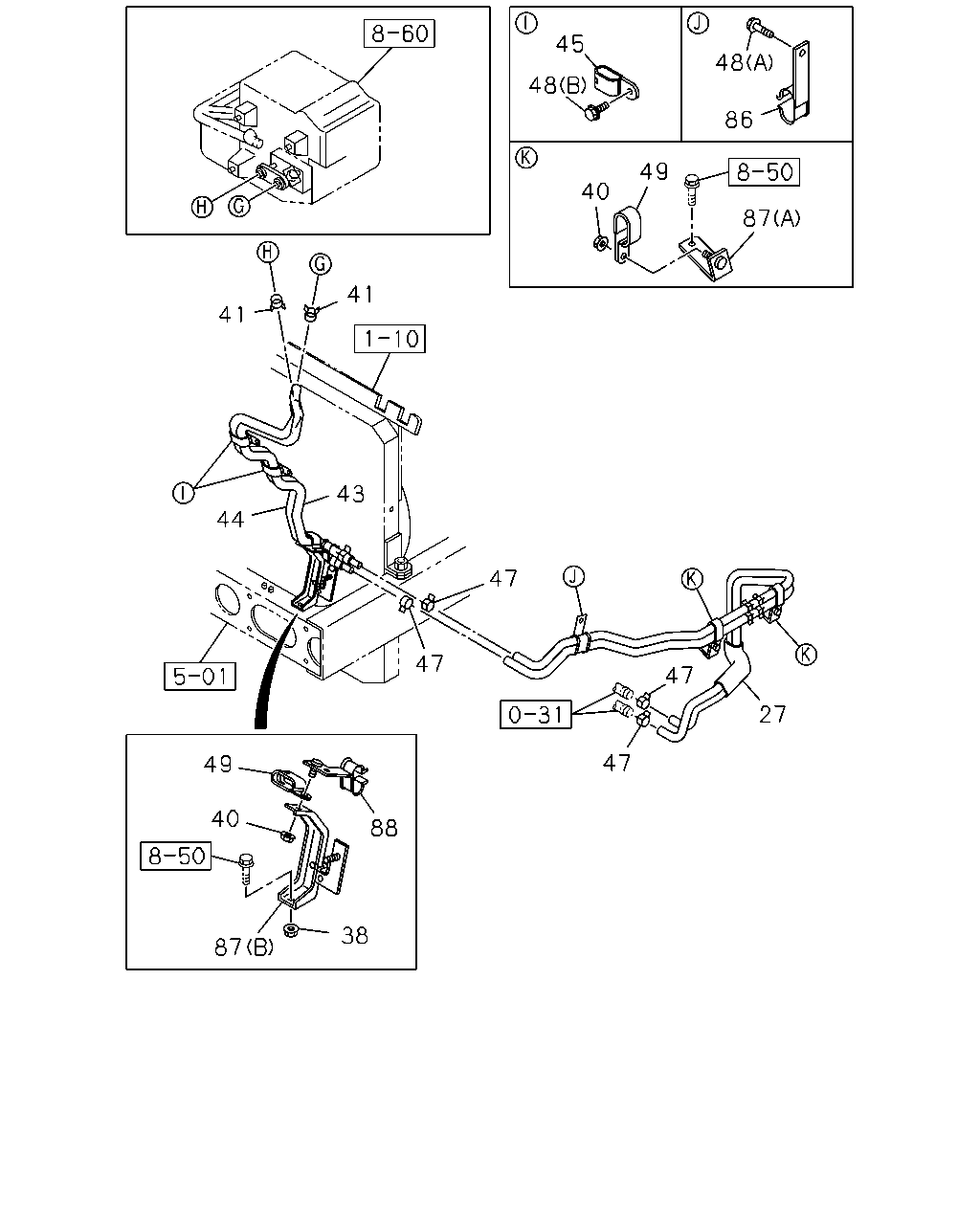

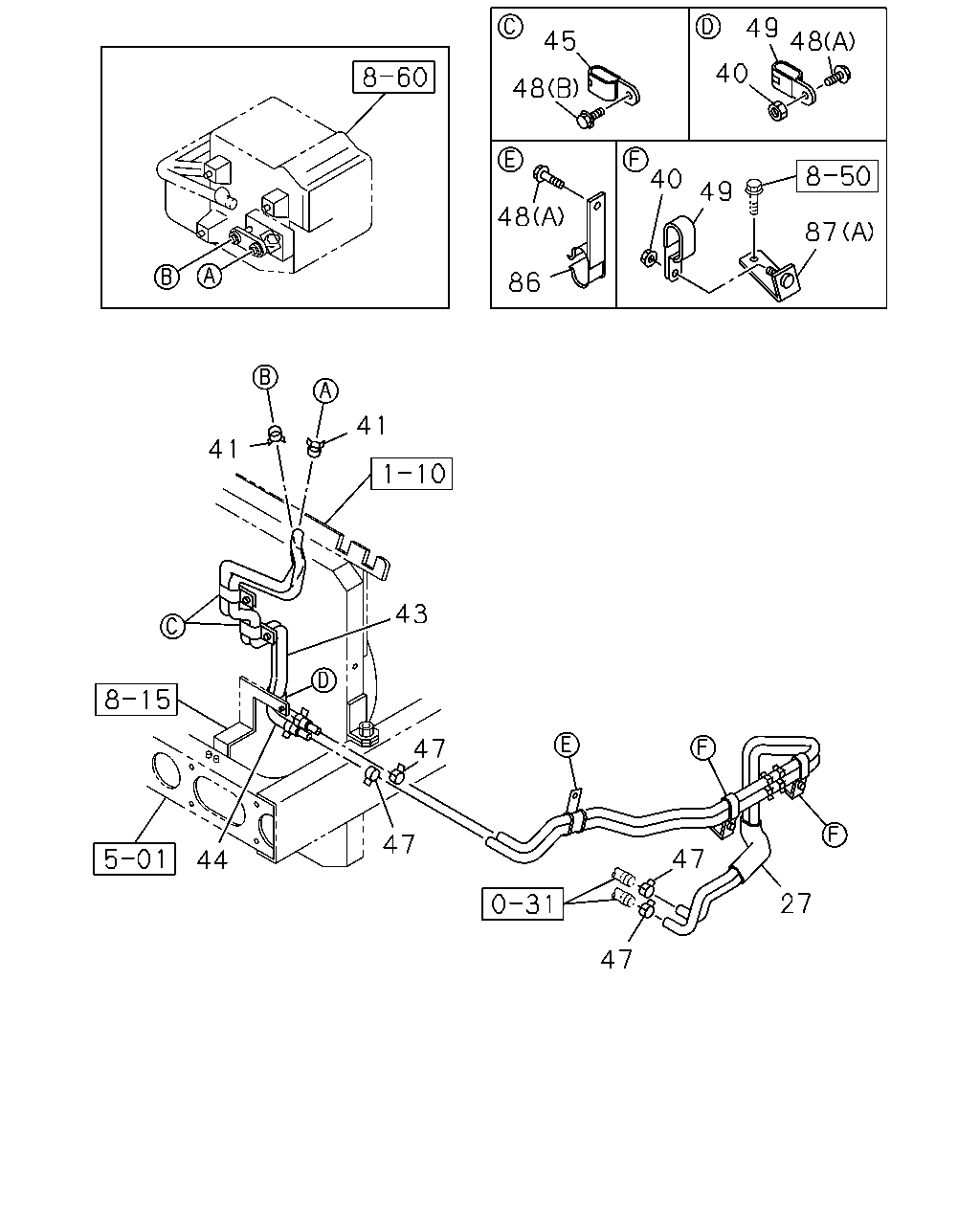

8-45 — HEATER PIPING (#30515) — 73 parça

45 48 86 48 49 40 87 27 47 47 88 38 87 40 49 47 47 43 44 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-S(97L)	1-83565-839-1	01	1	0512-0703
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-839-1	01	1	0704-
27	HOSE; WATER,HTR UNIT TO WATER PIPE CAB UP +110MM<TGG>	1-83565-802-2	01	1	0407-0511
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8)	1-83565-802-3	01	1	0512-
38	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
38	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-0703
38	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0704-
40	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511
40	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
41	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	02	1	0407-0611
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0612-
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-S(97L)	1-83565-828-1	01	1	0512-0703
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-828-1	01	1	0704-
43	HOSE; WATER,OUTLET,HTR	1-83565-570-3	01	1	0407-0511
43	HOSE; WATER,OUTLET,HTR 6WF1 TC-C(1B8)	1-83565-570-3	01	1	0512-
44	HOSE; WATER,HTR,INL 6WG1 TC-S(97L)	1-83565-826-1	01	1	0512-0703
44	HOSE; WATER,HTR,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-826-1	01	1	0704-
44	HOSE; WATER,HTR,INL	1-83565-569-4	01	1	0407-0511
44	HOSE; WATER,HTR,INL 6WF1 TC-C(1B8)	1-83565-569-4	01	1	0512-
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0407-
47	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	04	1	0407-0611
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0612-
48	BOLT; CLIP FIX 6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
48	BOLT; CLIP FIX 6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0703
48	BOLT; CLIP FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0704-
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
48	BOLT; CLIP FIX (A) M8X25 FLANGE	0-28680-825-0	03	1	0407-0511
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0407-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0407-
87	BRACKET; HTR HOSE CLIP 6WG1 TC-S(97L) (B)	1-83573-316-0	01	1	0512-0703
87	BRACKET; HTR HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-83573-316-0	01	1	0704-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0407-
88	STAY; WATER HOSE 6WG1 TC-S(97L)	1-83573-291-1	01	1	0512-0703
88	STAY; WATER HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83573-291-1	01	1	0704-

45 49 48 40 87 49 40 48 48 86 41 41 44 47 47 27 47 47 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-S(97L)	1-83565-839-1	01	1	0512-0703
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-839-1	01	1	0704-
27	HOSE; WATER,HTR UNIT TO WATER PIPE CAB UP +110MM<TGG>	1-83565-802-2	01	1	0407-0511
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8)	1-83565-802-3	01	1	0512-
40	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511
40	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
41	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	02	1	0407-0611
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0612-
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-S(97L)	1-83565-828-1	01	1	0512-0703
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-828-1	01	1	0704-
43	HOSE; WATER,OUTLET,HTR	1-83565-570-3	01	1	0407-0511
43	HOSE; WATER,OUTLET,HTR 6WF1 TC-C(1B8)	1-83565-570-3	01	1	0512-
44	HOSE; WATER,HTR,INL 6WG1 TC-S(97L)	1-83565-826-1	01	1	0512-0703
44	HOSE; WATER,HTR,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-826-1	01	1	0704-
44	HOSE; WATER,HTR,INL	1-83565-569-4	01	1	0407-0511
44	HOSE; WATER,HTR,INL 6WF1 TC-C(1B8)	1-83565-569-4	01	1	0512-
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0407-
47	CLAMP; WATER HOSE,HTR ID=22	8-94382-401-0	04	1	0407-0611
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0612-
48	BOLT; CLIP FIX 6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
48	BOLT; CLIP FIX 6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0703
48	BOLT; CLIP FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0704-
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
48	BOLT; CLIP FIX (A) M8X25 FLANGE	0-28680-825-0	03	1	0407-0511
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0407-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0407-
87	BRACKET; HTR HOSE CLIP 6WG1 TC-S(97L) (B)	1-83573-316-0	01	1	0512-0703
87	BRACKET; HTR HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-83573-316-0	01	1	0704-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0407-
