Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#30513) — 531 parça

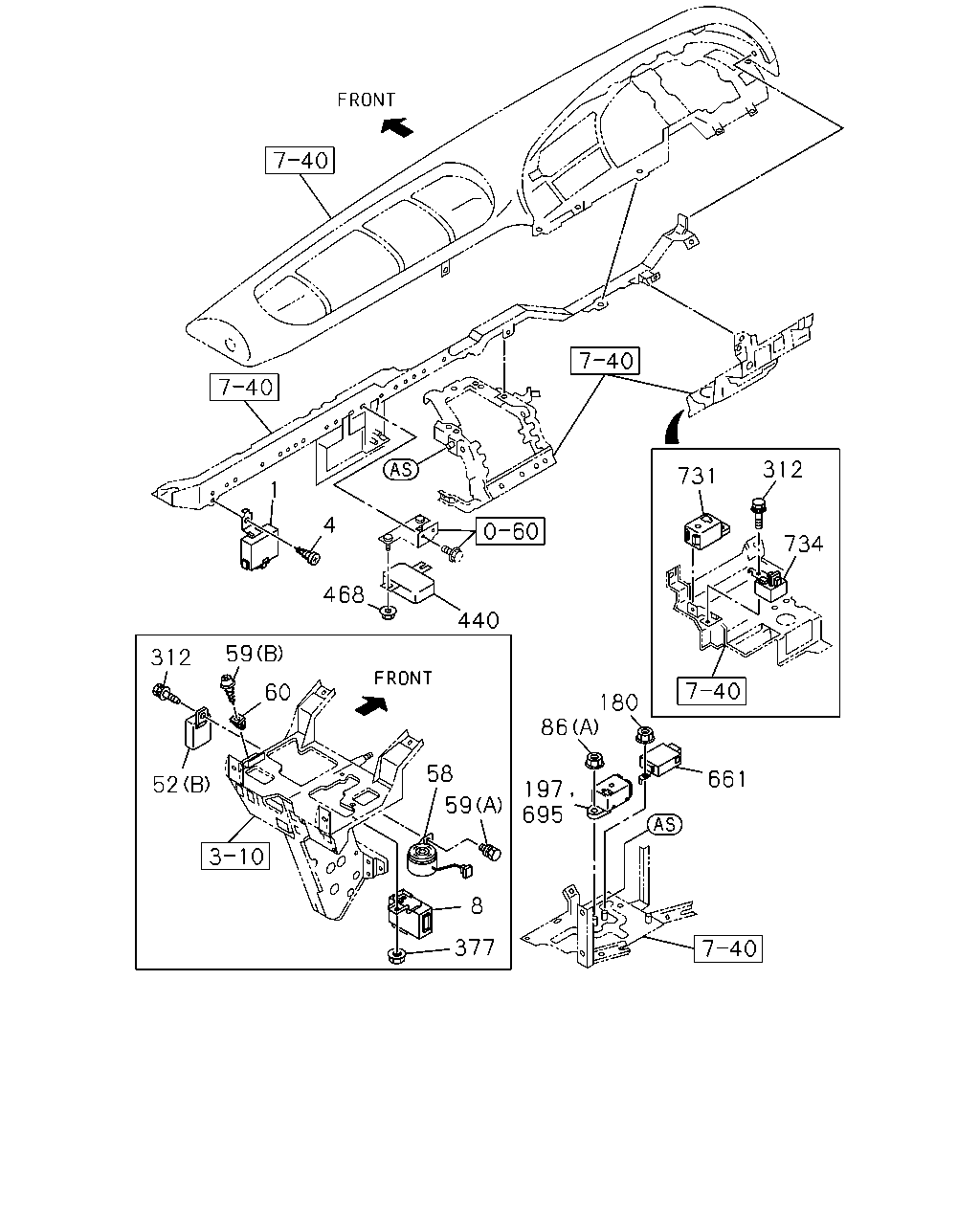

312 731 1 4 734 468 440 59 312 60 180 86 58 661 52 197 695 59 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0407-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0407-
8	RELAY; WIPER	1-83316-002-4	01	1	0407-
52	BUZZER; BACK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B)	1-83460-040-0	01	1	0512-0703
52	BUZZER; BACK 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (B)	1-83460-040-0	01	1	0704-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	1-83460-083-0	01	1	0407-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	8-98069-861-0	01	1	0701-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0407-0511
58	BUZZER; AIR PRESSURE WARNING 6WF1 TC-C(1B8) METRO DENSO	1-83460-075-0	01	1	0512-0612
58	BUZZER; AIR PRESSURE WARNING 6WF1 TC-C(1B8) METRO DENSO	8-98069-859-0	01	1	0701-
59	SCREW; BUZZER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0512-0604
59	SCREW; BUZZER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0703
59	SCREW; BUZZER 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0704-
59	SCREW; BUZZER (A) M5X14	8-94279-325-0	01	1	0407-0511
59	SCREW; BUZZER 6WF1 TC-C(1B8) (A) M5X14	8-94279-325-0	01	1	0512-
60	GROMMET; SCREW,BUZZER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0512-0703
60	GROMMET; SCREW,BUZZER 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0704-
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0407-0511
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0407-0602
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0407-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
197	BUZZER; WARNING,AIR HEAT OIL BRK 6WF1 TC-C(1B8)	1-83460-051-1	01	1	0512-
312	BOLT; BUZZER 6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0512-0703
312	BOLT; BUZZER 6WG1 TC-C(72L),6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0704-

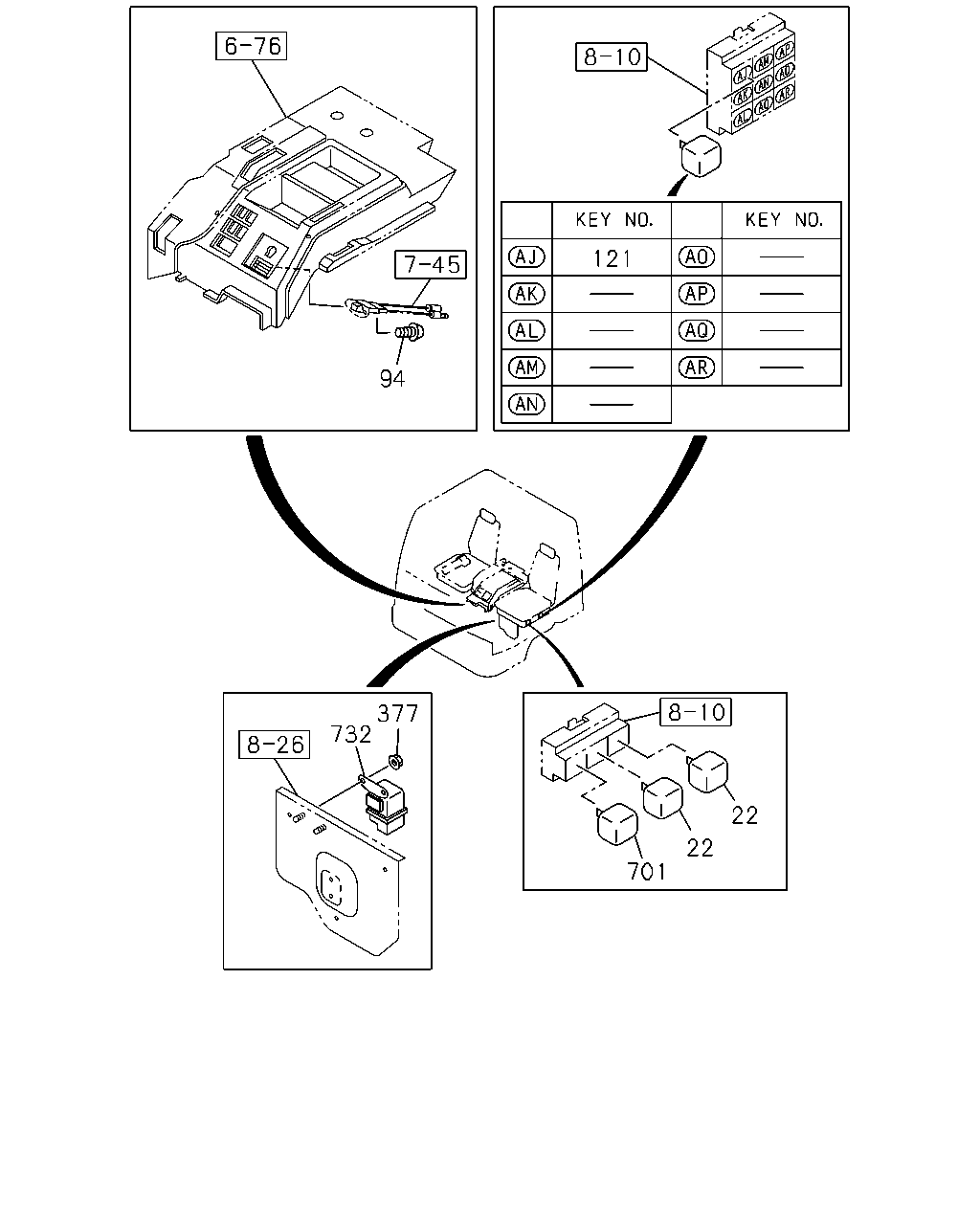

377	NUT; RELAY 6WG1 TC-S(97L) SMOOTHER-G(C1W) M6 FLANGE	0-91150-106-0	02	1	0512-0602
377	NUT; RELAY 6WG1 TC-S(97L) SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0603-0703
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0704-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0407-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0407-0511
440	MODULE; INFORMATION,ABS 6WF1 TC-C(1B8)	1-81510-701-0	01	1	0512-0609
440	MODULE; INFORMATION,ABS 6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W)	1-81510-701-0	01	1	0512-0609
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0610-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0407-0511
468	NUT; MODULE 6WF1 TC-C(1B8) M6 FLANGE	0-91150-106-0	02	1	0512-0602
468	NUT; MODULE 6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) M6 FLANGE	0-91150-106-0	02	1	0512-0602
468	NUT; MODULE 6WF1 TC-C(1B8) M6 FLANGE	0-91180-106-0	02	1	0603-0609
468	NUT; MODULE 6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0603-0609
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0610-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0407-
695	ALARM; OVER HEAT	1-83460-051-1	01	1	0407-0511
731	ALARM; INFORMATION 6WG1 TC-S(97L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0512-0703
731	ALARM; INFORMATION 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0704-
734	ALARM; MULTI 6WG1 TC-S(97L)	1-83460-106-0	01	1	0512-0703
734	ALARM; MULTI 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83460-106-0	01	1	0704-

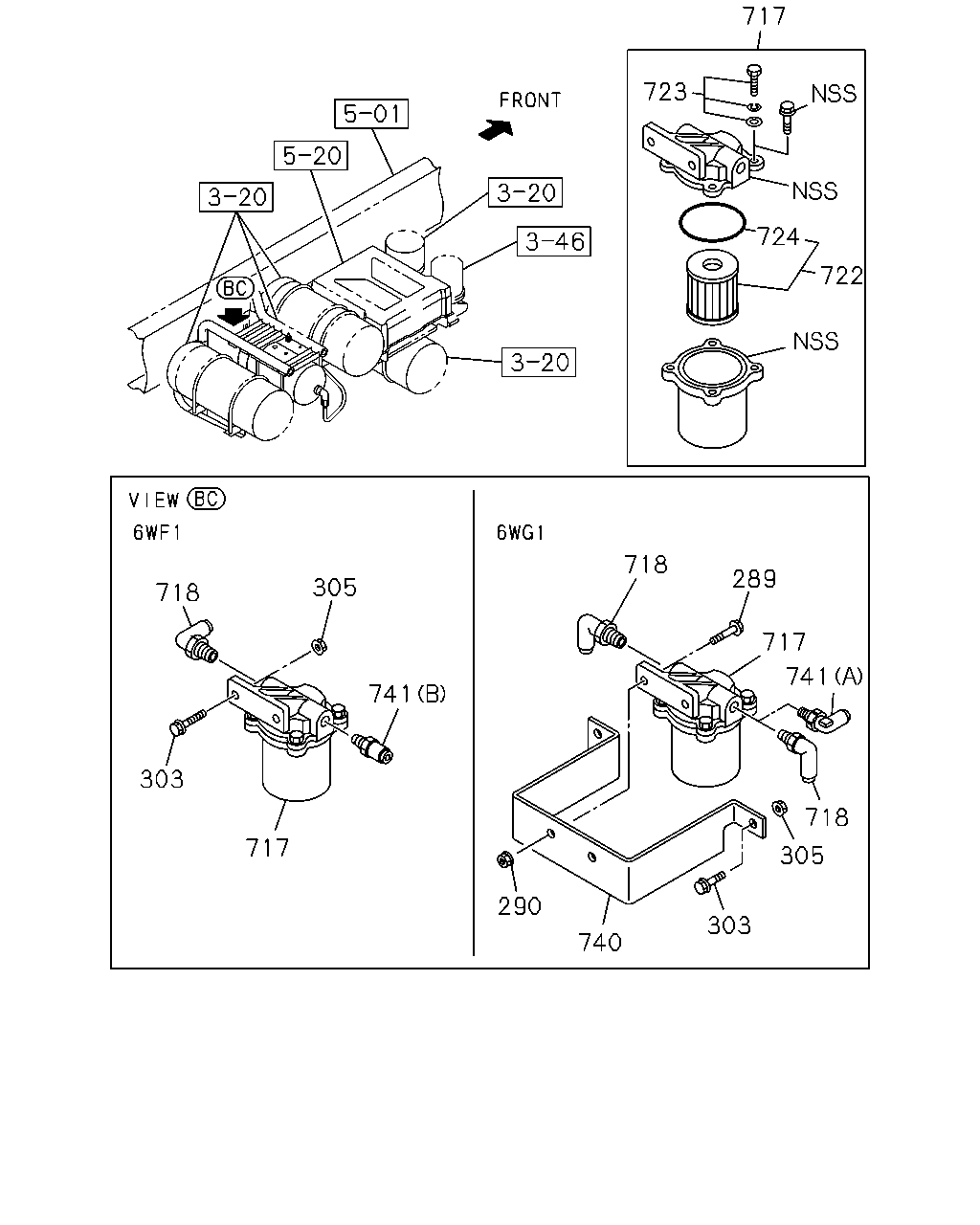

717 723 724 722 718 305 741 717 303 718 717 741 289 718 305 303 740 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT 6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
289	BOLT 6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	02	1	0601-0703
289	BOLT 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	02	1	0704-
290	NUT 6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	02	1	0512-0602
290	NUT 6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0603-0703
290	NUT 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0704-
303	BOLT; FILTER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
303	BOLT; FILTER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	02	1	0601-
303	BOLT; FILTER 6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X35 FLANGE	0-28680-835-0	03	1	0512-0512
303	BOLT; FILTER 6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X35 FLANGE	0-28650-835-0	03	1	0601-0703
303	BOLT; FILTER 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X35 FLANGE	0-28650-835-0	03	1	0704-
305	NUT; FILTER SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	02	1	0512-0602
305	NUT; FILTER SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0603-
717	FILTER; MAG VLV SMOOTHER-G(C1W)	1-33779-032-0	01	1	0512-0708
717	FILTER; MAG VLV SMOOTHER-G(C1W)	8-98092-703-0	01	1	0709-
718	CONNECTOR; FILTER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0512-
722	ELEMENT; AIR FILTER SMOOTHER-G(C1W)	1-33779-040-0	01	1	0512-
723	BOLT; AIR FILTER SMOOTHER-G(C1W)	1-33779-025-0	04	1	0512-0708
724	GASKET; AIR FILTER SMOOTHER-G(C1W)	5-09623-075-0	01	1	0512-
740	BRACKET; FILTER 6WG1 TC-S(97L) SMOOTHER-G(C1W)	1-33779-036-0	01	1	0512-0703
740	BRACKET; FILTER 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W)	1-33779-036-0	01	1	0704-
741	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	0512-
741	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0512-0703
741	CONNECTOR; NYLON TUBE 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0704-

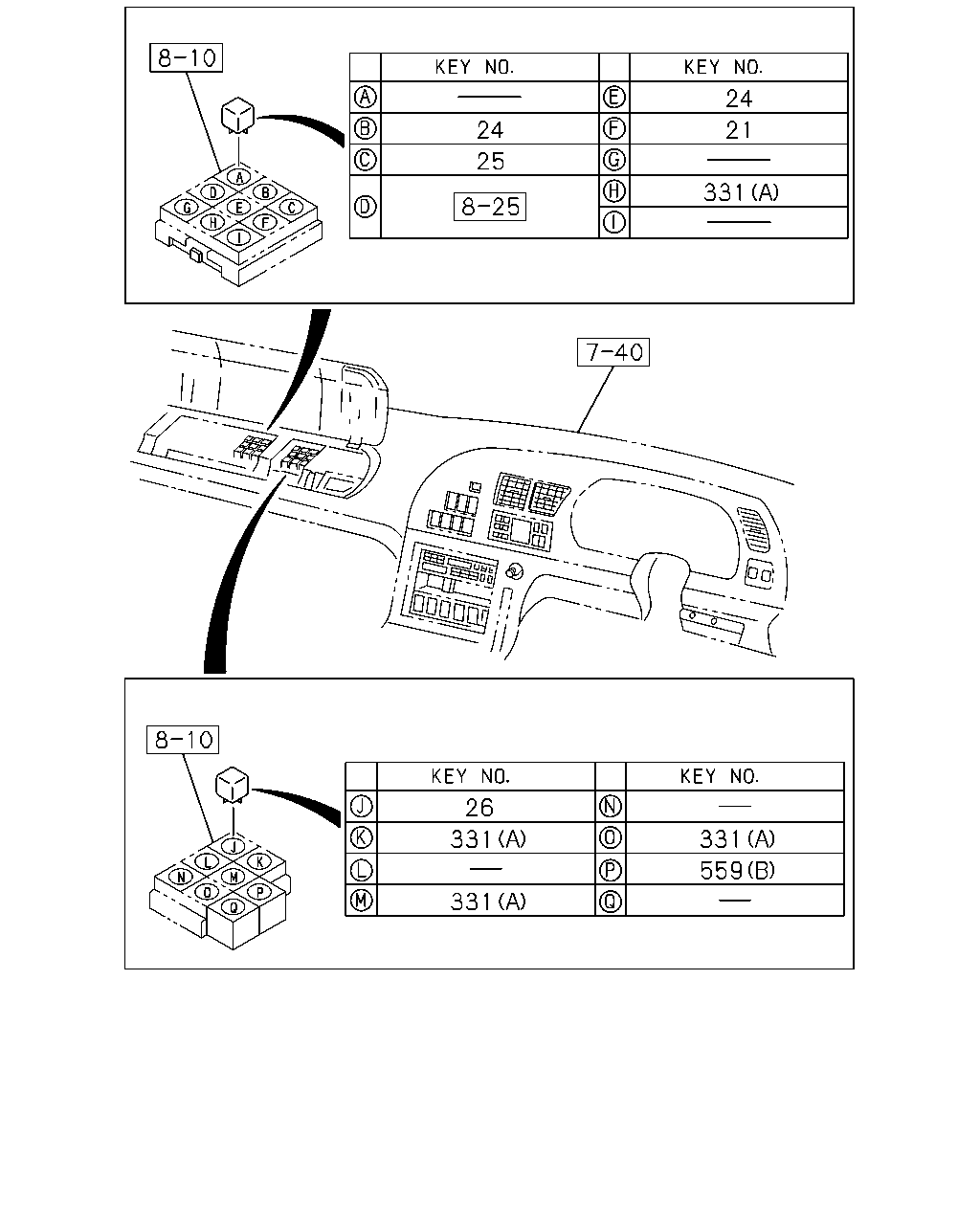

24 24 21 331 26 331 331 559 331 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-0511
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-0511
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-0511
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
331	RELAY; A/C (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-0703
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0704-

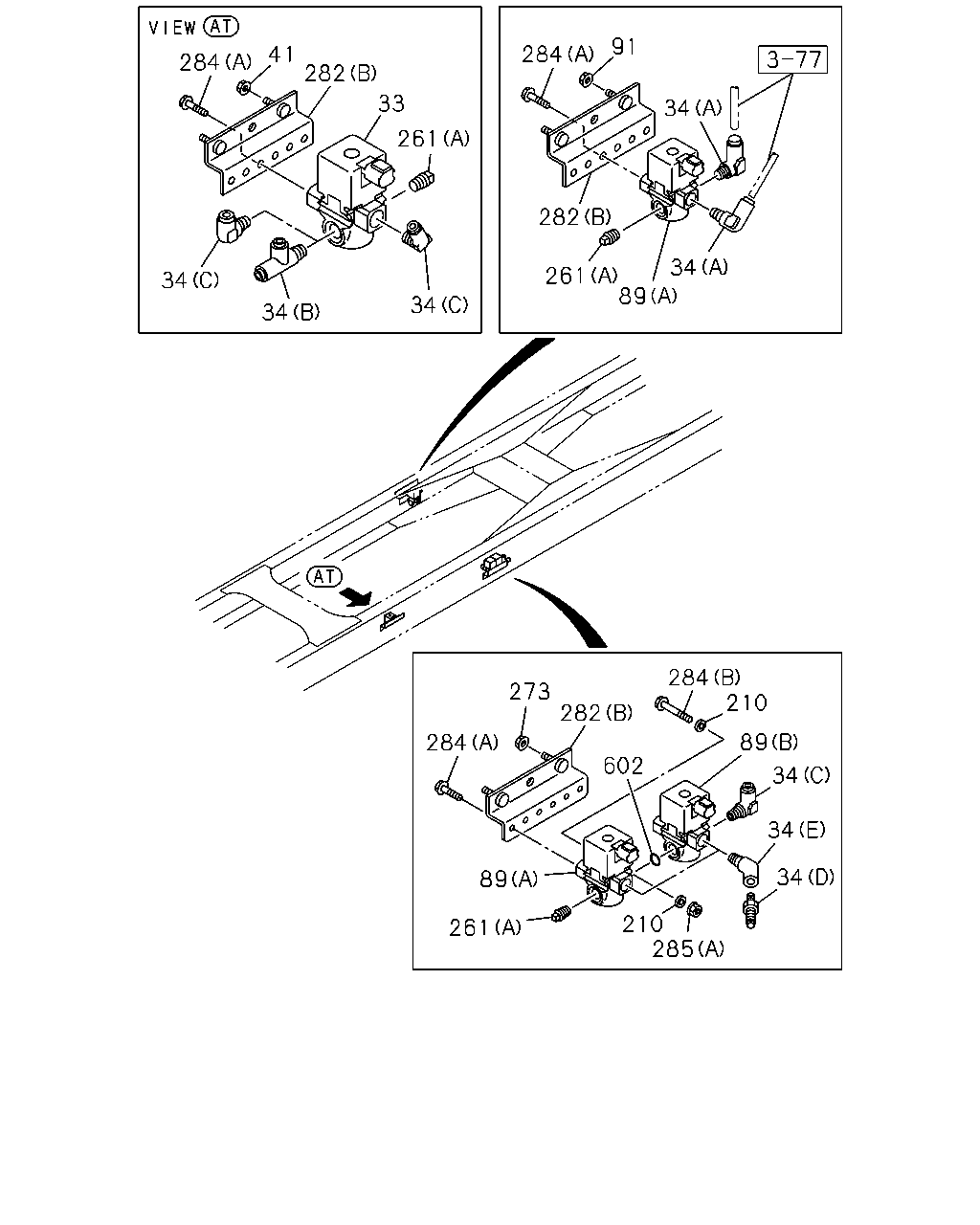

91 284 41 284 282 33 34 261 282 34 261 89 34 34 34 284 210 273 282 89 284 602 34 34 34 89 210 285 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0407-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0407-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0407-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0407-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	02	1	0407-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0603-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-094-2	01	1	0512-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-095-1	02	1	0512-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (E)	1-82564-407-1	01	1	0512-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0407-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0407-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0407-
91	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0407-0602
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT 6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-0703
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0704-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0407-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0407-
261	PLUG; MAG VLV SMOOTHER-G(C1W) (B) PT3/8	9-09204-517-0	01	1	0512-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	0407-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0407-0602
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0603-
282	BRACKET; MAG VLV 6WG1 TC-S(97L) (D)	1-82569-298-0	01	1	0512-0703
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-82569-298-0	01	1	0704-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0407-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0407-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-82569-358-0	01	1	0407-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0407-0511
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (A)	1-82569-277-2	01	1	0512-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0407-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X60 FLANGE	0-28080-660-0	02	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X60 FLANGE	0-28050-660-0	02	1	0601-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0512-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
284	BOLT; MAG VLV 6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-0703
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0704-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	9-99110-405-0	03	1	0512-0512
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0601-
285	NUT; MAG VLV 6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-0703
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0704-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0407-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0407-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV 6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-0703
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0704-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0407-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0407-

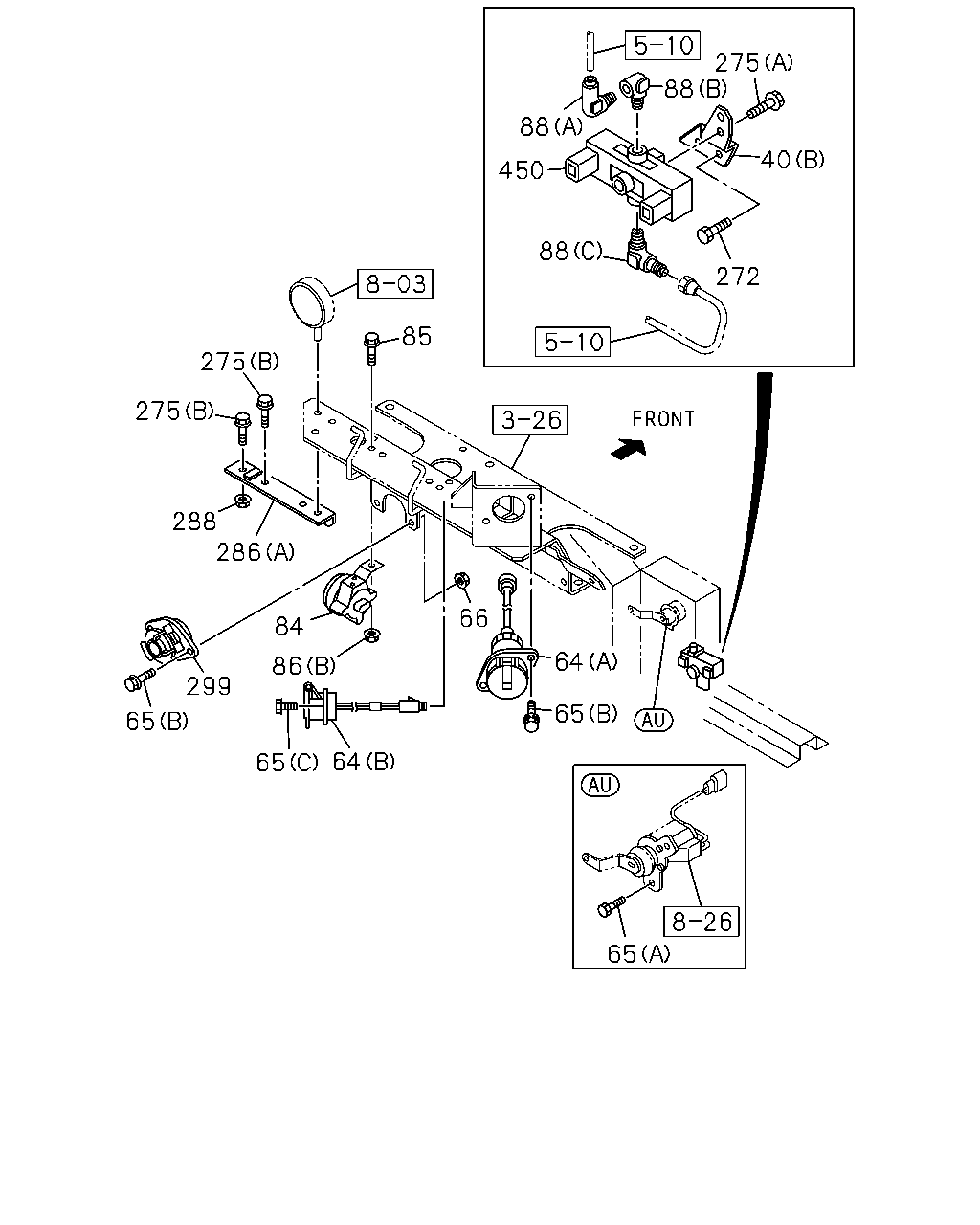

275 88 88 40 450 88 272 85 275 275 288 286 66 84 64 86 299 65 65 64 65 65

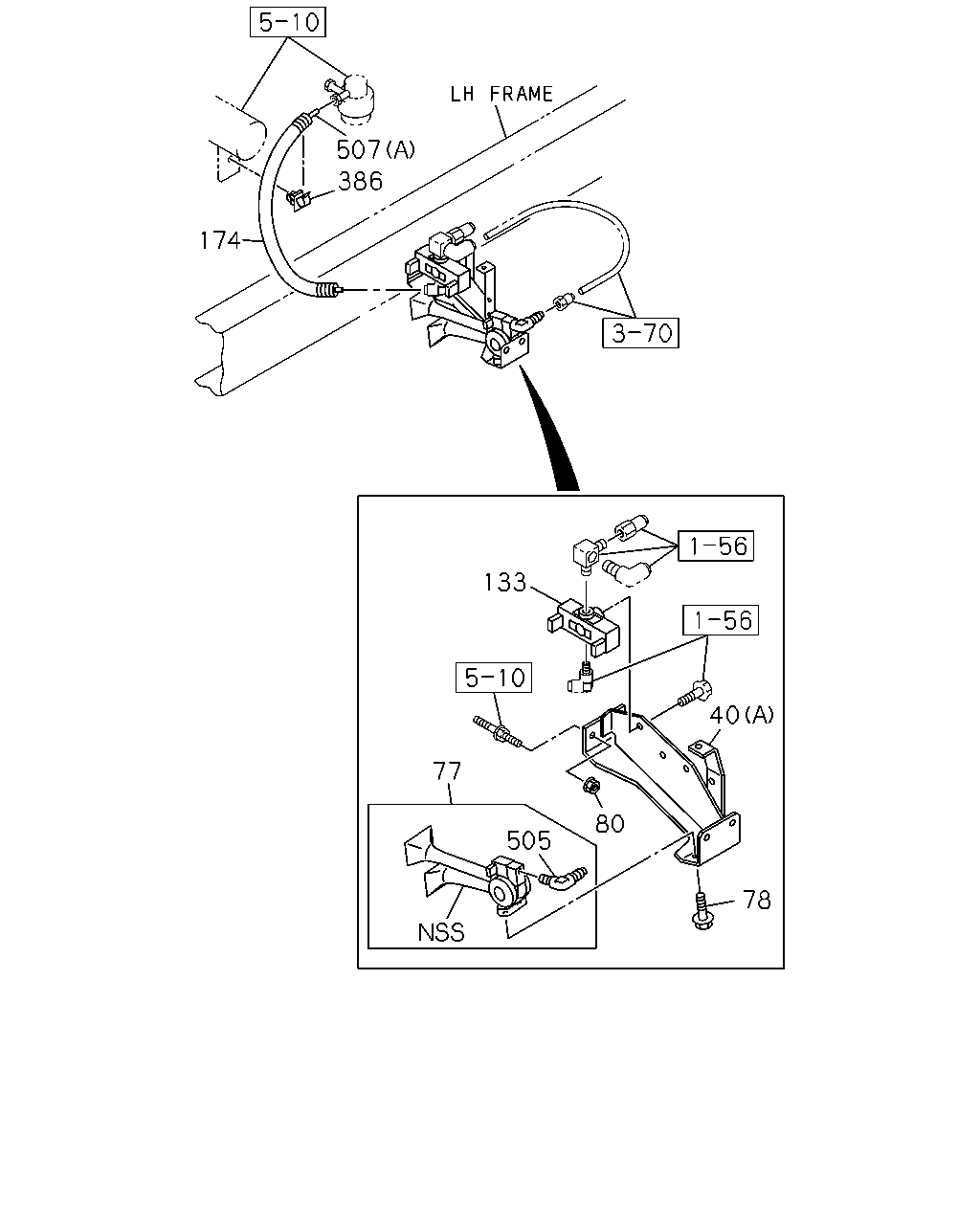

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	1-82569-425-0	01	1	0512-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-82698-604-0	02	1	0512-
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0407-0511
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0512-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0407-
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0407-
64	SOCKET; TRAILER (A)	1-82698-364-0	01	1	0407-
65	BOLT; SOCKET FIX (B) M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512
65	BOLT; SOCKET FIX (B) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	0407-0512
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX (C) M8X25 FLANGE	0-28680-825-0	02	1	0407-0512
65	BOLT; SOCKET FIX (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX (B) M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0504
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91150-108-0	01	1	0407-0602
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	01	1	0603-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0407-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0601-
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0407-0511
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0407-0602
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (M) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) PT3/8 4WAY	1-09661-489-0	01	1	0512-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0512-0703
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0704-
88	CONNECTOR; MAG VLV 6WG1 TC-S(97L) SMOOTHER-G(C1W) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0512-0703
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0704-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	05	1	0407-0511
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0407-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0407-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0407-
272	BOLT; MAG VLV M10X20 FLANGE	0-28681-020-0	02	1	0407-0512
272	BOLT; MAG VLV M10X20 FLANGE	0-28651-020-0	02	1	0601-1208
272	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0407-
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	03	1	0407-0511
275	BOLT; BRKT 6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
275	BOLT; BRKT 6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0703
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0704-
286	BRACKET (A)	1-53458-919-1	01	1	0407-0508
286	BRACKET (A)	1-53457-179-0	01	1	0509-0511
286	BRACKET 6WG1 TC-S(97L) (B)	1-82699-199-0	01	1	0512-0703
286	BRACKET 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-82699-199-0	01	1	0704-
288	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511
288	NUT; BRKT FIX 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
288	NUT; BRKT FIX 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-0703
288	NUT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0704-
299	SOCKET; PARKING	1-82699-396-2	01	1	0407-
450	VALVE; MAG	1-53458-378-2	01	1	0407-

719 615 341 559 666 367 331 226 367 31 430 427 367 702

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
226	RELAY; EXH BRK 6WF1 TC-C(1B8) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-0511
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-0511
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
331	RELAY; A/C (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0407-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
367	RELAY; NEUTRAL SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
427	RELAY; RETARDER 6WF1 TC-C(1B8) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0512-
430	RELAY; RANGE 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511
430	RELAY; RANGE EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
430	RELAY; RANGE MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-0703
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0704-
615	RELAY; TRAILER 6WG1 TC-S(97L) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
615	RELAY; TRAILER 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-0511
615	RELAY; TRAILER 6WF1 TC-C(1B8) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
666	RELAY; STARTER MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
702	RELAY; EBS ELECTRONIC BRAKE SYSTEM EBS(NLH) 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511
702	RELAY; EBS ELECTRONIC BRAKE SYSTEM EBS(NLH) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
702	RELAY; EBS 6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
702	RELAY; EBS ELECTRONIC BRAKE SYSTEM EBS(NLH) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
702	RELAY; EBS 6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
719	RELAY; EMERGENCY,GEAR SHIFT UNIT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-0703
719	RELAY; EMERGENCY,GEAR SHIFT UNIT 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0704-

121 94 377 732 22 22 701

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0407-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-0511
121	RELAY; PARKING BRK 6WG1 TC-S(97L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-0703
121	RELAY; PARKING BRK 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0704-
377	NUT; RELAY 6WG1 TC-S(97L) SMOOTHER-G(C1W) M6 FLANGE	0-91150-106-0	02	1	0512-0602
377	NUT; RELAY 6WG1 TC-S(97L) SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0603-0703
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0704-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0407-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
701	RELAY; BRK,EBS ELECTRONIC BRAKE SYSTEM EBS(NLH) 24V 10A PANASONIC	8-97173-035-1	01	1	0407-
732	RELAY; EDS 6WG1 TC-S(97L) SMOOTHER-G(C1W)	1-82550-337-1	01	1	0512-0703
732	RELAY; EDS 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82550-337-1	01	1	0704-

507 386 174 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	1-82569-425-0	01	1	0512-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-82698-604-0	02	1	0512-
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0407-0511
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0512-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0407-
77	HORN ASM	1-83430-041-2	01	1	0407-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-0703
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0704-
80	NUT; MAG VLV M12 FLANGE	0-91150-212-0	02	1	0407-0602
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0603-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0407-
174	COVER CAB UP +110MM<TGG> L=700 SERVICED BY L=800	1-83129-031-1	01	1	0407-0511
174	COVER L=700 SERVICED BY L=800	1-83129-031-1	01	1	0512-
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0407-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0407-
507	TUBE; NYLON SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0512-
507	TUBE; NYLON CAB UP +110MM<TGG> (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0407-0511
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0512-

117 116 115 84 85 286 275 288 86 56 52 635 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B)	1-83460-040-0	01	1	0512-0703
52	BUZZER; BACK 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (B)	1-83460-040-0	01	1	0704-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	1-83460-083-0	01	1	0407-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	8-98069-861-0	01	1	0701-
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28681-030-0	01	1	0407-0511
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91150-210-0	01	1	0407-0511
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0407-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0601-
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0407-0511
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0407-0602
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0407-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0407-0602
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0407-
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	03	1	0407-0511
275	BOLT; BRKT 6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
275	BOLT; BRKT 6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0703
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0704-
286	BRACKET (A)	1-53458-919-1	01	1	0407-0508
286	BRACKET (A)	1-53457-179-0	01	1	0509-0511
286	BRACKET 6WG1 TC-S(97L) (B)	1-82699-199-0	01	1	0512-0703
286	BRACKET 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-82699-199-0	01	1	0704-
288	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511
288	NUT; BRKT FIX 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
288	NUT; BRKT FIX 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-0703
288	NUT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0704-
635	SENSOR; PICK UP,INPUT SHAFT 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-81510-736-1	01	1	0512-0703
635	SENSOR; PICK UP,INPUT SHAFT 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-81510-736-1	01	1	0704-

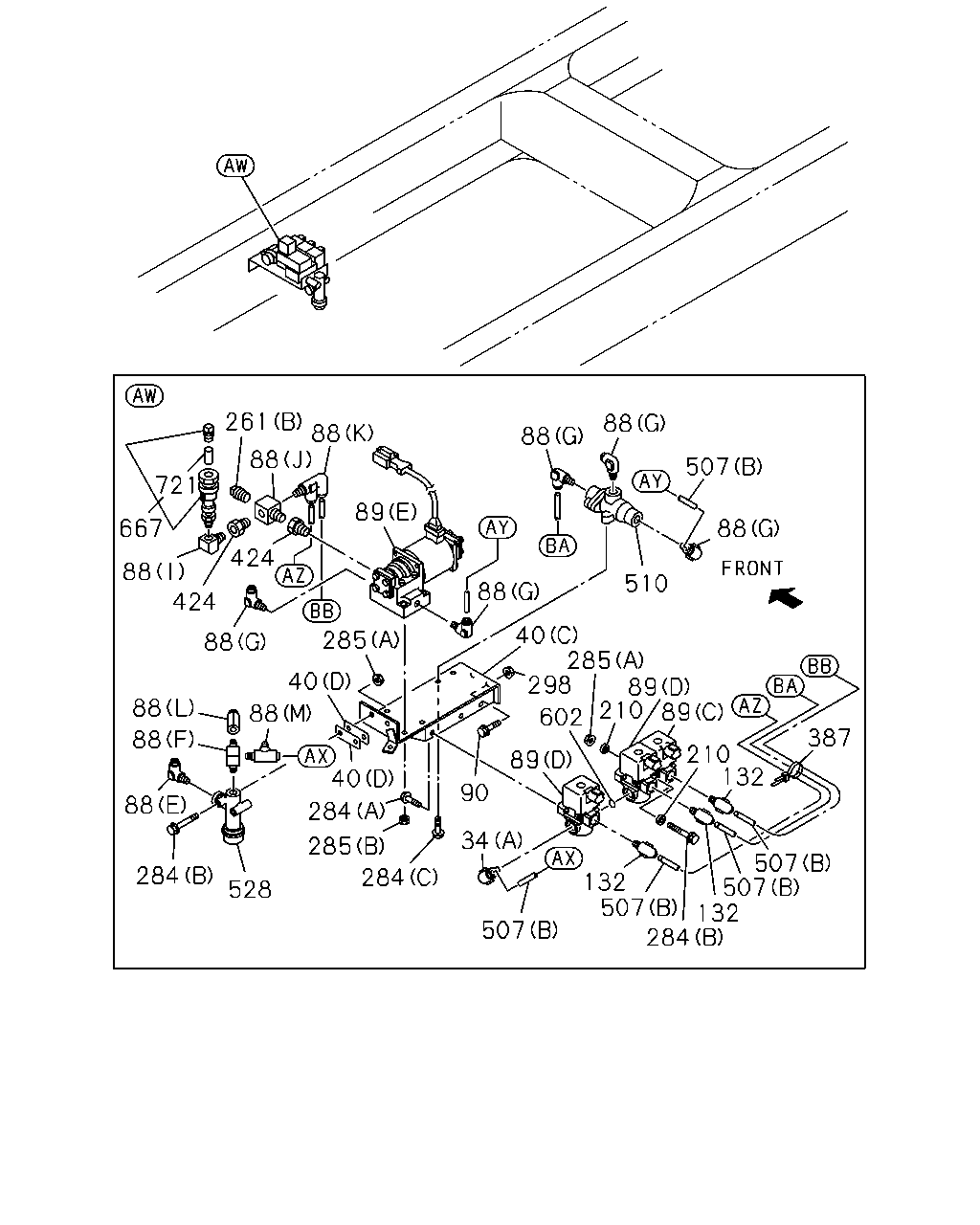

261 88 88 88 88 507 721 89 667 88 424 88 424 510 88 40 285 298 89 285 88 40 88 88 602 387 88 40 210 132 89 90 88 284 34 285 507 132 507 507 132 284 284 284 528 507 210 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0407-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0407-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0407-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0407-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	1-82569-425-0	01	1	0512-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-82698-604-0	02	1	0512-
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0407-0511
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0512-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0407-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (M) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) PT3/8 4WAY	1-09661-489-0	01	1	0512-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0512-0703
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0704-
88	CONNECTOR; MAG VLV 6WG1 TC-S(97L) SMOOTHER-G(C1W) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0512-0703
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0704-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	05	1	0407-0511
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0407-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0407-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0407-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-094-2	01	1	0512-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-095-1	02	1	0512-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (E)	1-82564-407-1	01	1	0512-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0407-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0407-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0407-
90	BOLT; MAG VLV SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
90	BOLT; MAG VLV SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0601-
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0512-
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT 6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-0703
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0704-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0407-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0407-
261	PLUG; MAG VLV SMOOTHER-G(C1W) (B) PT3/8	9-09204-517-0	01	1	0512-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	0407-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X60 FLANGE	0-28080-660-0	02	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X60 FLANGE	0-28050-660-0	02	1	0601-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0512-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
284	BOLT; MAG VLV 6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-0703
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0704-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	9-99110-405-0	03	1	0512-0512
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0601-
285	NUT; MAG VLV 6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-0703
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0704-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0407-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0407-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
298	NUT; MAG VLV SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	02	1	0512-0602
298	NUT; MAG VLV SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0603-
387	CLIP; BAND SMOOTHER-G(C1W) L=350	1-09707-183-0	01	1	0512-
424	ADAPTER SMOOTHER-G(C1W) PT3/8	1-09664-210-0	02	1	0512-
507	TUBE; NYLON SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0512-
507	TUBE; NYLON CAB UP +110MM<TGG> (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0407-0511
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0512-
510	VALVE; CHECK SMOOTHER-G(C1W)	1-48410-531-1	01	1	0512-
528	VALVE; PRESSURE REDUCING SMOOTHER-G(C1W)	1-48410-744-0	01	1	0512-
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV 6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-0703
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0704-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0407-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0407-
667	LUBRICATION SMOOTHER-G(C1W)	1-33779-011-0	01	1	0512-0705
667	LUBRICATION SMOOTHER-G(C1W)	8-98063-001-0	01	1	0706-
721	ELEMENT; LUBRICATION SMOOTHER-G(C1W)	1-33779-028-0	01	1	0512-

97 282 97 97 282 39 39 604 604 280 96 96 604 284 210 602 96 88 96 604 280 604 88 280 88 210 285 420 88 88 210 284 39 604 604 88 96 261 282 97 602 210 88 280 285 261 604 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

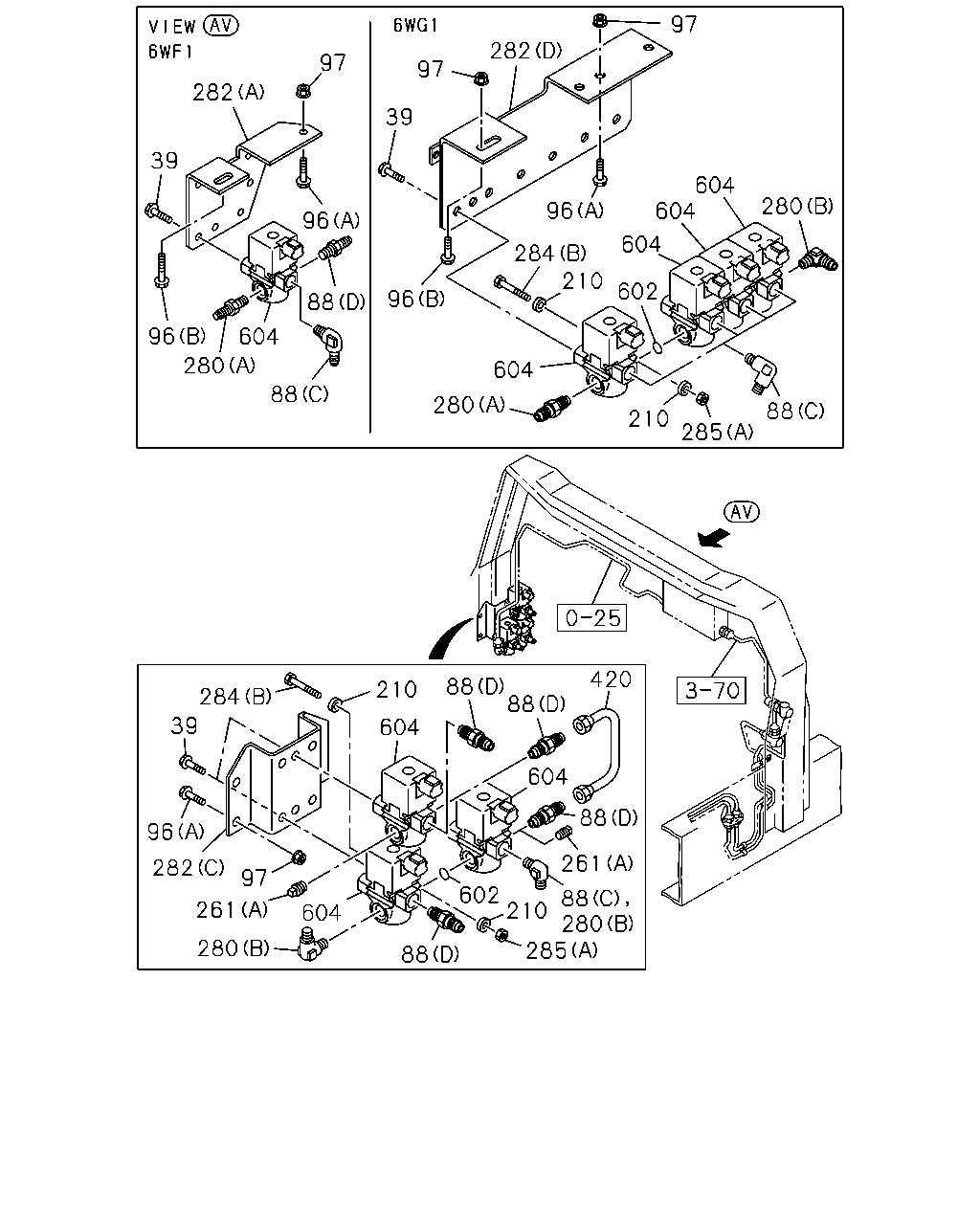

39	BOLT; BRKT,MAG VLV 6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	04	1	0601-0703
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	04	1	0704-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	06	1	0407-0511
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0601-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (M) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0512-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) PT3/8 4WAY	1-09661-489-0	01	1	0512-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
88	CONNECTOR; MAG VLV 6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0512-0703
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0704-
88	CONNECTOR; MAG VLV 6WG1 TC-S(97L) SMOOTHER-G(C1W) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0512-0703
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0704-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	05	1	0407-0511
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0407-0511
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0407-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0407-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0407-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0407-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
97	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	05	1	0407-0602
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	05	1	0603-
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0512-
210	WASHER; PL,BRKT 6WG1 TC-S(97L)	1-82569-266-0	06	1	0512-0703
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0704-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0407-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0407-
261	PLUG; MAG VLV SMOOTHER-G(C1W) (B) PT3/8	9-09204-517-0	01	1	0512-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0407-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	0407-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0407-0511
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0407-0511
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-0703
280	CONNECTOR; IN,MAG VLV 6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-0703
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0704-
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0704-
282	BRACKET; MAG VLV 6WG1 TC-S(97L) (D)	1-82569-298-0	01	1	0512-0703
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-82569-298-0	01	1	0704-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0407-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0407-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-82569-358-0	01	1	0407-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0407-0511
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (A)	1-82569-277-2	01	1	0512-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0407-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X60 FLANGE	0-28080-660-0	02	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X60 FLANGE	0-28050-660-0	02	1	0601-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0512-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
284	BOLT; MAG VLV 6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28080-650-0	03	1	0512-0512
284	BOLT; MAG VLV 6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0601-0703
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0704-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0603-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	9-99110-405-0	03	1	0512-0512
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0601-
285	NUT; MAG VLV 6WG1 TC-S(97L) (A) M6 FLANGE	0-91150-106-0	03	1	0512-0602
285	NUT; MAG VLV 6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0603-0703
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0704-
285	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	01	1	0407-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91150-106-0	01	1	0407-0602
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0603-
420	PIPE; AIR,MAG VLV	1-49118-626-0	01	1	0407-0511
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0512-
602	GASKET; MAG VLV 6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0512-0703
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0704-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0407-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0407-
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0512-
604	VALVE; MAG,ENG CONT 6WG1 TC-S(97L)	1-82563-871-2	04	1	0512-0703
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82563-871-2	04	1	0704-
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0407-0511
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0512-

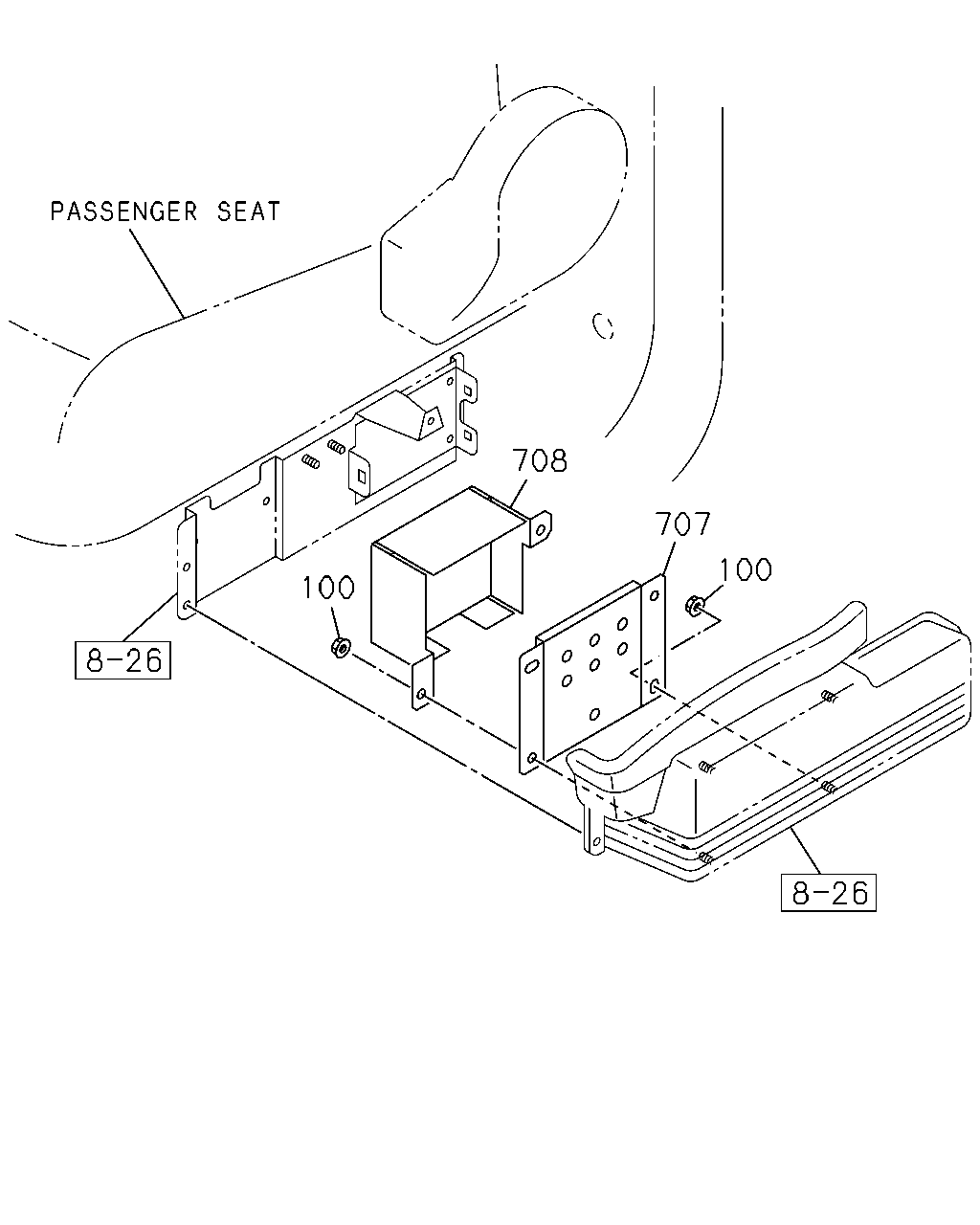

708 707 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	NUT; RELAY BOX COVER ELECTRONIC BRAKE SYSTEM EBS(NLH) M6 FLANGE	0-91150-106-0	04	1	0407-0602
100	NUT; RELAY BOX COVER ELECTRONIC BRAKE SYSTEM EBS(NLH) M6 FLANGE	0-91180-106-0	04	1	0603-
707	BOX; BASE BRKT ELECTRONIC BRAKE SYSTEM EBS(NLH)	1-82510-603-1	01	1	0407-
708	COVER; BRKT ELECTRONIC BRAKE SYSTEM EBS(NLH)	1-82510-604-1	01	1	0407-0902

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
