8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#30510) — 130 parça

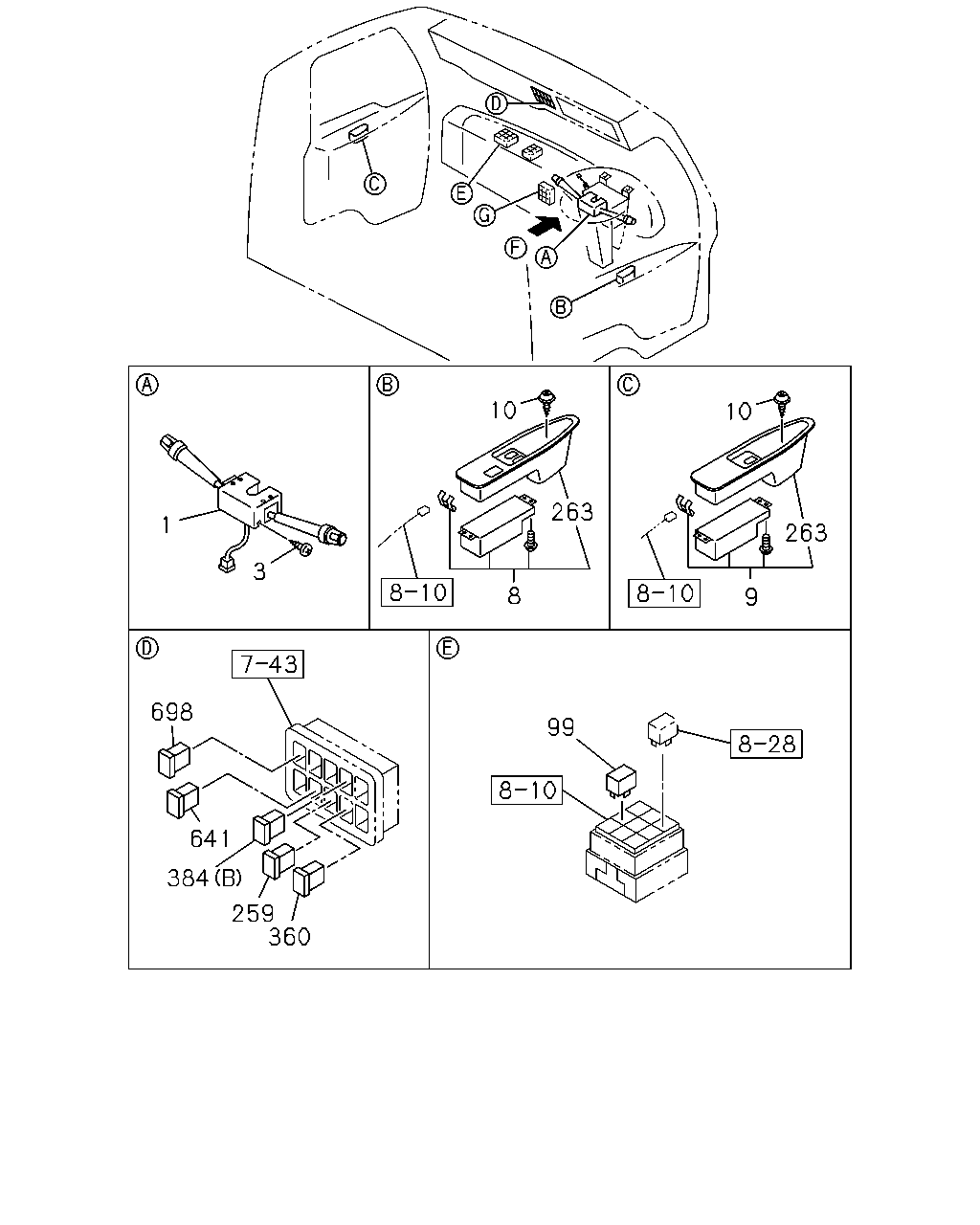

10 10 263 1 263 3 8 9 698 641 384 259 360 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB TRANSMISSION CONTROL LINK TYPE(B2A) AUTO CRUISE W/RESUME<NKA> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-579-2	01	1	0512-
1	SWITCH; COMB AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82360-694-2	01	1	0512-0703
1	SWITCH; COMB MJX M/T<Y9N> AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82360-694-2	01	1	0704-
1	SWITCH; COMB AUTO CRUISE W/RESUME<NKA> EXC. TRANSMISSION CONTROL LINK TYPE(B2A),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-695-2	01	1	0512-0703
1	SWITCH; COMB MJX M/T<Y9N> AUTO CRUISE W/RESUME<NKA> EXC. TRANSMISSION CONTROL LINK TYPE(B2A),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-695-2	01	1	0704-
1	SWITCH; COMB	1-82360-580-1	01	1	0407-0511
1	SWITCH; COMB TRANSMISSION CONTROL LINK TYPE(B2A) AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-580-2	01	1	0512-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0407-0604
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-
8	SWITCH; POWER WINDOW DRIVER	1-82380-166-2	01	1	0407-
9	SWITCH; POWER WINDOW PASSENGER	1-82380-167-1	01	1	0407-
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0407-0604
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-
259	SWITCH; RETARDER 6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. SMOOTHER-G(C1W)	1-82340-407-1	01	1	0512-0703
259	SWITCH; RETARDER 6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. SMOOTHER-G(C1W)	1-82340-407-1	01	1	0704-0704
263	COVER; SW	1-82385-005-2	01	1	0407-
263	COVER; SW	1-82385-006-3	01	1	0407-
360	SWITCH ASM; DIFF LK	1-82340-404-0	01	1	0407-
384	SWITCH; IDLING CONT,ELEC 6WG1 TC-S(97L) (C)	1-82350-321-1	01	1	0512-0703
384	SWITCH; IDLING CONT,ELEC 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82350-321-1	01	1	0704-
384	SWITCH; IDLING CONT,ELEC (A)	1-82350-213-1	01	1	0407-
384	SWITCH; IDLING CONT,ELEC (B)	1-82350-342-0	01	1	0407-0511
384	SWITCH; IDLING CONT,ELEC 6WF1 TC-C(1B8) (B)	1-82350-342-0	01	1	0512-
641	SWITCH; MAP 6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-362-1	01	1	0512-0703
641	SWITCH; MAP 6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-362-1	01	1	0704-
641	SWITCH; MAP 6WG1 TC-S(97L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-372-0	01	1	0512-0703
641	SWITCH; MAP 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-372-0	01	1	0704-
698	SWITCH; EDS SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82340-698-0	01	1	0512-

359 520 29 30 436 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR	8-97855-032-3	02	1	0407-
30	SCREW; DOOR SW M5X11	1-09981-536-1	02	1	0407-
106	SWITCH; REMOTE CONT MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-82350-223-0	01	1	0407-
359	SWITCH; TRAILER BRAKE GREEN	1-82410-176-1	01	1	0407-
436	SWITCH; HEADLAMP LEVELING	1-82330-043-0	01	1	0407-0511
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82330-043-0	01	1	0512-
520	PLUG; CONNECTOR FULLER M/T<X9B> PT1/4	9-99204-513-0	01	1	0801-

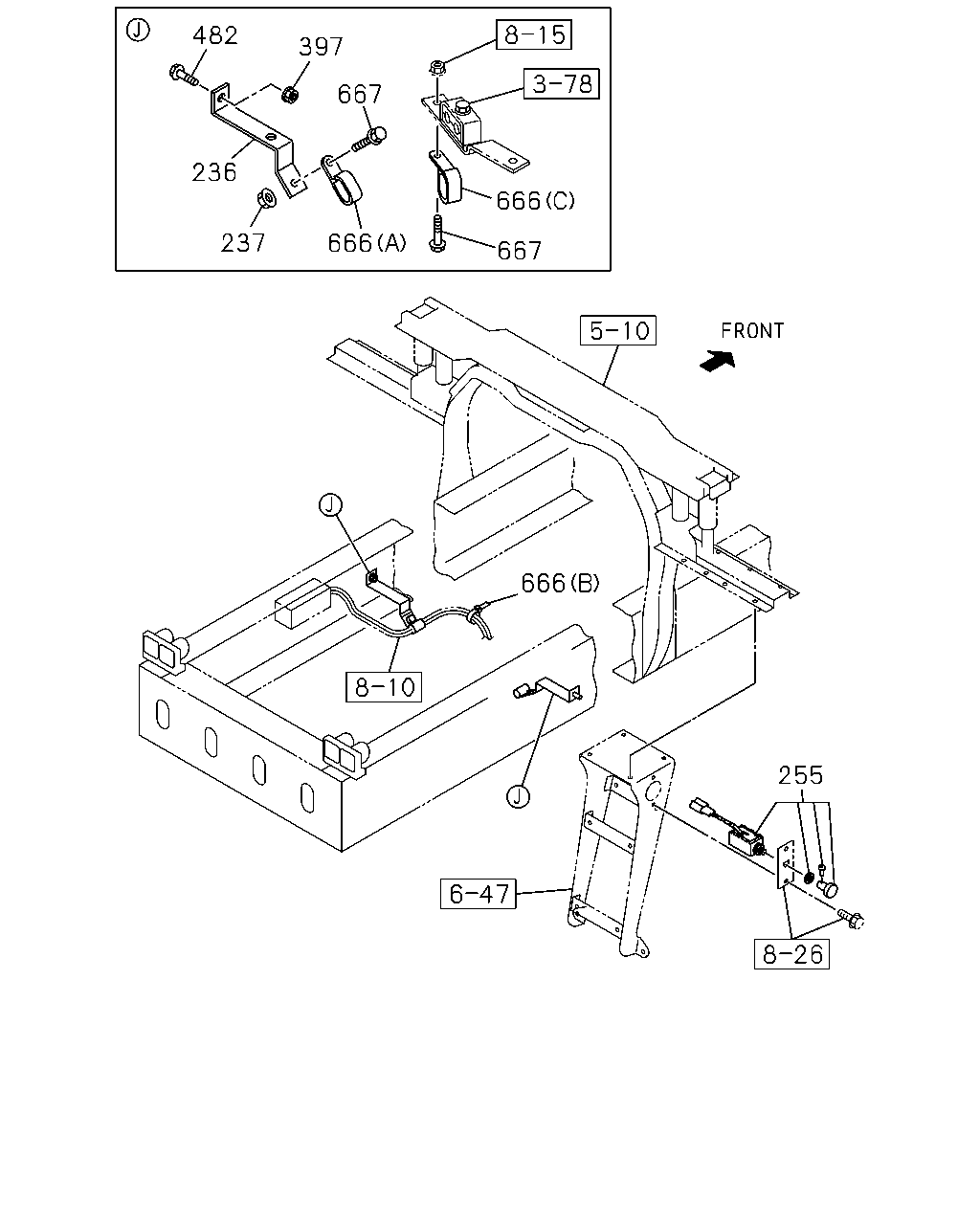

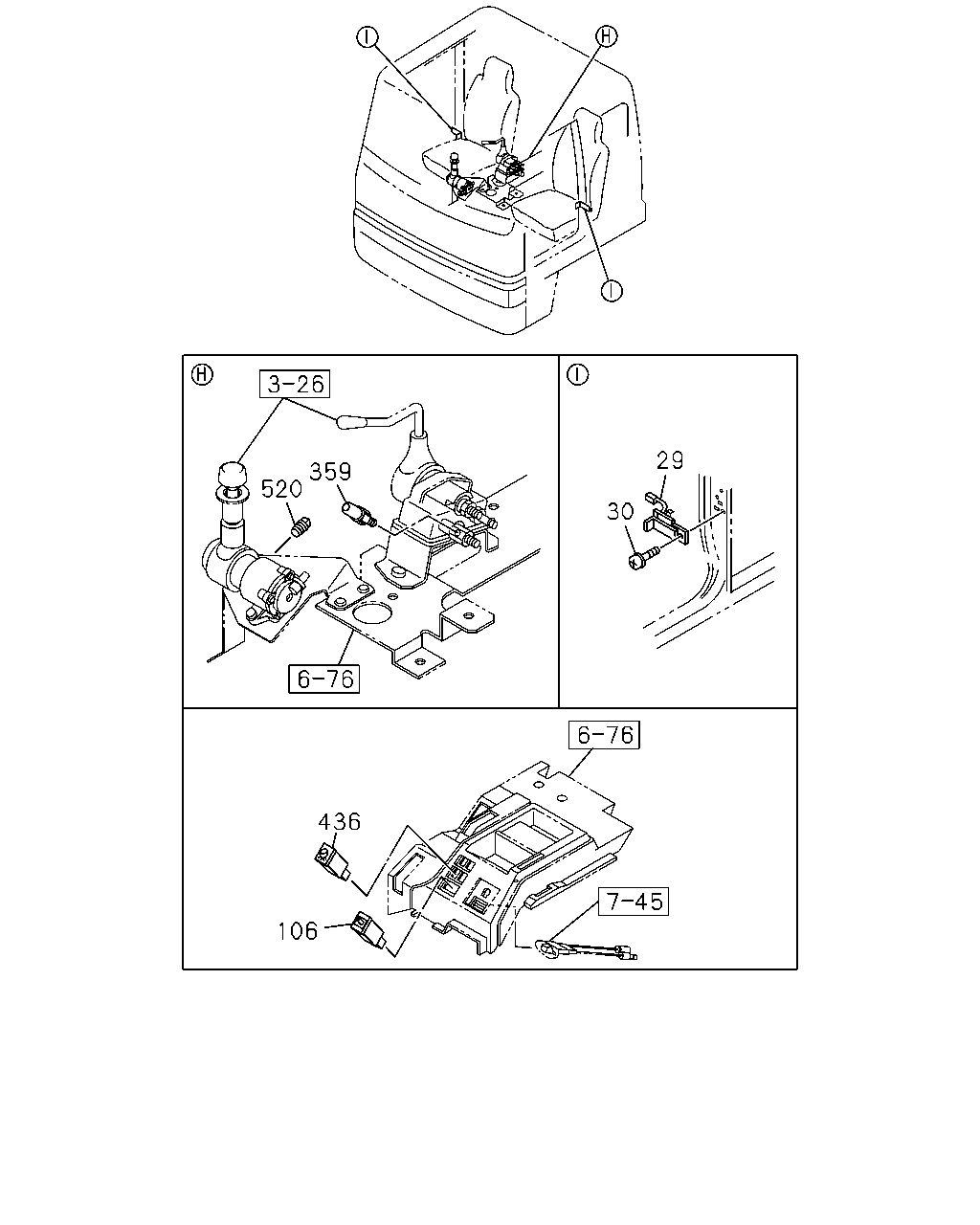

482 397 667 236 666 237 666 667 666 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
236	BRACKET; AXLE HARNESS,RR	1-82699-996-1	02	1	0407-0511
236	BRACKET; AXLE HARNESS,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82699-996-1	01	1	0512-
237	NUT M8 FLANGE	0-91150-108-0	02	1	0407-0511
255	SWITCH; SEARCH LIGHT INSPECTION LAMP<T95>	1-82340-360-1	01	1	0407-0706
255	SWITCH; SEARCH LIGHT INSPECTION LAMP<T95>	8-97621-403-0	01	1	0707-0711
255	SWITCH; SEARCH LIGHT INSPECTION LAMP<T95>	8-98106-483-0	01	1	0712-
397	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0407-0511
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	0512-0602
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	01	1	0603-
482	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0511
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	01	1	0601-
666	CLIP; AXLE HARNESS ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) ID=11X2 L=20	1-09700-871-0	03	1	0512-
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	9-09525-025-0	01	1	0512-0606
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	0-95235-025-0	01	1	0607-
666	CLIP; AXLE HARNESS (B) L=350	1-09707-183-0	01	1	0407-0511
666	CLIP; AXLE HARNESS ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) L=350	1-09707-183-0	01	1	0512-
666	CLIP; AXLE HARNESS (A) ID=11X2 L=16	9-09535-025-0	03	1	0407-0511
666	CLIP; AXLE HARNESS ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) ID=11X2 L=16	9-09535-025-0	02	1	0512-0606
666	CLIP; AXLE HARNESS ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) ID=11X2 L=16	0-95325-025-0	02	1	0607-
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28650-820-0	01	1	0601-
667	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0407-0511
667	BOLT; CLIP ELECTRONIC BRAKE SYSTEM EBS(NLH) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
667	BOLT; CLIP ELECTRONIC BRAKE SYSTEM EBS(NLH) M8X20 FLANGE	0-28650-820-0	03	1	0601-

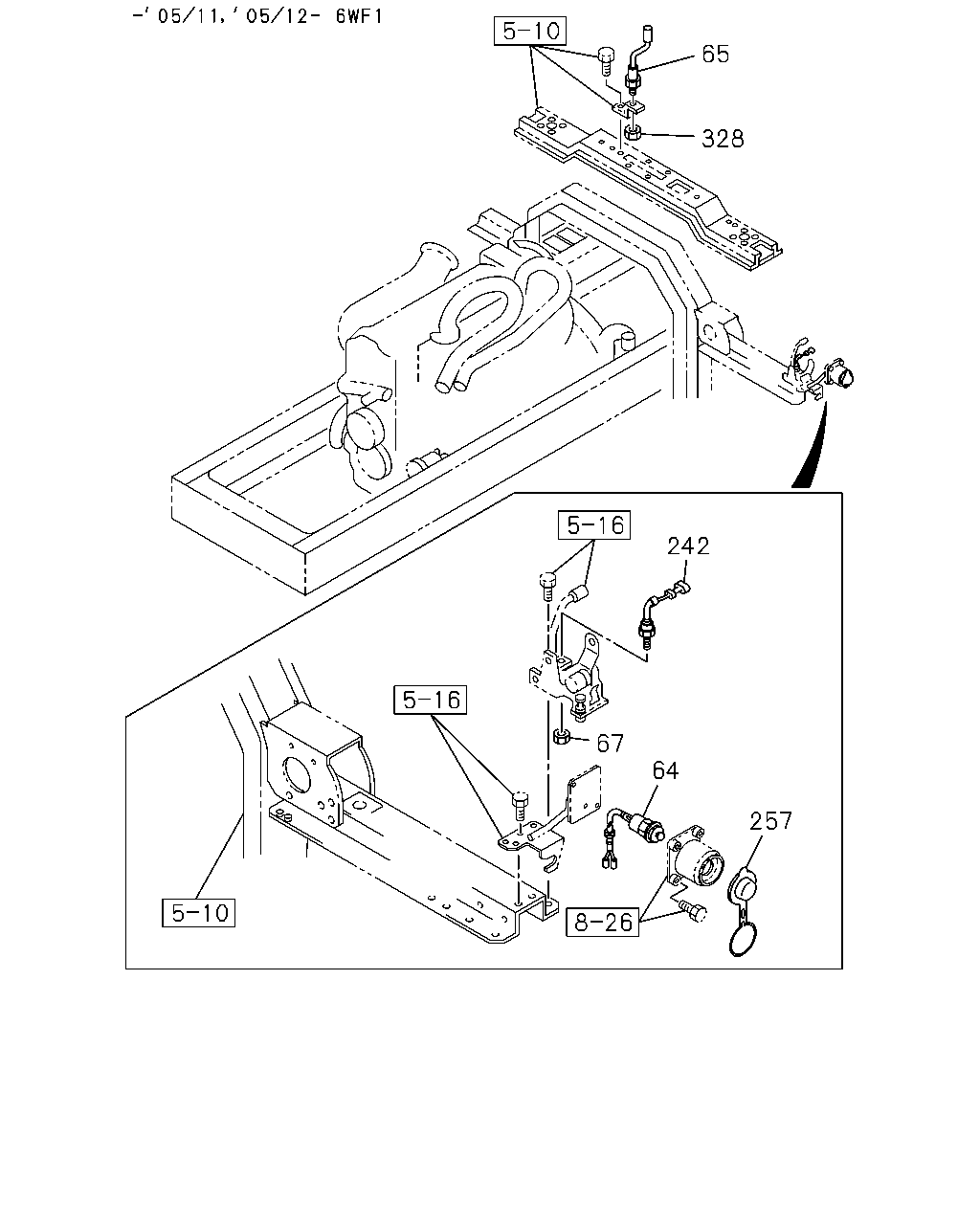

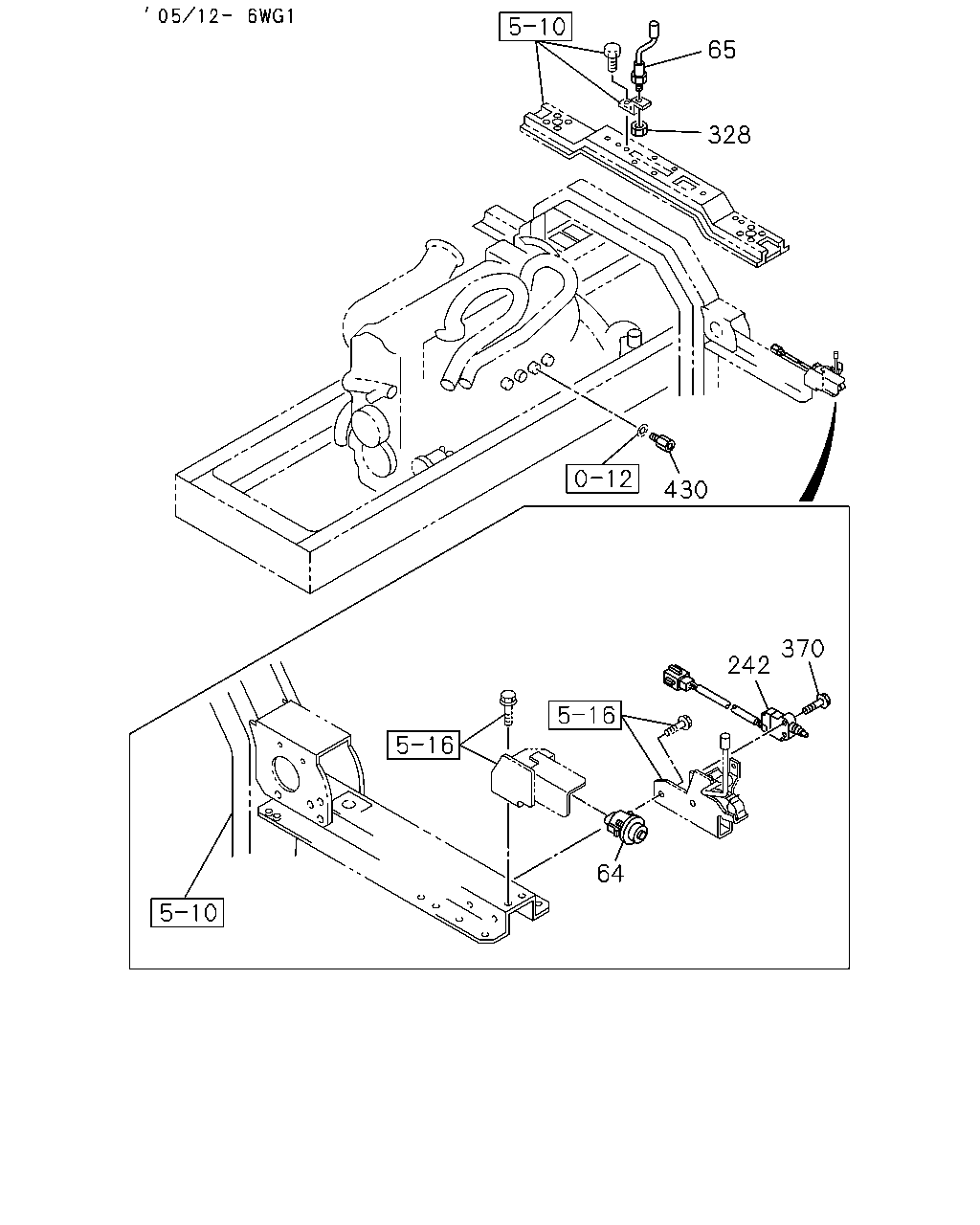

65 328 430 370 242 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SWITCH; CAB TILT MAIN 6WG1 TC-S(97L)	1-82380-173-2	01	1	0512-0703
64	SWITCH; CAB TILT MAIN 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82380-173-2	01	1	0704-
64	SWITCH; CAB TILT MAIN	1-82380-108-0	01	1	0407-0511
64	SWITCH; CAB TILT MAIN 6WF1 TC-C(1B8)	1-82380-108-0	01	1	0512-
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0407-
242	SWITCH 6WG1 TC-S(97L) STAMP NO	1-82380-172-1	01	1	0512-0703
242	SWITCH 6WG1 TC-C(72L),6WG1 TC-S(97L) STAMP NO	1-82380-172-1	01	1	0704-
242	SWITCH STAMP NO	1-82380-126-0	01	1	0407-0511
242	SWITCH 6WF1 TC-C(1B8) STAMP NO	1-82380-126-0	01	1	0512-
328	NUT; SW M16	9-99110-416-0	01	1	0407-0512
328	NUT; SW M16	0-91110-516-0	01	1	0601-
370	BOLT; SW 6WG1 TC-S(97L) M6X30 FLANGE	0-28680-630-0	02	1	0512-0512
370	BOLT; SW 6WG1 TC-S(97L) M6X30 FLANGE	0-28650-630-0	02	1	0601-0703
370	BOLT; SW 6WG1 TC-C(72L),6WG1 TC-S(97L) M6X30 FLANGE	0-28650-630-0	02	1	0704-
430	ADAPTER; SW 6WG1 TC-S(97L) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0512-0703
430	ADAPTER; SW 6WG1 TC-C(72L),6WG1 TC-S(97L) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0704-

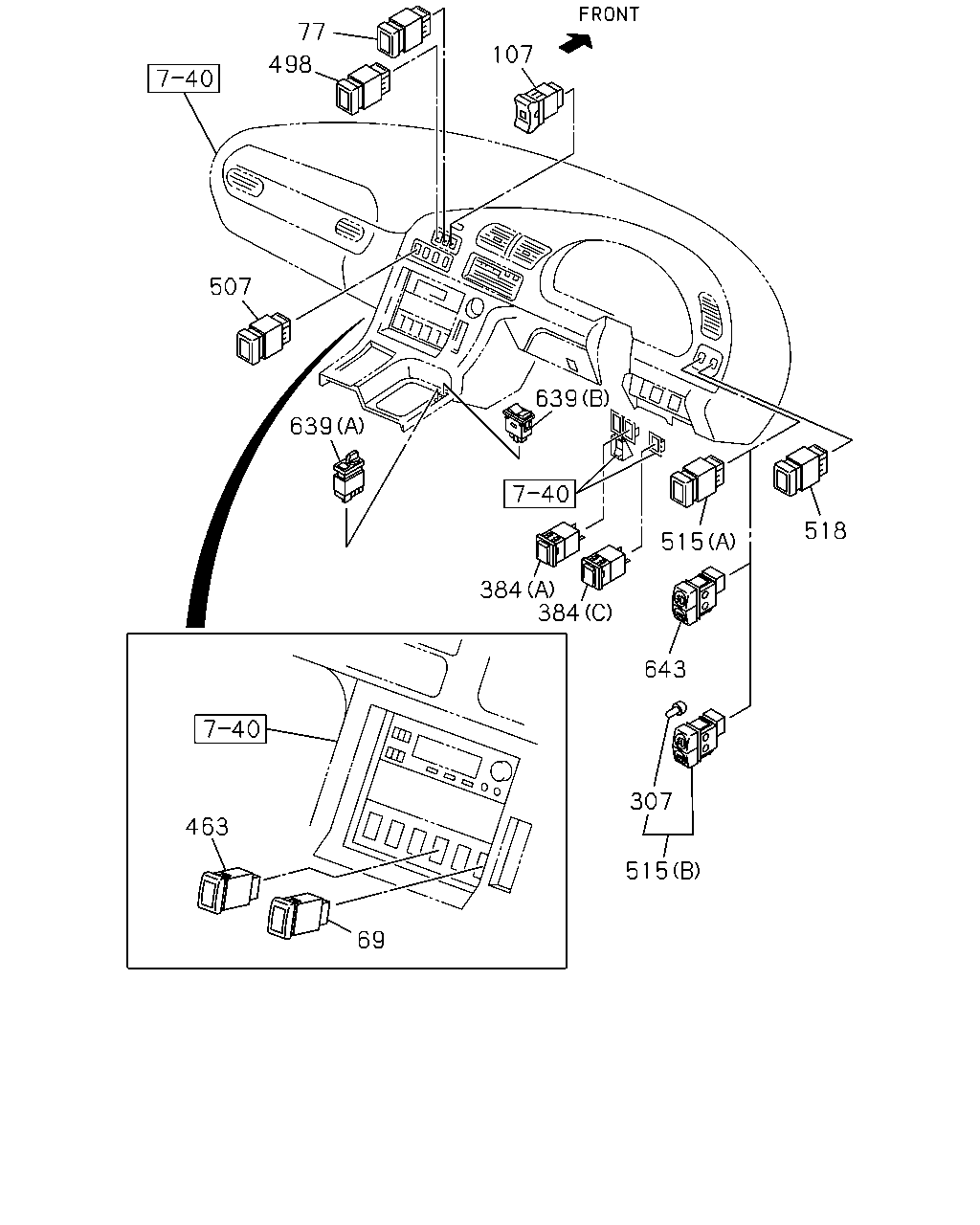

77 107 498 507 639 639 518 515 384 384 643 307 463 515 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	SWITCH; AUTO CRUISE	1-82340-682-0	01	1	0407-0511
69	SWITCH; AUTO CRUISE AUTO CRUISE W/RESUME<NKA>	1-82340-682-0	01	1	0512-
77	SWITCH; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82340-413-0	01	1	0407-0511
77	SWITCH; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82340-413-0	01	1	0512-
107	SWITCH; REMOTE CONT,MIRROR MIR STAY O/S W/REMOTE<TBA>	1-82350-233-0	01	1	0407-
307	BULB ASM; SW 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA	8-97116-331-0	01	1	0512-0703
307	BULB ASM; SW 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA	8-97116-331-0	01	1	0704-
384	SWITCH; IDLING CONT,ELEC 6WG1 TC-S(97L) (C)	1-82350-321-1	01	1	0512-0703
384	SWITCH; IDLING CONT,ELEC 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82350-321-1	01	1	0704-
384	SWITCH; IDLING CONT,ELEC (A)	1-82350-213-1	01	1	0407-
384	SWITCH; IDLING CONT,ELEC (B)	1-82350-342-0	01	1	0407-0511
384	SWITCH; IDLING CONT,ELEC 6WF1 TC-C(1B8) (B)	1-82350-342-0	01	1	0512-
463	SWITCH; SPOT LAMP	1-82340-411-0	01	1	0407-0511
463	SWITCH; SPOT LAMP INSPECTION LAMP<T95>	1-82340-411-0	01	1	0512-
498	SWITCH; ASR	1-82340-642-0	01	1	0407-0511
498	SWITCH; ASR ANTI SPIN REGULATOR ASR<BCF>	1-82340-642-0	01	1	0512-
507	SWITCH; MIRROR HEATER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-82340-423-0	01	1	0407-
515	SWITCH; FLUORESCENT LAMP 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97363-946-1	01	1	0512-0703
515	SWITCH; FLUORESCENT LAMP 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97363-946-1	01	1	0704-
515	SWITCH; FLUORESCENT LAMP (A)	1-82350-230-0	01	1	0407-0511
515	SWITCH; FLUORESCENT LAMP 6WF1 TC-C(1B8) (A)	1-82350-230-0	01	1	0512-
518	SWITCH; RADIO TUNE	1-82350-231-0	01	1	0512-
639	SWITCH; EMERGENCY EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82330-068-0	01	1	0512-0703
639	SWITCH; EMERGENCY MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82330-068-0	01	1	0704-
639	SWITCH; EMERGENCY EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82350-363-0	01	1	0512-0703
639	SWITCH; EMERGENCY MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82350-363-0	01	1	0704-
643	SWITCH; SKIP SHIFT 6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82340-689-0	01	1	0512-0703
643	SWITCH; SKIP SHIFT 6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82340-689-0	01	1	0704-
643	SWITCH; SKIP SHIFT 6WG1 TC-S(97L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	8-97381-249-0	01	1	0512-0703
643	SWITCH; SKIP SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	8-97381-249-0	01	1	0704-

21 322 524 528

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	SWITCH; CLU	1-82380-114-2	01	1	0407-0511
21	SWITCH; CLU EXC. SMOOTHER-G(C1W)	1-82380-114-3	01	1	0512-
322	RELAY; SPLITTER 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511
322	RELAY; SPLITTER EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-0703
322	RELAY; SPLITTER MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0704-
524	RELAY; LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0407-0511
524	RELAY; LAMP INSPECTION LAMP<T95> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0512-
528	RELAY; BUZZER 24V 10A PANASONIC	8-97173-035-1	01	1	0407-

65 328 242 67 64 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SWITCH; CAB TILT MAIN 6WG1 TC-S(97L)	1-82380-173-2	01	1	0512-0703
64	SWITCH; CAB TILT MAIN 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82380-173-2	01	1	0704-
64	SWITCH; CAB TILT MAIN	1-82380-108-0	01	1	0407-0511
64	SWITCH; CAB TILT MAIN 6WF1 TC-C(1B8)	1-82380-108-0	01	1	0512-
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0407-
67	NUT; SW,CAB TILT M16 H=18.5	1-09409-013-0	01	1	0407-0511
67	NUT; SW,CAB TILT 6WF1 TC-C(1B8) M16 H=18.5	1-09409-013-0	01	1	0512-
242	SWITCH 6WG1 TC-S(97L) STAMP NO	1-82380-172-1	01	1	0512-0703
242	SWITCH 6WG1 TC-C(72L),6WG1 TC-S(97L) STAMP NO	1-82380-172-1	01	1	0704-
242	SWITCH STAMP NO	1-82380-126-0	01	1	0407-0511
242	SWITCH 6WF1 TC-C(1B8) STAMP NO	1-82380-126-0	01	1	0512-
257	COVER; HOLE,SW	1-82389-008-0	01	1	0407-0511
257	COVER; HOLE,SW 6WF1 TC-C(1B8)	1-82389-008-0	01	1	0512-
328	NUT; SW M16	9-99110-416-0	01	1	0407-0512
328	NUT; SW M16	0-91110-516-0	01	1	0601-
