◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#30509) — 267 parça

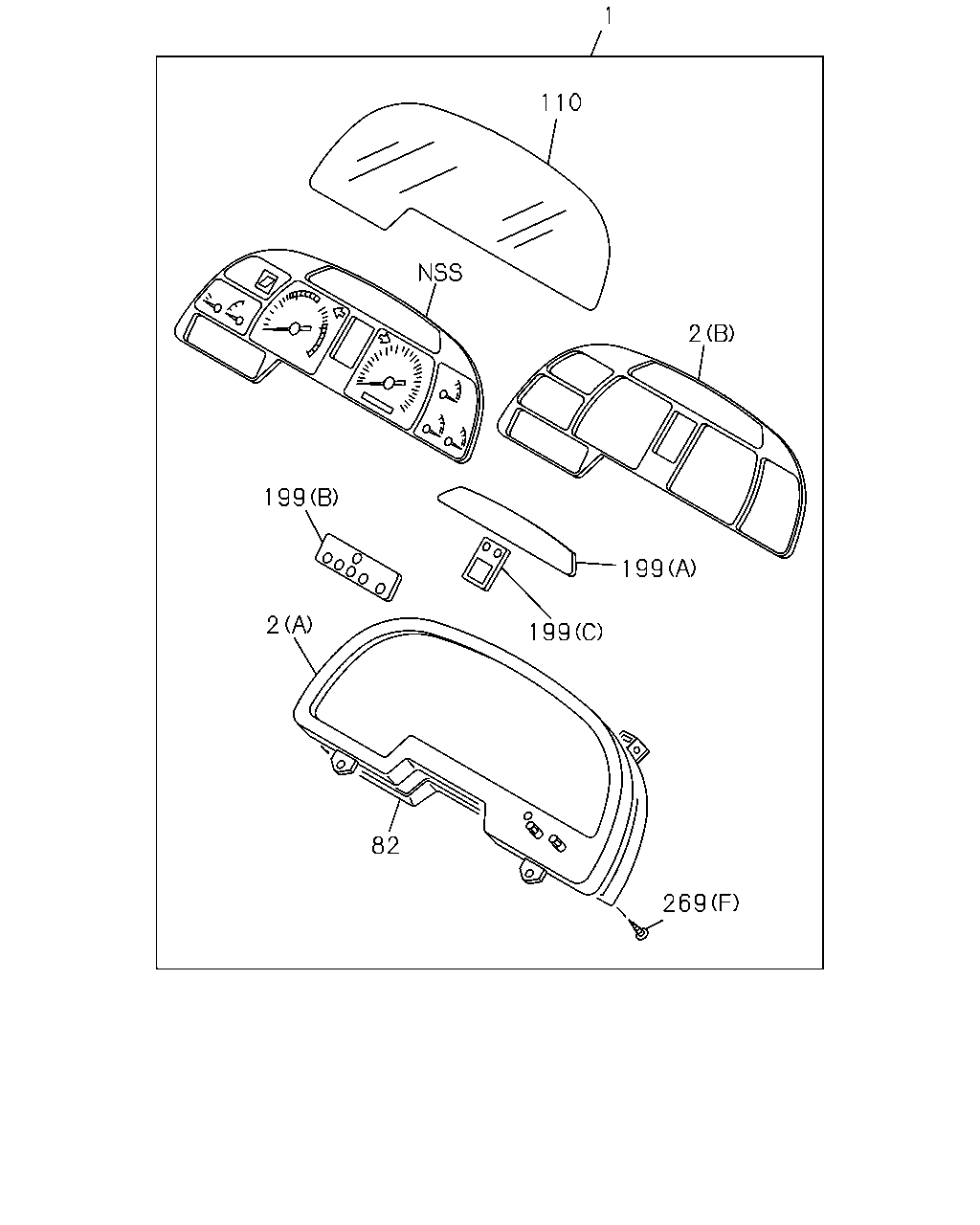

çizim 87594
1 110 2 199 199 2 199 82 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108-
1 METER COMPL; CLUSTER 1-83116-154-0 01 1 0407-0511
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0704-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> (B) 		1-83119-710-0 01 1 0704-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) (A) 		1-83119-854-0 01 1 0512-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0512-0703
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0704-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0512-0703
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0704-
2 PANEL; CLUSTER
(B) 		1-83119-844-0 01 1 0407-0511
2 PANEL; CLUSTER
6WG1 TC-S(97L) (B) 		1-83119-885-0 01 1 0512-0703
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (B) 		1-83119-885-0 01 1 0704-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (B) 		1-83119-885-0 01 1 0704-
2 PANEL; CLUSTER
(A) 		1-83119-854-0 01 1 0407-0511
2 PANEL; CLUSTER
6WG1 TC-S(97L) (A) 		1-83119-887-0 01 1 0512-0703
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (A) 		1-83119-887-0 01 1 0704-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (A) 		1-83119-887-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-83119-859-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0512-0703
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0512-0703
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0704-
82 CASE ASM; CLUSTER METER 1-83119-846-0 01 1 0407-0511
82 CASE ASM; CLUSTER METER
6WG1 TC-S(97L) 		1-83119-892-0 01 1 0512-0703
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83119-892-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> 		1-83119-892-0 01 1 0704-
110 GLASS; CLUSTER METER
6WF1 TC-C(1B8) 		1-83119-707-0 01 1 0512-
110 GLASS; CLUSTER METER 1-83119-707-0 01 1 0407-0511
110 GLASS; CLUSTER METER
6WG1 TC-S(97L) 		1-83119-886-0 01 1 0512-0703
110 GLASS; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83119-886-0 01 1 0704-
110 GLASS; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> 		1-83119-886-0 01 1 0704-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512-
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512-
199 LENS; WARNING LAMP
(A) 		1-83119-848-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (A) 		1-83119-888-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
(B) 		1-83119-849-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (B) 		1-83119-890-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (E) M3 TAPPING 		1-83119-677-0 03 1 0512-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (C) M3 TAPPING 		1-83119-052-0 04 1 0512-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-052-0 04 1 0407-0511
269 SCREW; METER CLUSTER
6WG1 TC-S(97L) (F) 		1-83119-893-0 09 1 0512-0703
269 SCREW; METER CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (F) 		1-83119-893-0 09 1 0704-
269 SCREW; METER CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (F) 		1-83119-893-0 09 1 0704-
269 SCREW; METER CLUSTER
(B) M3X8 		1-83119-058-0 03 1 0407-0511
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (B) M3X8 		1-83119-058-0 03 1 0512-0703
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> (B) M3X8 		1-83119-058-0 03 1 0704-
269 SCREW; METER CLUSTER
(D) M3 TAPPING 		1-83119-657-0 06 1 0407-0511
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (D) M3 TAPPING 		1-83119-657-0 06 1 0512-
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-675-0 05 1 0407-0511
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (A) M3 TAPPING 		1-83119-675-0 05 1 0512-

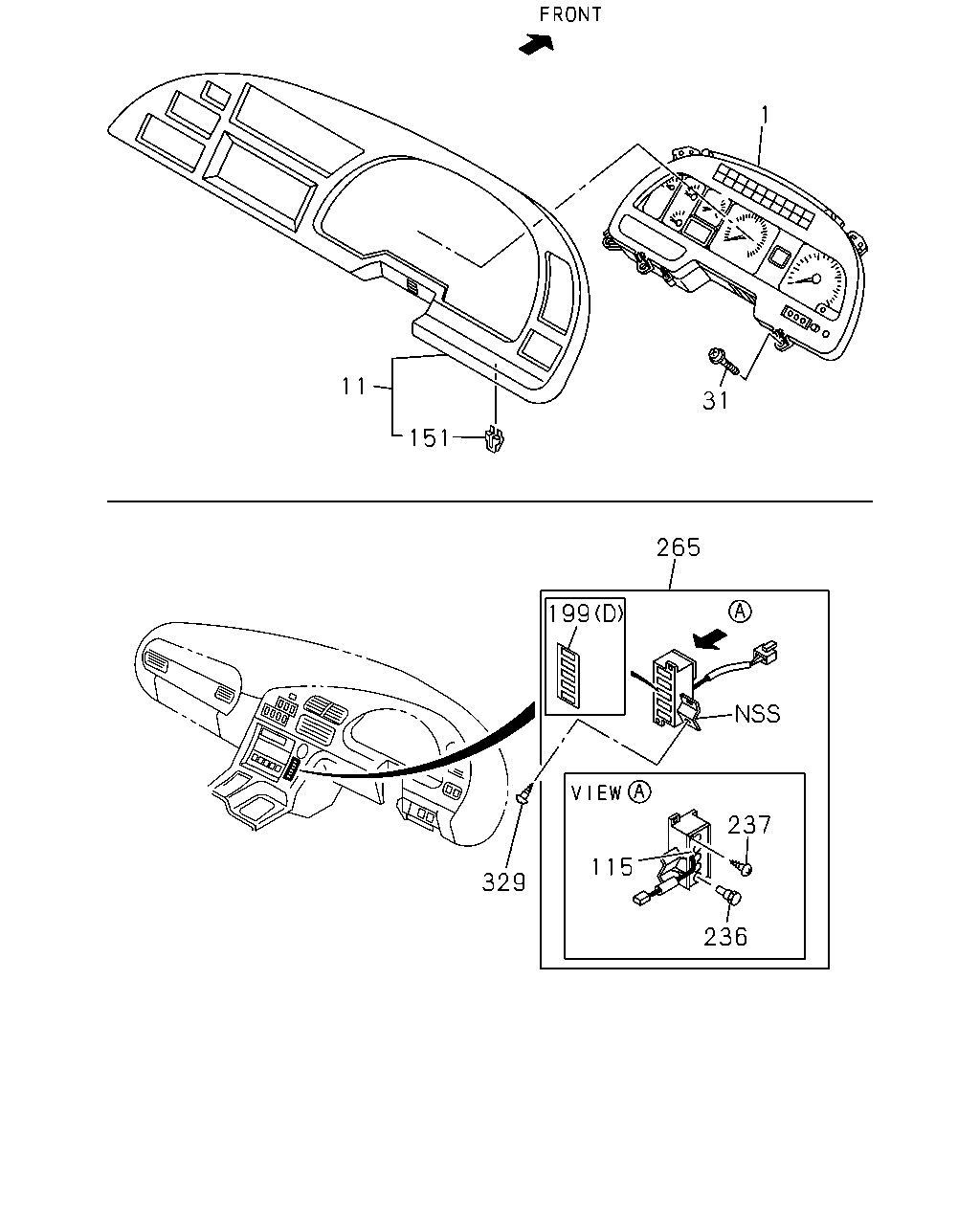

çizim 87855
1 11 31 151 265 199 237 115 329 236
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108-
1 METER COMPL; CLUSTER 1-83116-154-0 01 1 0407-0511
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0704-
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-9 01 1 0407-0511
11 CLUSTER ASM; METER 1-72418-014-9 01 1 0512-
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0407-0511
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0407-0604
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0512-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0407-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512-
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512-
199 LENS; WARNING LAMP
(A) 		1-83119-848-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (A) 		1-83119-888-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
(B) 		1-83119-849-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (B) 		1-83119-890-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0512-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0512-
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0512-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0512-

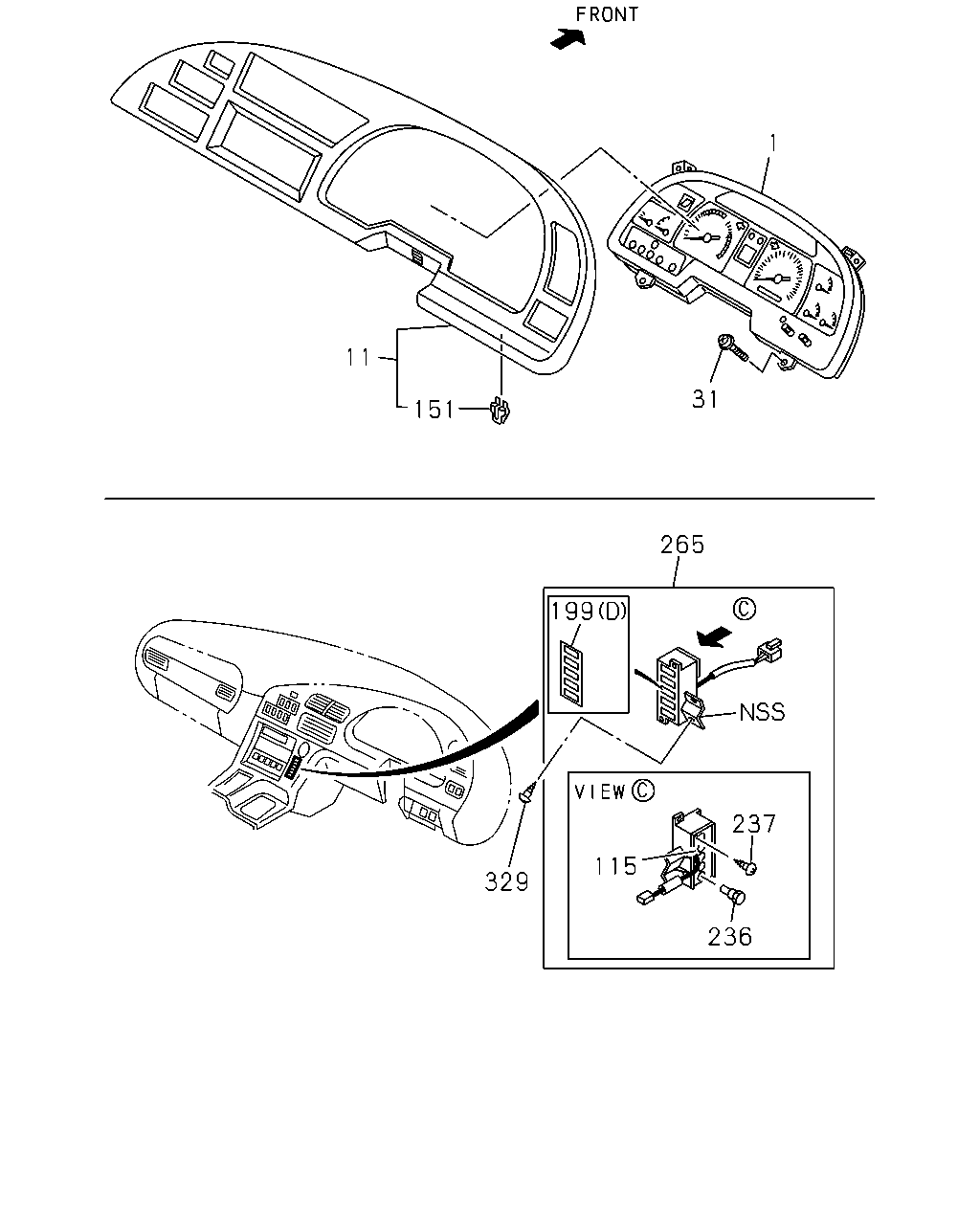

çizim 87896
1 11 31 151 265 199 237 115 329 236
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108-
1 METER COMPL; CLUSTER 1-83116-154-0 01 1 0407-0511
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0704-
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-9 01 1 0407-0511
11 CLUSTER ASM; METER 1-72418-014-9 01 1 0512-
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0407-0511
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0407-0604
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0512-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0407-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512-
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512-
199 LENS; WARNING LAMP
(A) 		1-83119-848-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (A) 		1-83119-888-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
(B) 		1-83119-849-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (B) 		1-83119-890-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0512-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0512-
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0512-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0512-

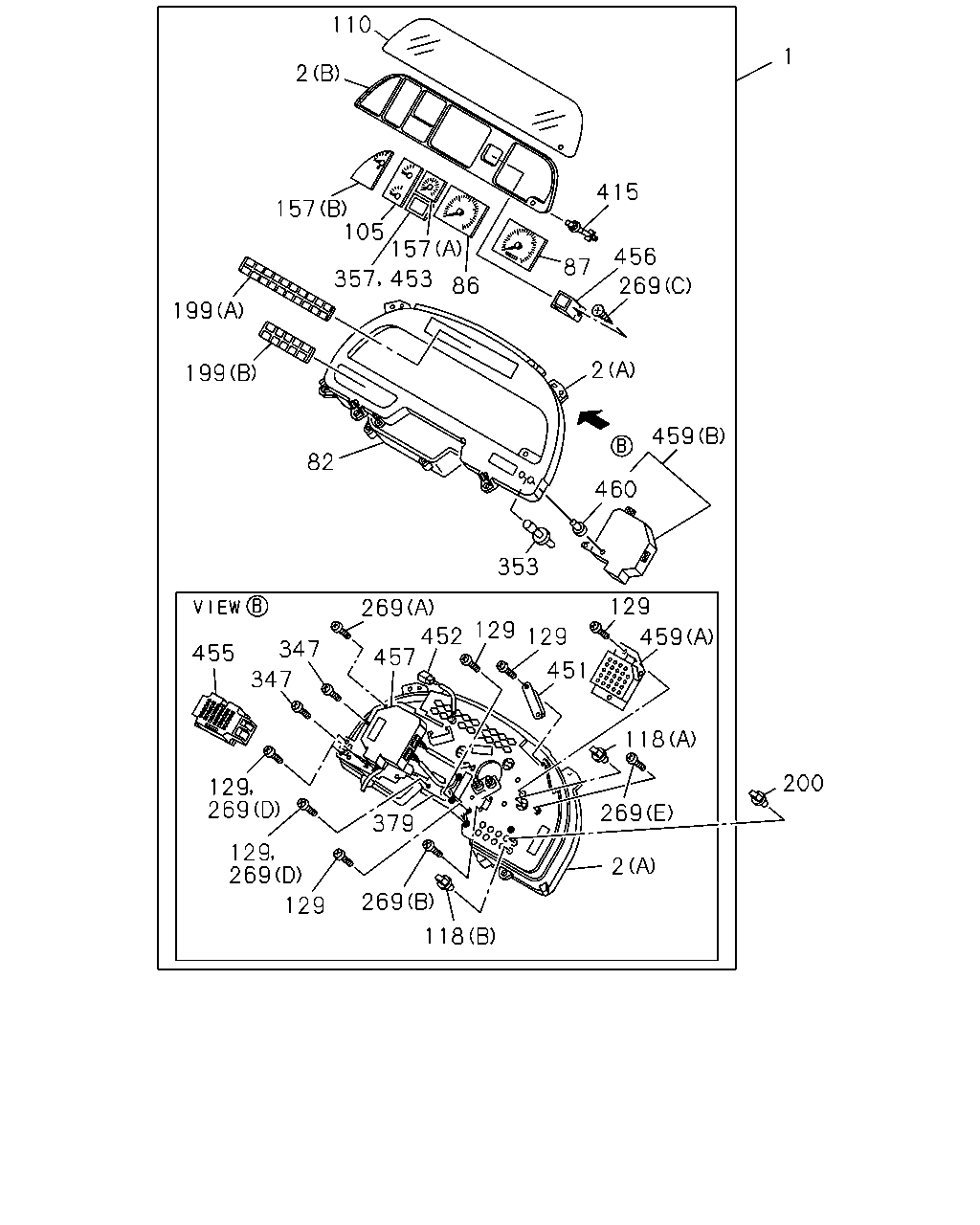

çizim 104473
110 1 2 415 157 105 157 456 87 357 86 269 199 2 199 459 82 460 353 129 269 129 452 457 129 459 347 455 451 347 118 200 129 269 269 379 129 269 2 269 129 118 453
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0704-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-0703
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0704-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108-
1 METER COMPL; CLUSTER 1-83116-154-0 01 1 0407-0511
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0703
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0704-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> (B) 		1-83119-710-0 01 1 0704-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) (A) 		1-83119-854-0 01 1 0512-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0512-0703
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0704-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0512-0703
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0704-
2 PANEL; CLUSTER
(B) 		1-83119-844-0 01 1 0407-0511
2 PANEL; CLUSTER
6WG1 TC-S(97L) (B) 		1-83119-885-0 01 1 0512-0703
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (B) 		1-83119-885-0 01 1 0704-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (B) 		1-83119-885-0 01 1 0704-
2 PANEL; CLUSTER
(A) 		1-83119-854-0 01 1 0407-0511
2 PANEL; CLUSTER
6WG1 TC-S(97L) (A) 		1-83119-887-0 01 1 0512-0703
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (A) 		1-83119-887-0 01 1 0704-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (A) 		1-83119-887-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-83119-859-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0512-0703
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0512-0703
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0704-
82 CASE ASM; CLUSTER METER 1-83119-846-0 01 1 0407-0511
82 CASE ASM; CLUSTER METER
6WG1 TC-S(97L) 		1-83119-892-0 01 1 0512-0703
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83119-892-0 01 1 0704-
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> 		1-83119-892-0 01 1 0704-
86 TACHOMETER; CLUSTER METER 1-83120-908-0 01 1 0407-0511
86 TACHOMETER; CLUSTER METER
6WF1 TC-C(1B8) 		1-83120-900-0 01 1 0512-
87 SPEEDOMETER 1-83120-903-0 01 1 0407-0511
87 SPEEDOMETER
6WF1 TC-C(1B8) 		1-83120-903-0 01 1 0512-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0407-0511
105 GAUGE; THERMO & FUEL,CLUSTER METER
6WF1 TC-C(1B8) 		1-83180-281-0 01 1 0512-
110 GLASS; CLUSTER METER
6WF1 TC-C(1B8) 		1-83119-707-0 01 1 0512-
110 GLASS; CLUSTER METER 1-83119-707-0 01 1 0407-0511
110 GLASS; CLUSTER METER
6WG1 TC-S(97L) 		1-83119-886-0 01 1 0512-0703
110 GLASS; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83119-886-0 01 1 0704-
110 GLASS; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> 		1-83119-886-0 01 1 0704-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0407-0511
118 BULB; CLUSTER METER
6WF1 TC-C(1B8) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0512-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 0407-0511
118 BULB; CLUSTER METER
6WF1 TC-C(1B8) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 27 1 0512-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 06 1 0512-0703
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 06 1 0704-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-657-0 04 1 0407-0511
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 04 1 0512-0703
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 04 1 0704-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> M3 TAPPING 		1-83119-657-0 04 1 0704-
157 METER; AIR PRESSURE,CLUSTER METER
(A) 		1-83150-264-0 01 1 0407-0511
157 METER; AIR PRESSURE,CLUSTER METER
6WF1 TC-C(1B8) (A) 		1-83150-270-0 01 1 0512-
157 METER; AIR PRESSURE,CLUSTER METER
(B) 		1-83150-265-0 01 1 0407-0511
157 METER; AIR PRESSURE,CLUSTER METER
6WF1 TC-C(1B8) (B) 		1-83150-273-0 01 1 0512-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512-
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (C) 		1-83119-891-0 01 1 0704-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512-
199 LENS; WARNING LAMP
(A) 		1-83119-848-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (A) 		1-83119-888-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (A) 		1-83119-888-0 01 1 0704-
199 LENS; WARNING LAMP
(B) 		1-83119-849-0 01 1 0407-0511
199 LENS; WARNING LAMP
6WG1 TC-S(97L) (B) 		1-83119-890-0 01 1 0512-0703
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (B) 		1-83119-890-0 01 1 0704-
200 BULB; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 02 1 0408-0511
200 BULB; WARNING LAMP
6WF1 TC-C(1B8) AUTO CRUISE W/RESUME<NKA> 24V 1.8W BROWN SOCKET 		1-82194-062-0 02 1 0512-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (E) M3 TAPPING 		1-83119-677-0 03 1 0512-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (C) M3 TAPPING 		1-83119-052-0 04 1 0512-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-052-0 04 1 0407-0511
269 SCREW; METER CLUSTER
6WG1 TC-S(97L) (F) 		1-83119-893-0 09 1 0512-0703
269 SCREW; METER CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> (F) 		1-83119-893-0 09 1 0704-
269 SCREW; METER CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> (F) 		1-83119-893-0 09 1 0704-
269 SCREW; METER CLUSTER
(B) M3X8 		1-83119-058-0 03 1 0407-0511
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (B) M3X8 		1-83119-058-0 03 1 0512-0703
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> (B) M3X8 		1-83119-058-0 03 1 0704-
269 SCREW; METER CLUSTER
(D) M3 TAPPING 		1-83119-657-0 06 1 0407-0511
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (D) M3 TAPPING 		1-83119-657-0 06 1 0512-
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-675-0 05 1 0407-0511
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (A) M3 TAPPING 		1-83119-675-0 05 1 0512-
347 SCREW; CONTROL UNIT
M3 TAPPING 		1-83119-052-0 03 1 0407-0511
347 SCREW; CONTROL UNIT
6WF1 TC-C(1B8) M3 TAPPING 		1-83119-052-0 03 1 0512-
353 KNOB; RHEOSTAT 1-83119-730-0 01 1 0407-0511
353 KNOB; RHEOSTAT
6WF1 TC-C(1B8) 		1-83119-730-0 01 1 0512-
357 INDICATOR; ZF T/M 1-83119-494-0 01 1 0407-0511
357 INDICATOR; ZF T/M
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-494-0 01 1 0512-0703
357 INDICATOR; ZF T/M
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-494-0 01 1 0704-
379 CIRCUIT; DROP 1-83189-391-0 01 1 0407-0511
379 CIRCUIT; DROP
6WF1 TC-C(1B8) 		1-83189-391-0 01 1 0512-
415 KNOB; TRIP,METER 1-83119-729-0 01 1 0407-0511
415 KNOB; TRIP,METER
6WF1 TC-C(1B8) 		1-83119-729-0 01 1 0512-
451 DROPER; METER
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83189-393-0 01 1 0512-0703
451 DROPER; METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83189-393-0 01 1 0704-
452 LAMP ASM; CLUSTER METER 1-82194-088-0 01 1 0407-0511
452 LAMP ASM; CLUSTER METER
6WF1 TC-C(1B8) 		1-82194-088-0 01 1 0512-
453 INDICATOR; ECOGIT
6WF1 TC-C(1B8) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-728-0 01 1 0512-0703
453 INDICATOR; ECOGIT
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-728-0 01 1 0704-
455 MODULE ASM; METER 1-83189-418-0 01 1 0407-0511
455 MODULE ASM; METER
6WF1 TC-C(1B8) 		1-83189-419-0 01 1 0512-
456 WARNING ASM; MULTI 1-83119-734-0 01 1 0407-0511
456 WARNING ASM; MULTI
6WF1 TC-C(1B8) 		1-83119-734-0 01 1 0512-
457 CONTROLLER ASM; MULTI WARNING 1-83119-817-0 01 1 0407-0511
457 CONTROLLER ASM; MULTI WARNING
6WF1 TC-C(1B8) 		1-83119-817-0 01 1 0512-
459 POWER SUPPLY ASM
(A) 		1-83119-783-0 01 1 0407-0511
459 POWER SUPPLY ASM
6WF1 TC-C(1B8) (A) 		1-83119-925-0 01 1 0512-
459 POWER SUPPLY ASM
(B) 		1-83119-820-1 01 1 0407-0511
459 POWER SUPPLY ASM
6WF1 TC-C(1B8) (B) 		1-83119-820-1 01 1 0512-
460 SWITCH; MULTI WARNING 1-83119-736-1 01 1 0407-0511
460 SWITCH; MULTI WARNING
6WF1 TC-C(1B8) 		1-83119-736-1 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
