◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#30507) — 1415 parça
çizim 87622
5 530 530 178 178 178 224 178 178 178 530 1 224 1 1 292 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0407-0511
1 SLEEVE; RUBBER
(A) ID=38.1 L=50 		5-09360-835-0 01 1 0512-0603
1 SLEEVE; RUBBER
(C) ID=38.1 L=25 		1-09337-052-0 01 1 0604-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0407-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0407-0511
5 GUIDE; HARNESS
6WF1 TC-C(1B8) L=360 		1-82699-476-1 01 1 0512-
178 GROMMET; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (E) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0512-0703
178 GROMMET; HARNESS
(E) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0704-
178 GROMMET; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (F) 		1-82698-551-0 01 1 0512-0703
178 GROMMET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (F) 		1-82698-551-0 01 1 0704-
178 GROMMET; HARNESS
(E) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0407-0511
178 GROMMET; HARNESS
(G) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0512-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0407-0511
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0512-0705
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0706-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-126-0 02 1 0407-0511
178 GROMMET; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) ID=24 OD=30 T=22 		1-09332-126-0 02 1 0512-0703
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-126-0 02 1 0704-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0407-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0407-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0407-0511
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0512-
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0407-
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0407-
292 CAP; RUBBER 1-82690-667-0 01 1 0407-0511
292 CAP; RUBBER
6WG1 TC-S(97L) 		1-82690-667-0 01 1 0512-0703
292 CAP; RUBBER
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) 		1-82690-667-0 01 1 0512-0703
292 CAP; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82690-667-0 01 1 0704-
292 CAP; RUBBER
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) 		1-82690-667-0 01 1 0704-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0407-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0407-
530 SEAL; HARNESS
(B) 		1-76770-009-2 01 1 0407-0511
530 SEAL; HARNESS
EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) 100X40 		1-72498-022-1 02 1 0512-
530 SEAL; HARNESS
(C) OD=25 BLACK 		1-76798-019-0 01 1 0407-

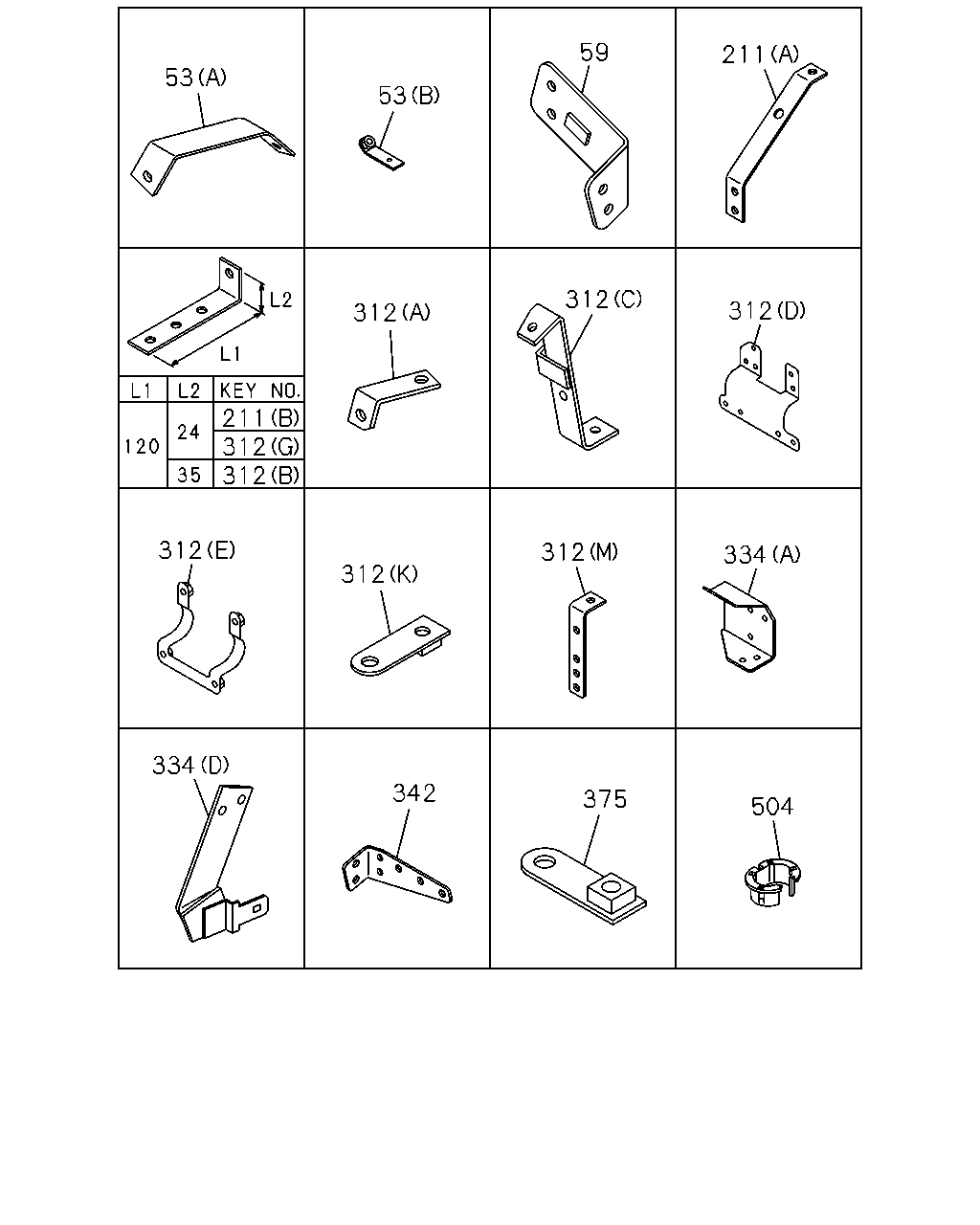

çizim 87652
59 211 53 53 312 312 312 211 312 312 312 312 334 312 334 342 375 504
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-440-0 01 1 0512-
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (H) 		1-82698-469-0 02 1 0512-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (C) 		1-82698-495-2 01 1 0512-0703
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82698-495-2 01 1 0704-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (D) 		8-97610-991-0 01 1 0512-0703
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		8-97610-991-0 01 1 0704-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0512-0703
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0704-
53 BRACKET; HARNESS
(E) 		1-82698-382-0 01 1 0512-
53 BRACKET; HARNESS
(B) 		1-81582-005-1 01 1 0407-0511
53 BRACKET; HARNESS
6WG1 TC-S(97L) (F) 		1-83129-472-1 01 1 0512-0703
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83129-472-1 01 1 0704-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0407-0511
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0512-0703
53 BRACKET; HARNESS
(B) 		1-47479-537-0 05 1 0704-
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0407-0511
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0602-
211 BRACKET; AXLE HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 01 1 0512-0703
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 01 1 0704-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-47479-430-0 02 1 0512-0703
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0704-
211 BRACKET; AXLE HARNESS
(B) L=120 H=35 		1-82699-970-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 02 1 0512-
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (K) 		1-82699-182-0 01 1 0512-0606
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) 		1-82698-570-0 01 1 0607-0703
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) 		1-82698-570-0 01 1 0704-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) L=120 		1-82699-465-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) L=120 H=35 		1-82699-970-0 01 1 0512-0905
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (M) 		1-82698-358-0 01 1 0906-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (H) 		1-82698-556-0 01 1 0512-0703
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82698-556-0 01 1 0704-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (I) 		1-82699-199-0 01 1 0512-0703
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		1-82699-199-0 01 1 0704-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (J) 		1-82698-443-0 01 1 0512-
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=195.5 		1-82698-502-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-474-1 01 1 0407-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-476-0 01 1 0407-
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82698-088-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82698-088-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=120 H=35 		1-82698-088-0 01 1 0512-0703
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=120 H=35 		1-82698-088-0 01 1 0704-
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (B) L=120 H=35 		1-82698-088-0 01 1 0704-
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512-
334 BRACKET
6WG1 TC-S(97L) (C) 		1-53457-153-2 01 1 0512-0703
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-53457-153-2 01 1 0704-
334 BRACKET
(A) 		1-53458-932-0 01 1 0407-0511
334 BRACKET
SMOOTHER-G(C1W) (D) 		1-82698-650-0 01 1 0512-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0407-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0407-
504 PROTECTOR; HARNESS
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82698-391-0 02 1 0407-
çizim 87893
53 53 53 53 312 53 53 211 312 312 312 312 334 334
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-440-0 01 1 0512-
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (H) 		1-82698-469-0 02 1 0512-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (C) 		1-82698-495-2 01 1 0512-0703
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82698-495-2 01 1 0704-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (D) 		8-97610-991-0 01 1 0512-0703
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		8-97610-991-0 01 1 0704-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0512-0703
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0704-
53 BRACKET; HARNESS
(E) 		1-82698-382-0 01 1 0512-
53 BRACKET; HARNESS
(B) 		1-81582-005-1 01 1 0407-0511
53 BRACKET; HARNESS
6WG1 TC-S(97L) (F) 		1-83129-472-1 01 1 0512-0703
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83129-472-1 01 1 0704-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0407-0511
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0512-0703
53 BRACKET; HARNESS
(B) 		1-47479-537-0 05 1 0704-
211 BRACKET; AXLE HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 01 1 0512-0703
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 01 1 0704-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-47479-430-0 02 1 0512-0703
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0704-
211 BRACKET; AXLE HARNESS
(B) L=120 H=35 		1-82699-970-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 02 1 0512-
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (K) 		1-82699-182-0 01 1 0512-0606
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) 		1-82698-570-0 01 1 0607-0703
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) 		1-82698-570-0 01 1 0704-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) L=120 		1-82699-465-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) L=120 H=35 		1-82699-970-0 01 1 0512-0905
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (M) 		1-82698-358-0 01 1 0906-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (H) 		1-82698-556-0 01 1 0512-0703
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82698-556-0 01 1 0704-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (I) 		1-82699-199-0 01 1 0512-0703
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		1-82699-199-0 01 1 0704-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (J) 		1-82698-443-0 01 1 0512-
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=195.5 		1-82698-502-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-474-1 01 1 0407-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-476-0 01 1 0407-
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82698-088-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82698-088-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=120 H=35 		1-82698-088-0 01 1 0512-0703
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=120 H=35 		1-82698-088-0 01 1 0704-
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (B) L=120 H=35 		1-82698-088-0 01 1 0704-
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512-
334 BRACKET
6WG1 TC-S(97L) (C) 		1-53457-153-2 01 1 0512-0703
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-53457-153-2 01 1 0704-
334 BRACKET
(A) 		1-53458-932-0 01 1 0407-0511
334 BRACKET
SMOOTHER-G(C1W) (D) 		1-82698-650-0 01 1 0512-

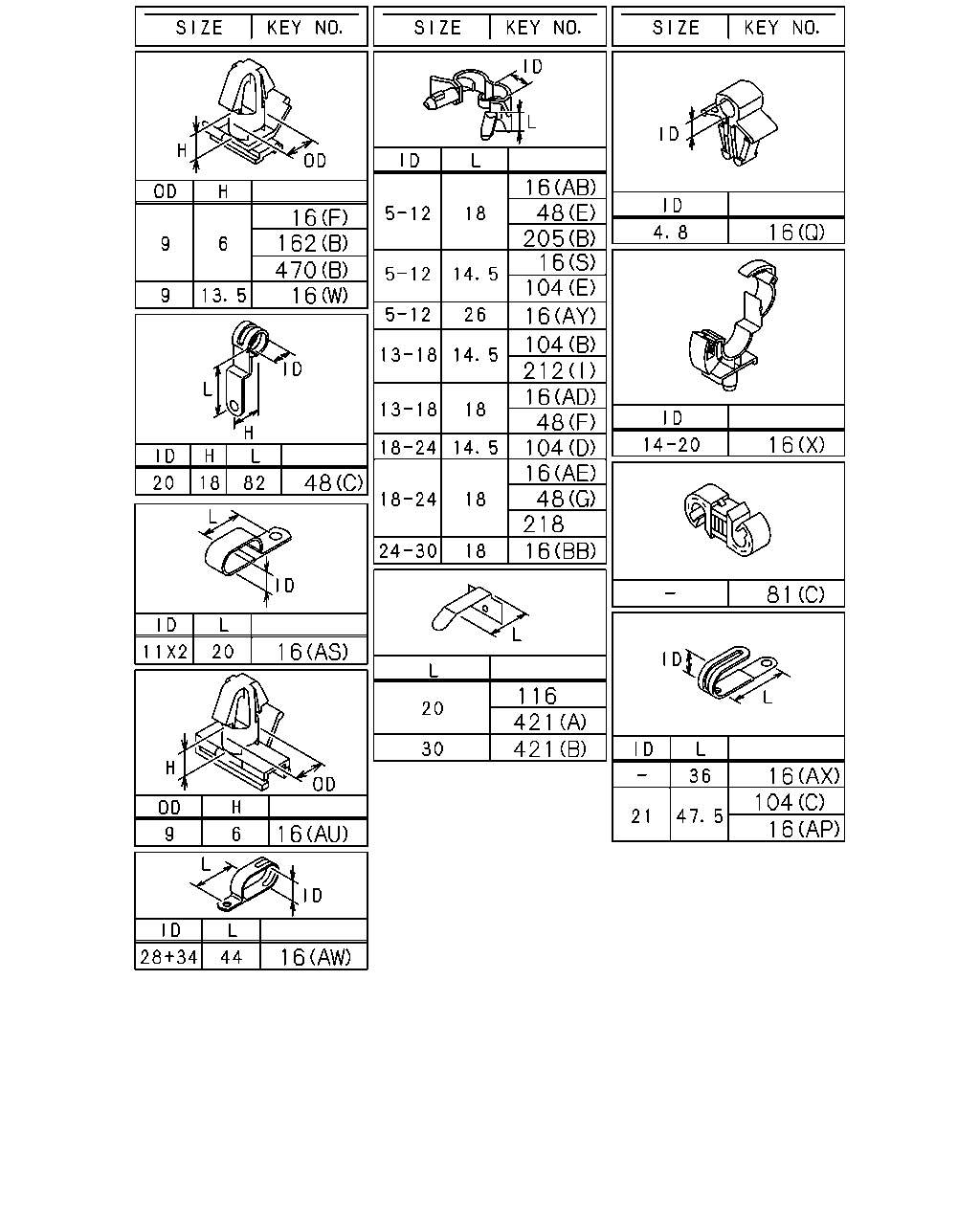

çizim 89122
16 48 205 16 104 16 162 470 16 16 16 104 212 16 48 104 16 48 218 16 16 48 81 16 116 421 421 16 104 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0704-

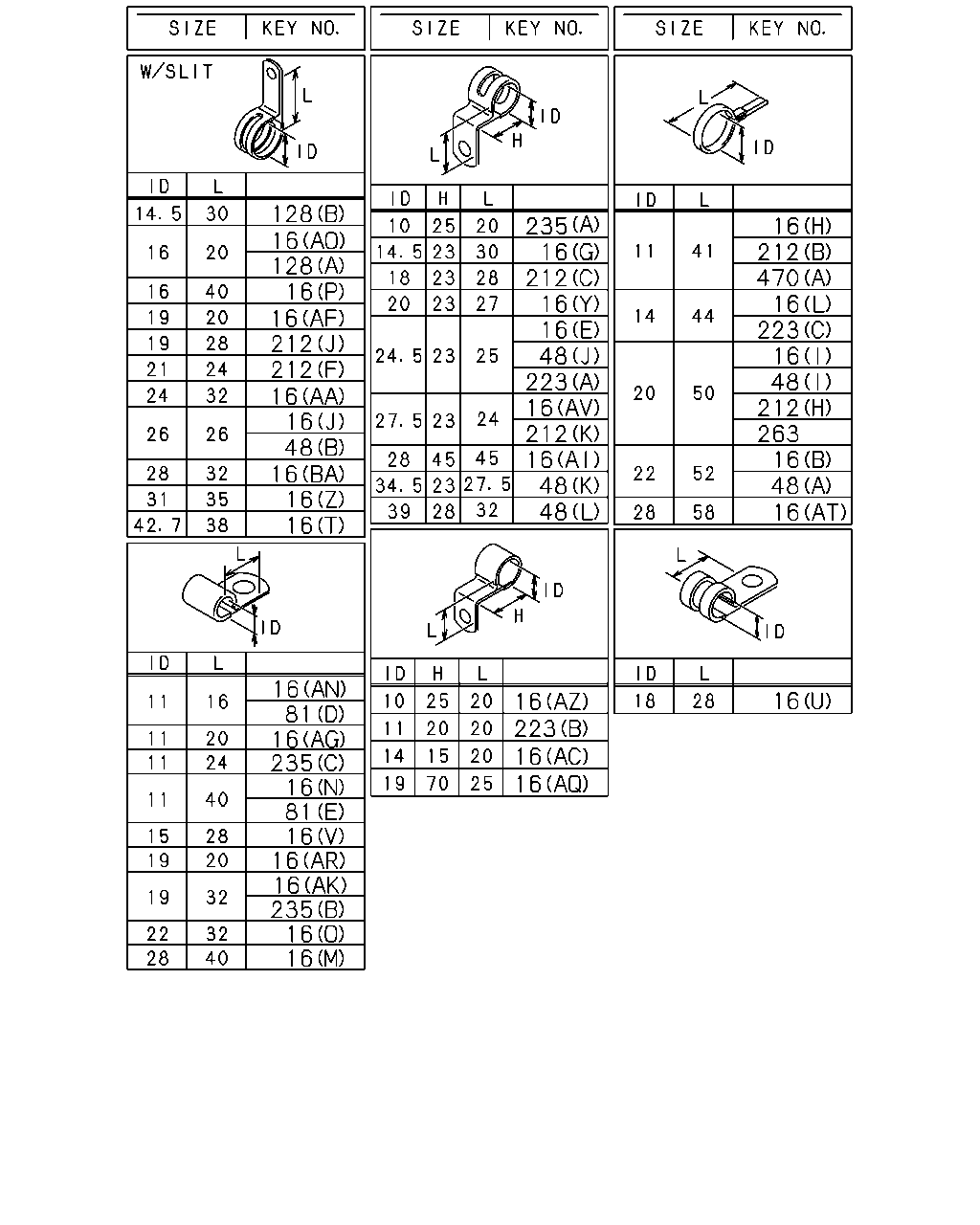

16 CLIP; HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS

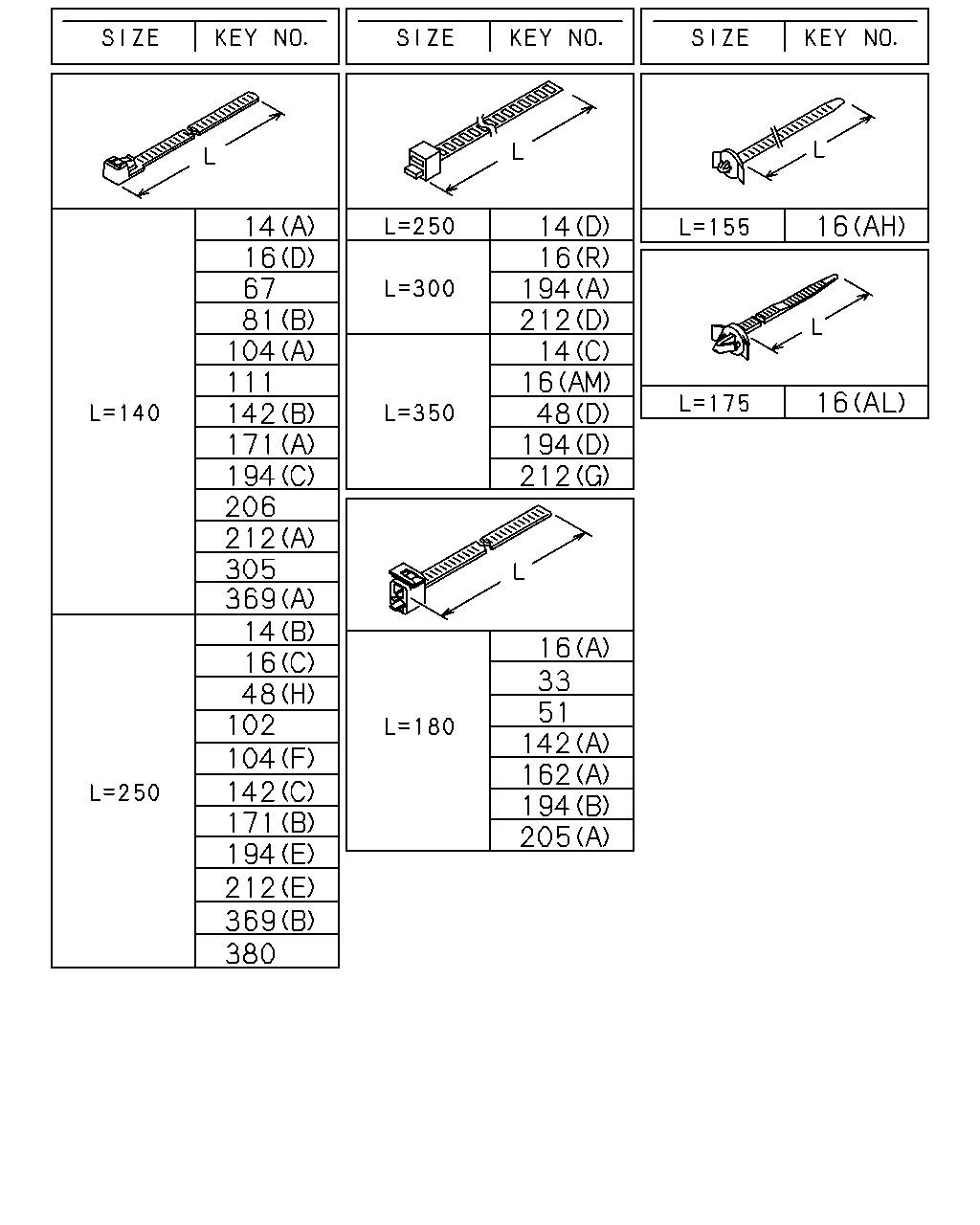

(AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AC) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0704-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX M/T<Y9N> AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE SPICER(TEY) FULLER M/T<X9B> (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0704-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AT) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AZ) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
16 CLIP; HARNESS
(BA) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0704-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(AU) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-0703
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0704-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (F) OD=9 H=6 		1-09709-178-0 04 1 0512-
16 CLIP; HARNESS
(N) ID=11 L=40 		9-09525-075-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		9-09525-075-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-0703
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 0704-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		9-09525-576-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0704-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=140 		5-09707-031-1 01 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) ID=39 H=28 L=32 		1-09701-263-0 01 1 0512-0703
48 CLIP; FRAME HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) ID=39 H=28 L=32 		1-09701-263-0 01 1 0704-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=26 L=26 		1-09701-236-0 01 1 0512-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 07 1 0407-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0407-0706
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 04 1 0707-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0407-
48 CLIP; FRAME HARNESS
(A) ID=22 L=52 		9-09917-431-0 01 1 0407-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		9-09525-075-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		0-95235-075-0 01 1 0607-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (E) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (F) L=250 		5-09707-030-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) L=140 		5-09707-031-1 10 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (A) L=140 		5-09707-031-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0407-0511
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0407-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
162 CLIP; SW HARNESS
6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0512-0703
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0704-
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (A) L=180 		1-09707-162-1 01 1 0407-0511
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 01 1 0512-
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
205 CLIP; BACK LAMP HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (H) ID=20 L=50 		9-09917-430-0 02 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0607-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (K) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (K) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) ID=18 H=23 L=28 		1-09700-860-0 03 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) ID=18 H=23 L=28 		1-09700-860-0 03 1 0704-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-
212 CLIP; HORN HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0505-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0512-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0512-
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0512-
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (B) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0512-
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0512-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0407-
çizim 104091
119 255 423 515 340 294 219 524
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0407-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0703
219 NUT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 0603-0703
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0603-0703
219 NUT
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0603-0703
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0704-
219 NUT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 0704-
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0704-
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0704-
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0704-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0607-0703
219 NUT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0607-0703
219 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0704-
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0704-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
219 NUT
M8 FLANGE 		0-91150-108-0 11 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511
219 NUT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
219 NUT
6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
219 NUT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0603-0703
219 NUT
6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0603-0703
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0704-
219 NUT
6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0704-
219 NUT
M8 FLANGE 		0-91150-108-0 14 1 0407-0511
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0603-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603-0606
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0607-0703
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0607-0703
294 NUT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0607-0703
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0704-
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0704-
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0704-
294 NUT
M8 FLANGE 		0-91150-108-0 05 1 0407-0602
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-0606
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0607-0703
294 NUT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 05 1 0607-0703
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0704-
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 05 1 0704-
294 NUT
M8 FLANGE 		0-91150-108-0 06 1 0407-0511
294 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91150-108-0 06 1 0512-0602
294 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 06 1 0603-0606
294 NUT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 06 1 0607-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
294 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
294 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0607-0703
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 0607-0703
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0704-
294 NUT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 0704-
294 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 01 1 0704-
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-0703
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0704-
340 NUT; HARNESS CAB TO FRAME
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 02 1 0407-0511
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 0512-
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 0512-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0407-0511
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0512-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
515 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
515 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0603-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0511
515 NUT; BRKT
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
515 NUT; BRKT
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-0703
515 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0704-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

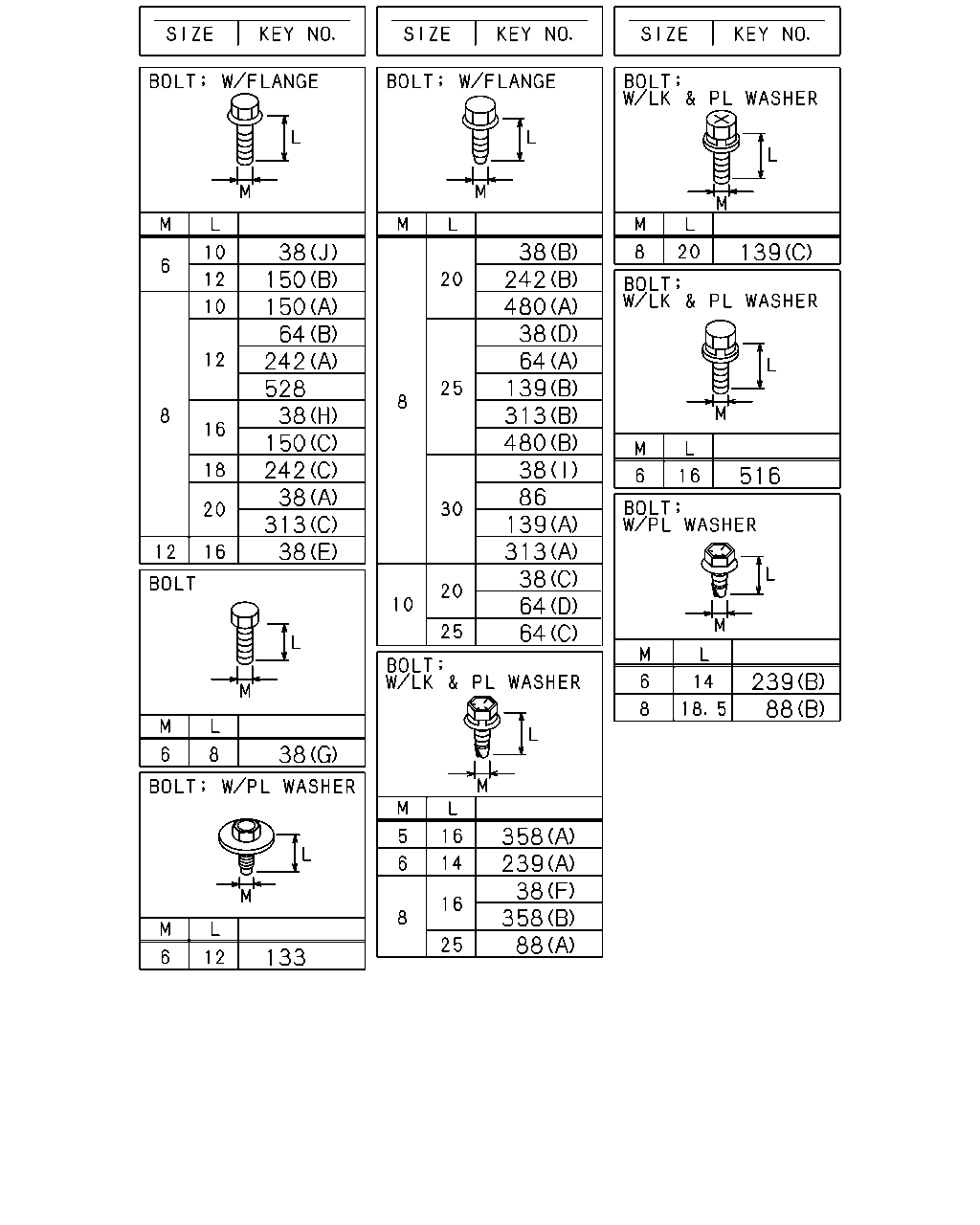

çizim 104178
38 242 480 38 64 139 313 480 38 86 139 313 38 64 64 38 150 150 64 242 528 38 150 242 38 313 38 139 516 239 88 38 358 239 38 358 88 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (B) M8X20 FLANGE 		0-28650-820-0 03 1 0704-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0704-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0704-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0704-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0704-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0704-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0704-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0704-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-0703
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0704-
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) M8X30 FLANGE 		0-28650-830-0 02 1 0601-0703
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) M8X30 FLANGE 		0-28650-830-0 02 1 0704-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(G) M6X8 		0-20800-608-0 01 1 0407-0511
38 BOLT; CLIP,HARNESS
(J) M6X10 FLANGE 		0-28080-610-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(J) M6X10 FLANGE 		0-28050-610-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (H) M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (H) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28050-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (F) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0512-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 10 1 0407-0511
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0704-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0704-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0704-
38 BOLT; CLIP,HARNESS
(C) M10X20 FLANGE 		0-28781-020-0 01 1 0407-0511
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 0407-1105
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0407-0511
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0512-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
64 SCREW; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
64 SCREW; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0711
64 SCREW; CLIP
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0711
64 SCREW; CLIP
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-
64 SCREW; CLIP
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-
64 SCREW; CLIP
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X12 FLANGE 		0-28080-812-0 05 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X12 FLANGE 		0-28050-812-0 05 1 0601-
64 SCREW; CLIP
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M10X25 FLANGE 		0-28781-025-0 02 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M10X25 FLANGE 		0-28751-025-0 02 1 0601-
64 SCREW; CLIP
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
64 SCREW; CLIP
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M10X20 FLANGE 		0-28751-020-0 01 1 0601-0703
64 SCREW; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M10X20 FLANGE 		0-28751-020-0 01 1 0704-
86 BOLT; CLIP BRKT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 02 1 0607-0703
86 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 02 1 0704-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511
86 BOLT; CLIP BRKT
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
86 BOLT; CLIP BRKT
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 01 1 0607-0703
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 0607-0703
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 01 1 0704-
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 0704-
86 BOLT; CLIP BRKT
FULLER M/T<X9B> M8X30 FLANGE 		0-28650-830-0 01 1 0704-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0407-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0602-0904
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511
139 BOLT; BRKT
6WG1 TC-S(97L) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512
139 BOLT; BRKT
6WG1 TC-S(97L) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-0703
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0704-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28680-830-0 05 1 0512-0512
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0601-0606
139 BOLT; BRKT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0607-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 06 1 0407-0511
139 BOLT; BRKT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M8X30 FLANGE 		0-28680-830-0 06 1 0512-0512
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0606
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0607-0703
139 BOLT; BRKT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0607-0703
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0704-
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0704-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511
150 BOLT; CLIP
6WF1 TC-C(1B8) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1209-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X10 FLANGE 		0-28080-810-0 01 1 0407-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
150 BOLT; CLIP
(B) M6X12 FLANGE 		0-28080-612-0 02 1 0407-0407
150 BOLT; CLIP
(B) M6X12 FLANGE 		0-28080-612-0 01 1 0408-0511
150 BOLT; CLIP
(B) M6X12 FLANGE 		0-28080-612-0 02 1 0512-0512
150 BOLT; CLIP
(B) M6X12 FLANGE 		0-28050-612-0 02 1 0601-
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 09 1 0407-0511
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0601-1208
150 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
6WG1 TC-S(97L) (C) M8X18 FLANGE 		0-28080-818-0 01 1 0512-0703
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X18 FLANGE 		0-28080-818-0 01 1 0704-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0407-0512
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
313 BOLT; BRKT
6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
313 BOLT; BRKT
6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0703
313 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 02 1 0704-
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0407-0511
313 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 05 1 0512-0512
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 05 1 0407-0511
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 11 1 0512-0512
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0407-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407-
480 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
480 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
480 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-
528 BOLT; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512
528 BOLT; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0703
528 BOLT; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0704-
çizim 104368
14 16 194 212 14 16 48 194 212 16 14 16 67 81 104 111 142 171 194 206 212 305 369 14 16 48 102 104 142 171 194 212 369 380 16 16 33 51 142 162 194 205
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
SMOOTHER-G(C1W) (C) L=350 		1-09707-183-0 01 1 0512-
14 CLIP; BAND,HARNESS
(D) L=250 		1-09707-126-0 02 1 0407-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0407-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0407-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0407-
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0704-
16 CLIP; HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AC) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0704-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX M/T<Y9N> AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE SPICER(TEY) FULLER M/T<X9B> (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0704-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AT) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AZ) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
16 CLIP; HARNESS
(BA) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0704-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(AU) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-0703
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0704-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (F) OD=9 H=6 		1-09709-178-0 04 1 0512-
16 CLIP; HARNESS
(N) ID=11 L=40 		9-09525-075-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		9-09525-075-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-0703
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 0704-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		9-09525-576-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0704-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=140 		5-09707-031-1 01 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0512-
33 CLIP; HARNESS,VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=180 		1-09707-162-1 01 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) ID=39 H=28 L=32 		1-09701-263-0 01 1 0512-0703
48 CLIP; FRAME HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) ID=39 H=28 L=32 		1-09701-263-0 01 1 0704-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=26 L=26 		1-09701-236-0 01 1 0512-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 07 1 0407-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0407-0706
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 04 1 0707-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0407-
48 CLIP; FRAME HARNESS
(A) ID=22 L=52 		9-09917-431-0 01 1 0407-
51 CLIP; COOLER CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=180 		1-09707-162-1 01 1 0407-0511
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0512-
67 CLIP; BAND,HARNESS,CLU SW
L=140 		5-09707-031-1 01 1 0407-0511
67 CLIP; BAND,HARNESS,CLU SW
EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0512-0703
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0704-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		9-09525-075-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		0-95235-075-0 01 1 0607-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
102 CLIP; BAND
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=250 		5-09707-030-1 01 1 0512-0703
102 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=250 		5-09707-030-1 01 1 0704-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (E) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (F) L=250 		5-09707-030-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) L=140 		5-09707-031-1 10 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (A) L=140 		5-09707-031-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0407-0511
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0407-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0407-0407
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0408-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(C) L=250 		5-09707-030-1 01 1 0407-0511
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 03 1 0407-0511
162 CLIP; SW HARNESS
6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0512-0703
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0704-
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (A) L=180 		1-09707-162-1 01 1 0407-0511
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 01 1 0512-
171 CLIP; STARTER HARNESS
6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 03 1 0512-0703
171 CLIP; STARTER HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 03 1 0704-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0407-0511
171 CLIP; STARTER HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0512-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 08 1 0407-
194 CLIP; BAND
6WF1 TC-C(1B8) (D) L=350 		1-09707-183-0 01 1 0512-
194 CLIP; BAND
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) L=250 		5-09707-030-1 04 1 0512-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0512-
194 CLIP; BAND
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=180 		1-09707-162-1 01 1 0512-
194 CLIP; BAND
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) L=250 		5-09707-030-1 05 1 0512-0703
194 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) L=250 		5-09707-030-1 05 1 0704-
194 CLIP; BAND
ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) L=140 		5-09707-031-1 01 1 0407-0511
194 CLIP; BAND
ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) L=140 		5-09707-031-1 01 1 0512-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0512-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0407-0504
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0407-0511
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0512-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0407-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 04 1 0505-0511
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0512-
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
205 CLIP; BACK LAMP HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0407-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (H) ID=20 L=50 		9-09917-430-0 02 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0607-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (K) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (K) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) ID=18 H=23 L=28 		1-09700-860-0 03 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) ID=18 H=23 L=28 		1-09700-860-0 03 1 0704-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-
212 CLIP; HORN HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0505-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0512-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0512-
305 CLIP; ENG HARNESS
6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0512-0703
305 CLIP; ENG HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0704-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0407-0511
305 CLIP; ENG HARNESS
6WF1 TC-C(1B8) L=140 		5-09707-031-1 01 1 0512-
369 CLIP; BAND EDS HARNESS
6WG1 TC-S(97L) (A) L=140 		5-09707-031-1 02 1 0512-0703
369 CLIP; BAND EDS HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=140 		5-09707-031-1 02 1 0704-
369 CLIP; BAND EDS HARNESS
(A) L=140 		5-09707-031-1 01 1 0408-0511
369 CLIP; BAND EDS HARNESS
6WF1 TC-C(1B8) (B) L=250 		5-09707-030-1 02 1 0512-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0512-
çizim 104591
16 81 16 148 168
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0704-
16 CLIP; HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AC) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0704-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX M/T<Y9N> AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE SPICER(TEY) FULLER M/T<X9B> (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0704-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AT) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AZ) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
16 CLIP; HARNESS
(BA) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0704-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(AU) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-0703
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0704-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (F) OD=9 H=6 		1-09709-178-0 04 1 0512-
16 CLIP; HARNESS
(N) ID=11 L=40 		9-09525-075-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		9-09525-075-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-0703
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 0704-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		9-09525-576-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0704-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=140 		5-09707-031-1 01 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0512-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		9-09525-075-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		0-95235-075-0 01 1 0607-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0407-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0407-
çizim 104707
128 16 128 16 16 212 212 16 16 48 16 16 16 16 212 16 16 48 223 16 212 16 48 48 16 212 470 16 223 16 48 212 263 16 48 16 16 81 16 235 16 81 16 16 16 235 16 16 16 16 223 16 16 235
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (AO) ID=16 L=20 		0-95235-535-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (BB) ID=24-30 L=18 		1-09709-297-0 01 1 0704-
16 CLIP; HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=31 L=35 		1-09700-329-1 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AA) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AC) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) ID=28 L=58 		1-09700-400-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (S) ID=5-12 L=14.5 		1-09987-221-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 03 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AV) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-1105
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AW) ID=28+34 L=44 		1-09701-311-0 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) OD=9 H=6 		1-09709-178-0 07 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AX) L=36 		8-94224-891-1 01 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AU) OD=9 H=6 		8-97368-793-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 03 1 0704-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0512-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AN) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-S(97L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX M/T<Y9N> AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE SPICER(TEY) FULLER M/T<X9B> (AG) ID=11 L=20 		0-95235-035-0 02 1 0704-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0704-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AT) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AZ) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
16 CLIP; HARNESS
(BA) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0704-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(AU) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-0703
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0704-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0704-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (F) OD=9 H=6 		1-09709-178-0 04 1 0512-
16 CLIP; HARNESS
(N) ID=11 L=40 		9-09525-075-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		9-09525-075-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (N) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-0703
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 0704-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		9-09525-576-0 01 1 0512-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0607-0703
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
FULLER M/T<X9B> (P) ID=16 L=40 		0-95235-576-0 01 1 0704-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0704-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0512-0703
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=22 L=52 		9-09917-431-0 01 1 0704-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-0511
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=140 		5-09707-031-1 01 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) ID=39 H=28 L=32 		1-09701-263-0 01 1 0512-0703
48 CLIP; FRAME HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (L) ID=39 H=28 L=32 		1-09701-263-0 01 1 0704-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=26 L=26 		1-09701-236-0 01 1 0512-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 07 1 0407-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0407-0706
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 04 1 0707-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0407-
48 CLIP; FRAME HARNESS
(A) ID=22 L=52 		9-09917-431-0 01 1 0407-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		9-09525-075-0 01 1 0407-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=40 		0-95235-075-0 01 1 0607-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0407-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0407-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (H) ID=20 L=50 		9-09917-430-0 02 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0607-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=19 L=28 		0-95235-856-0 01 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (K) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (K) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0704-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) ID=18 H=23 L=28 		1-09700-860-0 03 1 0512-0703
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) ID=18 H=23 L=28 		1-09700-860-0 03 1 0704-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-
212 CLIP; HORN HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0505-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0512-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0512-
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0407-0511
223 CLIP; AIR TANK HARNESS
6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0407-0707
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0708-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=19 L=32 		9-09525-866-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=19 L=32 		0-95235-866-0 01 1 0607-
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=11 L=24 		9-09525-045-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=11 L=24 		0-95235-045-0 01 1 0607-0703
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=11 L=24 		0-95235-045-0 01 1 0704-0711
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0407-0511
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
