◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#30506) — 330 parça

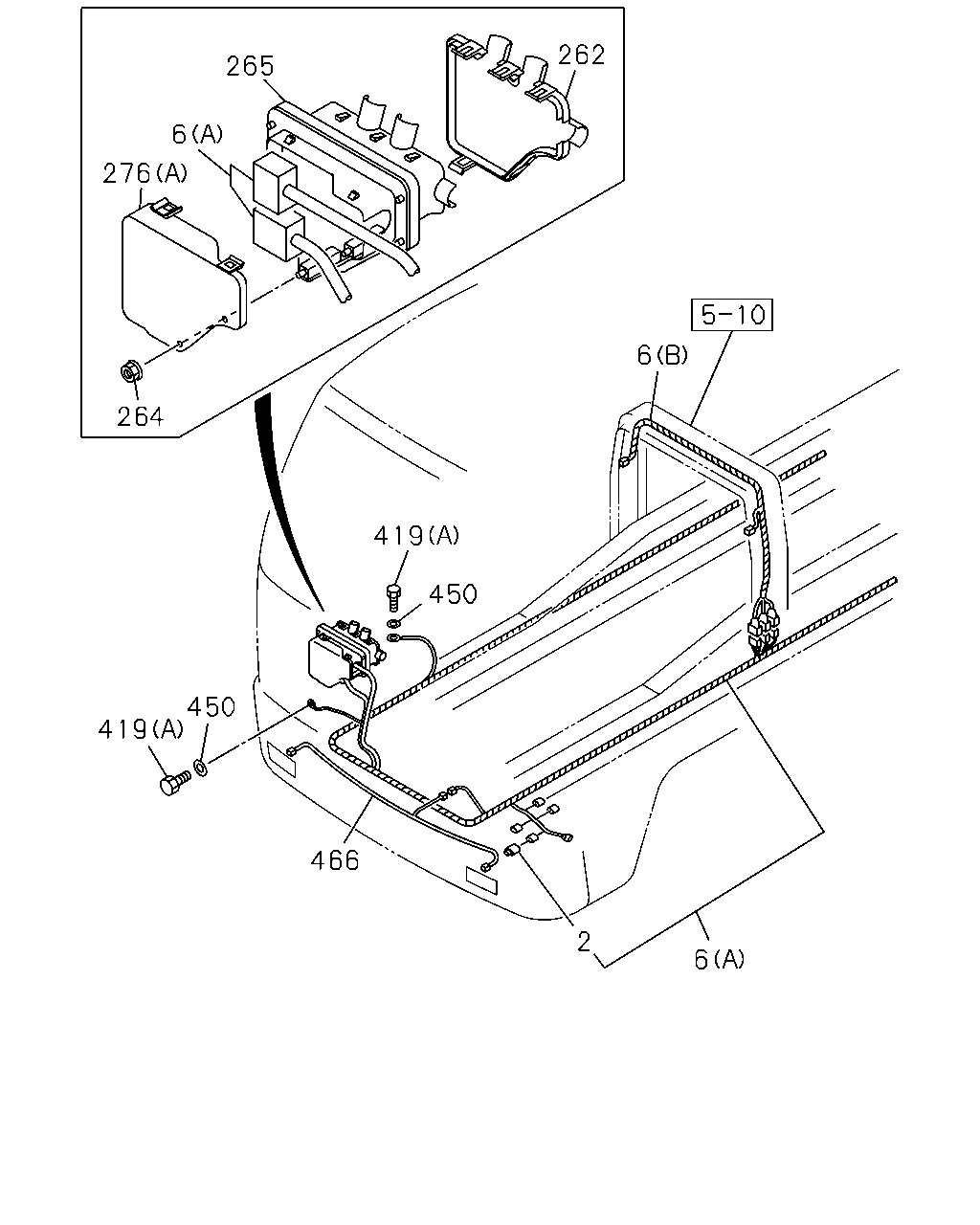

çizim 87751
262 265 6 276 6 264 419 450 450 419 466 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0407-
6 HARNESS; FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (A) 		8-97620-987-0 01 1 0704-
6 HARNESS; FRAME
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-82678-190-1 01 1 0512-
6 HARNESS; FRAME
6WG1 TC-S(97L) (B) 		8-97607-309-1 01 1 0512-0703
6 HARNESS; FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97607-309-1 01 1 0704-
6 HARNESS; FRAME
6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		8-97610-486-2 01 1 0512-0703
6 HARNESS; FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		8-97610-486-2 01 1 0704-
6 HARNESS; FRAME
CAB UP +110MM<TGG> (B) 		1-82676-960-4 01 1 0407-0511
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		1-82678-194-1 01 1 0512-
6 HARNESS; FRAME
(A) 		1-82677-631-1 01 1 0407-0511
6 HARNESS; FRAME
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-82678-191-1 01 1 0512-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0407-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0407-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0407-0511
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8) (B) 		1-82699-475-2 01 1 0512-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0407-
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 0512-
419 BOLT; CAB EARTH
6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0512-0703
419 BOLT; CAB EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0704-
419 BOLT; CAB EARTH
6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0512-0703
419 BOLT; CAB EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0704-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0407-0511
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0512-
450 WASHER; PL,CAB EARTH
6WG1 TC-S(97L) ID=8.4 		1-09503-264-0 04 1 0512-0703
450 WASHER; PL,CAB EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4 		1-09503-264-0 04 1 0704-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0407-0511
450 WASHER; PL,CAB EARTH
6WF1 TC-C(1B8) ID=8.4 		1-09503-264-0 03 1 0512-
466 HARNESS; BUMPER 1-82638-452-4 01 1 0407-0511

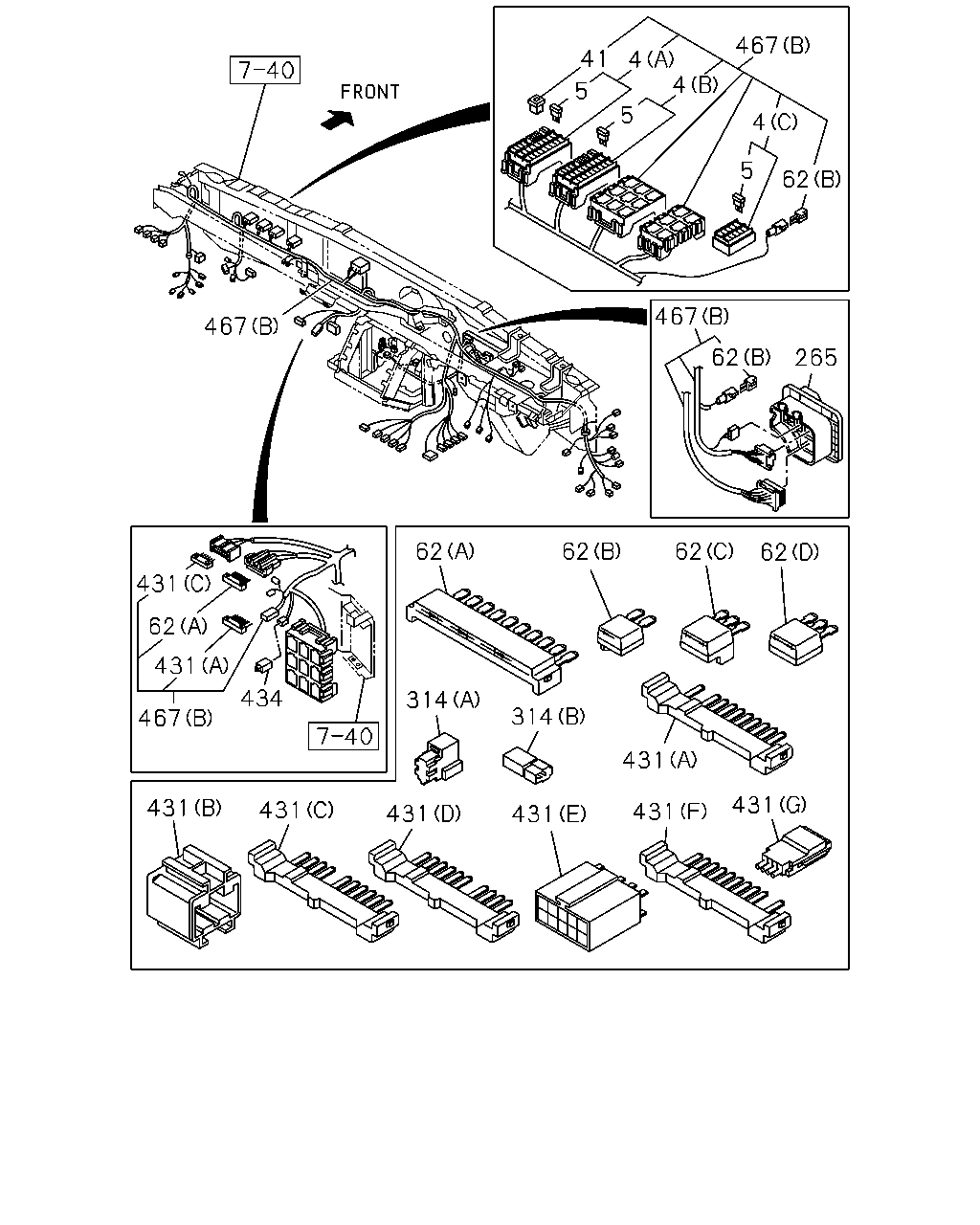

çizim 87754
467 41 4 4 5 5 4 5 62 467 467 62 265 62 62 62 62 431 62 431 434 314 314 467 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX23 10AX4 		1-82510-479-0 01 1 0407-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0407-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0407-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 0407-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 0407-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0407-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 23 1 0407-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0407-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0512-
62 DIODE; HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0512-0703
62 DIODE; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0704-
62 DIODE; HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) BLACK 2P-1.5A 		8-94422-639-1 08 1 0512-0703
62 DIODE; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) BLACK 2P-1.5A 		8-94422-639-1 08 1 0704-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0407-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 0407-0511
62 DIODE; HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) BLACK 3P-1.5A 		8-94416-438-1 01 1 0512-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0407-0511
62 DIODE; HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0512-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0407-
314 RESISTOR; HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0512-0703
314 RESISTOR; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0704-
314 RESISTOR; HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) BLUE 		1-82691-204-0 01 1 0512-0703
314 RESISTOR; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) BLUE 		1-82691-204-0 01 1 0704-
314 RESISTOR; HARNESS
(A) BLUE 		1-82691-204-0 02 1 0407-0511
314 RESISTOR; HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) BLUE 		1-82691-204-0 02 1 0512-
431 CONNECTOR; JOINT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 6P 		1-82691-206-0 01 1 0512-0703
431 CONNECTOR; JOINT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 6P 		1-82691-206-0 01 1 0704-
431 CONNECTOR; JOINT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (F) 10P GREEN 		1-82698-579-0 03 1 0512-0703
431 CONNECTOR; JOINT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (F) 10P GREEN 		1-82698-579-0 03 1 0704-
431 CONNECTOR; JOINT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (C) 10P BLUE 		1-82699-598-0 13 1 0512-0703
431 CONNECTOR; JOINT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (C) 10P BLUE 		1-82699-598-0 13 1 0704-
431 CONNECTOR; JOINT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (D) 10P GREEN 		1-82699-599-0 02 1 0512-0703
431 CONNECTOR; JOINT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (D) 10P GREEN 		1-82699-599-0 02 1 0704-
431 CONNECTOR; JOINT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 10P BROWN 		1-82699-601-0 10 1 0512-0703
431 CONNECTOR; JOINT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 10P BROWN 		1-82699-601-0 10 1 0704-
431 CONNECTOR; JOINT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (G) 4P 		8-97376-776-0 10 1 0512-0703
431 CONNECTOR; JOINT
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (G) 4P 		8-97376-776-0 10 1 0704-
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 05 1 0407-0511
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) 3P & 3P 		1-82698-170-0 04 1 0512-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 09 1 0407-0511
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 10P BLUE 		1-82699-598-0 09 1 0512-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 0407-0511
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (D) 10P GREEN 		1-82699-599-0 04 1 0512-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 12 1 0407-0511
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 10P BROWN 		1-82699-601-0 13 1 0512-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0407-
434 CONNECTOR; SHORT CIRCUIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82691-051-0 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-773-0 01 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0512-
467 HARNESS; FACIA
6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0704-
467 HARNESS; FACIA
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0704-
467 HARNESS; FACIA
(B) 		1-82662-377-1 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) 		1-82662-772-0 01 1 0512-
467 HARNESS; FACIA
(A) 		1-82662-254-0 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0512-

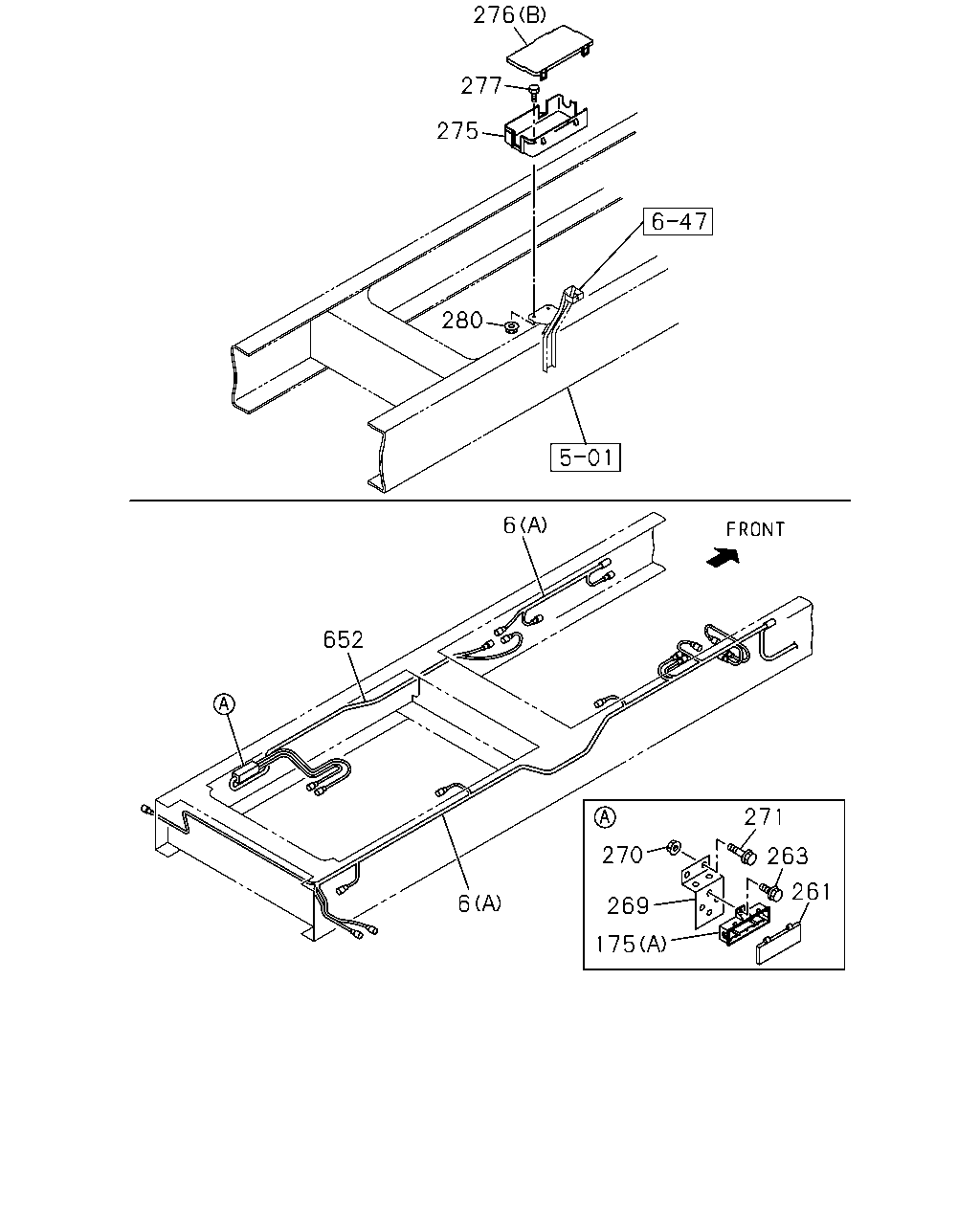

çizim 87755
276 277 275 280 6 652 271 270 263 261 6 269 175
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (A) 		8-97620-987-0 01 1 0704-
6 HARNESS; FRAME
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-82678-190-1 01 1 0512-
6 HARNESS; FRAME
6WG1 TC-S(97L) (B) 		8-97607-309-1 01 1 0512-0703
6 HARNESS; FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97607-309-1 01 1 0704-
6 HARNESS; FRAME
6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		8-97610-486-2 01 1 0512-0703
6 HARNESS; FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		8-97610-486-2 01 1 0704-
6 HARNESS; FRAME
CAB UP +110MM<TGG> (B) 		1-82676-960-4 01 1 0407-0511
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		1-82678-194-1 01 1 0512-
6 HARNESS; FRAME
(A) 		1-82677-631-1 01 1 0407-0511
6 HARNESS; FRAME
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-82678-191-1 01 1 0512-
175 BOX; CONNECTOR
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-82699-467-0 01 1 0602-
175 BOX; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-389-1 01 1 0512-0606
175 BOX; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-435-1 01 1 0607-0703
175 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-435-1 01 1 0704-
175 BOX; CONNECTOR
(A) 		1-82699-467-0 01 1 0407-0511
175 BOX; CONNECTOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-82569-342-0 01 1 0512-
261 COVER; CONNECTOR BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-82699-320-0 01 1 0602-
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0407-0511
263 BOLT; CONNECTOR BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0602-
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0407-0511
269 BRACKET; CONNECTOR BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-82698-424-0 01 1 0602-
269 BRACKET; CONNECTOR BOX 1-82698-424-0 01 1 0407-0511
270 NUT; BRKT,CONNECTOR BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 02 1 0603-
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511
271 BOLT; BRKT CONNECTOR BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8X25 FLANGE 		0-28650-825-0 02 1 0602-
271 BOLT; BRKT CONNECTOR BOX
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0407-0511
275 BOX ASM; FRAME HARNESS
6WF1 TC-C(1B8) 		1-82699-474-2 01 1 0512-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0407-0511
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8) (B) 		1-82699-475-2 01 1 0512-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0407-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0407-0511
277 BOLT; BOX ASM FIX
6WF1 TC-C(1B8) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0512-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407-0511
280 NUT; BOX ASM FIX
6WF1 TC-C(1B8) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0512-
652 HARNESS; EBS 1-82677-234-0 01 1 0407-

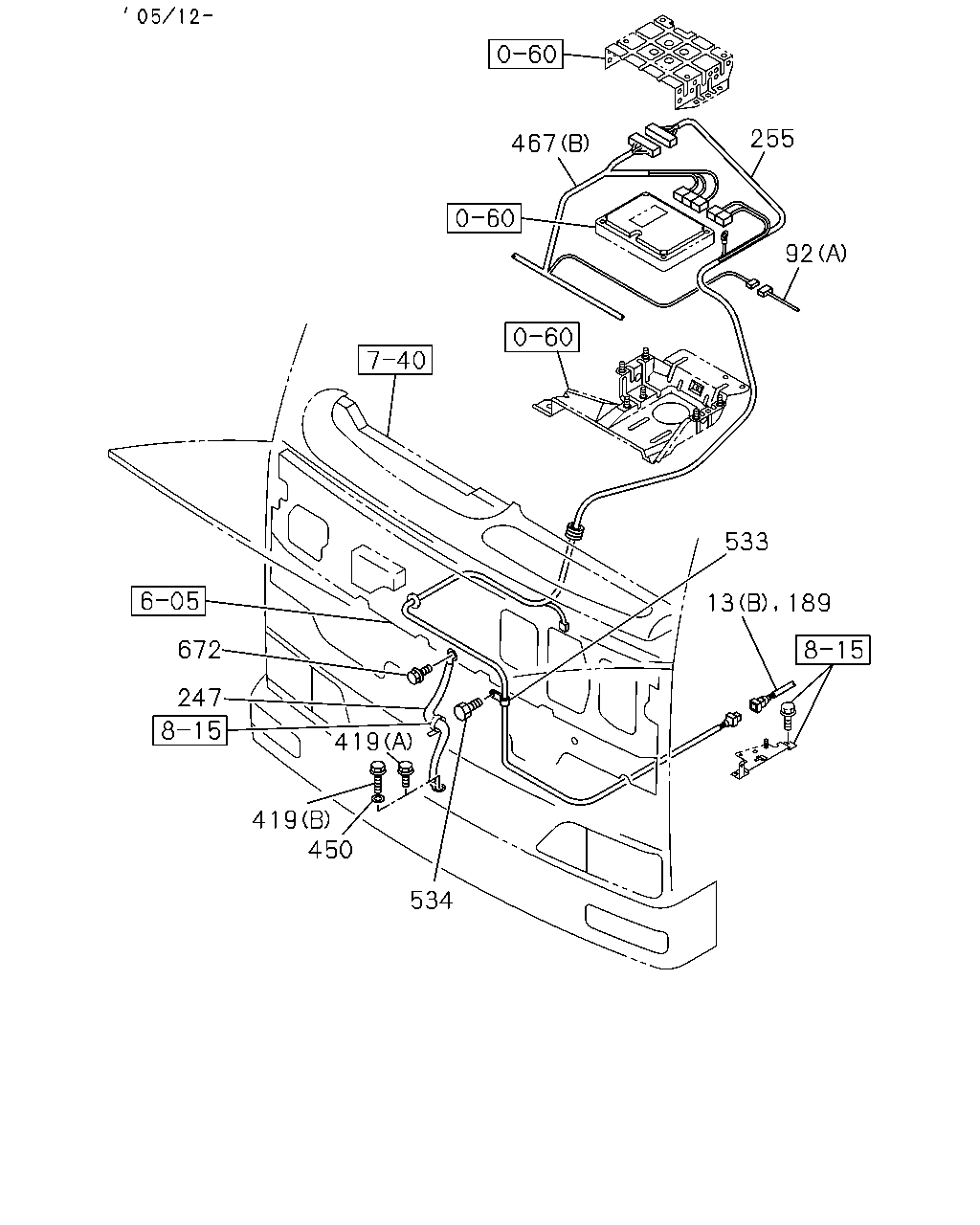

çizim 87815
255 92 467 533 13 189 419 672 247 419 450 534
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		1-82641-345-0 01 1 0512-0612
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-97617-395-0 01 1 0701-1004
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-98169-641-0 01 1 1005-
13 HARNESS; ENG
6WG1 TC-S(97L) (B) 		8-97604-105-2 01 1 0512-0612
13 HARNESS; ENG
6WG1 TC-S(97L) (B) 		8-97617-391-0 01 1 0701-0703
13 HARNESS; ENG
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97617-391-0 01 1 0704-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0407-

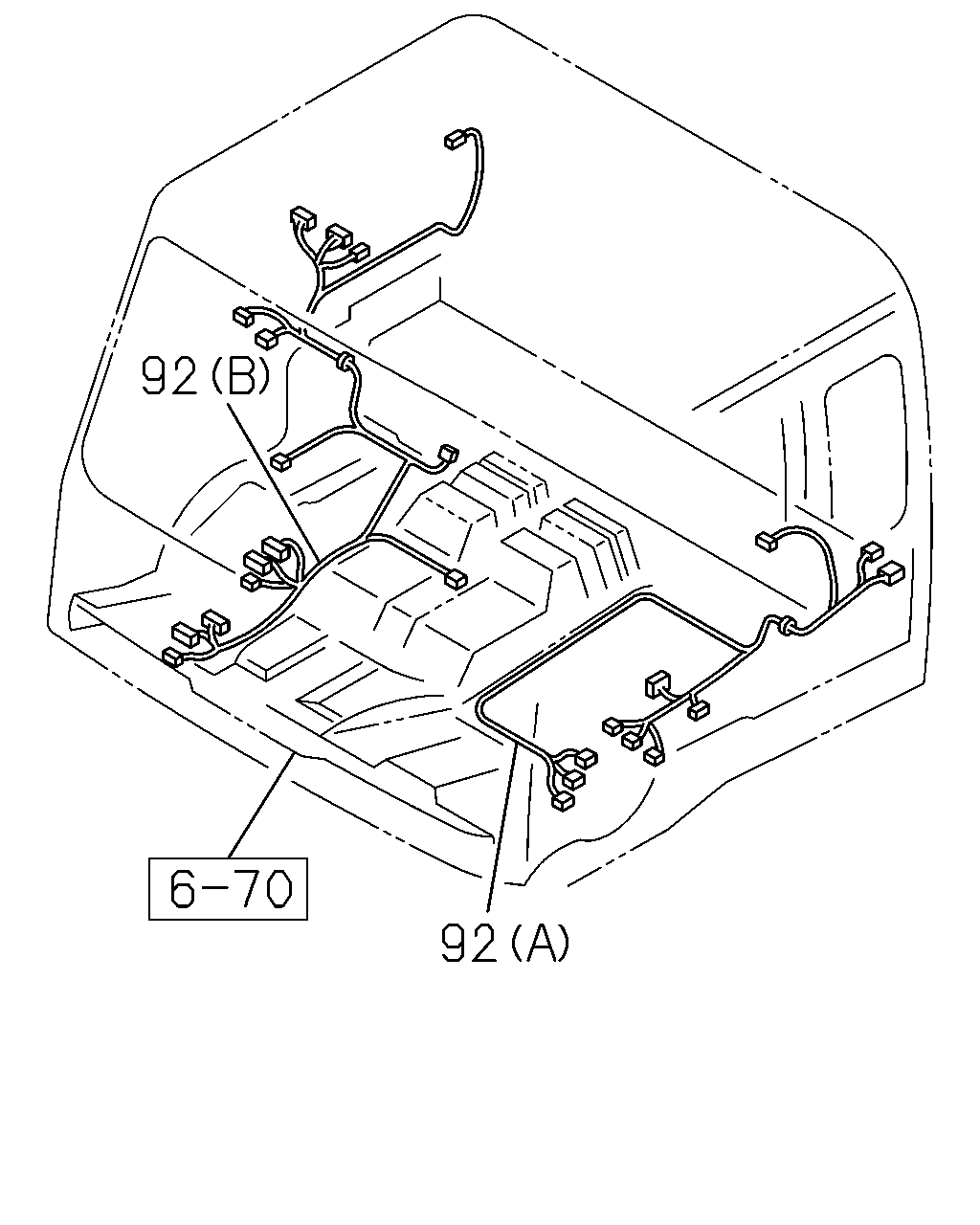

92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-779-0 01 1 0512-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-722-1 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-899-0 01 1 0605-1212
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98229-547-0 01 1 1301-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-734-0 01 1 0512-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A) 		1-82662-795-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A) 		1-82662-903-0 01 1 0605-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B) 		1-82662-780-0 01 1 0512-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W),ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-82662-782-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W),ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-82662-901-0 01 1 0605-
92 HARNESS; FLOOR
6WG1 TC-S(97L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-340-4 01 1 0512-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-340-4 01 1 0704-
92 HARNESS; FLOOR
6WG1 TC-S(97L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-349-5 01 1 0512-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-349-5 01 1 0704-
92 HARNESS; FLOOR
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 		1-82662-370-2 01 1 0512-0604
92 HARNESS; FLOOR
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 		1-82662-891-0 01 1 0605-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 		1-82662-891-0 01 1 0704-
92 HARNESS; FLOOR
6WG1 TC-S(97L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B) 		1-82662-338-4 01 1 0512-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B) 		1-82662-338-4 01 1 0704-
92 HARNESS; FLOOR
CUSTOM CAB(SR5) (B) 		1-82661-448-5 01 1 0407-0503
92 HARNESS; FLOOR
CUSTOM CAB(SR5) (B) 		1-82662-733-0 01 1 0504-0511
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-794-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-902-0 01 1 0605-1212
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98229-548-0 01 1 1301-
92 HARNESS; FLOOR
(A) 		1-82661-484-4 01 1 0407-0511
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-781-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-900-0 01 1 0605-
189 HARNESS; EXT 1-82641-217-1 01 1 0407-0511
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0512-
255 HARNESS; ELEC GOV
6WG1 TC-S(97L) 		1-82662-307-3 01 1 0512-0703
255 HARNESS; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82662-307-3 01 1 0704-1210
255 HARNESS; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98229-084-0 01 1 1211-
255 HARNESS; ELEC GOV
CAB UP +110MM<TGG> 		1-82661-494-8 01 1 0407-0511
255 HARNESS; ELEC GOV
6WF1 TC-C(1B8) 		1-82662-719-0 01 1 0512-
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 0512-
419 BOLT; CAB EARTH
6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0512-0703
419 BOLT; CAB EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0704-
419 BOLT; CAB EARTH
6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0512-0703
419 BOLT; CAB EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0704-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0407-0511
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0512-
450 WASHER; PL,CAB EARTH
6WG1 TC-S(97L) ID=8.4 		1-09503-264-0 04 1 0512-0703
450 WASHER; PL,CAB EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4 		1-09503-264-0 04 1 0704-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0407-0511
450 WASHER; PL,CAB EARTH
6WF1 TC-C(1B8) ID=8.4 		1-09503-264-0 03 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-773-0 01 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0512-
467 HARNESS; FACIA
6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0704-
467 HARNESS; FACIA
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0704-
467 HARNESS; FACIA
(B) 		1-82662-377-1 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) 		1-82662-772-0 01 1 0512-
467 HARNESS; FACIA
(A) 		1-82662-254-0 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0512-
533 CLIP
6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0512-0703
533 CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0704-
533 CLIP
ID=26 L=26 		1-09701-236-0 01 1 0407-0511
533 CLIP
6WF1 TC-C(1B8) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
533 CLIP
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
533 CLIP
6WF1 TC-C(1B8) ID=31 L=35 		1-09700-329-1 01 1 0704-
533 CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0704-
534 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0512
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0512-1309
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-

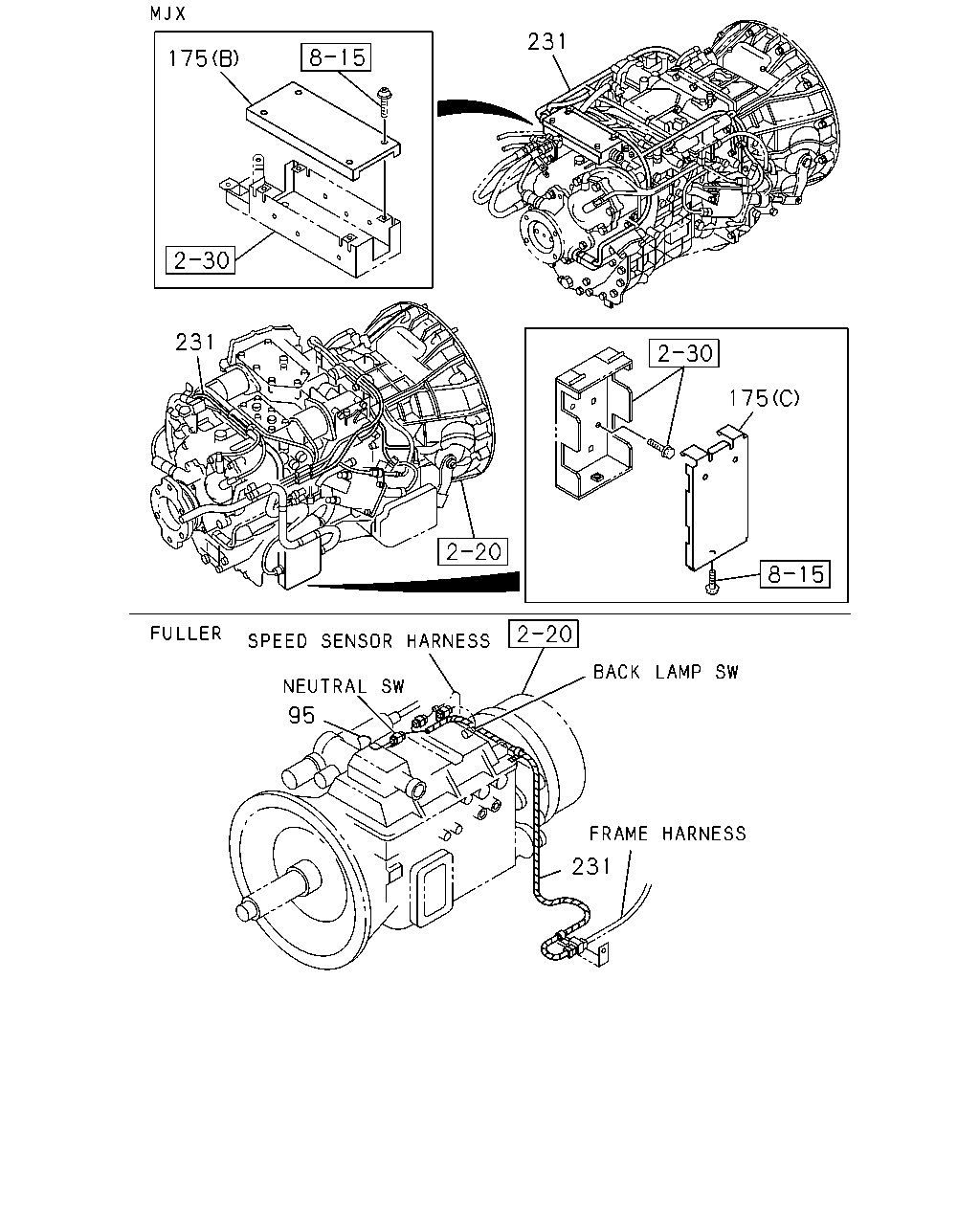

çizim 87902
231 175 231 175 95 231
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-82639-626-0 01 1 0704-
175 BOX; CONNECTOR
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-82699-467-0 01 1 0602-
175 BOX; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-389-1 01 1 0512-0606
175 BOX; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-435-1 01 1 0607-0703
175 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-435-1 01 1 0704-
175 BOX; CONNECTOR
(A) 		1-82699-467-0 01 1 0407-0511
175 BOX; CONNECTOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-82569-342-0 01 1 0512-
231 HARNESS; TRANS
6WF1 TC-C(1B8) FULLER M/T<X9B> 		1-82677-185-0 01 1 0704-
231 HARNESS; TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> 		8-97620-988-0 01 1 0704-
231 HARNESS; TRANS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82676-972-1 01 1 0512-
231 HARNESS; TRANS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82678-192-0 01 1 0512-
231 HARNESS; TRANS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-97610-487-0 01 1 0512-0703
231 HARNESS; TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-97610-487-0 01 1 0704-1105
231 HARNESS; TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-97627-039-1 01 1 1106-
231 HARNESS; TRANS 1-82677-293-0 01 1 0407-0511
231 HARNESS; TRANS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) 		1-82677-293-0 01 1 0512-
çizim 88413
92 92
BalonParca AdiParca NoAdetTipApplied Date
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-779-0 01 1 0512-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-722-1 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-899-0 01 1 0605-1212
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98229-547-0 01 1 1301-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-734-0 01 1 0512-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A) 		1-82662-795-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A) 		1-82662-903-0 01 1 0605-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B) 		1-82662-780-0 01 1 0512-
92 HARNESS; FLOOR
6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W),ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-82662-782-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W),ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-82662-901-0 01 1 0605-
92 HARNESS; FLOOR
6WG1 TC-S(97L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-340-4 01 1 0512-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-340-4 01 1 0704-
92 HARNESS; FLOOR
6WG1 TC-S(97L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-349-5 01 1 0512-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		1-82662-349-5 01 1 0704-
92 HARNESS; FLOOR
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 		1-82662-370-2 01 1 0512-0604
92 HARNESS; FLOOR
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 		1-82662-891-0 01 1 0605-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (A) 		1-82662-891-0 01 1 0704-
92 HARNESS; FLOOR
6WG1 TC-S(97L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B) 		1-82662-338-4 01 1 0512-0703
92 HARNESS; FLOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B) 		1-82662-338-4 01 1 0704-
92 HARNESS; FLOOR
CUSTOM CAB(SR5) (B) 		1-82661-448-5 01 1 0407-0503
92 HARNESS; FLOOR
CUSTOM CAB(SR5) (B) 		1-82662-733-0 01 1 0504-0511
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-794-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-902-0 01 1 0605-1212
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98229-548-0 01 1 1301-
92 HARNESS; FLOOR
(A) 		1-82661-484-4 01 1 0407-0511
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-781-0 01 1 0512-0604
92 HARNESS; FLOOR
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82662-900-0 01 1 0605-
çizim 104086
467 224 467 14 467 14
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82671-382-1 02 1 0407-0511
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		1-82677-628-3 02 1 0512-
224 HARNESS; EXT,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82628-261-2 02 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-773-0 01 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0512-
467 HARNESS; FACIA
6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0704-
467 HARNESS; FACIA
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0704-
467 HARNESS; FACIA
(B) 		1-82662-377-1 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) 		1-82662-772-0 01 1 0512-
467 HARNESS; FACIA
(A) 		1-82662-254-0 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0512-

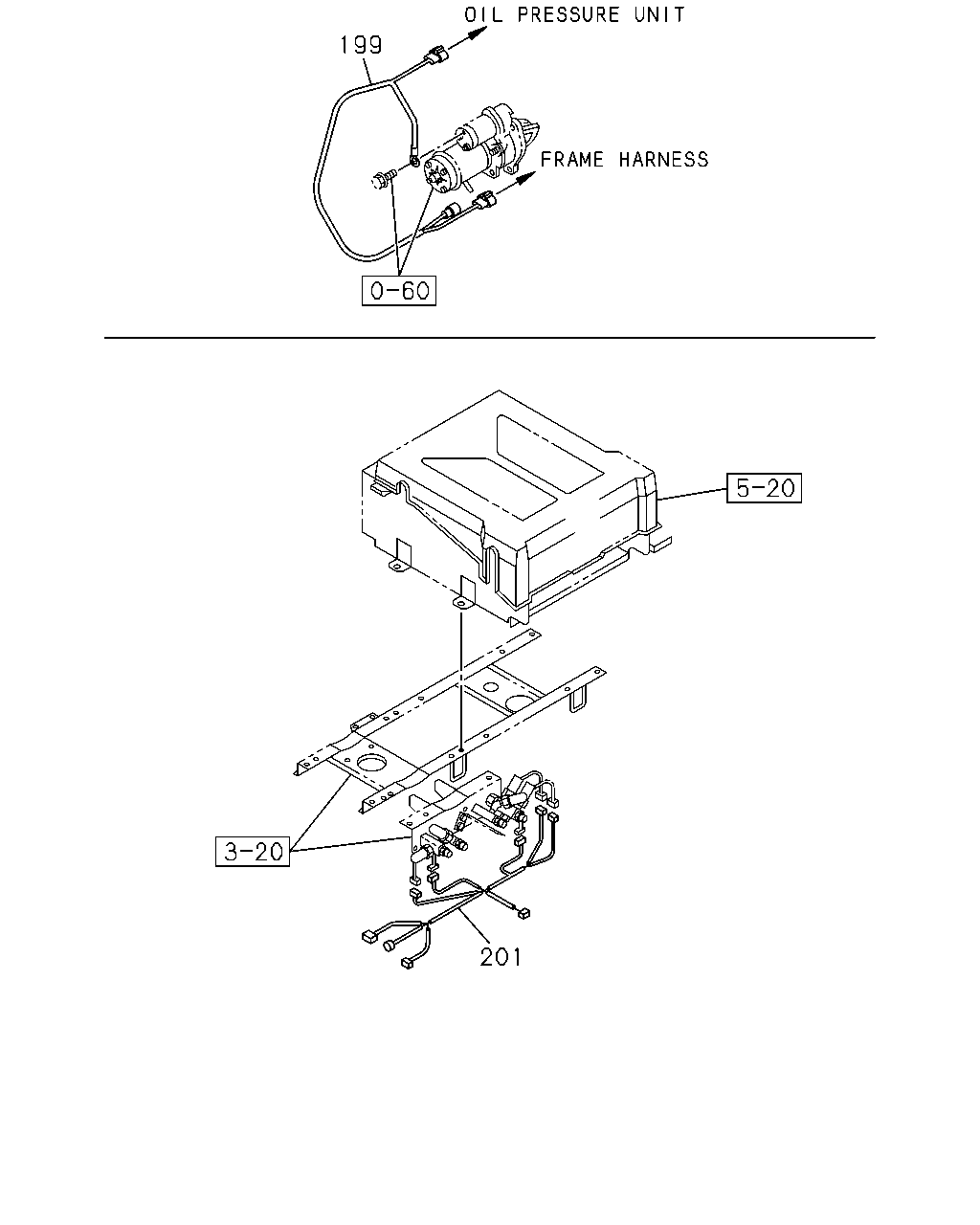

çizim 104088
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER
6WG1 TC-S(97L) 		1-82641-368-2 01 1 0512-0703
199 HARNESS; STARTER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82641-368-2 01 1 0704-
199 HARNESS; STARTER 1-82641-329-3 01 1 0407-0511
199 HARNESS; STARTER
6WF1 TC-C(1B8) 		1-82641-329-3 01 1 0512-
201 HARNESS; AIR TANK 1-82676-866-4 01 1 0407-0511
201 HARNESS; AIR TANK 1-82678-176-1 01 1 0512-

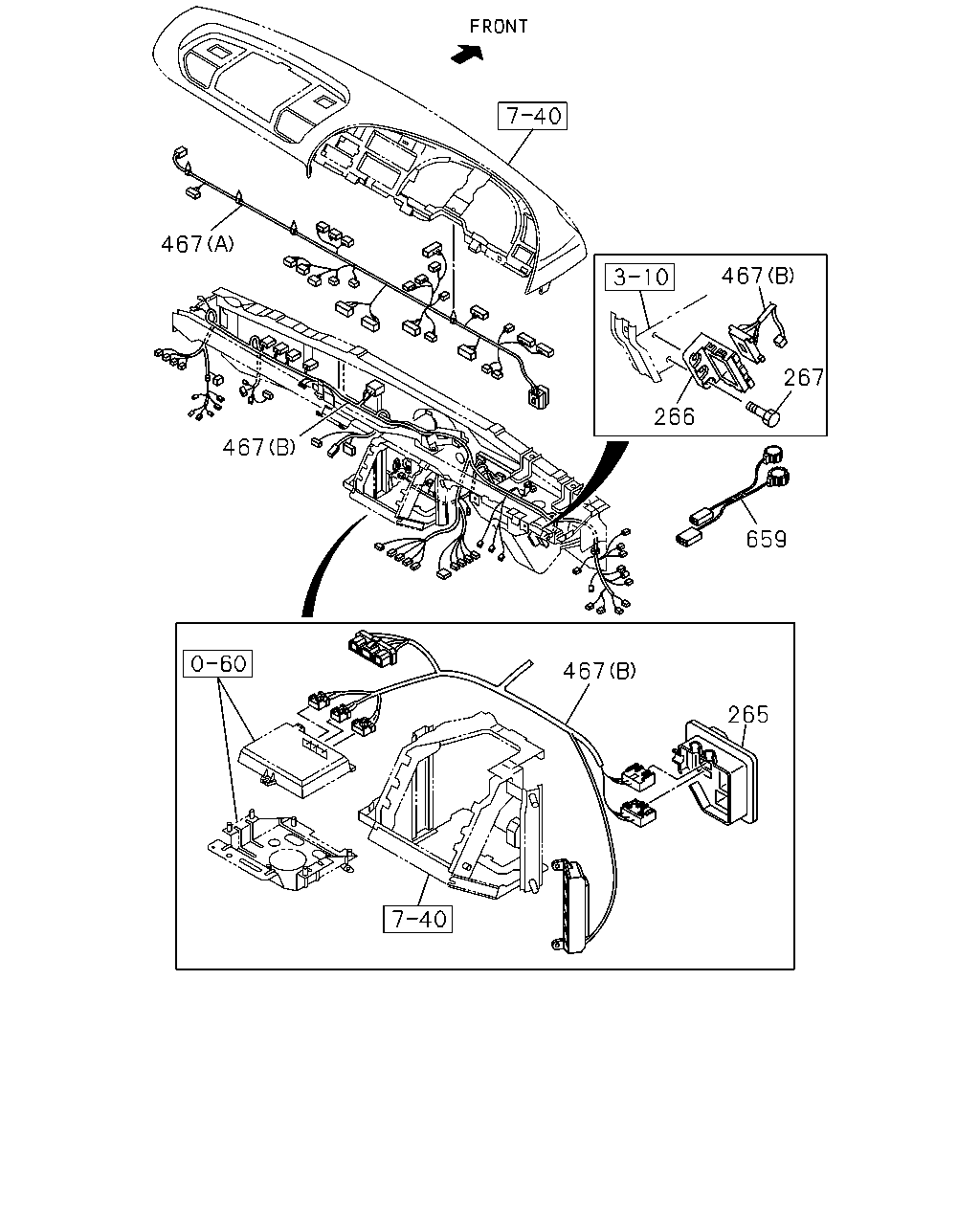

çizim 104175
467 467 267 266 467 659 467 265
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0407-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0407-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0407-
467 HARNESS; FACIA
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-773-0 01 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0512-
467 HARNESS; FACIA
6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0704-
467 HARNESS; FACIA
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0704-
467 HARNESS; FACIA
(B) 		1-82662-377-1 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) 		1-82662-772-0 01 1 0512-
467 HARNESS; FACIA
(A) 		1-82662-254-0 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0512-
659 HARNESS; EXT,BRAKE VALVE
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-82660-995-0 01 1 0407-

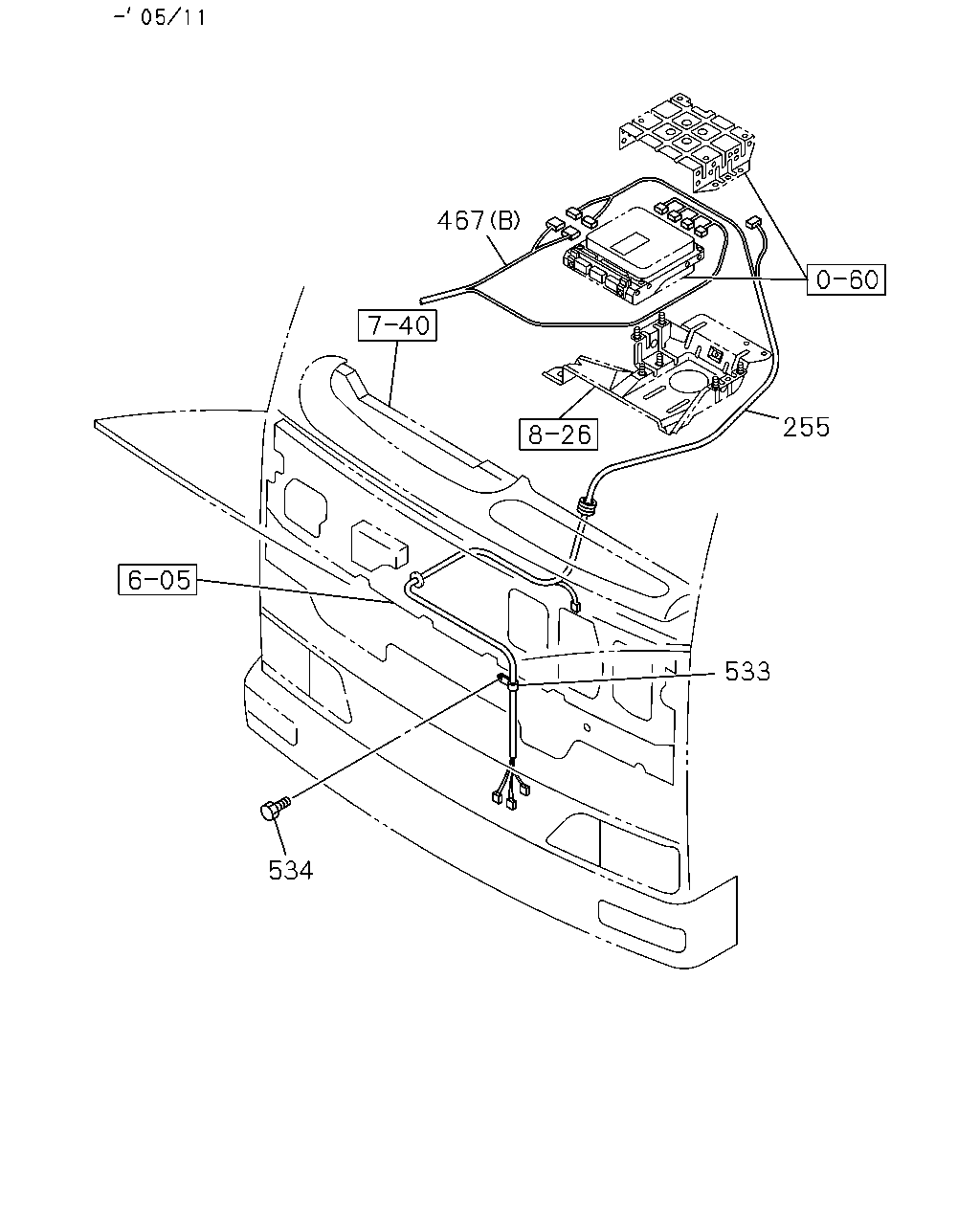

çizim 104179
467 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
6WG1 TC-S(97L) 		1-82662-307-3 01 1 0512-0703
255 HARNESS; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82662-307-3 01 1 0704-1210
255 HARNESS; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98229-084-0 01 1 1211-
255 HARNESS; ELEC GOV
CAB UP +110MM<TGG> 		1-82661-494-8 01 1 0407-0511
255 HARNESS; ELEC GOV
6WF1 TC-C(1B8) 		1-82662-719-0 01 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-773-0 01 1 0512-
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0512-
467 HARNESS; FACIA
6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-82662-769-0 01 1 0704-
467 HARNESS; FACIA
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0512-0703
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. SMOOTHER-G(C1W) (B) 		1-82662-778-2 01 1 0704-
467 HARNESS; FACIA
(B) 		1-82662-377-1 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) 		1-82662-772-0 01 1 0512-
467 HARNESS; FACIA
(A) 		1-82662-254-0 01 1 0407-0511
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0512-
533 CLIP
6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0512-0703
533 CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0704-
533 CLIP
ID=26 L=26 		1-09701-236-0 01 1 0407-0511
533 CLIP
6WF1 TC-C(1B8) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
533 CLIP
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0512-0703
533 CLIP
6WF1 TC-C(1B8) ID=31 L=35 		1-09700-329-1 01 1 0704-
533 CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0704-
534 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0512
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-

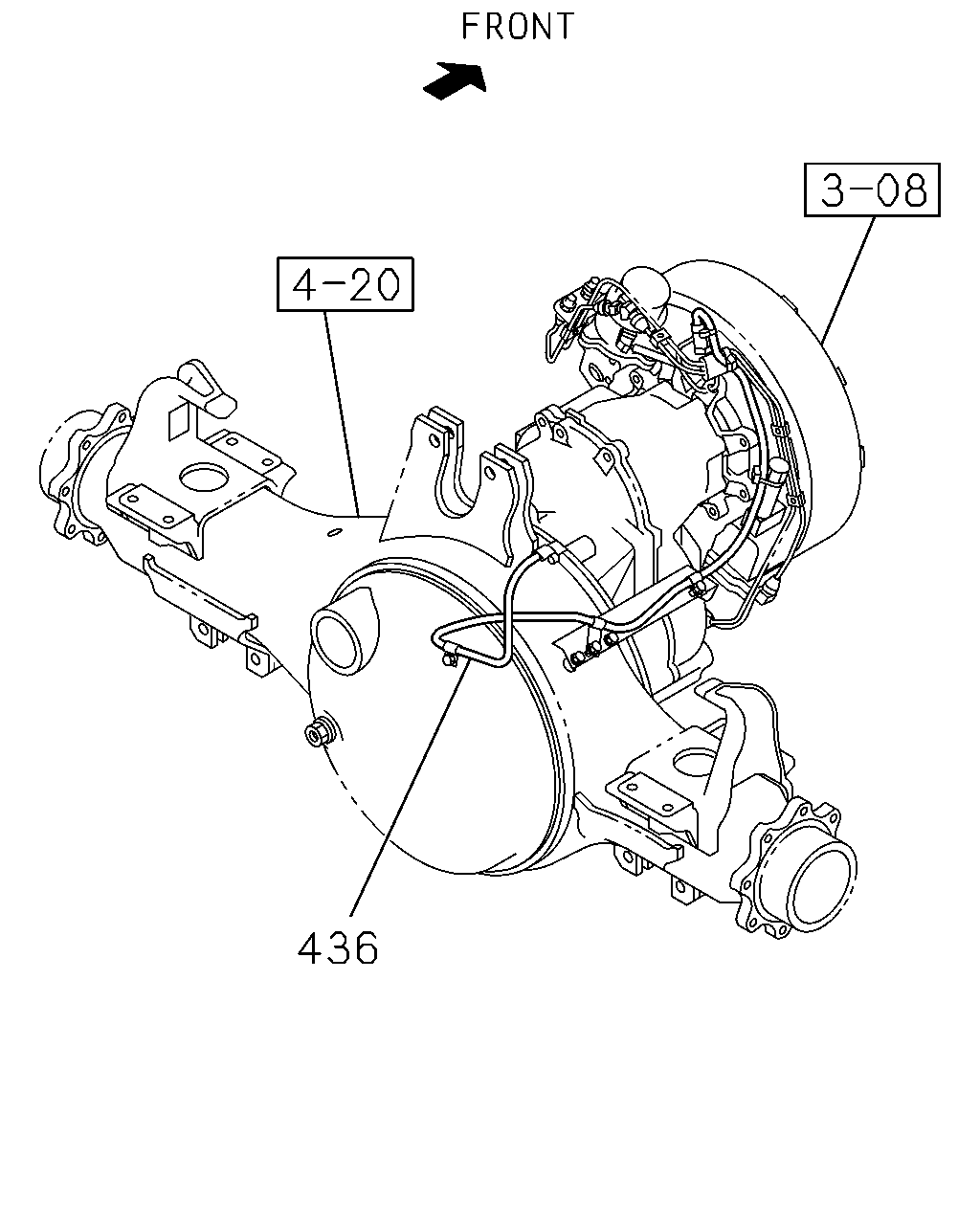

çizim 104269
436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-629-0 01 1 0407-

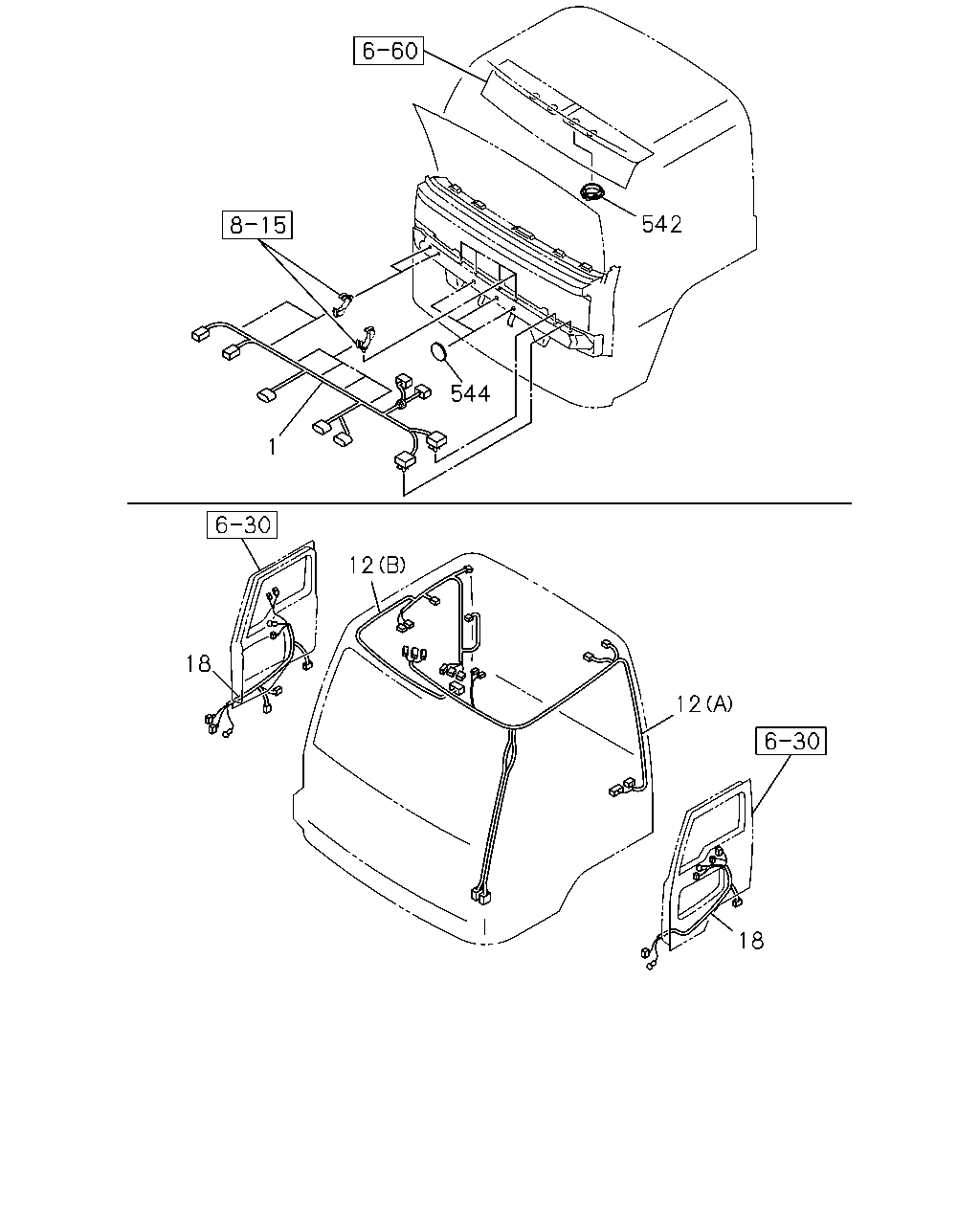

çizim 104270
542 544 1 12 18 12 18
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82629-234-1 01 1 0407-
12 HARNESS; ROOF
6WG1 TC-S(97L) (A) 		1-82662-764-1 01 1 0512-0703
12 HARNESS; ROOF
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-82662-764-1 01 1 0704-
12 HARNESS; ROOF
6WG1 TC-S(97L) (B) 		1-82662-766-0 01 1 0512-0703
12 HARNESS; ROOF
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82662-766-0 01 1 0704-
12 HARNESS; ROOF
(B) 		1-82661-460-0 01 1 0407-0407
12 HARNESS; ROOF
(B) 		1-82662-588-0 01 1 0408-0511
12 HARNESS; ROOF
6WF1 TC-C(1B8) (B) 		1-82662-588-0 01 1 0512-
12 HARNESS; ROOF
(A) 		1-82662-252-2 01 1 0407-0511
12 HARNESS; ROOF
6WF1 TC-C(1B8) (A) 		1-82662-252-2 01 1 0512-
18 HARNESS; DOOR
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-582-0 01 1 0512-
18 HARNESS; DOOR
6WF1 TC-C(1B8) MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. REMOTE CONT DOOR LOCK<SLG> 		1-82628-588-0 01 1 0512-
18 HARNESS; DOOR
6WF1 TC-C(1B8) EXC. REMOTE CONT DOOR LOCK<SLG>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> 		1-82628-670-1 01 1 0512-
18 HARNESS; DOOR
6WG1 TC-S(97L) EXC. REMOTE CONT DOOR LOCK<SLG> 		1-82628-574-1 01 1 0512-0703
18 HARNESS; DOOR
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. REMOTE CONT DOOR LOCK<SLG> 		1-82628-574-1 01 1 0704-
18 HARNESS; DOOR
EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-669-0 01 1 0512-
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> 		1-82628-575-1 01 1 0407-
18 HARNESS; DOOR 1-82629-901-1 01 1 0407-0511
18 HARNESS; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82629-901-1 01 1 0512-
542 GROMMET; HARNESS
GRIP OUT SIDE<W52> ID=36 		8-94178-685-0 01 1 0512-0712
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 03 1 0407-
çizim 104817
13 189 13 255 189 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		1-82641-345-0 01 1 0512-0612
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-97617-395-0 01 1 0701-1004
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-98169-641-0 01 1 1005-
13 HARNESS; ENG
6WG1 TC-S(97L) (B) 		8-97604-105-2 01 1 0512-0612
13 HARNESS; ENG
6WG1 TC-S(97L) (B) 		8-97617-391-0 01 1 0701-0703
13 HARNESS; ENG
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97617-391-0 01 1 0704-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0407-
189 HARNESS; EXT 1-82641-217-1 01 1 0407-0511
255 HARNESS; ELEC GOV
6WG1 TC-S(97L) 		1-82662-307-3 01 1 0512-0703
255 HARNESS; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82662-307-3 01 1 0704-1210
255 HARNESS; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98229-084-0 01 1 1211-
255 HARNESS; ELEC GOV
CAB UP +110MM<TGG> 		1-82661-494-8 01 1 0407-0511
255 HARNESS; ELEC GOV
6WF1 TC-C(1B8) 		1-82662-719-0 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
