7-70 — SEPARATER AND BED (#30502) — 84 parça

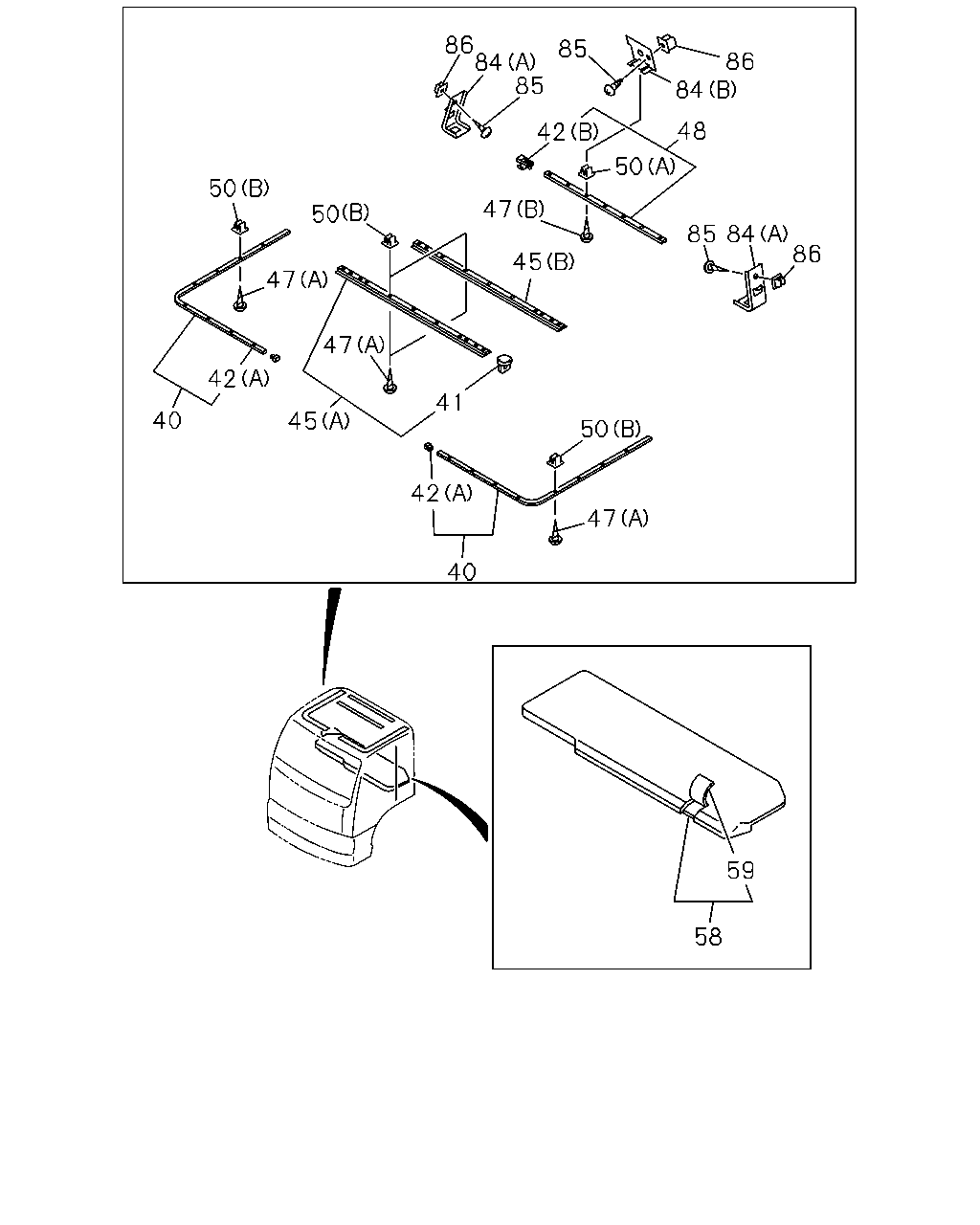

86 84 85 85 86 84 48 42 50 50 47 85 84 86 45 47 47 42 41 40 45 50 42 47 40 59 58 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0512-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0512-
40	RAIL; CURTAIN,SIDE	1-73907-537-0	01	1	0407-0511
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0512-
40	RAIL; CURTAIN,SIDE	1-73907-538-0	01	1	0407-0511
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0512-
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	08	1	0407-0511
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0512-
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	48	1	0407-0511
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0512-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0512-
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	0407-0511
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0512-
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0512-
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	0407-0511
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0512-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73907-545-2	01	1	0512-
45	RAIL; CURTAIN,FRT (A)	1-73907-546-2	01	1	0407-0511
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73907-546-3	01	1	0512-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0407-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0407-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0512-
48	RAIL; CURTAIN,BACK	1-73996-386-0	01	1	0407-0511
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0512-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0407-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0407-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-181-0	01	1	0407-0511
58	BED; MAT	1-75127-181-1	01	1	0512-1011
58	BED; MAT	8-98168-337-1	01	1	1012-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-182-0	01	1	0407-0511
59	COVER ASM; TRIM,BED MAT	1-75127-182-0	01	1	0512-1011
59	COVER ASM; TRIM,BED MAT	8-98168-341-1	01	1	1012-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0407-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0407-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0407-0511
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0512-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0407-0511
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0407-0511
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0512-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0407-0511

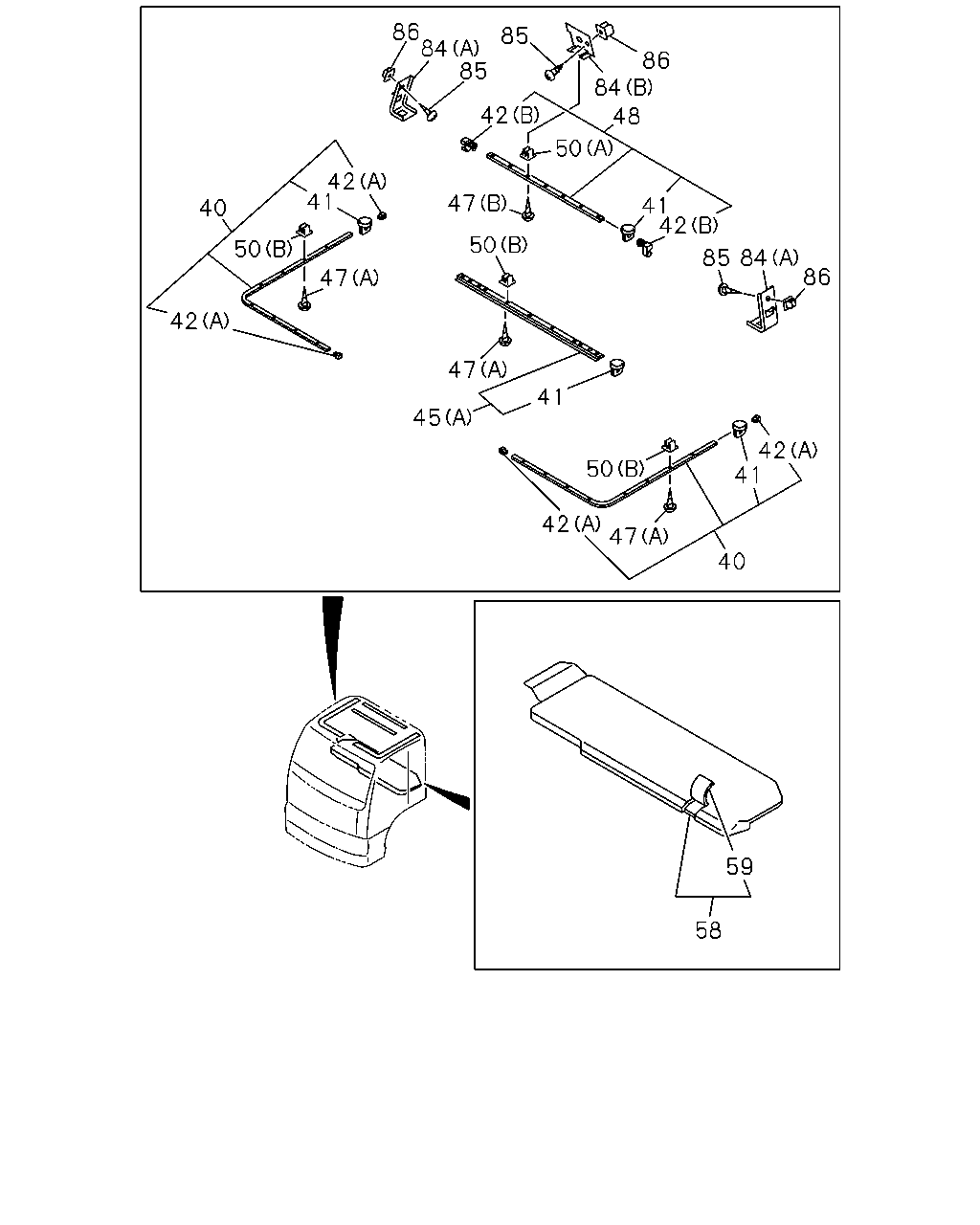

86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 50 47 85 84 86 42 47 41 45 42 41 50 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0512-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0512-
40	RAIL; CURTAIN,SIDE	1-73907-537-0	01	1	0407-0511
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0512-
40	RAIL; CURTAIN,SIDE	1-73907-538-0	01	1	0407-0511
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0512-
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	08	1	0407-0511
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0512-
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	48	1	0407-0511
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0512-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0512-
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	0407-0511
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0512-
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0512-
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	0407-0511
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0512-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73907-545-2	01	1	0512-
45	RAIL; CURTAIN,FRT (A)	1-73907-546-2	01	1	0407-0511
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73907-546-3	01	1	0512-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0407-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0407-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0512-
48	RAIL; CURTAIN,BACK	1-73996-386-0	01	1	0407-0511
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0512-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0407-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0407-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-181-0	01	1	0407-0511
58	BED; MAT	1-75127-181-1	01	1	0512-1011
58	BED; MAT	8-98168-337-1	01	1	1012-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-182-0	01	1	0407-0511
59	COVER ASM; TRIM,BED MAT	1-75127-182-0	01	1	0512-1011
59	COVER ASM; TRIM,BED MAT	8-98168-341-1	01	1	1012-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0407-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0407-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0407-0511
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0512-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0407-0511
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0407-0511
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0512-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0407-0511
