◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#30500) — 248 parça

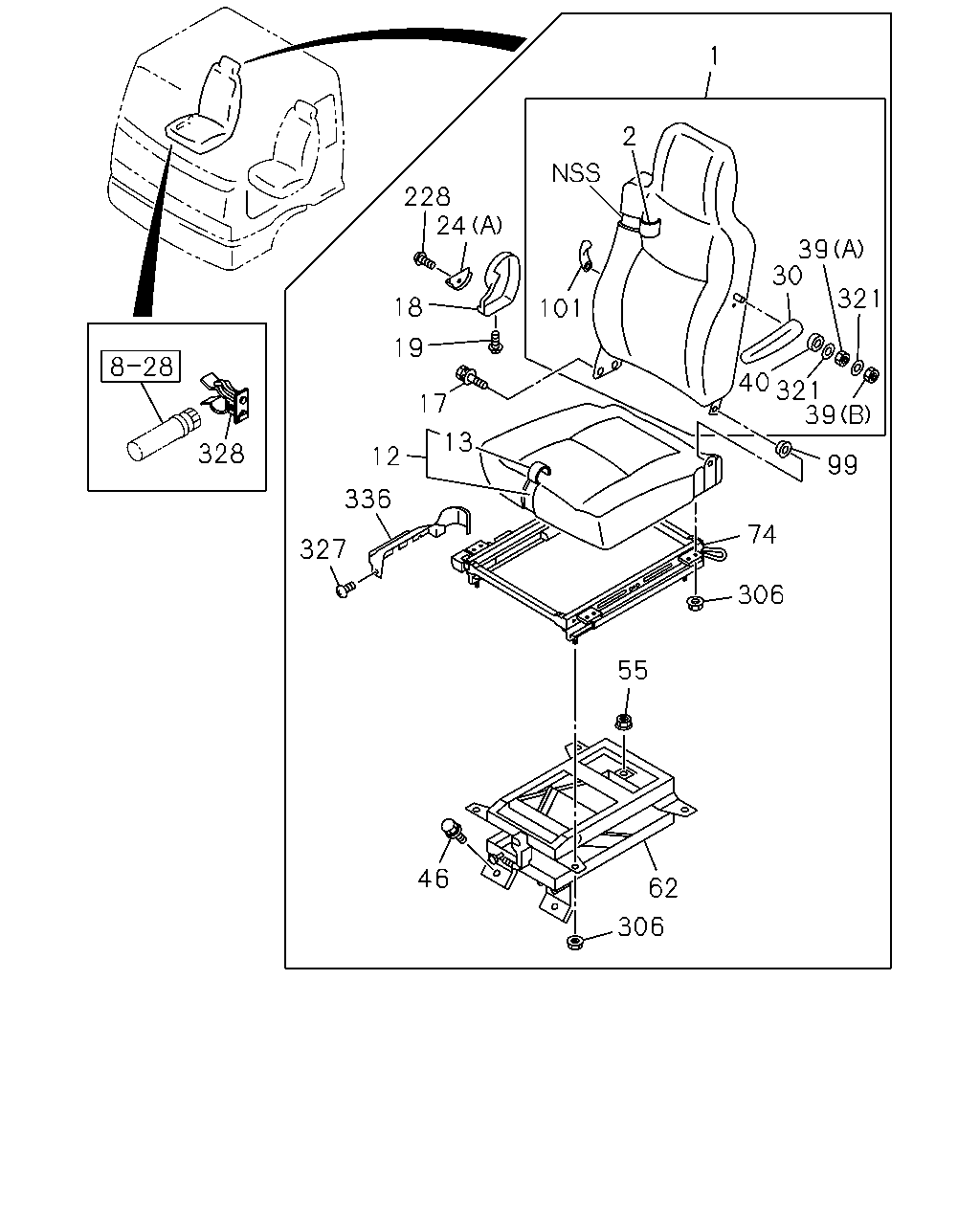

çizim 87814
1 2 228 24 39 30 321 18 101 19 40 321 39 17 13 328 12 99 336 74 327 306 55 46 62 306
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75207-586-2 01 1 0407-0511
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-586-3 01 1 0512-0901
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-629-0 01 1 0902-1011
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-067-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK 1-75127-145-1 01 1 0407-0511
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-145-2 01 1 0512-1011
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-082-0 01 1 1012-
12 CUSHION; SEAT,FRT 1-75207-584-3 01 1 0407-0511
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-584-4 01 1 0512-1011
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-042-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-143-2 01 1 0407-0511
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-143-3 01 1 0512-1011
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-074-0 01 1 1012-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0407-0511
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0512-
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0407-0511
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97867-020-0 01 1 0512-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0407-0511
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512-
24 KNOB; RECLINING,FRT,SEAT
EXC. CUSTOM CAB(SR5) (B) DARK GRAY 		8-97859-019-0 01 1 0512-1011
24 KNOB; RECLINING,FRT,SEAT
EXC. CUSTOM CAB(SR5) (B) 		1-75418-067-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0407-0511
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY 		8-97867-021-0 01 1 0512-0710
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0711-
30 REST ASM; ARM,FRT SEAT 1-75127-148-0 01 1 0407-0511
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0512-
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 0407-0511
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0512-
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 0407-0511
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0512-
40 SPACER; ARM REST 8-94285-921-0 02 1 0407-0511
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0512-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0407-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0407-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
62 DAMPER ASM; SEAT SUSP 1-75537-262-6 01 1 0407-0511
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0512-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-1 01 1 0407-0511
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 0512-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0407-0511
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0512-
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0407-0511
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0512-
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
EXC. CUSTOM CAB(SR5) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0407-0511
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
EXC. CUSTOM CAB(SR5) M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
EXC. CUSTOM CAB(SR5) M4X6 		8-97042-273-0 01 1 0711-1011
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0407-0511
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0512-
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 0407-0511
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0512-
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 0407-0511
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0512-
327 CLIP; COVER 1-09987-273-0 02 1 0407-0511
327 CLIP; COVER
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) 		1-09987-273-0 02 1 0407-0511
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0512-
328 CLIP; HANDY WARNING 1-72537-239-0 01 1 0407-0511
328 CLIP; HANDY WARNING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-72537-239-0 01 1 0512-
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 0407-0511
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-303-0 01 1 0512-

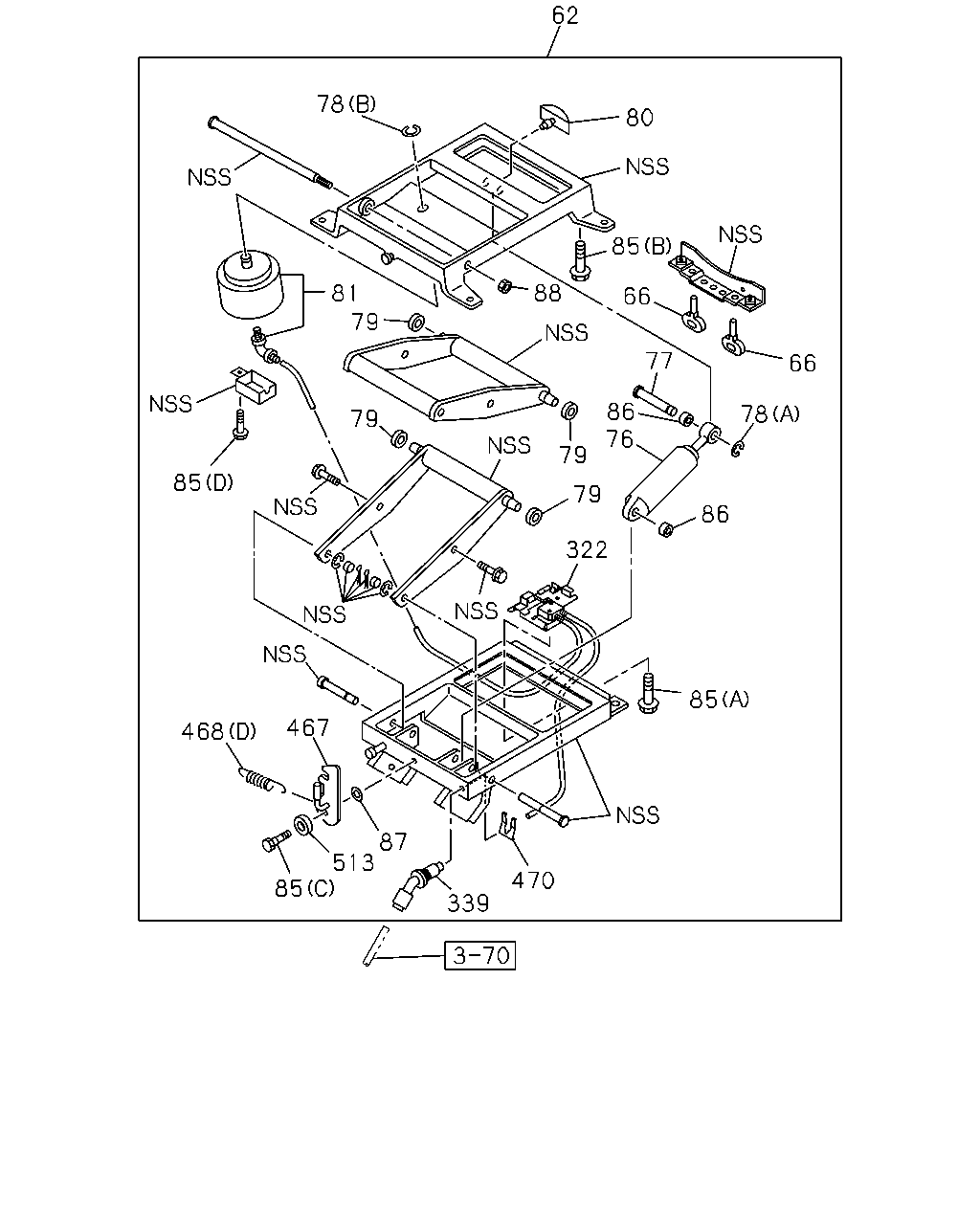

çizim 87916
470 339 87 513 85 468 85 79 79 81 78 62 80 85 88 66 66 77 86 78 86 76 79 79 322 85 467
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP 1-75537-262-6 01 1 0407-0511
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0512-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 0407-0511
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0512-
76 DAMPER; AIR SUSP 1-75537-230-2 01 1 0407-0511
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0512-
77 PIN; DAMPER 1-75538-138-2 01 1 0407-0511
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0512-
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 0407-0511
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0512-
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 0407-0511
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0512-
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 0407-0511
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0512-1403
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER 1-09987-123-0 01 1 0407-0511
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 0512-
81 SPRING; AIR 1-75538-151-2 01 1 0407-0511
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0512-1312
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
(C) 		1-09980-577-0 01 1 0407-0511
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0512-
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-0 02 1 0407-0511
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0512-
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0407-0511
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0512-1312
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0407-0511
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0512-
87 WASHER; AIR SUSP
ID=8.2 		9-09150-508-0 01 1 0407-0511
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0512-0710
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 0407-0511
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0512-
322 VALVE; AIR SPRING 1-75538-186-2 01 1 0407-0511
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 0512-
339 UNION; DRIVER SEAT 1-75538-131-2 01 1 0407-0511
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0512-
467 LEVER; LOCK 1-75538-134-0 01 1 0407-0511
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0512-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0512-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0512-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0512-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0512-
470 CLIP; HOSE 1-75538-137-0 01 1 0407-0511
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0512-
513 SPACER; LEVER 1-75538-133-0 01 1 0407-0511
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0512-

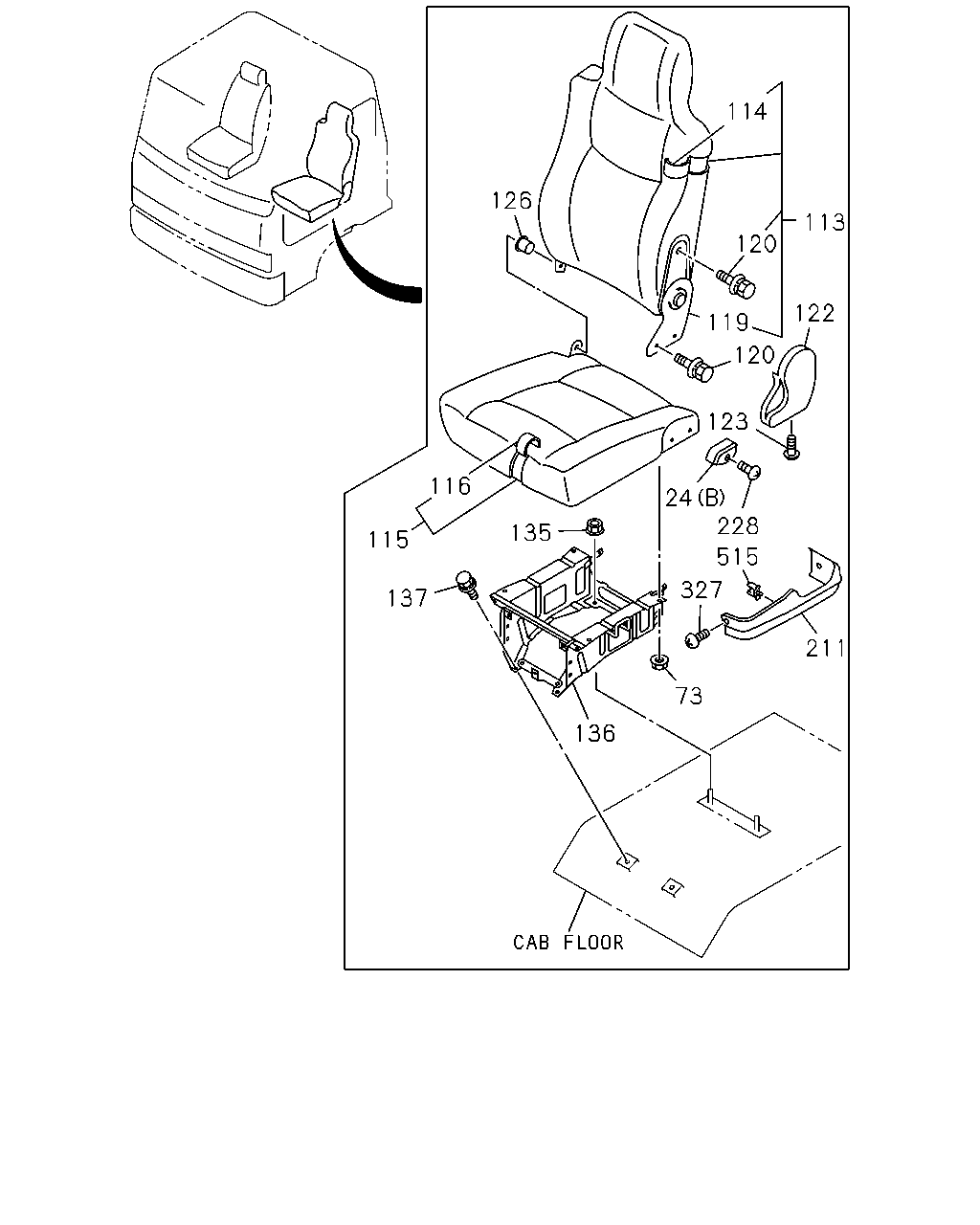

çizim 87944
114 126 113 120 122 119 120 123 116 24 228 135 115 515 327 137 211 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
EXC. CUSTOM CAB(SR5) (B) DARK GRAY 		8-97859-019-0 01 1 0512-1011
24 KNOB; RECLINING,FRT,SEAT
EXC. CUSTOM CAB(SR5) (B) 		1-75418-067-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0407-0511
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY 		8-97867-021-0 01 1 0512-0710
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0407-
113 BACK ASM; SEAT
EXC. CUSTOM CAB(SR5) 		1-75207-651-3 01 1 0512-1011
113 BACK ASM; SEAT
EXC. CUSTOM CAB(SR5) 		8-98168-274-0 01 1 1012-
113 BACK ASM; SEAT 1-75207-597-1 01 1 0407-0511
113 BACK ASM; SEAT
CUSTOM CAB(SR5) 		1-75207-597-2 01 1 0512-1011
113 BACK ASM; SEAT
CUSTOM CAB(SR5) 		8-98168-273-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. CUSTOM CAB(SR5) 		1-75127-170-2 01 1 0512-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. CUSTOM CAB(SR5) 		8-98168-290-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-152-1 01 1 0407-0511
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM CAB(SR5) 		1-75127-152-2 01 1 0512-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM CAB(SR5) 		8-98168-286-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-75207-594-1 01 1 0407-0511
115 CUSHION ASM; PASSENGER SEAT
CUSTOM CAB(SR5) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-75207-594-1 01 1 0407-0511
115 CUSHION ASM; PASSENGER SEAT
CUSTOM CAB(SR5) 		1-75207-594-2 01 1 0512-1011
115 CUSHION ASM; PASSENGER SEAT
CUSTOM CAB(SR5) 		8-98168-125-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) 		1-75207-596-1 01 1 0407-0511
115 CUSHION ASM; PASSENGER SEAT
EXC. CUSTOM CAB(SR5) 		1-75207-737-1 01 1 0512-1011
115 CUSHION ASM; PASSENGER SEAT
EXC. CUSTOM CAB(SR5) 		8-98168-128-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-75127-149-1 01 1 0407-0511
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CUSTOM CAB(SR5) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-75127-149-1 01 1 0407-0511
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CUSTOM CAB(SR5) 		1-75127-149-2 01 1 0512-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CUSTOM CAB(SR5) 		8-98168-135-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) 		1-75127-151-1 01 1 0407-0511
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. CUSTOM CAB(SR5) 		1-75127-184-1 01 1 0512-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. CUSTOM CAB(SR5) 		8-98168-141-0 01 1 1012-
119 ADJ; SEAT RECLINING,ASSIST SIDE 1-75417-597-0 01 1 0407-0511
119 ADJ; SEAT RECLINING,ASSIST SIDE
CUSTOM CAB(SR5) 		1-75417-597-0 01 1 0512-
120 BOLT; RECLINING ADJ
EXC. CUSTOM CAB(SR5) M8X20 		8-97255-906-0 02 1 0512-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 04 1 0407-0511
120 BOLT; RECLINING ADJ
CUSTOM CAB(SR5) M8X20 		8-97255-906-0 04 1 0512-
122 COVER; ADJ,RECLINING
EXC. CUSTOM CAB(SR5) DARK GRAY 		8-97859-018-0 01 1 0512-
122 COVER; ADJ,RECLINING 1-75417-598-0 01 1 0407-0511
122 COVER; ADJ,RECLINING
CUSTOM CAB(SR5) 		1-75417-598-0 01 1 0512-
123 SCREW; COVER,RECLINING
EXC. CUSTOM CAB(SR5) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512-
123 SCREW; COVER,RECLINING
M6X12 		9-03490-612-0 01 1 0407-0511
123 SCREW; COVER,RECLINING
CUSTOM CAB(SR5) M6X12 		9-03490-612-0 01 1 0512-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0407-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0407-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-75558-631-0 01 1 0407-0511
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-75558-631-0 01 1 0407-0511
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		1-75558-522-8 01 1 0512-1305
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		8-98242-290-0 01 1 1306-
136 STAND; PASSENGER SEAT
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) 		1-75557-479-2 01 1 0407-0511
136 STAND; PASSENGER SEAT
EXC. CUSTOM CAB(SR5) 		1-75558-601-3 01 1 0512-1305
136 STAND; PASSENGER SEAT
EXC. CUSTOM CAB(SR5) 		8-98242-298-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0407-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
211 COVER; FRT SEAT
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) 		1-72538-274-0 01 1 0407-0511
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
EXC. CUSTOM CAB(SR5) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0407-0511
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
EXC. CUSTOM CAB(SR5) M4X6 		8-97042-273-0 01 1 0512-0710
228 SCREW; KNOB
EXC. CUSTOM CAB(SR5) M4X6 		8-97042-273-0 01 1 0711-1011
327 CLIP; COVER 1-09987-273-0 02 1 0407-0511
327 CLIP; COVER
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) 		1-09987-273-0 02 1 0407-0511
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0512-
515 CLIP; PIPE
EXC. ELECTRONIC BRAKE SYSTEM EBS(NLH),CUSTOM CAB(SR5) BLACK 		8-94227-248-1 01 1 0407-0511

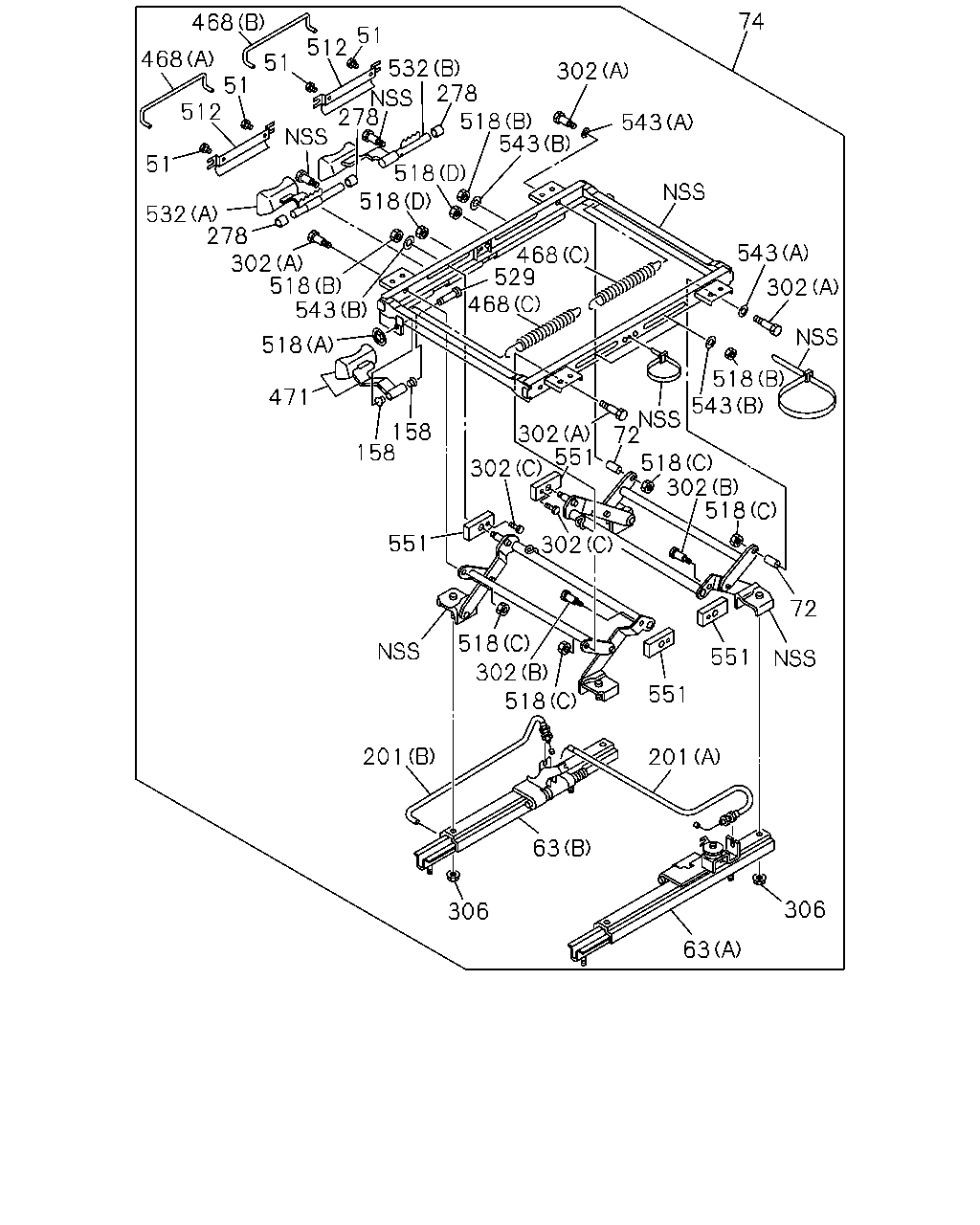

çizim 104090
468 468 512 51 532 278 518 302 543 518 471 158 158 551 201 306 63 518 302 518 302 302 302 468 529 468 518 518 278 51 51 512 51 532 278 518 302 543 543 74 543 518 543 518 551 302 518 72 551 551 201 306 63 302 72
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 0407-0511
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0512-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0407-0511
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-199-1 01 1 0512-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0407-0511
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-323-0 01 1 0512-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0407-0511
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0512-1502
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-1 01 1 0407-0511
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 0512-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0407-0511
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0512-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0407-0511
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0512-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0407-0511
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0512-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0407-0511
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0512-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0407-0511
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0512-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0407-0511
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0512-1502
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0407-0511
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0512-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0407-0511
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0512-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0512-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0512-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0512-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0407-0511
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0512-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0407-0511
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0512-0710
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98107-869-0 01 1 0711-
512 COVER; LEVER 1-75518-243-1 02 1 0407-0511
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 0512-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0407-0511
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0512-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0407-0511
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0512-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0407-0511
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0512-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0407-0511
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0512-
529 PIN; LINK 1-75518-262-0 01 1 0407-0511
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0512-
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0407-0511
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0512-
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0407-0511
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0512-
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 0512-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0407-0511
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0512-1502
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
(B) ID=6.4 		9-09160-506-0 04 1 0407-0511
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0407-0511
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
