◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#3050) — 73 parça

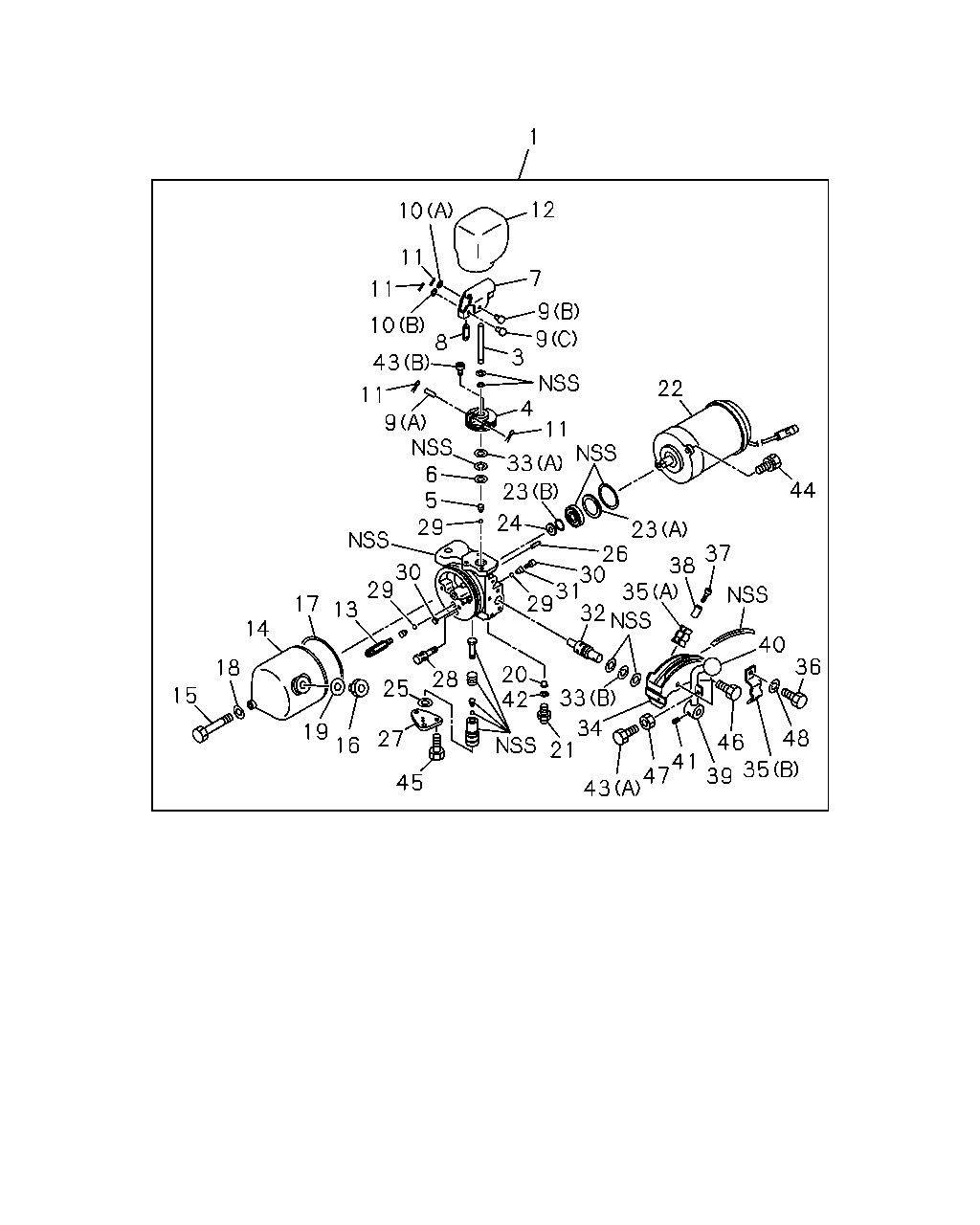

çizim 4573
45 27 16 19 15 18 14 17 13 29 30 25 28 20 42 21 43 47 41 39 35 46 48 36 40 37 38 35 32 33 34 29 31 30 26 23 44 22 24 23 33 11 4 3 9 9 7 12 1 10 11 11 10 43 11 9 6 5 29 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-2 01 1 9002-9306 ● ●
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-068-0 01 1 9002-9306 ● ●
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-067-0 01 1 9002-9306 ● ●
5 SPRING; SUCTION
AUTO CAB TILT<WV2> 		1-53458-066-0 01 1 9002-9306 ● ●
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-065-0 01 1 9002-9306 ● ●
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-063-0 01 1 9002-9306 ● ●
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-062-0 01 1 9002-9306 ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-057-0 01 1 9002-9306 ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-060-0 01 1 9002-9306 ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-061-0 01 1 9002-9306 ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 9002-9306 ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-059-0 01 1 9002-9306 ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 9002-9306 ● ●
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 9002-9306 ● ●
13 VALVE; RELIEF,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-055-0 01 1 9002-9306 ● ●
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-053-0 01 1 9002-9306 ● ●
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-052-0 01 1 9002-9306 ● ●
16 CAP
AUTO CAB TILT<WV2> 		1-53458-049-0 01 1 9002-9306 ● ●
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 9002-9306 ● ●
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 9002-9306 ● ●
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 9002-9306 ● ●
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 9002-9306 ● ●
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> M14 		1-53458-047-0 02 1 9002-9306 ● ●
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-046-0 01 1 9002-9010 ● ●
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-233-0 01 1 9011-9306 ● ●
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 9002-9306 ● ●
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 01 1 9002-9306 ● ●
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 9002-9306 ● ●
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 9002-9306 ● ●
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 02 1 9002-9306 ● ●
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-037-0 01 1 9002-9306 ● ●
28 PIPE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-036-0 01 1 9002-9306 ● ●
29 BALL; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-035-0 03 1 9002-9306 ● ●
30 PLUG; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-033-0 02 1 9002-9306 ● ●
31 SPRING; DELIVERY
AUTO CAB TILT<WV2> 		1-53458-032-0 01 1 9002-9306 ● ●
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-031-0 01 1 9002-9306 ● ●
33 RING; BACK UP
AUTO CAB TILT<WV2> (A) 		1-53458-014-0 01 1 9002-9306 ● ●
33 RING; BACK UP
AUTO CAB TILT<WV2> (B) 		1-53458-028-0 01 1 9002-9306 ● ●
34 HOLDER; LEVER
AUTO CAB TILT<WV2> 		1-53458-027-0 01 1 9002-9306 ● ●
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-023-0 02 1 9002-9306 ● ●
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-026-0 01 1 9002-9306 ● ●
36 BOLT; STOPPER
AUTO CAB TILT<WV2> 		1-53458-025-0 01 1 9002-9306 ● ●
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X8 		1-53458-005-0 01 1 9002-9306 ● ●
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X14 		1-53458-011-0 01 1 9002-9306 ● ●
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-022-0 01 1 9002-9306 ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-021-0 01 1 9002-9306 ● ●
40 BALL; OIL PUMP LEVER
AUTO CAB TILT<WV2> 		1-53458-020-0 01 1 9002-9306 ● ●
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 9002-9306 ● ●
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 9002-9306 ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M8X30 		1-53458-008-0 01 1 9002-9306 ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M6X16 		1-53458-012-0 03 1 9002-9306 ● ●
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 9002-9306 ● ●
45 BOLT; COVER
AUTO CAB TILT<WV2> 		1-53458-006-0 03 1 9002-9306 ● ●
46 BOLT; LEVER HOLDER
AUTO CAB TILT<WV2> M6X8 		1-53458-004-0 02 1 9002-9306 ● ●
47 NUT; LEVER
AUTO CAB TILT<WV2> 		1-53458-003-0 01 1 9002-9306 ● ●
48 WASHER; STOPPER
AUTO CAB TILT<WV2> 		1-53458-002-0 01 1 9002-9306 ● ●
çizim 36648
41 42 33 19 25 17 18 11 11 33 11 11 12 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-018-0 01 1 9002-9306 ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 9002-9306 ● ●
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 9002-9306 ● ●
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 9002-9306 ● ●
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 9002-9306 ● ●
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 9002-9306 ● ●
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 9002-9306 ● ●
33 RING; BACK UP
AUTO CAB TILT<WV2> (A) 		1-53458-014-0 01 1 9002-9306 ● ●
33 RING; BACK UP
AUTO CAB TILT<WV2> (B) 		1-53458-028-0 01 1 9002-9306 ● ●
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 9002-9306 ● ●
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 9002-9306 ● ●

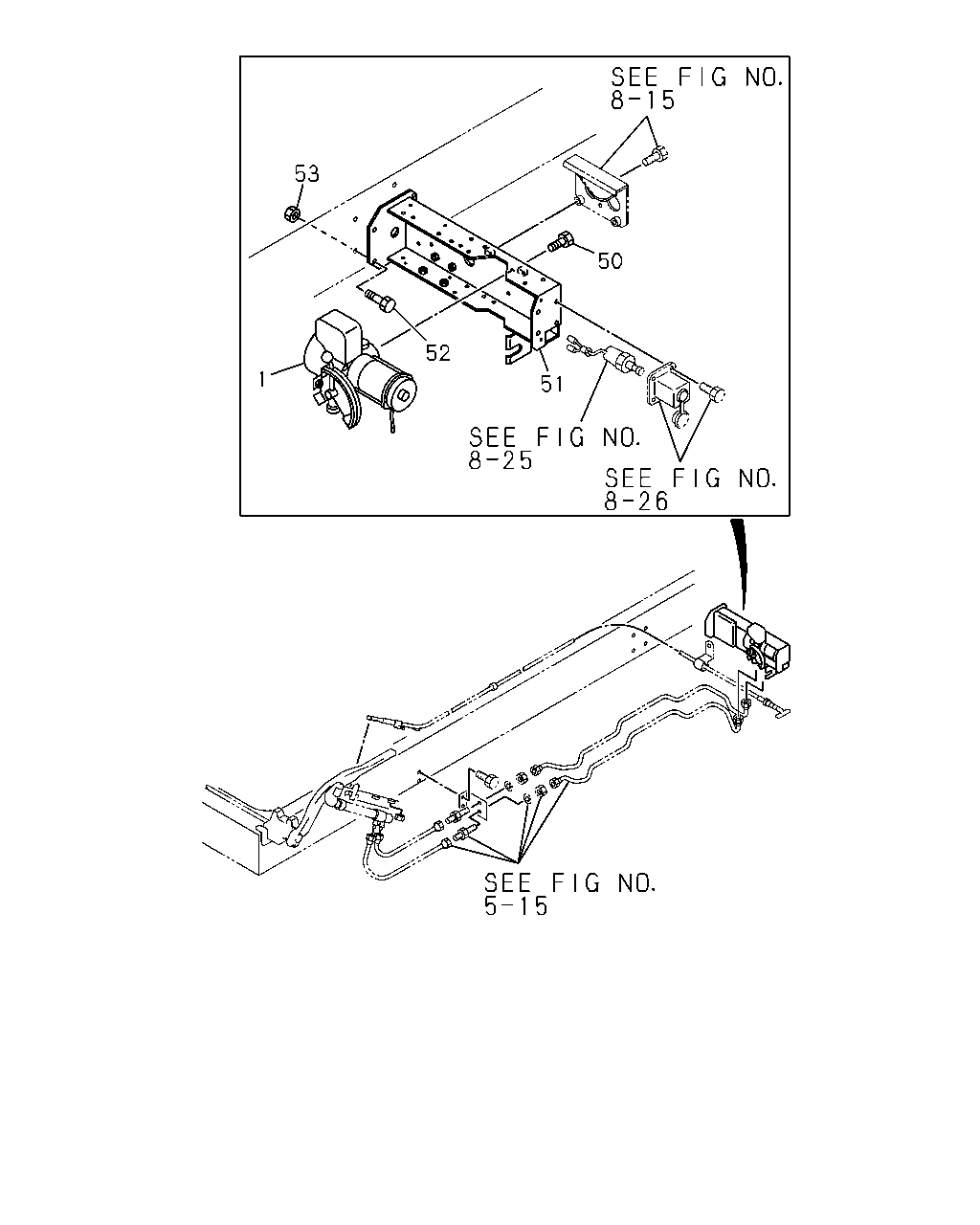

çizim 36677
51 52 1 53 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-2 01 1 9002-9306 ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 03 1 9002-9306 ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> WO/NUT 		1-53459-543-3 01 1 9002-9002 ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-868-9 01 1 9003-9306 ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9002-9306 ● ●
53 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002-9306 ● ●
