7-43 — SUN VISOR AND ASSIST GRIP (#30498) — 99 parça

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0407-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0407-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0407-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-0511
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0407-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0407-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0407-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0407-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0407-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0407-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0407-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0407-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0407-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0407-0511
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0512-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0407-

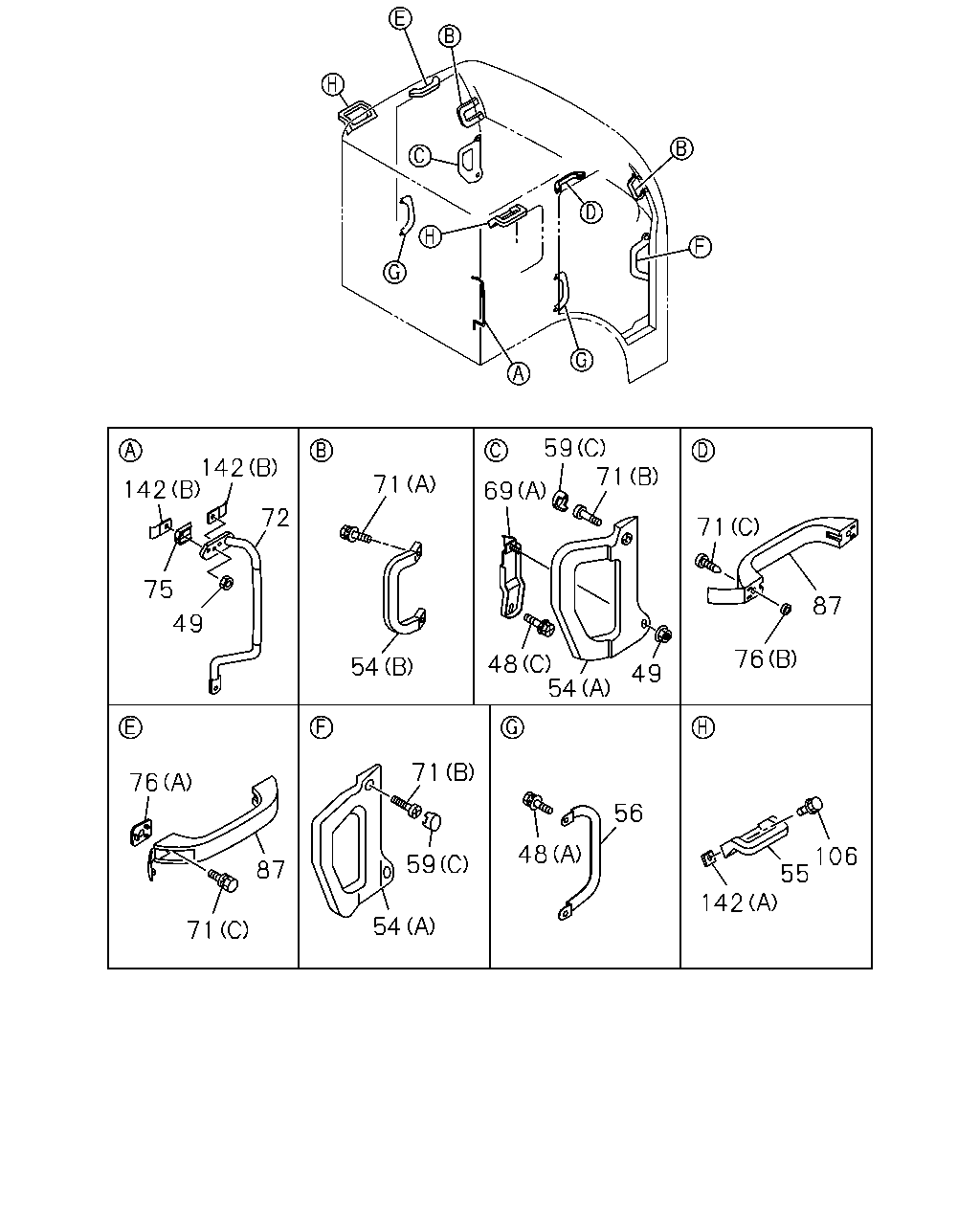

59 71 142 142 71 69 72 71 75 87 49 76 48 54 54 49 71 76 56 48 106 55 59 87 142 54 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0407-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0407-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0407-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-0511
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0407-0602
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-
49	NUT; ASSIST GRIP M8 FLANGE	1-09984-126-0	01	1	0407-0511
49	NUT; ASSIST GRIP GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0512-0808
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0407-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0407-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0407-
55	GRIP; ASSIST,CAB SIDE UPR	1-73618-169-1	02	1	0407-0511
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0512-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0407-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0407-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0407-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0407-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0407-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0407-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0407-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0407-
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71907-544-0	01	1	0407-0511
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0512-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-548-0	01	1	0407-0511
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0512-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	0407-
76	SPACER; ASSIST GRIP (B) OD=13 T=4.5	8-94230-464-1	02	1	0407-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0407-
106	SCREW; ASSIST GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-0511
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0512-
142	SEAL; ASSIST GRIP (B)	1-71997-691-1	02	1	0407-0511
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0512-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	04	1	0407-0511
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0512-

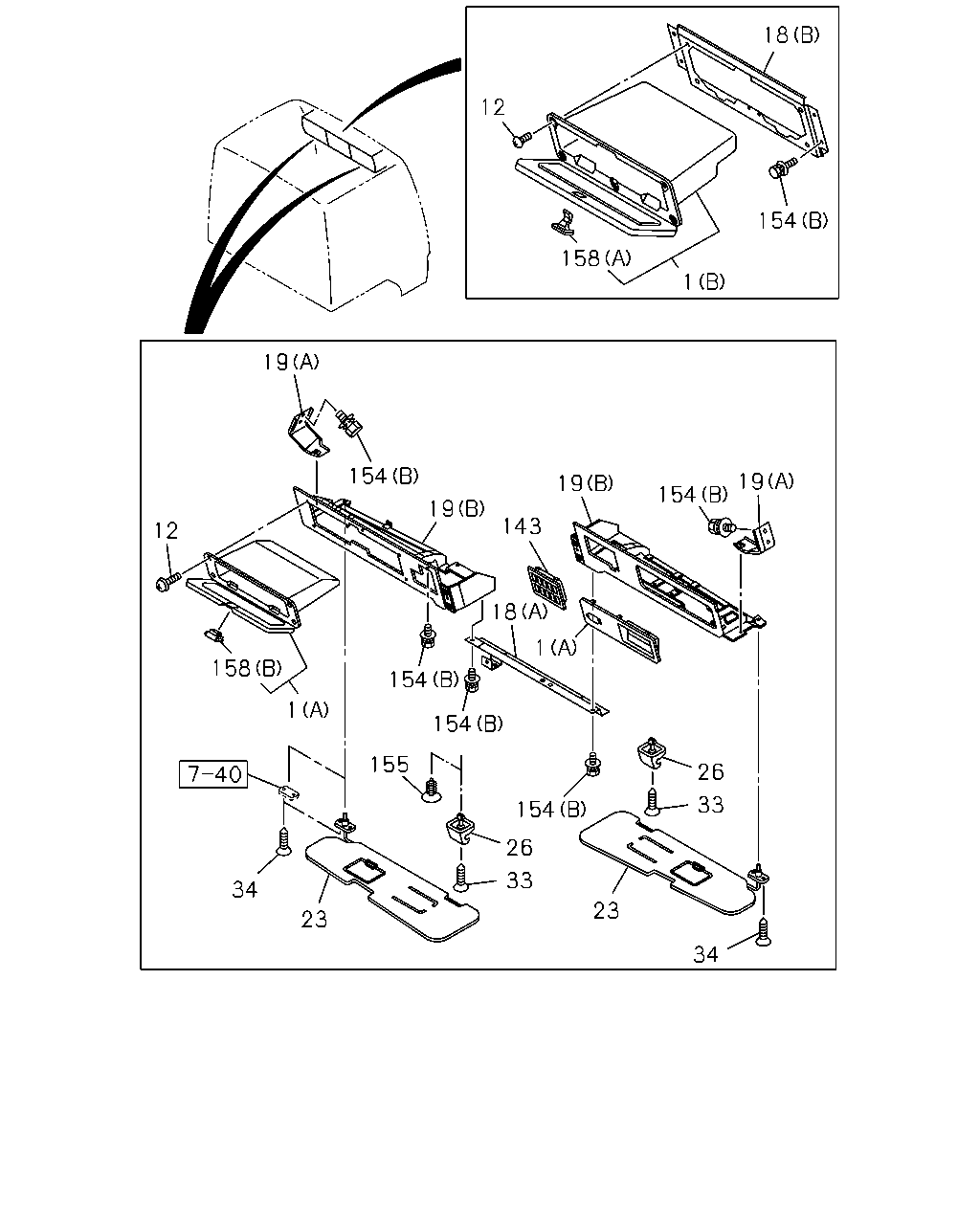

18 12 154 158 1 19 154 19 19 154 19 143 12 18 1 158 154 1 154 155 26 33 154 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0407-
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0407-0511
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0512-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0407-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0407-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0407-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0407-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0407-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0407-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0407-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0407-
23	SUN VISOR EXC. CUSTOM CAB(SR5)	1-73138-156-1	01	1	0512-
23	SUN VISOR	1-73138-157-1	01	1	0407-0511
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0512-
23	SUN VISOR	1-73137-178-1	01	1	0407-0511
23	SUN VISOR CUSTOM CAB(SR5)	1-73137-178-1	01	1	0512-
26	HOLDER; SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0512-
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0407-0511
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	02	1	0512-
33	SCREW; HOLDER,SUN VISOR EXC. SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0512-0603
33	SCREW; HOLDER,SUN VISOR EXC. SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0407-0511
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0512-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0407-
143	BEZEL	1-72447-768-2	01	1	0407-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0407-0511
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0512-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0407-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0512-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0407-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0407-0511
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0512-
