Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#30495) — 270 parça

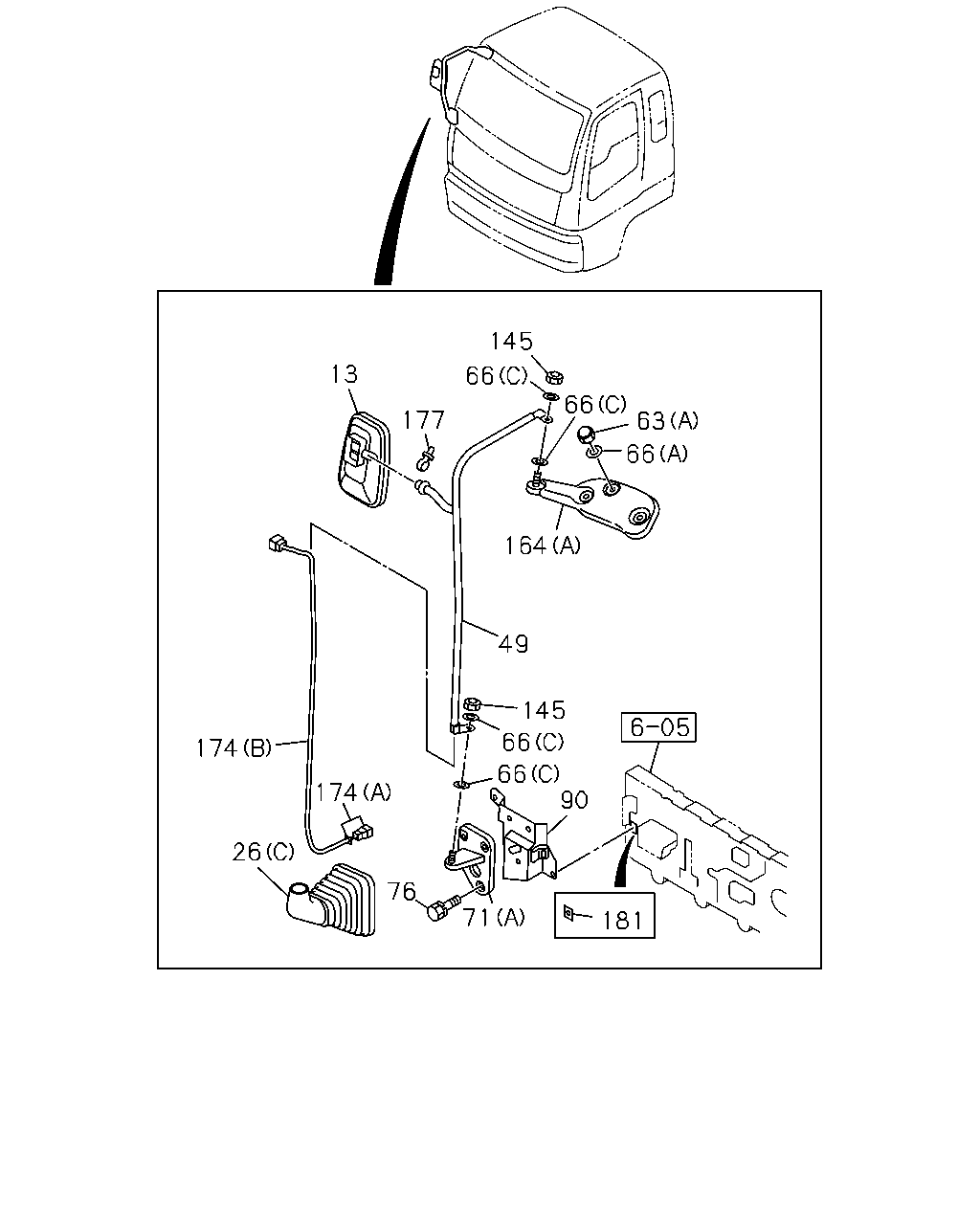

145 13 66 66 63 177 66 164 49 145 66 174 66 90 174 26 76 71 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-100-2	01	1	0407-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-101-2	01	1	0407-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-879-0	02	1	0407-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-880-0	02	1	0407-
26	COVER; OUTSIDE MIRROR (C)	1-71798-316-2	01	1	0407-0511
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (C)	1-71798-695-0	01	1	0407-0511
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-695-0	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-043-1	01	1	0407-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-145-1	01	1	0407-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0407-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0407-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0407-0511
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (A) M8	1-09984-187-0	06	1	0512-
63	NUT; STAY (D) M14	9-99110-414-0	01	1	0407-0511
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	9-99110-414-0	01	1	0512-0512
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	0-91110-514-0	01	1	0601-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-877-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-878-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR (A)	1-71797-809-2	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-309-4	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-309-4	01	1	0512-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0407-0511
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
145	NUT; CAP,SUB STAY M10	1-09984-183-0	02	1	0407-0511
145	NUT; CAP,SUB STAY MIR STAY O/S W/REMOTE<TBA> M10	1-09984-183-0	02	1	0512-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-602-1	01	1	0407-
164	STAY; ROOF (A)	1-71707-090-0	01	1	0407-0511
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-090-0	01	1	0512-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0407-0511
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-299-4	01	1	0512-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82625-561-0	02	1	0407-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-093-1	01	1	0407-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-172-4	01	1	0407-
177	CLIP; HARNESS MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> L=140	5-09707-031-1	02	1	0407-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-

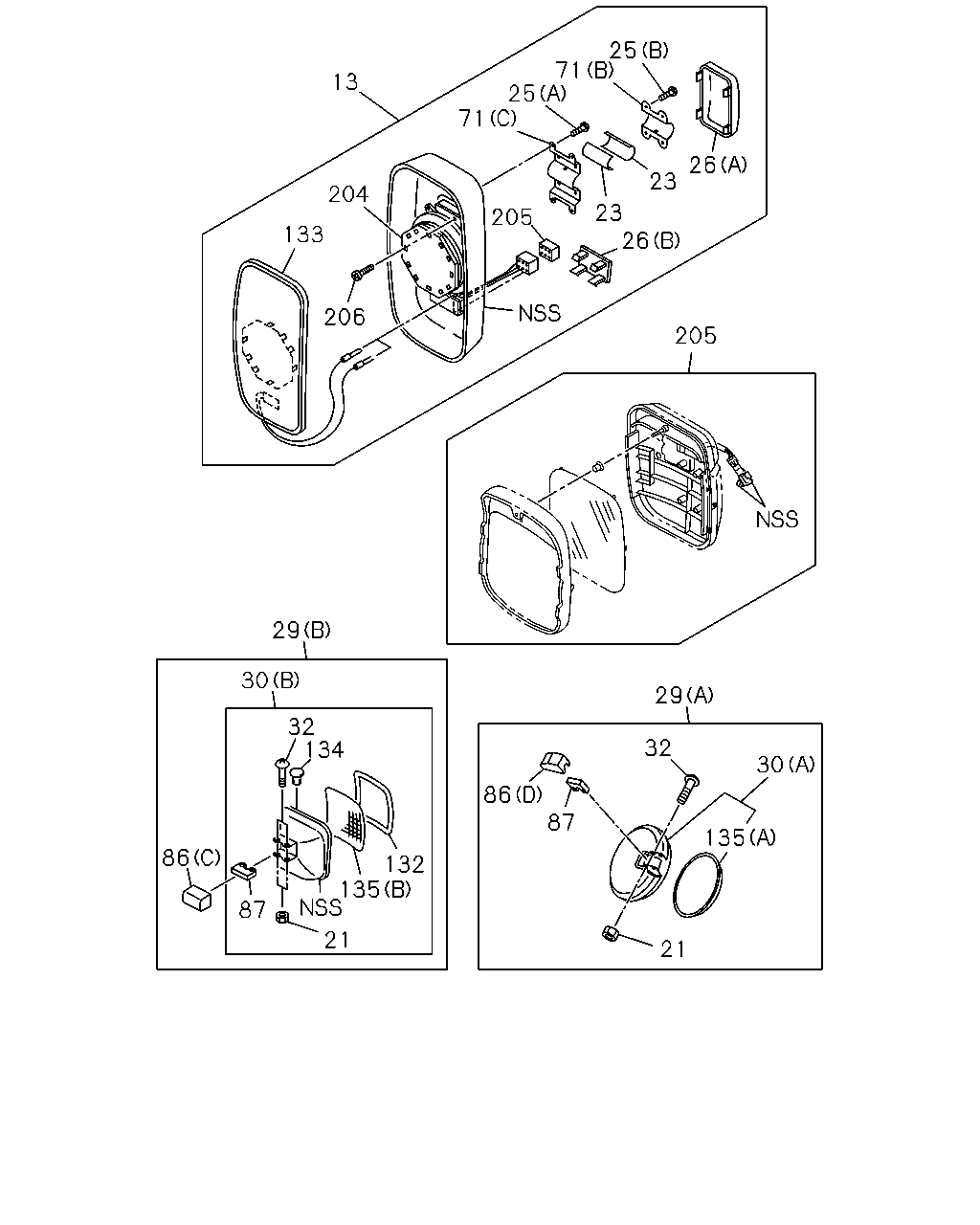

25 71 25 71 13 26 23 204 23 26 205 133 206 205 29 30 29 32 134 32 30 86 87 135 86 132 135 87 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-100-2	01	1	0407-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-101-2	01	1	0407-
21	NUT; MIRROR M5	1-09984-124-0	04	1	0407-0511
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	04	1	0512-
23	WASHER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-883-0	04	1	0407-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M5X14	1-71797-881-0	08	1	0407-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M6X10	1-71797-882-0	08	1	0407-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-879-0	02	1	0407-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-880-0	02	1	0407-
26	COVER; OUTSIDE MIRROR (C)	1-71798-316-2	01	1	0407-0511
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (C)	1-71798-695-0	01	1	0407-0511
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-695-0	01	1	0512-
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-137-1	01	1	0512-
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-421-1	01	1	0512-
30	MIRROR; UNDER (A)	1-71797-853-1	01	1	0407-0511
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0512-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	0407-0511
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0512-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	0407-0511
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-877-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-878-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR (A)	1-71797-809-2	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-309-4	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-309-4	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-649-1	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-652-1	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-732-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0512-
87	SPACER	1-71737-646-2	02	1	0407-0511
87	SPACER MIR STAY O/S W/REMOTE<TBA>	1-71737-646-2	02	1	0512-
132	RING; MIRROR	1-71737-935-0	01	1	0407-0511
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71737-935-0	01	1	0512-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-952-1	01	1	0512-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-953-0	01	1	0512-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0407-0511
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	01	1	0512-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-130-0	01	1	0512-
135	LENS; MIRROR,SIDE UNDER (A)	1-71707-130-0	01	1	0407-0511
135	LENS; MIRROR,SIDE UNDER (B)	1-71737-929-0	01	1	0407-0511
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-929-0	01	1	0512-
204	MOTOR KIT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-144-0	02	1	0407-
205	CONNECTOR KIT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-955-0	02	1	0407-
206	SCREW; MOTOR,MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	8-98134-316-0	04	1	0512-
206	SCREW; MOTOR,MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	8-98134-316-0	04	1	0407-0511

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0407-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0407-

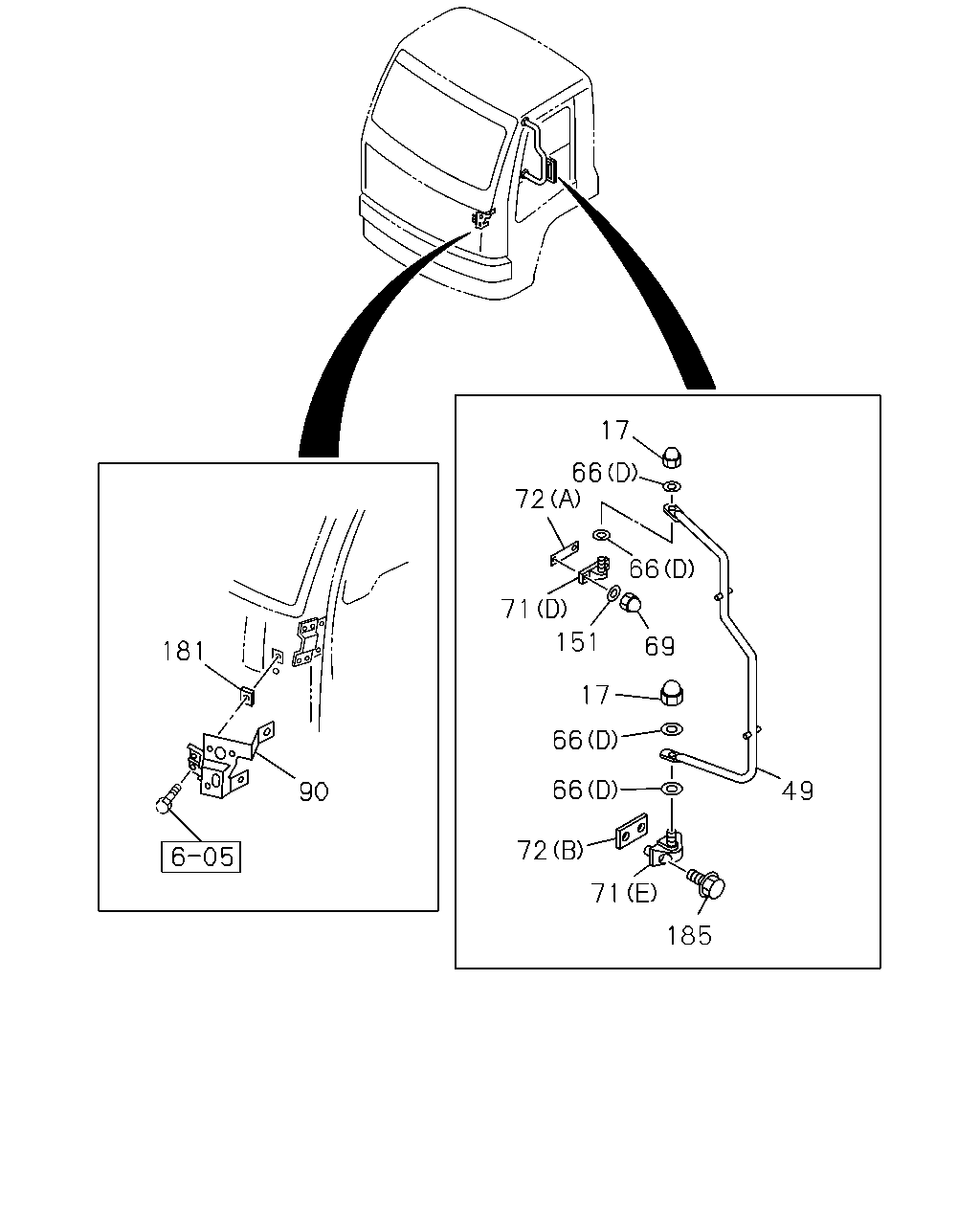

17 66 72 66 71 151 69 49 17 66 181 90 66 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> M10 CAP NUT	1-09984-134-0	04	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-043-1	01	1	0407-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-145-1	01	1	0407-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8	1-09984-187-0	04	1	0512-0809
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8 CAP NUT	8-98059-914-0	04	1	0810-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-877-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-878-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR (A)	1-71797-809-2	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-309-4	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-309-4	01	1	0512-
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-488-1	02	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28690-835-0	04	1	0512-0512
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	8-98046-876-0	04	1	0606-

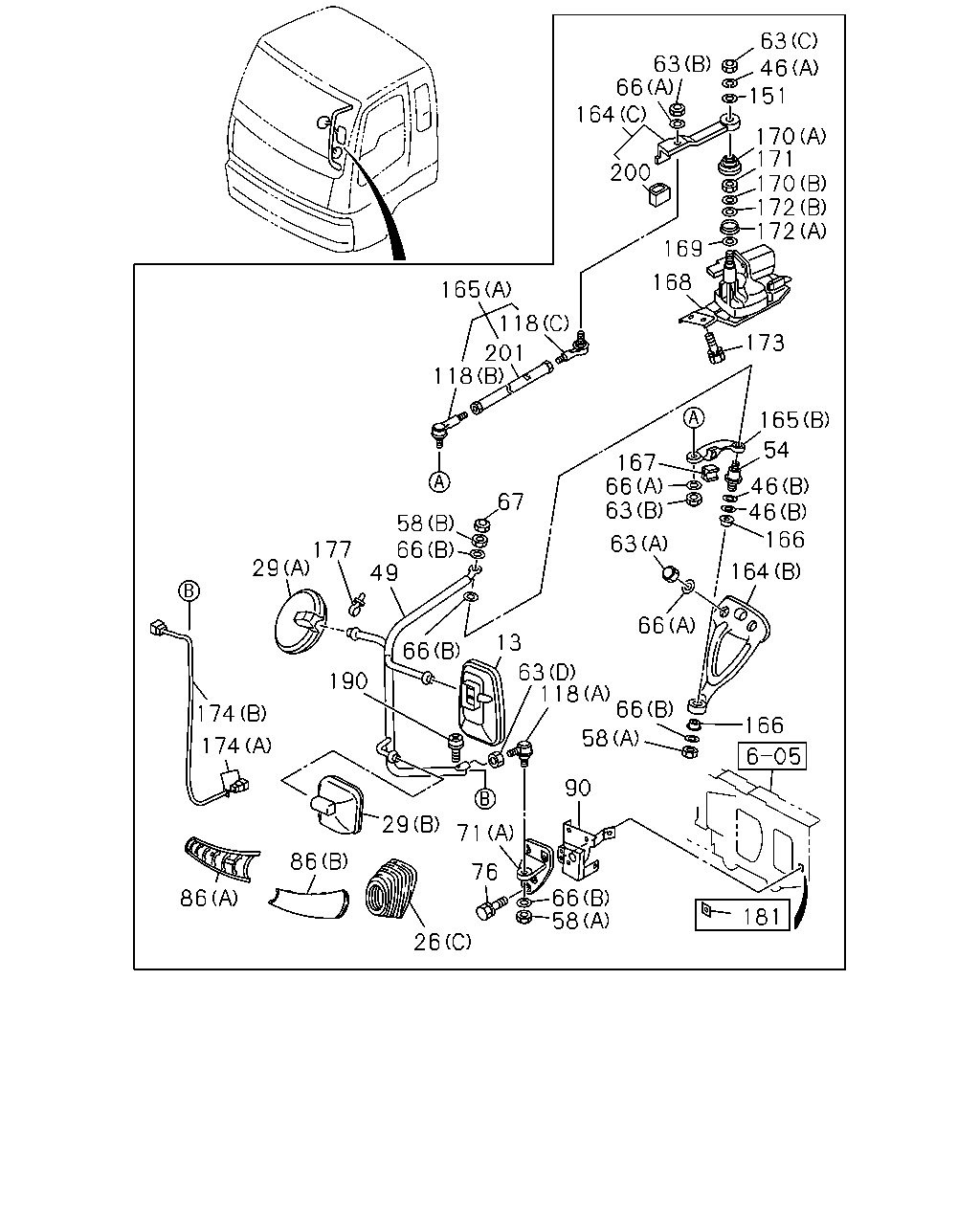

63 46 151 63 66 164 170 171 170 172 172 200 169 168 165 118 173 201 118 165 54 167 66 63 46 46 166 67 58 66 49 63 177 29 164 66 13 66 63 118 190 66 174 166 58 174 90 29 71 86 76 66 58 86 181 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-100-2	01	1	0407-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-101-2	01	1	0407-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-879-0	02	1	0407-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-880-0	02	1	0407-
26	COVER; OUTSIDE MIRROR (C)	1-71798-316-2	01	1	0407-0511
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (C)	1-71798-695-0	01	1	0407-0511
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-695-0	01	1	0512-
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-137-1	01	1	0512-
29	MIRROR ASM; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-421-1	01	1	0512-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	0407-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0407-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-043-1	01	1	0407-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-145-1	01	1	0407-
54	BOLT; STAY MIR STAY O/S W/REMOTE<TBA>	1-09980-618-0	01	1	0407-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0407-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	0407-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0407-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0407-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0407-0511
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (A) M8	1-09984-187-0	06	1	0512-
63	NUT; STAY (D) M14	9-99110-414-0	01	1	0407-0511
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	9-99110-414-0	01	1	0512-0512
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M14	0-91110-514-0	01	1	0601-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-877-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-878-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR (A)	1-71797-809-2	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-309-4	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-309-4	01	1	0512-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0407-0511
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-649-1	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-652-1	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-732-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0407-0511
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0407-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0407-
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	0407-0511
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-1	01	1	0512-
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-602-1	01	1	0407-
164	STAY; ROOF (A)	1-71707-090-0	01	1	0407-0511
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-090-0	01	1	0512-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0407-0511
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-299-4	01	1	0512-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	0407-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	0407-
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	0407-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	0407-
168	POWER UNIT; MIRROR STAY	1-86855-031-0	01	1	0407-0511
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0512-1311
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	8-98251-163-0	01	1	1312-
169	WASHER; PL,POWER UNIT ID=26.2 OD=44 T=2	1-86855-011-1	01	1	0407-0511
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	0512-
170	CAP; POWER UNIT (A)	1-86855-012-0	01	1	0407-0511
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	0512-
170	CAP; POWER UNIT (B)	1-86855-014-1	01	1	0407-0511
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	0512-
171	NUT; POWER UNIT M26	1-86855-013-1	01	1	0407-0511
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	0512-
172	SEAL; RUBBER,POWER UNIT (A)	1-79928-003-1	01	1	0407-0511
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	0512-
172	SEAL; RUBBER,POWER UNIT (B)	1-86855-015-0	01	1	0407-0511
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	0512-
173	BOLT; POWER UNIT M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0407-0511
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0512-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82625-561-0	02	1	0407-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-093-1	01	1	0407-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-172-4	01	1	0407-
177	CLIP; HARNESS MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> L=140	5-09707-031-1	02	1	0407-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-
190	SCREW; COVER M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0407-0511
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0512-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	0407-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	0407-

17 66 72 66 71 151 69 181 17 66 66 49 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> M10 CAP NUT	1-09984-134-0	04	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-043-1	01	1	0407-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-145-1	01	1	0407-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=12.5	1-09985-334-0	04	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0407-0511
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8	1-09984-187-0	04	1	0512-0809
69	NUT; CAP EXC. MIR STAY O/S W/REMOTE<TBA> M8 CAP NUT	8-98059-914-0	04	1	0810-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-877-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71797-878-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR (A)	1-71797-809-2	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-309-4	01	1	0407-0511
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-309-4	01	1	0512-
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-488-1	02	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
151	WASHER; PL,MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0407-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0407-
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28690-835-0	04	1	0512-0512
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT EXC. MIR STAY O/S W/REMOTE<TBA> M8X35 FLANGE	8-98046-876-0	04	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
