◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#3049) — 221 parça

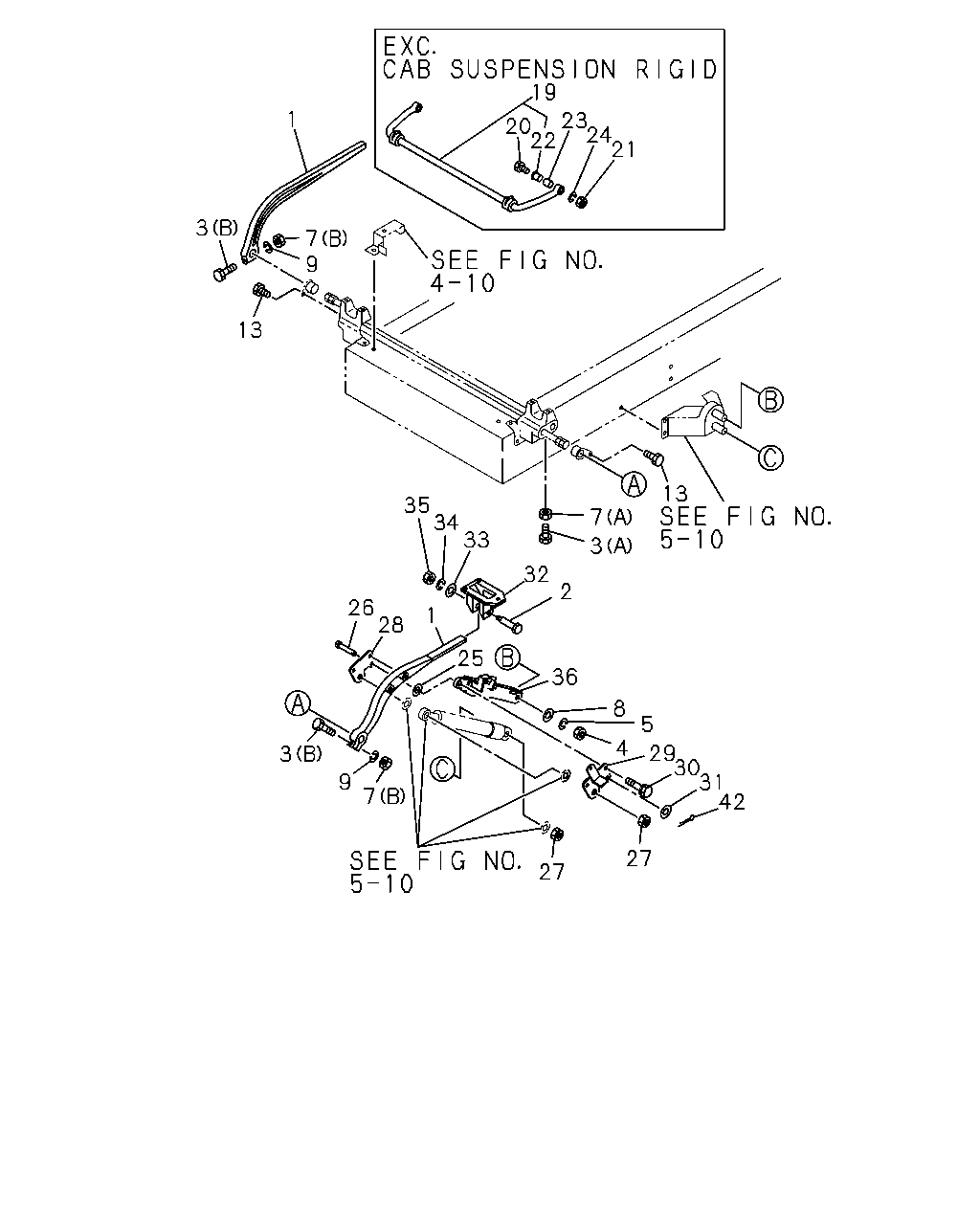

çizim 4717
27 27 42 31 30 29 5 4 8 36 25 1 28 26 3 9 7 35 34 33 32 2 3 7 13 13 9 7 3 1 19 20 22 23 24 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER; TORSION BAR
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-341-4 01 1 9002- ● ● ● ●
1 LEVER; TORSION BAR
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-342-4 01 1 9002- ● ● ● ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID<W71> 		1-53459-571-2 01 1 9002-9306 ● ● ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID<W71> 		1-53459-572-2 01 1 9002-9306 ● ● ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID<W71> 		1-53459-571-2 01 1 9307- ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID<W71> 		1-53459-572-2 01 1 9307- ●
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 9002-9306 ● ●
3 BOLT; LEVER
(A) M10X30 		1-09000-283-0 02 1 9002- ● ● ● ●
3 BOLT; LEVER
(B) M12X65 		9-91061-265-0 02 1 9002- ● ● ● ●
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002-9306 ● ●
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 9002-9306 ● ●
7 NUT; LK,LEVER
(A) M10 		9-09110-510-0 02 1 9002- ● ● ● ●
7 NUT; LK,LEVER
(B) M12 		9-99110-512-0 02 1 9002- ● ● ● ●
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 9002-9306 ● ●
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 9002- ● ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 9002-9005 ● ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006- ● ● ● ●
19 BAR; STAB,CAB SUSP
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-788-1 01 1 9002- ● ● ● ●
20 BOLT
EXC. CAB SUSPENSION RIGID<W71> 		1-09000-353-0 02 1 9002- ● ● ● ●
21 NUT
EXC. CAB SUSPENSION RIGID<W71> M10 		9-09111-410-0 02 1 9002- ● ● ● ●
22 BUSHING; STABILIZER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-786-1 02 1 9002- ● ● ● ●
23 TUBE; DIST
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-787-3 02 1 9002- ● ● ● ●
24 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ●
25 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 OD=30 		9-09160-614-0 02 1 9002-9306 ● ●
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 9002-9306 ● ●
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 9002-9306 ● ●
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-362-3 01 1 9002-9306 ● ●
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-361-2 01 1 9002-9306 ● ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 		9-01911-245-0 02 1 9002-9005 ● ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006-9306 ● ●
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9002-9306 ● ●
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 9002-9306 ● ●
33 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 01 1 9002-9306 ● ●
34 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 9002-9306 ● ●
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9002-9306 ● ●
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002-9306 ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> L=18 		9-08113-018-0 01 1 9002-9306 ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 02 1 9002-9306 ● ●

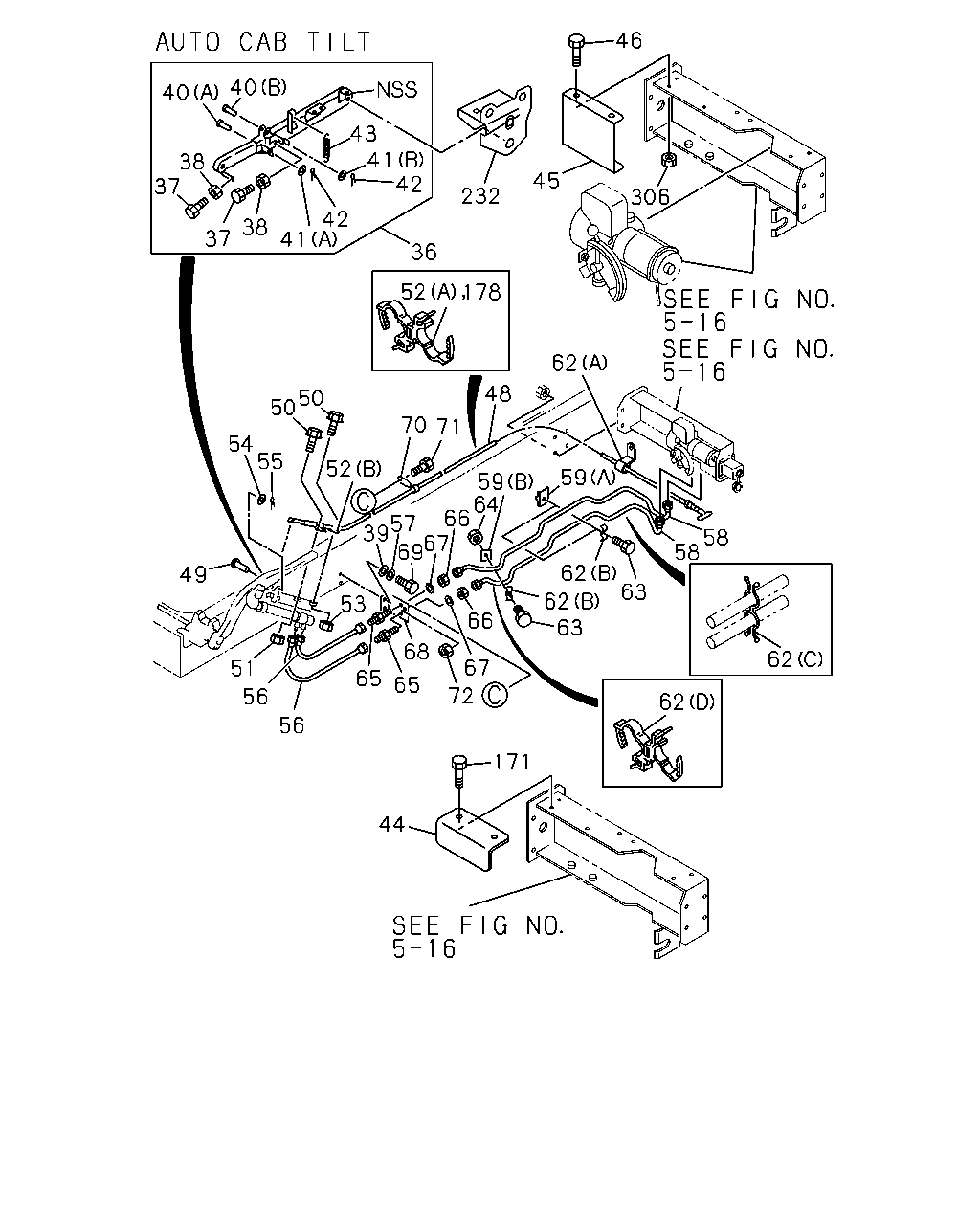

çizim 4937
44 171 62 62 72 65 65 56 56 51 49 53 68 67 66 63 62 62 63 58 58 59 59 64 66 67 69 57 39 52 55 54 50 50 70 71 48 62 52 178 36 42 41 38 37 37 38 40 40 43 41 42 232 45 46 306
BalonParca AdiParca NoAdetTipApplied Date A B C D
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002-9306 ● ●
37 BOLT; STOP SW ADJ
AUTO CAB TILT<WV2> 		1-09000-330-0 02 1 9002-9306 ● ●
38 NUT; LK
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9002-9306 ● ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=26 		9-09160-514-0 01 1 9002-9306 ● ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=30 		9-09160-614-0 01 1 9002-9306 ● ●
40 PIN; LK
AUTO CAB TILT<WV2> (B) OD=14 L=52 		1-09744-062-0 01 1 9002-9306 ● ●
40 PIN; LK
AUTO CAB TILT<WV2> (A) OD=10 L=42 		9-08234-042-0 01 1 9002-9306 ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9306 ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 9002-9306 ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> L=18 		9-08113-018-0 01 1 9002-9306 ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 02 1 9002-9306 ● ●
43 SPRING; RETURN,LEVER
AUTO CAB TILT<WV2> 		9-09942-604-0 01 1 9002-9306 ● ●
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53459-902-0 01 1 9207-9306 ● ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53459-869-1 01 1 9002-9206 ● ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53458-445-0 01 1 9207-9306 ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204 ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9206 ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9207-9306 ● ●
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53459-720-1 01 1 9002-9306 ● ●
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-828-0 01 1 9002-9306 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9306 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
51 NUT; CONT CABLE
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002-9306 ● ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (B) 		9-09525-055-0 01 1 9002-9306 ● ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 9103-9306 ● ●
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002-9306 ● ●
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 9002-9306 ● ●
55 PIN; SPLIT
AUTO CAB TILT<WV2> OD=1.8 L=15 		9-08112-015-0 01 1 9002-9306 ● ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> L=650 		1-09364-432-1 01 1 9002-9306 ● ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> L=600 		1-09364-437-1 01 1 9002-9306 ● ●
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002-9306 ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L=1566 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306 ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L=1571 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306 ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) L=50 		1-47475-299-2 01 1 9002-9306 ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) 		1-47475-427-1 02 1 9002-9306 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) ID=9 & 9 L=17 & 17 		1-09700-651-0 03 1 9002-9306 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) ID=10 		1-09700-868-0 02 1 9002-9306 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=8 & 10 		8-94252-372-0 04 1 9002-9006 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (D) ID=6-10 & 6-10 		1-09709-192-0 04 1 9007-9102 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (D) ID=6-10 & 6-10 		1-09709-192-1 01 1 9103-9306 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9204 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9302 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X16 FLANGE 		0-28080-816-0 01 1 9303-9306 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X45 W/LK WASHER 		9-01900-845-0 02 1 9002-9204 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-9302 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X50 FLANGE 		0-28080-850-0 02 1 9303-9306 ● ●
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002-9306 ● ●
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> M14 		9-09223-308-1 02 1 9002-9306 ● ●
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 9002-9306 ● ●
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002-9306 ● ●
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47475-314-1 01 1 9002-9210 ● ●
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47476-765-1 01 1 9211-9306 ● ●
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9002-9306 ● ●
70 CLIP; UNION BRKT
AUTO CAB TILT<WV2> 		1-09700-098-0 01 1 9002-9306 ● ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 		9-01910-620-0 01 1 9002-9005 ● ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9006-9210 ● ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9211-9306 ● ●
72 NUT
AUTO CAB TILT<WV2> M6 		9-09110-406-0 01 1 9002-9306 ● ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9207-9302 ● ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=6-10 & 10-14 		1-09709-201-1 01 1 9103-9306 ● ●
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 9002- ● ● ● ●
306 NUT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8 FLANGE 		5-09440-005-0 01 1 9207-9306 ● ●

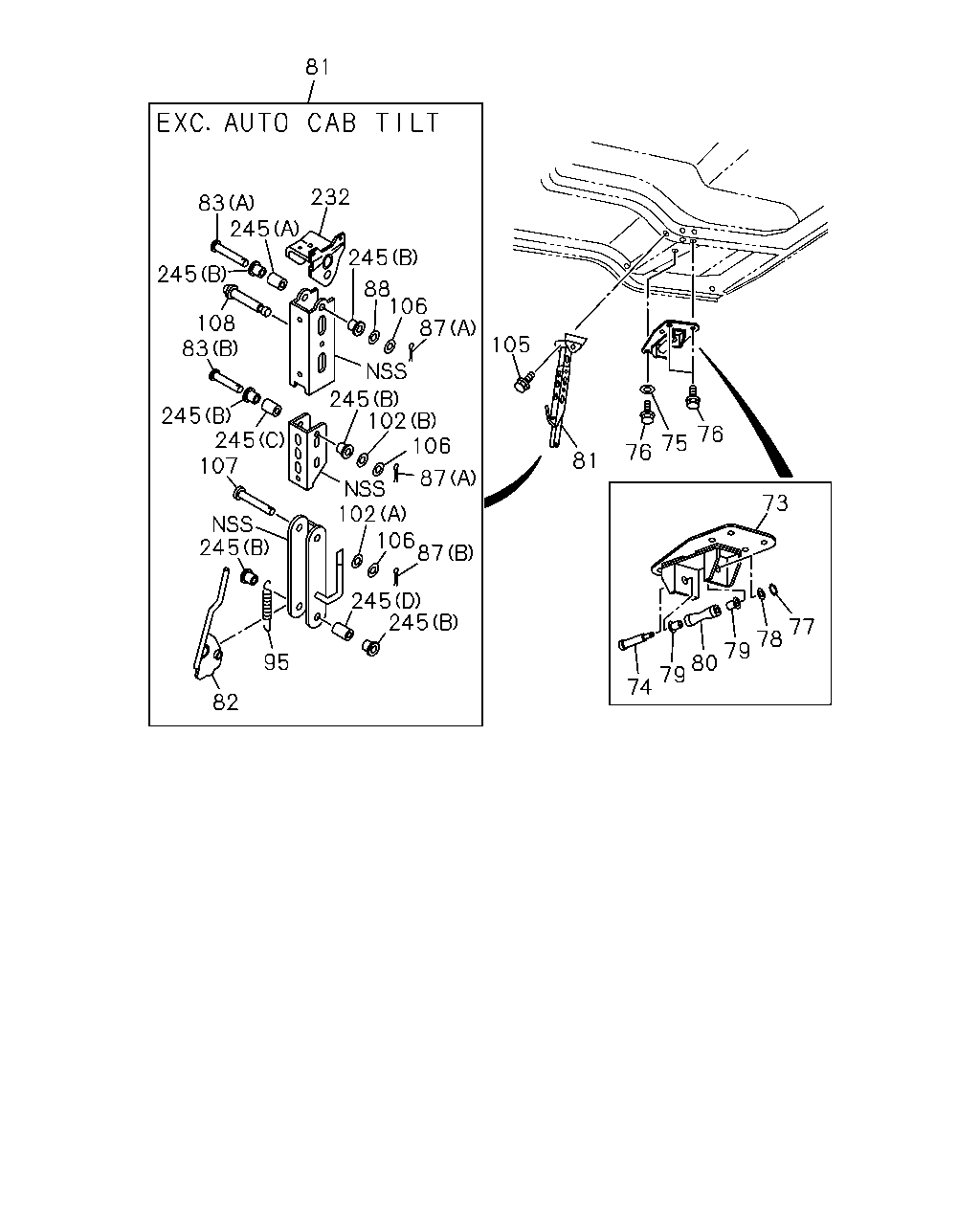

çizim 5040
77 78 79 80 79 74 73 76 75 76 81 105 87 106 88 245 232 245 83 81 245 108 83 245 245 107 245 82 95 245 245 87 106 102 87 106 102 245
BalonParca AdiParca NoAdetTipApplied Date A B C D
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 9002-9306 ● ●
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 9002-9306 ● ●
73 PAD; TORSION BAR 1-53459-645-0 02 1 9002-9306 ● ●
73 PAD; TORSION BAR 1-53459-645-0 02 1 9307- ● ●
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 9002- ● ● ● ●
75 WASHER; PL,PAD 1-09985-111-0 02 1 9002- ● ● ● ●
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9002- ● ● ● ●
77 RING; SNAP 1-09588-032-0 02 1 9002- ● ● ● ●
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 9002- ● ● ● ●
79 BUSHING; ROLLER 5-33659-053-0 04 1 9002- ● ● ● ●
80 ROLLER 1-53459-357-2 02 1 9002- ● ● ● ●
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 9002-9306 ● ●
81 STAY ASM; CAB TILT 1-65570-214-1 01 1 9002-9306 ● ●
81 STAY ASM; CAB TILT 1-65570-214-1 01 1 9307- ● ●
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 9002-9306 ● ●
82 LEVER; CAB STAY LK 1-62500-416-0 01 1 9002-9306 ● ●
82 LEVER; CAB STAY LK 1-62500-416-0 01 1 9307- ● ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 9002-9306 ● ●
83 PIN; JOINT,CAB STAY
(A) OD=14 L=62 		9-08234-462-0 01 1 9002-9306 ● ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 9002-9306 ● ●
83 PIN; JOINT,CAB STAY
(B) OD=14 L=66 		9-08234-466-0 01 1 9002-9306 ● ●
83 PIN; JOINT,CAB STAY
(A) OD=14 L=62 		9-08234-462-0 01 1 9307- ● ●
83 PIN; JOINT,CAB STAY
(B) OD=14 L=66 		9-08234-466-0 01 1 9307- ● ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) L=30 L=30 		1-09987-080-0 02 1 9002-9306 ● ●
87 PIN; SPLIT,CAB STAY PIN
(A) L=30 L=30 		1-09987-080-0 02 1 9002-9306 ● ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (B) OD=2.8 L=18 		9-08113-018-0 01 1 9002-9306 ● ●
87 PIN; SPLIT,CAB STAY PIN
(B) OD=2.8 L=18 		9-08113-018-0 01 1 9002-9306 ● ●
87 PIN; SPLIT,CAB STAY PIN
(A) L=30 L=30 		1-09987-080-0 02 1 9307- ● ●
87 PIN; SPLIT,CAB STAY PIN
(B) OD=2.8 L=18 		9-08113-018-0 01 1 9307- ● ●
88 WASHER; PL,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9002-9306 ● ●
88 WASHER; PL,CAB STAY PIN
ID=15 		9-09160-514-0 01 1 9002-9306 ● ●
88 WASHER; PL,CAB STAY PIN
ID=15 		9-09160-514-0 01 1 9307- ● ●
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 9002-9306 ● ●
95 SPRING; RETURN,CAB STAY 1-09585-064-1 01 1 9002-9306 ● ●
95 SPRING; RETURN,CAB STAY 1-09585-064-1 01 1 9307- ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9306 ● ●
102 WASHER; PL,CAB STAY
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9306 ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 9002-9306 ● ●
102 WASHER; PL,CAB STAY
(B) ID=15 		9-09160-514-0 01 1 9002-9306 ● ●
102 WASHER; PL,CAB STAY
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 9307- ● ●
102 WASHER; PL,CAB STAY
(B) ID=15 		9-09160-514-0 01 1 9307- ● ●
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 9002- ● ● ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=11.3 		5-09550-001-0 01 1 9002-9306 ● ●
106 WASHER; WAVE,CAB STAY
ID=11.3 		5-09550-001-0 01 1 9002-9306 ● ●
106 WASHER; WAVE,CAB STAY
ID=11.3 		5-09550-001-0 01 1 9307- ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 02 1 9002-9306 ● ●
106 WASHER; WAVE,CAB STAY
ID=15 OD=25 		8-11053-111-0 02 1 9002-9306 ● ●
106 WASHER; WAVE,CAB STAY
ID=15 OD=25 		8-11053-111-0 02 1 9307- ● ●
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 9002-9306 ● ●
107 PIN; LK LEVER 9-08234-033-0 01 1 9002-9306 ● ●
107 PIN; LK LEVER 9-08234-033-0 01 1 9307- ● ●
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 9002-9306 ● ●
108 PIN; ADJ,CAB STAY 1-62500-518-0 01 1 9002-9306 ● ●
108 PIN; ADJ,CAB STAY 1-62500-518-0 01 1 9307- ● ●
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 9002- ● ● ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (A) L=41.0 		1-53459-626-0 01 1 9002-9306 ● ●
245 BUSHING; CAB STAY
(A) L=41.0 		1-53459-626-0 01 1 9002-9306 ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=31.5 		1-53459-627-0 01 1 9002-9306 ● ●
245 BUSHING; CAB STAY
(C) L=31.5 		1-53459-627-0 01 1 9002-9306 ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=27.5 		1-53459-628-0 01 1 9002-9306 ● ●
245 BUSHING; CAB STAY
(D) L=27.5 		1-53459-628-0 01 1 9002-9306 ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (B) L=12.0 		1-53459-971-0 06 1 9002-9306 ● ●
245 BUSHING; CAB STAY
(B) L=12.0 		1-53459-971-0 06 1 9002-9306 ● ●
245 BUSHING; CAB STAY
(A) L=41.0 		1-53459-626-0 01 1 9307- ● ●
245 BUSHING; CAB STAY
(C) L=31.5 		1-53459-627-0 01 1 9307- ● ●
245 BUSHING; CAB STAY
(D) L=27.5 		1-53459-628-0 01 1 9307- ● ●
245 BUSHING; CAB STAY
(B) L=12.0 		1-53459-971-0 06 1 9307- ● ●

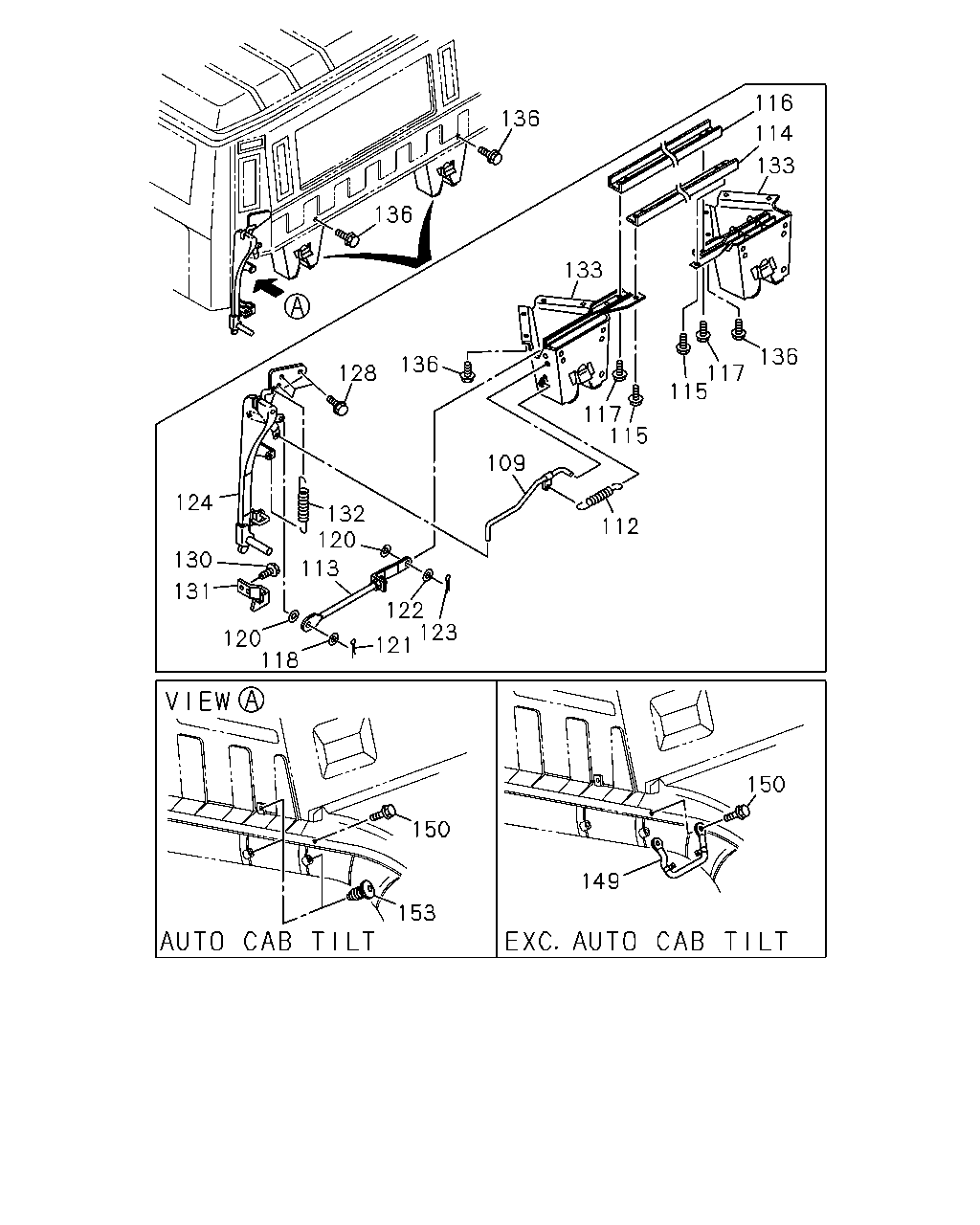

çizim 35068
150 149 150 153 118 120 131 130 124 132 120 113 122 121 123 112 109 115 117 115 117 136 133 114 116 136 133 136 128 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 9002-9306 ● ●
109 ROD; SAFETY,CAB LK 1-79717-446-3 01 1 9002-9306 ● ●
109 ROD; SAFETY,CAB LK 1-79717-446-3 01 1 9307- ● ●
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 9002-9306 ● ●
112 SPRING; RETURN,SAFETY ROD 1-79717-417-0 01 1 9002-9306 ● ●
112 SPRING; RETURN,SAFETY ROD 1-79717-417-0 01 1 9307- ● ●
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9002-9306 ● ● ● ●
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9307- ● ●
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 9002-9306 ● ●
114 ARM ASM; CONN,SAFETY 1-79717-469-1 01 1 9002-9306 ● ●
114 ARM ASM; CONN,SAFETY 1-79717-469-1 01 1 9307- ● ●
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002-9306 ● ●
115 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002-9306 ● ●
115 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9307- ● ●
116 ARM ASM; CONN 1-79717-435-1 01 1 9002- ● ● ● ●
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ● ● ●
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 9002- ● ● ● ●
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 9002- ● ● ● ●
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 9002- ● ● ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 9002- ● ● ● ●
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 9002- ● ● ● ●
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> 		1-79717-595-2 01 1 9103-9306 ● ●
124 LEVER ASM; HAND,CAB LK 1-79717-494-6 01 1 9002-9102 ● ● ● ●
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-494-9 01 1 9103-9306 ● ●
124 LEVER ASM; HAND,CAB LK 1-79717-494-9 01 1 9103-9306 ● ●
124 LEVER ASM; HAND,CAB LK 1-79717-494-9 01 1 9307- ● ●
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ● ● ●
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9002- ● ● ● ●
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 9002- ● ● ● ●
132 SPRING; HAND LEVER 1-09985-148-0 01 1 9002- ● ● ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-508-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-507-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-506-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-79717-506-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-505-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-79717-505-6 01 1 9002-9306 ● ●
133 LOCK ASM; CAB
EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-79717-506-6 01 1 9307- ● ●
133 LOCK ASM; CAB
EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-79717-505-6 01 1 9307- ● ●
133 LOCK ASM; CAB
CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-79717-532-0 01 1 9002- ● ●
133 LOCK ASM; CAB
CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) 		1-79717-531-0 01 1 9002- ● ●
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 9002- ● ● ● ●
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2> 		1-71997-490-1 01 1 9002-9306 ● ●
149 HANDLE; TILT 1-71997-490-1 01 1 9002-9306 ● ●
149 HANDLE; TILT 1-71997-490-1 01 1 9307- ● ●
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 05 1 9002-9306 ● ●
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X25 		0-50100-625-0 04 1 9002-9204 ● ●
150 BOLT; TILT HANDLE
M6X25 		0-50100-625-0 04 1 9002-9204 ● ●
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X25 		0-50180-625-0 04 1 9205-9306 ● ●
150 BOLT; TILT HANDLE
M6X25 		0-50180-625-0 04 1 9205-9306 ● ●
150 BOLT; TILT HANDLE
M6X25 		0-50180-625-0 04 1 9307- ● ●
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 01 1 9002-9306 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
