Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10955 - EXZ NEW ZEALAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

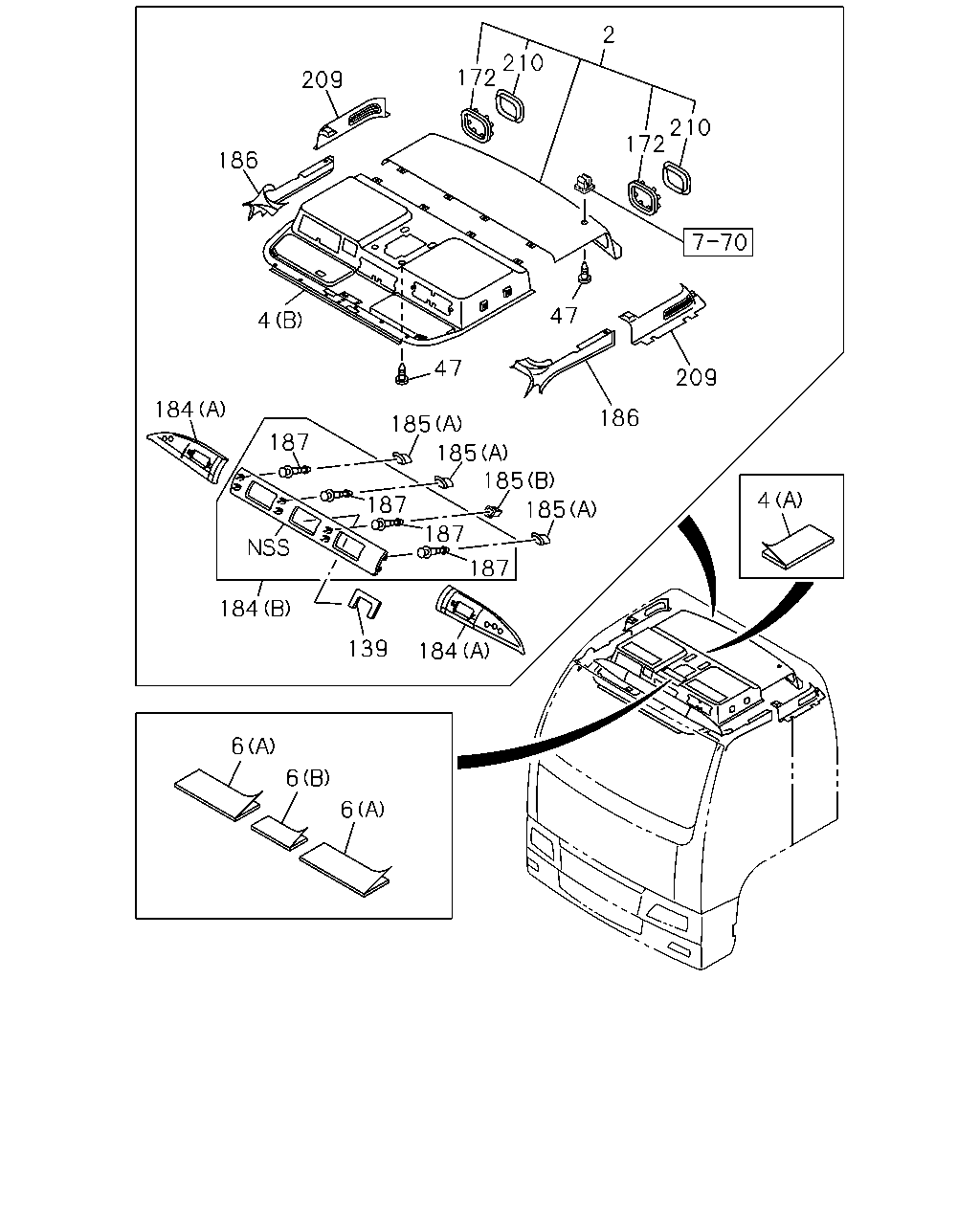

6-66 — HEAD LINING AND TRIM
(#30483) — 25 parça
2
210
172
209
210
172
186
47
4
47
209
184
186
185
187
185
185
187
4
185
187
187
184
139
184
6
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINING; HD,ROOF RR
1-73317-503-2
01
1
0407-
4
LINING; ROOF,FRT
(A)
1-73317-436-0
02
1
0512-
4
LINING; ROOF,FRT
(B)
1-73317-482-2
01
1
0407-
6
SPACER; HD LINING
(A) 140X800
1-73317-429-2
02
1
0512-
6
SPACER; HD LINING
(B) 130X300
1-73317-435-2
01
1
0512-
47
CLIP; HEADLINING
D4.6X14.7 BLACK
1-09983-104-0
05
1
0407-0410
47
CLIP; HEADLINING
D5X14.7
1-09983-183-0
05
1
0411-
47
CLIP; HEADLINING
D6X23 LIGHT GRAY
1-73318-629-0
11
1
0407-
139
SEAL; ROOF
1-73318-562-0
03
1
0512-
172
RETAINER; HEAD LINING
1-73317-448-0
01
1
0407-
172
RETAINER; HEAD LINING
1-73317-449-0
01
1
0407-
184
ORNAMENT; ROOF
EXC. MIR STAY O/S W/REMOTE<TBA> (A)
1-73317-408-2
01
1
0512-
184
ORNAMENT; ROOF
(A)
1-73317-409-2
01
1
0407-
184
ORNAMENT; ROOF
(A)
1-73317-452-1
01
1
0407-0511
184
ORNAMENT; ROOF
MIR STAY O/S W/REMOTE<TBA> (A)
1-73317-452-1
01
1
0512-
184
ORNAMENT; ROOF
(B)
1-73317-405-1
01
1
0407-
185
GROMMET; ORNAMENT
(A)
1-79198-012-0
06
1
0407-
185
GROMMET; ORNAMENT
(B)
1-79198-013-0
02
1
0407-
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-012-2
01
1
0407-
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-013-2
01
1
0407-
187
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
0407-
209
COVER; GRILLE
1-73347-865-3
01
1
0407-
209
COVER; GRILLE
1-73347-866-3
01
1
0407-
210
GRILLE; SPEAKER
1-73347-885-1
01
1
0407-
210
GRILLE; SPEAKER
1-73347-886-1
01
1
0407-
