◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#3048) — 286 parça

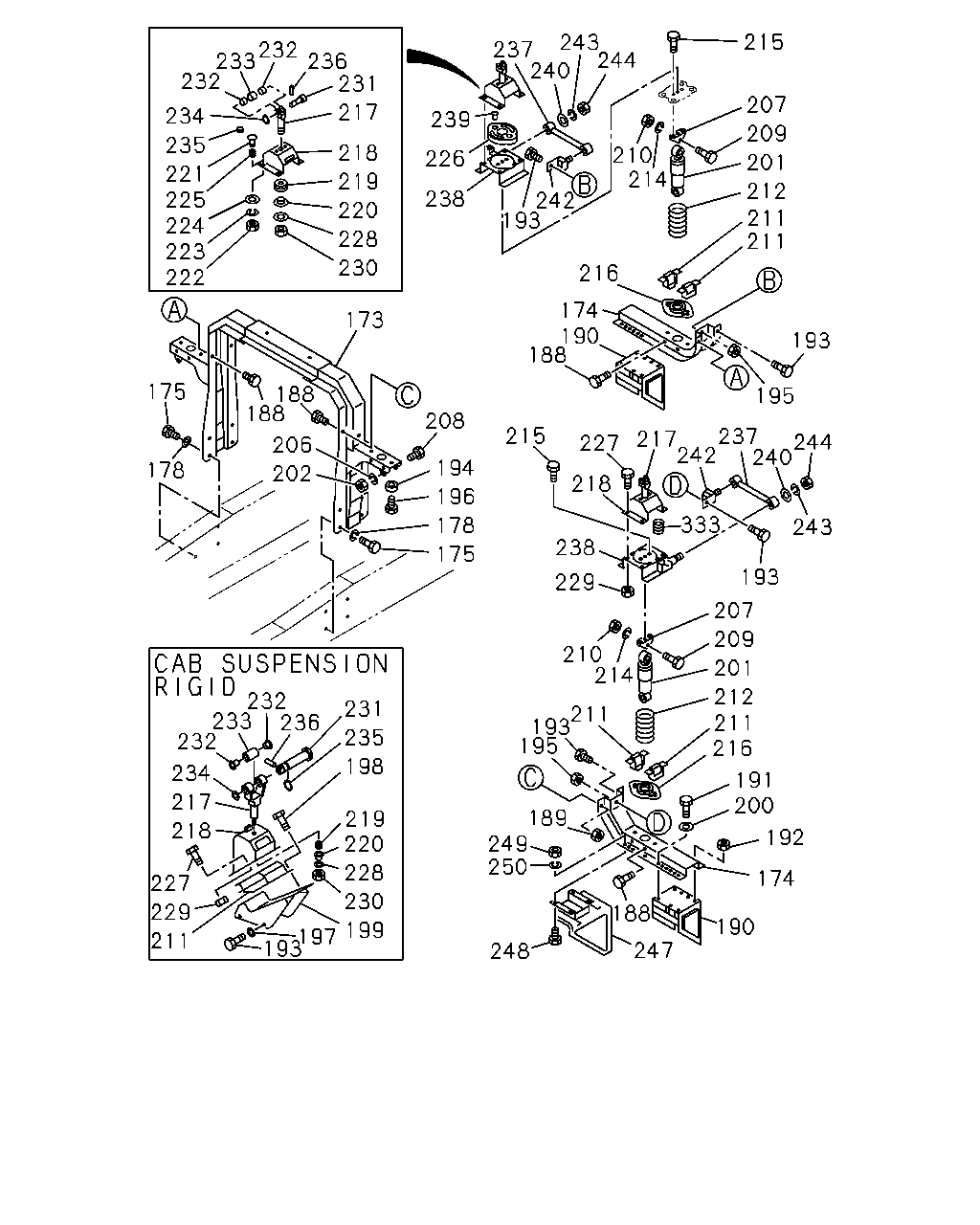

çizim 4939
247 248 188 190 174 192 200 191 216 211 212 201 209 207 193 214 210 211 193 195 189 249 250 199 197 193 211 229 227 218 217 234 232 233 232 236 231 235 198 219 220 228 230 175 178 196 194 208 202 206 178 175 188 188 173 222 223 224 225 221 235 234 232 233 232 236 231 217 218 219 220 228 230 238 226 239 237 243 240 244 215 210 242 193 214 207 209 201 212 211 211 193 195 244 243 240 237 242 217 227 218 215 188 190 174 216 333 238 229
BalonParca AdiParca NoAdetTipApplied Date A B C D
173 MEMBER; CAB MTG RR 1-53450-485-3 01 1 9002- ● ● ● ●
174 OUTRIGGER 1-53456-153-6 02 1 9002-9210 ● ● ● ●
174 OUTRIGGER 1-53456-242-1 02 1 9211- ● ● ● ●
175 BOLT; MEMBER TO FRAME
M14X35 		9-92061-435-0 08 1 9002- ● ● ● ●
178 WASHER; LK,MEMBER
ID=14.2 		9-09150-614-0 08 1 9002- ● ● ● ●
188 BOLT; OUTRIGGER
EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9002- ● ● ● ●
188 BOLT; OUTRIGGER
EXC. CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005 ● ● ● ●
188 BOLT; OUTRIGGER
EXC. CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006- ● ● ● ●
188 BOLT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9002-9306 ● ● ●
188 BOLT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		9-01911-230-0 04 1 9002-9005 ● ● ●
188 BOLT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9006-9306 ● ● ●
188 BOLT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ●
188 BOLT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
189 NUT; OUTRIGGER
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 02 1 9002-9304 ● ● ● ●
189 NUT; OUTRIGGER
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 02 1 9305-9306 ● ● ● ●
189 NUT; OUTRIGGER
M12 		9-99110-512-0 02 1 9307- ●
189 NUT; OUTRIGGER
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 02 1 9307- ●
189 NUT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 04 1 9002-9304 ● ● ●
189 NUT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 04 1 9305-9306 ● ● ●
189 NUT; OUTRIGGER
CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 04 1 9307- ●
190 BRACKET; MUD GUARD 1-79930-477-3 02 1 9002- ● ● ● ●
191 BOLT; BRKT FIX
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9002- ● ● ● ●
191 BOLT; BRKT FIX
M8X20 W/LK WASHER 		9-01910-820-0 02 1 9002-9005 ● ● ● ●
191 BOLT; BRKT FIX
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9006-9302 ● ● ● ●
191 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9304 ● ● ● ●
192 NUT; BRKT FIX
M10 		9-09110-410-0 04 1 9002-9009 ● ● ● ●
192 NUT; BRKT FIX
M10 		9-09110-410-0 01 1 9010-9304 ● ● ● ●
192 NUT; BRKT FIX
M10 		9-09110-510-0 03 1 9305- ● ● ● ●
193 BOLT; BRKT
EXC. CAB SUSPENSION RIGID<W71> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9002-9306 ● ● ● ●
193 BOLT; BRKT
EXC. CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005 ● ● ● ●
193 BOLT; BRKT
EXC. CAB SUSPENSION RIGID<W71> M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006- ● ● ● ●
193 BOLT; BRKT
CAB SUSPENSION RIGID<W71> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9002-9306 ● ● ●
193 BOLT; BRKT
EXC. CAB SUSPENSION RIGID<W71> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9307- ● ●
193 BOLT; BRKT
CAB SUSPENSION RIGID<W71> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9307- ●
194 SEAT; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-320-0 04 1 9002- ● ● ● ●
195 NUT; BRKT FIX
EXC. CAB SUSPENSION RIGID<W71> M10 		9-09110-510-0 02 1 9002- ● ● ● ●
196 BOLT; CAB SUSP MTG
EXC. CAB SUSPENSION RIGID<W71> 		1-09009-090-0 04 1 9002- ● ● ● ●
197 WASHER; PL
CAB SUSPENSION RIGID<W71> ID=10.5 		9-09164-510-0 08 1 9002-9306 ● ● ●
197 WASHER; PL
CAB SUSPENSION RIGID<W71> ID=10.5 		9-09164-510-0 08 1 9307- ●
198 BOLT; RUBBER TO BRKT
CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9002-9306 ● ● ●
198 BOLT; RUBBER TO BRKT
CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9307- ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> 		1-53459-289-1 02 1 9002-9306 ● ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> 		1-53459-289-1 02 1 9307- ●
200 WASHER; PL,BRKT FIX
ID=10.5 OD=22 		9-09160-610-0 04 1 9002- ● ● ● ●
201 ABSORBER ASM; SHOCK,RR MTG
EXC. CAB SUSPENSION RIGID<W71> 		1-51630-152-0 02 1 9002-9404 ● ● ● ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-450-1 02 1 9405- ●
201 ABSORBER ASM; SHOCK,RR MTG
EXC. CAB SUSPENSION RIGID<W71> 		1-51630-450-1 02 1 9405- ●
202 NUT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 02 1 9002-9304 ● ● ● ●
202 NUT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 02 1 9305-9306 ● ● ● ●
202 NUT; S/ABS
M12 		9-99110-512-0 02 1 9307- ●
202 NUT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 02 1 9307- ●
206 WASHER; LK,S/ABS
EXC. CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-512-0 02 1 9002- ● ● ● ●
207 BRACKET; S/ABS
EXC. CAB SUSPENSION RIGID<W71> 		1-51681-299-0 02 1 9002- ● ● ● ●
208 BOLT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12X55 		9-91056-255-0 02 1 9002-9005 ● ● ● ●
208 BOLT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12X55 		0-10806-255-0 02 1 9006- ● ● ● ●
209 BOLT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12X55 		9-91056-255-0 02 1 9002-9005 ● ● ● ●
209 BOLT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12X55 		0-10806-255-0 02 1 9006- ● ● ● ●
210 NUT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 02 1 9002-9304 ● ● ● ●
210 NUT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 02 1 9305- ● ● ● ●
211 RUBBER; CUSHION,S/ABS
EXC. CAB SUSPENSION RIGID<W71> 		1-53366-050-1 04 1 9002- ● ● ● ●
211 RUBBER; CUSHION,S/ABS
CAB SUSPENSION RIGID<W71> 		1-53459-406-1 02 1 9002-9306 ● ● ●
211 RUBBER; CUSHION,S/ABS
CAB SUSPENSION RIGID<W71> 		1-53459-406-1 02 1 9307- ●
212 SPRING; COIL
EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9002-9106 ● ●
212 SPRING; COIL
HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9002-9106 ● ●
212 SPRING; COIL
EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9107-9209 ● ●
212 SPRING; COIL
HONG KONG EQUIPMENT(PQ1),CHINA TIBET EQUIPMENT(WD1),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9107-9209 ● ●
212 SPRING; COIL
EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9210-9306 ● ●
212 SPRING; COIL
HONG KONG EQUIPMENT(PQ1),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9210-9306 ● ●
212 SPRING; COIL 1-09580-351-0 02 1 9307- ●
212 SPRING; COIL
EXC. CAB SUSPENSION RIGID<W71> 		1-09580-351-0 02 1 9307- ●
212 SPRING; COIL
EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID<W71> 		1-09580-353-0 02 1 9002-9106 ● ●
212 SPRING; COIL
EXC. HONG KONG EQUIPMENT(PQ1),CHINA TIBET EQUIPMENT(WD1),TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID<W71>,CHINA EQUIPMENT(YT2) 		1-09580-353-0 02 1 9107-9306 ● ●
212 SPRING; COIL
TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID<W71> 		1-09580-416-0 02 1 9210-9306 ●
214 WASHER; LK,S/ABS
EXC. CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-512-0 02 1 9002- ● ● ● ●
215 BOLT; BRKT TO HOLDER
EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9002- ● ● ● ●
216 HOLDER; COIL SPR,CAB BACK
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-319-0 02 1 9002- ● ● ● ●
217 JAW; CAB HOOK 1-53459-373-1 02 1 9002- ● ● ● ●
218 HOLDER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-838-0 02 1 9002-9106 ● ● ● ●
218 HOLDER
EXC. CAB SUSPENSION RIGID<W71> 		1-53458-290-0 02 1 9107- ● ● ● ●
218 HOLDER
CAB SUSPENSION RIGID<W71> 		1-53459-745-3 02 1 9002-9306 ● ● ●
218 HOLDER
CAB SUSPENSION RIGID<W71> 		1-53459-745-3 02 1 9307- ●
219 SPRING; COIL,CAB HOOK
EXC. CAB SUSPENSION RIGID<W71> 		1-09580-350-1 02 1 9002- ● ● ● ●
219 SPRING; COIL,CAB HOOK
CAB SUSPENSION RIGID<W71> 		1-09580-350-1 01 1 9002-9306 ● ● ●
219 SPRING; COIL,CAB HOOK
CAB SUSPENSION RIGID<W71> 		1-09580-350-1 01 1 9307- ●
220 GUIDE; SPR 1-53459-374-0 02 1 9002- ● ● ● ●
221 PLATE
AUTO CAB TILT<WV2> 		1-53459-546-1 01 1 9002-9306 ● ●
222 NUT; PLATE FIX
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9002-9306 ● ●
223 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 9002-9306 ● ●
224 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=22 		9-09160-610-0 01 1 9002-9306 ● ●
225 SPRING
AUTO CAB TILT<WV2> 		1-09580-400-0 01 1 9002-9306 ● ●
226 RUBBER; BUFFER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-539-0 02 1 9002- ● ● ● ●
227 BOLT; BUFFER RUBBER ROD
EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER 		9-01970-825-0 08 1 9002-9005 ● ● ● ●
227 BOLT; BUFFER RUBBER ROD
EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER 		0-50140-825-0 08 1 9006- ● ● ● ●
227 BOLT; BUFFER RUBBER ROD
CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9002-9306 ● ● ●
227 BOLT; BUFFER RUBBER ROD
CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9307- ●
228 WASHER; PL 1-09503-152-0 02 1 9002- ● ● ● ●
229 NUT
CAB SUSPENSION RIGID<W71> M10 		9-09110-510-0 08 1 9002-9306 ● ● ●
229 NUT
CAB SUSPENSION RIGID<W71> M10 		9-09110-510-0 08 1 9307- ●
230 NUT
M14 		9-99110-514-0 02 1 9002- ● ● ● ●
231 PIN; CAB HOOK 1-53459-375-0 02 1 9002- ● ● ● ●
232 BUSHING; COLLAR 5-33659-053-0 04 1 9002- ● ● ● ●
233 COLLAR; CAB HOOK 1-53459-376-0 02 1 9002- ● ● ● ●
234 RING; SNAP 1-09588-032-0 02 1 9002- ● ● ● ●
235 ROLLER; GUIDE 1-53459-377-0 02 1 9002- ● ● ● ●
236 PIN; SPR,ROLLER 1-09748-018-0 02 1 9002- ● ● ● ●
237 ROD ASM; LATERAL
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-337-5 02 1 9002-9012 ● ● ● ●
237 ROD ASM; LATERAL
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-730-1 02 1 9101-9207 ● ● ● ●
237 ROD ASM; LATERAL
EXC. CAB SUSPENSION RIGID<W71> 		1-53458-288-0 02 1 9208- ● ● ● ●
238 BRACKET; BUFFER,RH
AUTO CAB TILT<WV2> 		1-53459-545-1 01 1 9002-9306 ● ●
238 BRACKET; BUFFER,RH
EXC. AUTO CAB TILT<WV2>,CAB SUSPENSION RIGID<W71> 		1-53459-330-4 01 1 9002-9108 ● ● ● ●
238 BRACKET; BUFFER,RH
EXC. AUTO CAB TILT<WV2>,CAB SUSPENSION RIGID<W71> 		1-53458-292-0 01 1 9109-9306 ● ● ● ●
238 BRACKET; BUFFER,RH
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-329-4 01 1 9002-9108 ● ● ● ●
238 BRACKET; BUFFER,RH
EXC. CAB SUSPENSION RIGID<W71> 		1-53458-291-0 01 1 9109-9306 ● ● ● ●
238 BRACKET; BUFFER,RH 1-53458-292-0 01 1 9307- ●
238 BRACKET; BUFFER,RH
EXC. CAB SUSPENSION RIGID<W71> 		1-53458-292-0 01 1 9307- ●
238 BRACKET; BUFFER,RH 1-53458-291-0 01 1 9307- ●
238 BRACKET; BUFFER,RH
EXC. CAB SUSPENSION RIGID<W71> 		1-53458-291-0 01 1 9307- ●
239 BUSHING; BRKT,BUFFER
AUTO CAB TILT<WV2> 		1-09330-055-0 01 1 9002-9306 ● ●
240 WASHER; PL,BRKT
EXC. CAB SUSPENSION RIGID<W71> ID=12.5 		9-09160-512-0 04 1 9002- ● ● ● ●
242 BRACKET; LATERAL ROD
EXC. CAB SUSPENSION RIGID<W71> 		1-53454-224-2 01 1 9002- ● ● ● ●
242 BRACKET; LATERAL ROD
EXC. CAB SUSPENSION RIGID<W71> 		1-53454-223-2 01 1 9002- ● ● ● ●
243 WASHER; LK,LATERAL ROD
EXC. CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-512-0 04 1 9002- ● ● ● ●
244 NUT; LATERAL ROD
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 04 1 9002-9304 ● ● ● ●
244 NUT; LATERAL ROD
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 04 1 9305- ● ● ● ●
247 PROTECTOR ASM; HEAT
EXC. CAB SUSPENSION RIGID<W71> 		1-79930-378-6 01 1 9002- ● ● ● ●
248 BOLT; HEAT PROTECTOR
EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9002-9009 ● ● ● ●
248 BOLT; HEAT PROTECTOR
EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9010- ● ● ● ●
249 NUT; PROTECTOR
EXC. CAB SUSPENSION RIGID<W71> M10 		9-09110-410-0 04 1 9002-9009 ● ● ● ●
249 NUT; PROTECTOR
EXC. CAB SUSPENSION RIGID<W71> M10 		9-09110-510-0 02 1 9010- ● ● ● ●
250 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ● ● ● ●
333 SPRING
CAB SUSPENSION RIGID<W71> 		1-09580-350-1 01 1 9002-9306 ● ● ●
333 SPRING
CAB SUSPENSION RIGID<W71> 		1-09580-350-1 01 1 9307- ●

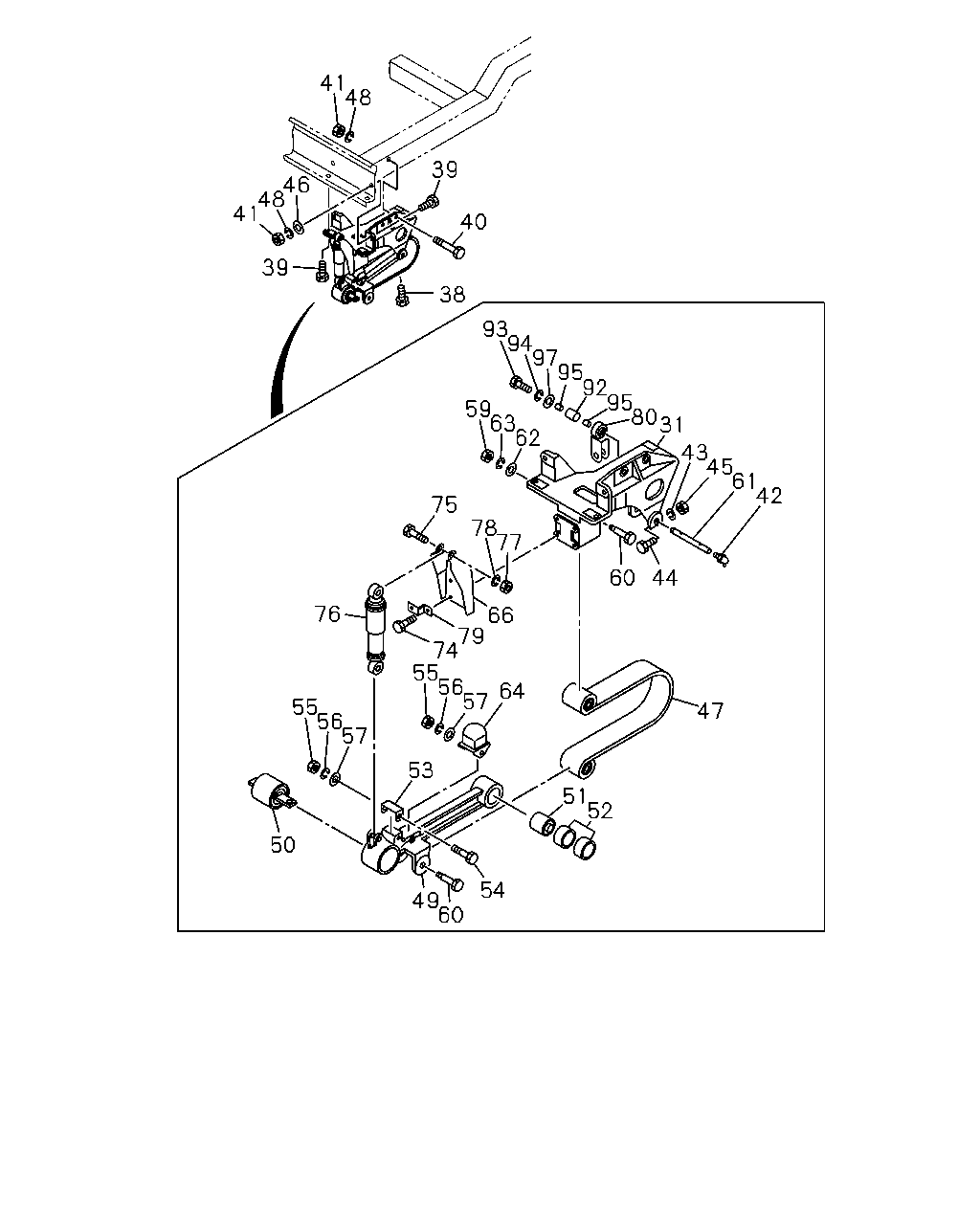

çizim 5039
60 54 49 50 53 57 56 55 55 56 57 64 47 51 52 74 79 66 76 75 78 77 60 44 42 61 45 43 31 80 95 92 95 97 94 93 59 63 62 38 40 39 48 41 46 48 41 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 BRACKET; CAB
EXC. CAB SUSPENSION RIGID<W71> 		1-53453-033-4 01 1 9002- ● ● ● ●
31 BRACKET; CAB
EXC. CAB SUSPENSION RIGID<W71> 		1-53453-032-4 01 1 9002- ● ● ● ●
38 BOLT; CAB TO BRKT,RR
EXC. CAB SUSPENSION RIGID<W71> M10X35 W/LK WASHER 		0-50041-035-0 02 1 9002- ● ● ● ●
39 BOLT; CAB TO BRKT
EXC. CAB SUSPENSION RIGID<W71> M10X30 		1-09980-546-0 08 1 9002- ● ● ● ●
40 BOLT; CAB TO BRKT
EXC. CAB SUSPENSION RIGID<W71> M10X100 		1-09980-547-0 04 1 9002- ● ● ● ●
41 NUT
EXC. CAB SUSPENSION RIGID<W71> M10 		9-09110-410-0 08 1 9002- ● ● ● ●
42 NIPPLE; GREASE
EXC. CAB SUSPENSION RIGID<W71> PT1/8 ELBOW 		9-09031-210-0 02 1 9002- ● ● ● ●
43 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=8.2 		9-09150-508-0 02 1 9002- ● ● ● ●
44 BOLT; PIN LOCK
EXC. CAB SUSPENSION RIGID<W71> 		9-01050-850-0 02 1 9002-9005 ● ● ● ●
44 BOLT; PIN LOCK
EXC. CAB SUSPENSION RIGID<W71> M8X50 		0-10810-850-0 02 1 9006- ● ● ● ●
45 NUT
EXC. CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9002- ● ● ● ●
46 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=10.2 		9-09150-510-0 04 1 9002- ● ● ● ●
47 SPRING; LEAF,"U"
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9002-9106 ● ●
47 SPRING; LEAF,"U"
HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9002-9106 ● ●
47 SPRING; LEAF,"U"
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9107-9209 ● ●
47 SPRING; LEAF,"U"
HONG KONG EQUIPMENT(PQ1),CHINA TIBET EQUIPMENT(WD1),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9107-9209 ● ●
47 SPRING; LEAF,"U"
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9210-9306 ● ●
47 SPRING; LEAF,"U"
HONG KONG EQUIPMENT(PQ1),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9210-9306 ● ●
47 SPRING; LEAF,"U" 1-53459-387-4 02 1 9307- ●
47 SPRING; LEAF,"U"
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-387-4 02 1 9307- ●
47 SPRING; LEAF,"U"
EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID<W71> 		1-53459-395-4 02 1 9002-9106 ● ●
47 SPRING; LEAF,"U"
EXC. HONG KONG EQUIPMENT(PQ1),CHINA TIBET EQUIPMENT(WD1),TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID<W71>,CHINA EQUIPMENT(YT2) 		1-53459-395-4 02 1 9107-9306 ● ●
47 SPRING; LEAF,"U"
TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID<W71> 		1-53459-640-0 02 1 9210-9306 ●
48 WASHER; PL
EXC. CAB SUSPENSION RIGID<W71> ID=10.5 OD=26 		9-09160-710-0 04 1 9002- ● ● ● ●
49 ARM; LINK
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-297-2 02 1 9002- ● ● ● ●
50 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-308-2 02 1 9002-9004 ● ● ● ●
50 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-974-0 02 1 9005-9108 ● ● ● ●
50 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-53458-293-1 02 1 9109- ● ● ● ●
51 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-315-2 02 1 9002- ● ● ● ●
52 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-09330-068-0 04 1 9002- ● ● ● ●
53 RUBBER; STOPPER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-314-0 02 1 9002- ● ● ● ●
54 BOLT; RUBBER
EXC. CAB SUSPENSION RIGID<W71> M8X70 		9-01055-870-0 04 1 9002-9005 ● ● ● ●
54 BOLT; RUBBER
EXC. CAB SUSPENSION RIGID<W71> M8X70 		0-10805-870-0 04 1 9006- ● ● ● ●
55 NUT; RUBBER
EXC. CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 04 1 9002- ● ● ● ●
56 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=8.2 		9-09150-508-0 04 1 9002- ● ● ● ●
57 WASHER; PL
EXC. CAB SUSPENSION RIGID<W71> ID=8.4 		9-09160-508-0 08 1 9002- ● ● ● ●
59 NUT
EXC. CAB SUSPENSION RIGID<W71> M10 		9-09110-410-0 04 1 9002- ● ● ● ●
60 PIN; "U" LEAF SPRING
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-307-3 04 1 9002- ● ● ● ●
61 PIN; BRKT TO LINK ARM
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-540-0 02 1 9002- ● ● ● ●
62 WASHER; PL
EXC. CAB SUSPENSION RIGID<W71> ID=10.5 OD=18 		9-09160-510-0 04 1 9002- ● ● ● ●
63 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=10.2 		9-09150-510-0 04 1 9002- ● ● ● ●
64 RUBBER; CUSHION 1-53366-089-0 02 1 9002-9010 ●
64 RUBBER; CUSHION
EXC. CAB SUSPENSION RIGID<W71> 		1-53366-089-0 02 1 9002-9010 ● ● ●
64 RUBBER; CUSHION
EXC. CAB SUSPENSION RIGID<W71> 		1-53366-122-0 02 1 9011-9404 ● ● ● ●
64 RUBBER; CUSHION 1-53366-110-0 02 1 9405- ●
64 RUBBER; CUSHION
EXC. CAB SUSPENSION RIGID<W71> 		1-53366-110-0 02 1 9405- ●
66 BRACKET; S/ABS
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-305-2 02 1 9002- ● ● ● ●
74 BOLT; BRKT FIX
M8X22 		9-01910-822-0 08 1 9002-9005 ●
74 BOLT; BRKT FIX
EXC. CAB SUSPENSION RIGID<W71> M8X22 		9-01910-822-0 08 1 9002-9005 ● ● ●
74 BOLT; BRKT FIX
EXC. CAB SUSPENSION RIGID<W71> M8X22 W/LK WASHER 		0-50040-822-0 08 1 9006- ● ● ● ●
75 BOLT; S/ABS
M12X60 		9-91056-260-0 04 1 9002-9005 ●
75 BOLT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12X60 		9-91056-260-0 04 1 9002-9005 ● ● ●
75 BOLT; S/ABS
EXC. CAB SUSPENSION RIGID<W71> M12X60 		0-10806-260-0 04 1 9006- ● ● ● ●
76 ABSORBER ASM; SHOCK
EXC. CAB SUSPENSION RIGID<W71> 		1-51630-151-0 02 1 9002-9404 ● ● ● ●
76 ABSORBER ASM; SHOCK 1-51630-449-1 02 1 9405- ●
76 ABSORBER ASM; SHOCK
EXC. CAB SUSPENSION RIGID<W71> 		1-51630-449-1 02 1 9405- ●
77 NUT
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 04 1 9002-9306 ● ● ● ●
77 NUT
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-412-0 04 1 9307- ●
78 WASHER; LK
EXC. CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-512-0 04 1 9002- ● ● ● ●
79 BRACKET; FLEX SHAFT 1-83129-033-1 02 1 9002-9209 ●
79 BRACKET; FLEX SHAFT
EXC. CHINA TIBET EQUIPMENT(WD1),TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID<W71>,CHINA EQUIPMENT(YT2) 		1-83129-033-1 02 1 9002-9209 ● ●
79 BRACKET; FLEX SHAFT 1-83129-033-1 02 1 9210-9306 ●
79 BRACKET; FLEX SHAFT
EXC. CHINA TIBET EQUIPMENT(WD1),CAB SUSPENSION RIGID<W71>,CHINA EQUIPMENT(YT2) 		1-83129-033-1 02 1 9210-9306 ● ●
79 BRACKET; FLEX SHAFT 1-83129-033-1 02 1 9307- ●
79 BRACKET; FLEX SHAFT
EXC. CAB SUSPENSION RIGID<W71> 		1-83129-033-1 02 1 9307- ●
80 LINK ASM; STABILIZER
EXC. CAB SUSPENSION RIGID<W71> W/BUSHING 		1-53459-608-0 02 1 9002- ● ● ● ●
92 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-53459-417-2 02 1 9002- ● ● ● ●
93 BOLT; PIN
EXC. CAB SUSPENSION RIGID<W71> 		1-09000-354-0 02 1 9002- ● ● ● ●
94 WASHER; DISH 1-09500-007-0 02 1 9002-9105 ●
94 WASHER; DISH
EXC. CAB SUSPENSION RIGID<W71> 		1-09500-007-0 02 1 9002-9105 ● ● ●
94 WASHER; DISH
EXC. CAB SUSPENSION RIGID<W71> 		1-09500-028-0 02 1 9106- ● ● ● ●
95 BUSHING; RUBBER
EXC. CAB SUSPENSION RIGID<W71> 		1-09330-069-0 04 1 9002- ● ● ● ●
97 WASHER; PL
EXC. CAB SUSPENSION RIGID<W71> ID=17 		9-09160-516-0 02 1 9002- ● ● ● ●

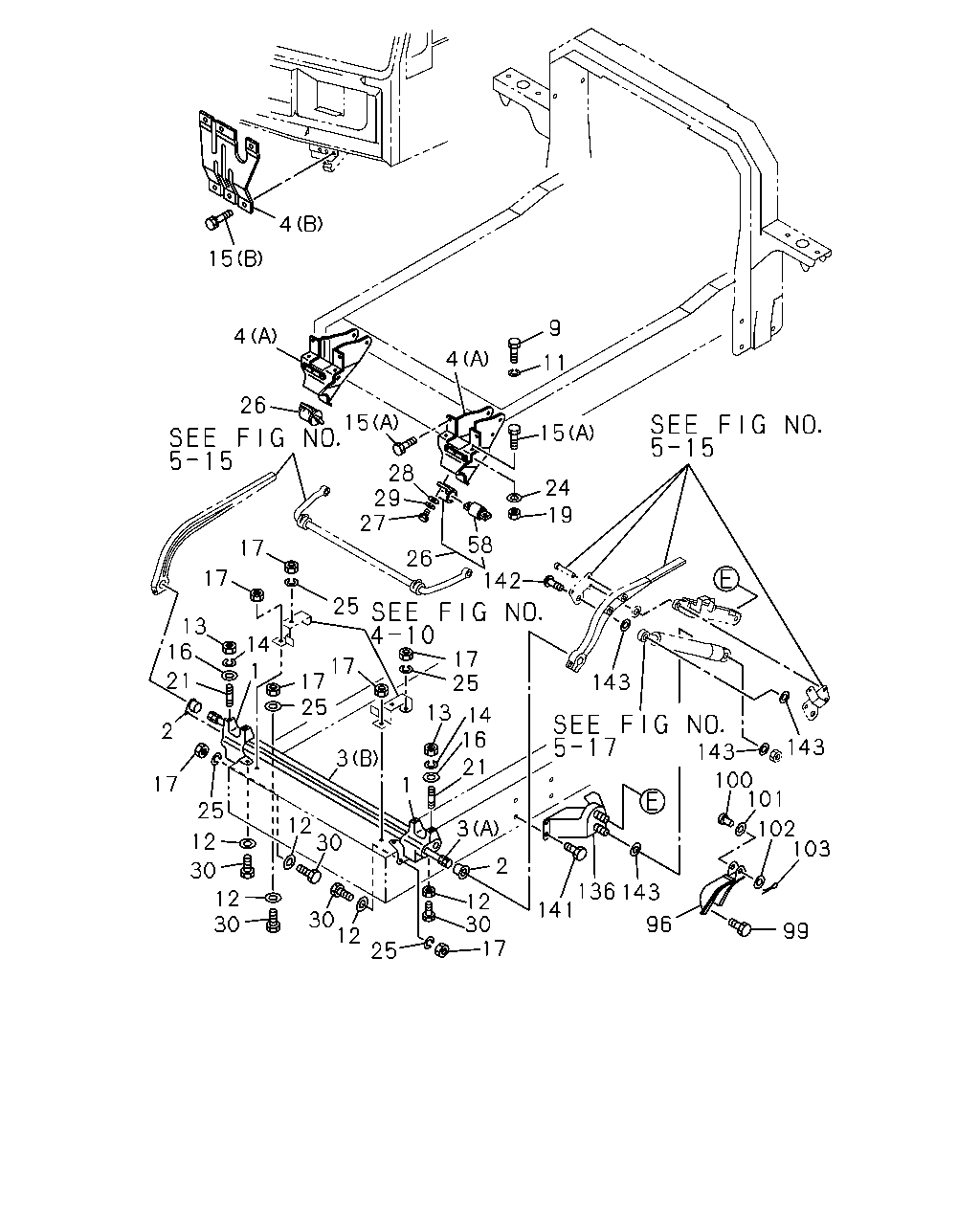

çizim 6321
99 96 143 136 141 17 30 12 2 3 25 12 30 30 12 30 12 25 12 30 3 17 2 21 16 13 14 1 17 25 17 25 17 17 17 25 13 14 16 21 1 143 143 143 100 101 102 103 19 24 58 26 27 29 28 142 26 4 15 4 9 11 15 4 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BRACKET; CAB MTG 1-53453-036-4 02 1 9002- ● ●
1 BRACKET; CAB MTG 1-53453-037-3 02 1 9002- ● ●
2 BUSHING; TORSION BAR 1-53459-837-0 02 1 9002- ● ● ● ●
3 TORSION BAR
(A) 		1-09585-089-1 01 1 9002- ● ● ● ●
3 TORSION BAR
(B) 		1-09585-090-1 01 1 9002- ● ● ● ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (A) 		1-62570-829-7 01 1 9002-9306 ● ● ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (B) 		1-62570-845-2 01 1 9002-9306 ● ● ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (A) 		1-62570-828-8 01 1 9002-9306 ● ● ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (B) 		1-62570-844-2 01 1 9002-9306 ● ● ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (A) 		1-62570-829-7 01 1 9307- ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (B) 		1-62570-845-2 01 1 9307- ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (A) 		1-62570-828-8 01 1 9307- ●
4 BRACKET; FRT MTG
CAB SUSPENSION RIGID<W71> (B) 		1-62570-844-2 01 1 9307- ●
9 BOLT
CAB SUSPENSION RIGID<W71> M10X100 		1-09980-547-0 02 1 9002-9306 ● ● ●
9 BOLT
CAB SUSPENSION RIGID<W71> M10X100 		1-09980-547-0 02 1 9307- ●
11 WASHER; LK
CAB SUSPENSION RIGID<W71> ID=10 		1-09985-180-0 02 1 9002-9306 ● ● ●
11 WASHER; LK
CAB SUSPENSION RIGID<W71> ID=10 		1-09985-180-0 02 1 9307- ●
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 10 1 9002- ● ● ● ●
13 NUT; BUSHING TO STUD
EXC. CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 04 1 9002- ● ● ● ●
13 NUT; BUSHING TO STUD
CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 08 1 9002-9306 ● ● ●
13 NUT; BUSHING TO STUD
CAB SUSPENSION RIGID<W71> M12 		9-99110-512-0 08 1 9307- ●
14 WASHER; LK,STUD
EXC. CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-612-0 04 1 9002- ● ● ● ●
15 BOLT; SET
CAB SUSPENSION RIGID<W71> (A) M10X25 W/LK&PL WASHER 		1-09980-488-0 10 1 9002-9306 ● ● ●
15 BOLT; SET
CAB SUSPENSION RIGID<W71> (B) M8X20 W/LK&PL WASHER 		1-09980-512-0 12 1 9002-9306 ● ● ●
15 BOLT; SET
CAB SUSPENSION RIGID<W71> (A) M10X25 W/LK&PL WASHER 		1-09980-488-0 10 1 9307- ●
15 BOLT; SET
CAB SUSPENSION RIGID<W71> (B) M8X20 W/LK&PL WASHER 		1-09980-512-0 12 1 9307- ●
16 WASHER; PL,STUD
ID=12.5 		1-09503-171-0 04 1 9002- ● ● ● ●
17 NUT; BRKT,CAB TILT
M14 		9-99110-514-0 10 1 9002- ● ● ● ●
17 NUT; BRKT,CAB TILT
M12 		1-09468-012-1 01 1 9307- ●
19 NUT
CAB SUSPENSION RIGID<W71> M10 		1-09984-121-0 02 1 9002-9306 ● ● ●
19 NUT
CAB SUSPENSION RIGID<W71> M10 		1-09984-121-0 02 1 9307- ●
21 STUD; BRKT,CAB TILT
EXC. CAB SUSPENSION RIGID<W71> 		9-94321-235-0 04 1 9002-9306 ● ● ● ●
21 STUD; BRKT,CAB TILT 9-94321-235-0 04 1 9307- ●
21 STUD; BRKT,CAB TILT
EXC. CAB SUSPENSION RIGID<W71> 		9-94321-235-0 04 1 9307- ●
21 STUD; BRKT,CAB TILT
CAB SUSPENSION RIGID<W71> 		1-09302-113-0 04 1 9002-9306 ● ● ●
21 STUD; BRKT,CAB TILT
CAB SUSPENSION RIGID<W71> 		1-09302-113-0 04 1 9307- ●
24 WASHER; PL
CAB SUSPENSION RIGID<W71> ID=10.5 OD=18 		1-09985-173-0 02 1 9002-9306 ● ● ●
24 WASHER; PL
CAB SUSPENSION RIGID<W71> ID=10.5 OD=18 		1-09985-173-0 02 1 9307- ●
25 WASHER; LK,BRKT,CAB TILT
ID=14.2 		9-09150-614-0 10 1 9002- ● ● ● ●
26 BUSHING; RUBBER
CAB SUSPENSION RIGID<W71> 		1-53459-455-1 01 1 9002-9306 ● ● ●
26 BUSHING; RUBBER
CAB SUSPENSION RIGID<W71> 		1-53459-454-1 01 1 9002-9306 ● ● ●
26 BUSHING; RUBBER
CAB SUSPENSION RIGID<W71> 		1-53459-455-1 01 1 9307- ●
26 BUSHING; RUBBER
CAB SUSPENSION RIGID<W71> 		1-53459-454-1 01 1 9307- ●
27 BOLT; BUSHING
CAB SUSPENSION RIGID<W71> M12X30 		1-09000-470-0 04 1 9002-9306 ● ● ●
27 BOLT; BUSHING
CAB SUSPENSION RIGID<W71> M12X30 		1-09000-470-0 04 1 9307- ●
28 WASHER; BUSHING
CAB SUSPENSION RIGID<W71> ID=12.2 		1-09503-224-0 04 1 9002-9306 ● ● ●
28 WASHER; BUSHING
CAB SUSPENSION RIGID<W71> ID=12.2 		1-09503-224-0 04 1 9307- ●
29 WASHER; LK,BUSHING
CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-812-0 04 1 9002-9306 ● ● ●
29 WASHER; LK,BUSHING
CAB SUSPENSION RIGID<W71> ID=12.2 		9-09150-812-0 04 1 9307- ●
30 BOLT; CAB FRT FOOT
M14X75 		1-09000-292-0 02 1 9002-9306 ●
30 BOLT; CAB FRT FOOT
EXC. CAB SUSPENSION RIGID<W71> M14X75 		1-09000-292-0 02 1 9002-9306 ● ● ●
30 BOLT; CAB FRT FOOT
M14X55 		9-91066-455-0 02 1 9002-9306 ●
30 BOLT; CAB FRT FOOT
EXC. CAB SUSPENSION RIGID<W71> M14X55 		9-91066-455-0 02 1 9002-9306 ● ● ●
30 BOLT; CAB FRT FOOT
M14X50 		9-91066-450-0 06 1 9002- ● ● ● ●
30 BOLT; CAB FRT FOOT
M14X75 		1-09000-292-0 02 1 9307- ●
30 BOLT; CAB FRT FOOT
EXC. CAB SUSPENSION RIGID<W71> M14X75 		1-09000-292-0 02 1 9307- ●
30 BOLT; CAB FRT FOOT
M14X55 		9-91066-455-0 02 1 9307- ●
30 BOLT; CAB FRT FOOT
EXC. CAB SUSPENSION RIGID<W71> M14X55 		9-91066-455-0 02 1 9307- ●
30 BOLT; CAB FRT FOOT
CAB SUSPENSION RIGID<W71> M14X55 		9-91066-455-0 04 1 9002-9306 ● ● ●
30 BOLT; CAB FRT FOOT
CAB SUSPENSION RIGID<W71> M14X55 		9-91066-455-0 04 1 9307- ●
58 BUSHING; RUBBER
CAB SUSPENSION RIGID<W71> 		1-53459-537-0 02 1 9002-9306 ● ● ●
58 BUSHING; RUBBER
CAB SUSPENSION RIGID<W71> 		1-53459-537-0 02 1 9307- ●
96 BRACKET; CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-53459-622-0 01 1 9002- ● ●
96 BRACKET; CAB STAY 1-53459-622-0 01 1 9002- ● ●
99 BOLT; BRKT
EXC. AUTO CAB TILT<WV2> M12X35 		9-01911-235-0 04 1 9002-9005 ● ●
99 BOLT; BRKT
M12X35 		9-01911-235-0 04 1 9002-9005 ● ●
99 BOLT; BRKT
EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006- ● ●
99 BOLT; BRKT
M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006- ● ●
100 PIN; JOINT
EXC. AUTO CAB TILT<WV2> 		9-08234-455-0 01 1 9002- ● ●
100 PIN; JOINT 9-08234-455-0 01 1 9002- ● ●
101 WASHER; WAVE
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9002- ● ●
101 WASHER; WAVE
ID=15 OD=25 		8-11053-111-0 01 1 9002- ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9002- ● ●
102 WASHER; PL,CAB STAY
ID=15 		9-09160-514-0 01 1 9002- ● ●
103 PIN; SPLIT,CAB STAY
EXC. AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 01 1 9002- ● ●
103 PIN; SPLIT,CAB STAY
OD=3.7 L=25 		9-08114-025-0 01 1 9002- ● ●
136 BRACKET; OIL CYL
AUTO CAB TILT<WV2> 		1-53459-378-3 01 1 9002-9306 ● ●
141 BOLT; BRKT
AUTO CAB TILT<WV2> M12X45 		9-91066-245-0 04 1 9002-9306 ● ●
142 PIN; OIL CYL,UPR
AUTO CAB TILT<WV2> 		1-53459-352-0 01 1 9002-9306 ● ●
143 SPACER; OIL CYL,LWR
AUTO CAB TILT<WV2> 		1-53459-463-0 04 1 9002-9306 ● ●
çizim 37850
138
BalonParca AdiParca NoAdetTipApplied Date A B C D
138 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=12.2 		9-09150-612-0 04 1 9002-9306 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
