6-35 — FRONT DOOR TRIM (#30478) — 165 parça

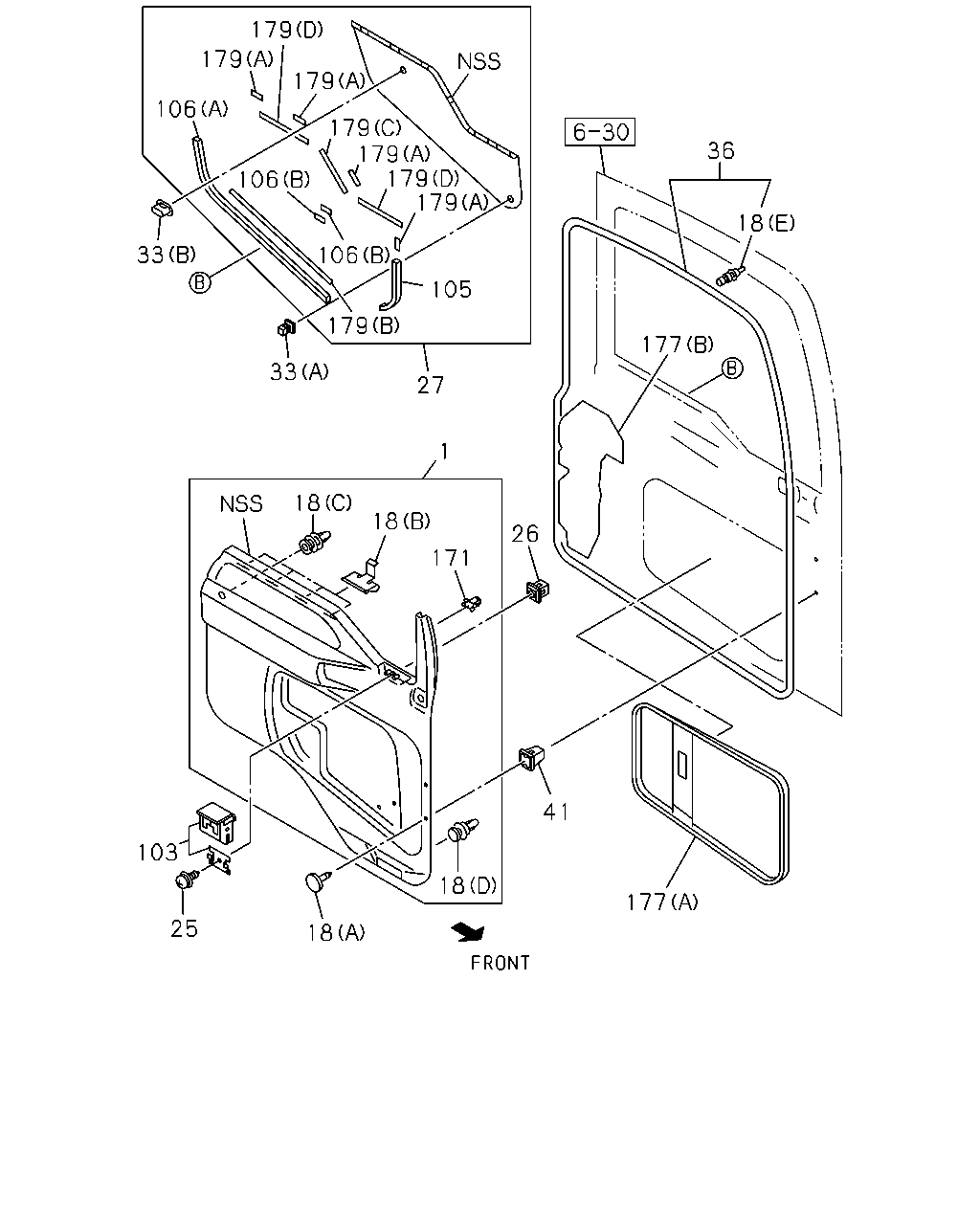

179 179 179 106 179 179 179 179 36 106 18 33 106 105 179 177 33 27 1 18 18 26 171 41 103 18 177 25 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR 6WG1 TC-S(97L)	1-73337-506-1	01	1	0512-0703
1	PAD; TRIM,FRT DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-73337-506-1	01	1	0704-
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-539-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-516-1	01	1	0703-
1	PAD; TRIM,FRT DOOR	1-73337-506-0	01	1	0407-0511
1	PAD; TRIM,FRT DOOR 6WF1 TC-C(1B8)	1-73337-509-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR 6WF1 TC-C(1B8)	1-73337-513-1	01	1	0703-
1	PAD; TRIM,FRT DOOR	1-73337-511-0	01	1	0407-0511
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-511-1	01	1	0512-
18	CLIP; DOOR PAD 6WG1 TC-S(97L) (B)	1-09987-262-0	04	1	0512-0703
18	CLIP; DOOR PAD 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-09987-262-0	04	1	0704-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0512-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0407-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0407-
18	CLIP; DOOR PAD (B)	1-09987-262-0	09	1	0407-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8) (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0407-0511
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0512-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	02	1	0407-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) OD=7.9 BLACK	8-94279-974-1	01	1	0512-0703
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0512-0703
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0704-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0704-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	10	1	0407-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8),6WG1 TC-S(97L) (D) OD=8.5 GRAY	8-97893-482-0	05	1	0512-0703
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0512-0703
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0704-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0704-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0407-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0407-
27	PANEL; ORNAMENT,DOOR 6WF1 TC-C(1B8)	1-76217-157-3	01	1	0512-
27	PANEL; ORNAMENT,DOOR 6WG1 TC-S(97L)	1-76218-099-7	01	1	0512-0703
27	PANEL; ORNAMENT,DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-76218-099-7	01	1	0704-
27	PANEL; ORNAMENT,DOOR 6WG1 TC-S(97L)	1-76218-125-7	01	1	0512-0703
27	PANEL; ORNAMENT,DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-76218-125-7	01	1	0704-1210
27	PANEL; ORNAMENT,DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-329-0	01	1	1211-
27	PANEL; ORNAMENT,DOOR	1-76218-125-7	01	1	0407-0511
27	PANEL; ORNAMENT,DOOR 6WF1 TC-C(1B8)	1-76217-149-3	01	1	0512-1210
27	PANEL; ORNAMENT,DOOR 6WF1 TC-C(1B8)	8-98229-330-0	01	1	1211-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	0512-0802
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0803-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	0512-
33	GROMMET; DOOR ORNAMENT (A)	1-09983-149-1	01	1	0407-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	0512-0802
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0803-
33	GROMMET; DOOR ORNAMENT (B)	1-74998-111-0	01	1	0407-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	0512-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0407-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-763-0	01	1	1011-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0407-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-764-0	01	1	1011-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0512-
41	GROMMET; SCREW,DOOR PAD OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0407-0511
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0512-
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0407-
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0407-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	01	1	0407-0511
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	02	1	0512-
106	SEAL; DOOR ORNAMENT (C)	8-98226-642-0	01	1	1211-
106	SEAL; DOOR ORNAMENT 6WF1 TC-C(1B8) (B)	1-76218-104-0	04	1	0512-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	01	1	0407-0511
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	02	1	0512-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0407-0511
171	RETAINER; DOOR PAD 6WF1 TC-C(1B8)	1-09987-264-0	01	1	0512-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0512-
177	SEAL; WATER,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-052-2	01	1	0512-
177	SEAL; WATER,DOOR (A)	1-76778-035-5	01	1	0407-0511
177	SEAL; WATER,DOOR (A)	1-76778-035-6	01	1	0512-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0407-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	04	1	0407-0511
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	08	1	0512-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	01	1	0407-0511
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	02	1	0512-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	01	1	0407-0511
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	02	1	0512-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	02	1	0407-0511
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	04	1	0512-

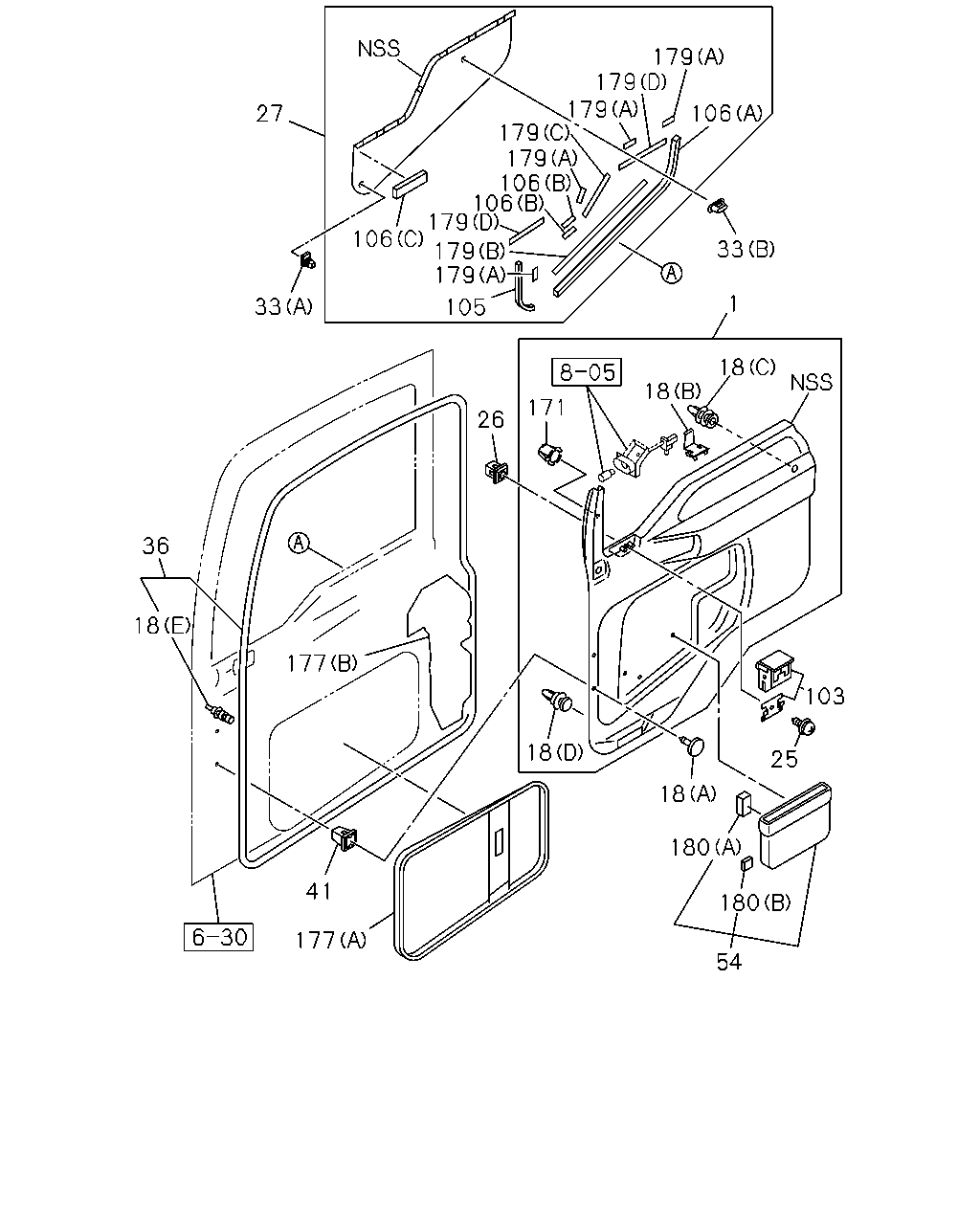

179 179 179 106 179 179 106 106 179 179 179 105 33 1 106 27 33 26 171 18 18 18 18 180 180 54 25 103 177 41 177 18 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR 6WG1 TC-S(97L)	1-73337-506-1	01	1	0512-0703
1	PAD; TRIM,FRT DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-73337-506-1	01	1	0704-
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-539-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-516-1	01	1	0703-
1	PAD; TRIM,FRT DOOR	1-73337-506-0	01	1	0407-0511
1	PAD; TRIM,FRT DOOR 6WF1 TC-C(1B8)	1-73337-509-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR 6WF1 TC-C(1B8)	1-73337-513-1	01	1	0703-
1	PAD; TRIM,FRT DOOR	1-73337-511-0	01	1	0407-0511
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-511-1	01	1	0512-
18	CLIP; DOOR PAD 6WG1 TC-S(97L) (B)	1-09987-262-0	04	1	0512-0703
18	CLIP; DOOR PAD 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-09987-262-0	04	1	0704-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0512-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0407-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0407-
18	CLIP; DOOR PAD (B)	1-09987-262-0	09	1	0407-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8) (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0407-0511
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0512-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	02	1	0407-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) OD=7.9 BLACK	8-94279-974-1	01	1	0512-0703
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0512-0703
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0704-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0704-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	10	1	0407-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8),6WG1 TC-S(97L) (D) OD=8.5 GRAY	8-97893-482-0	05	1	0512-0703
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0512-0703
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0704-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0704-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0407-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0407-
27	PANEL; ORNAMENT,DOOR 6WF1 TC-C(1B8)	1-76217-157-3	01	1	0512-
27	PANEL; ORNAMENT,DOOR 6WG1 TC-S(97L)	1-76218-099-7	01	1	0512-0703
27	PANEL; ORNAMENT,DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-76218-099-7	01	1	0704-
27	PANEL; ORNAMENT,DOOR 6WG1 TC-S(97L)	1-76218-125-7	01	1	0512-0703
27	PANEL; ORNAMENT,DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-76218-125-7	01	1	0704-1210
27	PANEL; ORNAMENT,DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-329-0	01	1	1211-
27	PANEL; ORNAMENT,DOOR	1-76218-125-7	01	1	0407-0511
27	PANEL; ORNAMENT,DOOR 6WF1 TC-C(1B8)	1-76217-149-3	01	1	0512-1210
27	PANEL; ORNAMENT,DOOR 6WF1 TC-C(1B8)	8-98229-330-0	01	1	1211-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	0512-0802
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0803-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	0512-
33	GROMMET; DOOR ORNAMENT (A)	1-09983-149-1	01	1	0407-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	0512-0802
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0803-
33	GROMMET; DOOR ORNAMENT (B)	1-74998-111-0	01	1	0407-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	0512-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0407-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-763-0	01	1	1011-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0407-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-764-0	01	1	1011-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0512-
41	GROMMET; SCREW,DOOR PAD OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0407-0511
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0512-
54	BOX; FRT DOOR	1-72537-177-0	01	1	0407-0511
54	BOX; FRT DOOR 6WG1 TC-S(97L)	1-72537-177-0	01	1	0512-0703
54	BOX; FRT DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-72537-177-0	01	1	0704-
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0407-
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0407-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	01	1	0407-0511
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	02	1	0512-
106	SEAL; DOOR ORNAMENT (C)	8-98226-642-0	01	1	1211-
106	SEAL; DOOR ORNAMENT 6WF1 TC-C(1B8) (B)	1-76218-104-0	04	1	0512-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	01	1	0407-0511
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	02	1	0512-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0407-0511
171	RETAINER; DOOR PAD 6WF1 TC-C(1B8)	1-09987-264-0	01	1	0512-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0512-
177	SEAL; WATER,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-052-2	01	1	0512-
177	SEAL; WATER,DOOR (A)	1-76778-035-5	01	1	0407-0511
177	SEAL; WATER,DOOR (A)	1-76778-035-6	01	1	0512-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0407-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	04	1	0407-0511
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	08	1	0512-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	01	1	0407-0511
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	02	1	0512-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	01	1	0407-0511
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	02	1	0512-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	02	1	0407-0511
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	04	1	0512-
180	SEAL; BOX (A) 5X10X30	1-72538-153-1	02	1	0407-0511
180	SEAL; BOX 6WG1 TC-S(97L) (A) 5X10X30	1-72538-153-1	02	1	0512-0703
180	SEAL; BOX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 5X10X30	1-72538-153-1	02	1	0704-
180	SEAL; BOX (B) 15X30	1-74998-069-0	02	1	0407-0511
180	SEAL; BOX 6WG1 TC-S(97L) (B) 15X30	1-74998-069-0	02	1	0512-0703
180	SEAL; BOX 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 15X30	1-74998-069-0	02	1	0704-
