◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#30475) — 29 parça

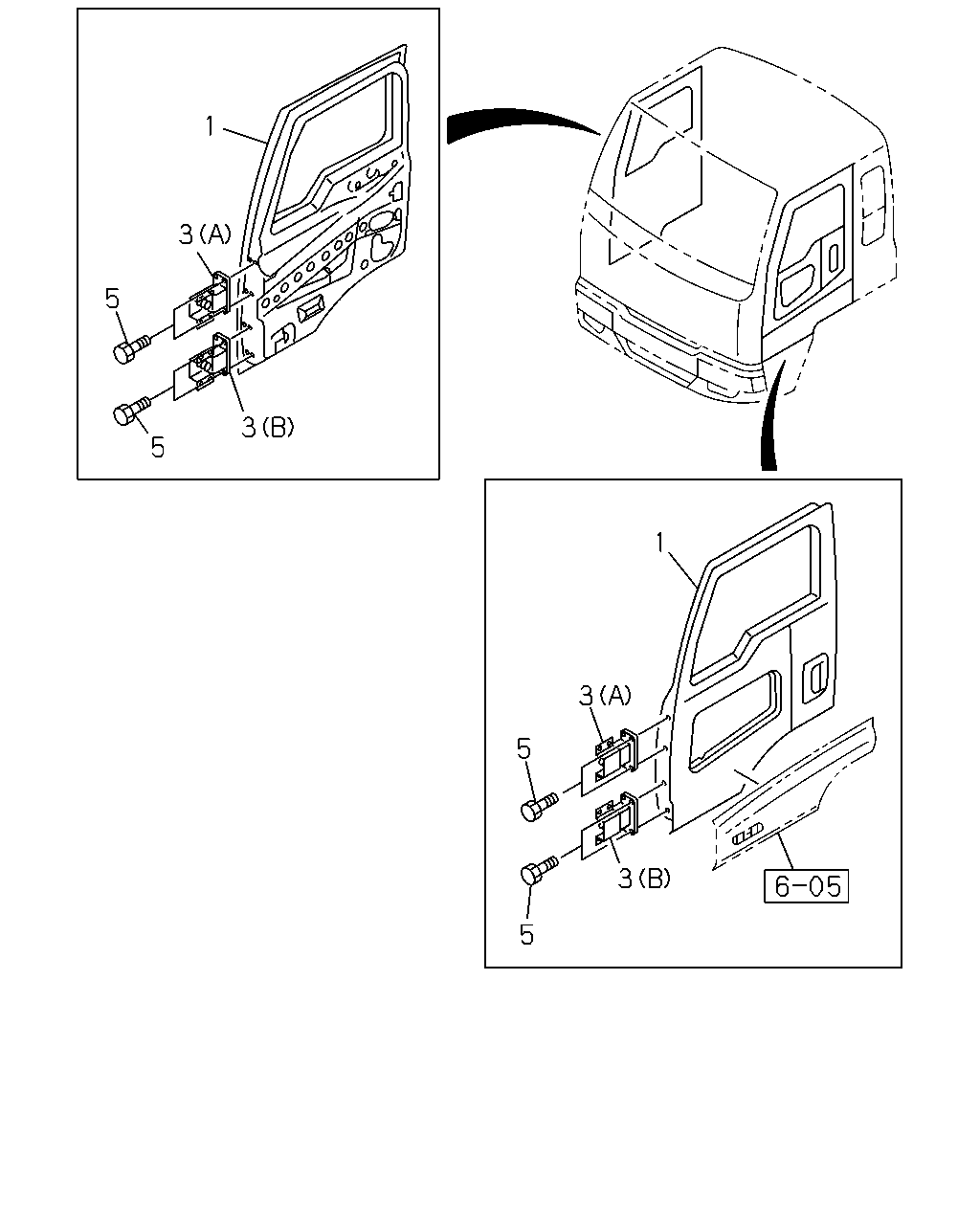

çizim 103879
1 3 5 3 5 1 3 5 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
6WG1 TC-S(97L) 		1-64080-388-2 01 1 0512-0703
1 DOOR ASM; FRT,WO/TRIM
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-64080-388-2 01 1 0704-
1 DOOR ASM; FRT,WO/TRIM
6WG1 TC-S(97L) DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-389-2 01 1 0512-0703
1 DOOR ASM; FRT,WO/TRIM
6WG1 TC-C(72L),6WG1 TC-S(97L) DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-389-2 01 1 0704-
1 DOOR ASM; FRT,WO/TRIM
6WG1 TC-S(97L) EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-2 01 1 0512-0703
1 DOOR ASM; FRT,WO/TRIM
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-2 01 1 0704-
1 DOOR ASM; FRT,WO/TRIM 1-64080-388-2 01 1 0407-0511
1 DOOR ASM; FRT,WO/TRIM
6WF1 TC-C(1B8) 		1-64080-395-2 01 1 0512-
1 DOOR ASM; FRT,WO/TRIM 1-64080-389-2 01 1 0407-0511
1 DOOR ASM; FRT,WO/TRIM
6WF1 TC-C(1B8) 		1-64080-394-2 01 1 0512-
3 HINGE; DOOR FRT
6WG1 TC-S(97L) (A) UPPER 		1-64780-097-1 01 1 0512-0703
3 HINGE; DOOR FRT
6WG1 TC-S(97L) (A) UPPER 		1-64780-097-1 01 1 0512-0703
3 HINGE; DOOR FRT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) UPPER 		1-64780-097-1 01 1 0704-
3 HINGE; DOOR FRT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) UPPER 		1-64780-097-1 01 1 0704-
3 HINGE; DOOR FRT
6WG1 TC-S(97L) (B) LOWER 		1-64780-098-2 01 1 0512-0703
3 HINGE; DOOR FRT
6WG1 TC-S(97L) (B) LOWER 		1-64780-098-2 01 1 0512-0703
3 HINGE; DOOR FRT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) LOWER 		1-64780-098-2 01 1 0704-
3 HINGE; DOOR FRT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) LOWER 		1-64780-098-2 01 1 0704-
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-097-1 02 1 0407-0511
3 HINGE; DOOR FRT
6WF1 TC-C(1B8) (A) UPPER 		1-64780-097-1 02 1 0512-
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-098-2 02 1 0407-0511
3 HINGE; DOOR FRT
6WF1 TC-C(1B8) (B) LOWER 		1-64780-098-2 02 1 0512-
5 BOLT; HINGE
6WG1 TC-S(97L) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0512-0703
5 BOLT; HINGE
6WG1 TC-S(97L) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0512-0703
5 BOLT; HINGE
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0704-
5 BOLT; HINGE
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0704-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 32 1 0407-0511
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0512-
5 BOLT; HINGE
6WF1 TC-C(1B8) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0512-
