5-01 — FRAME AND OTHER PARTS (#3047) — 166 parça

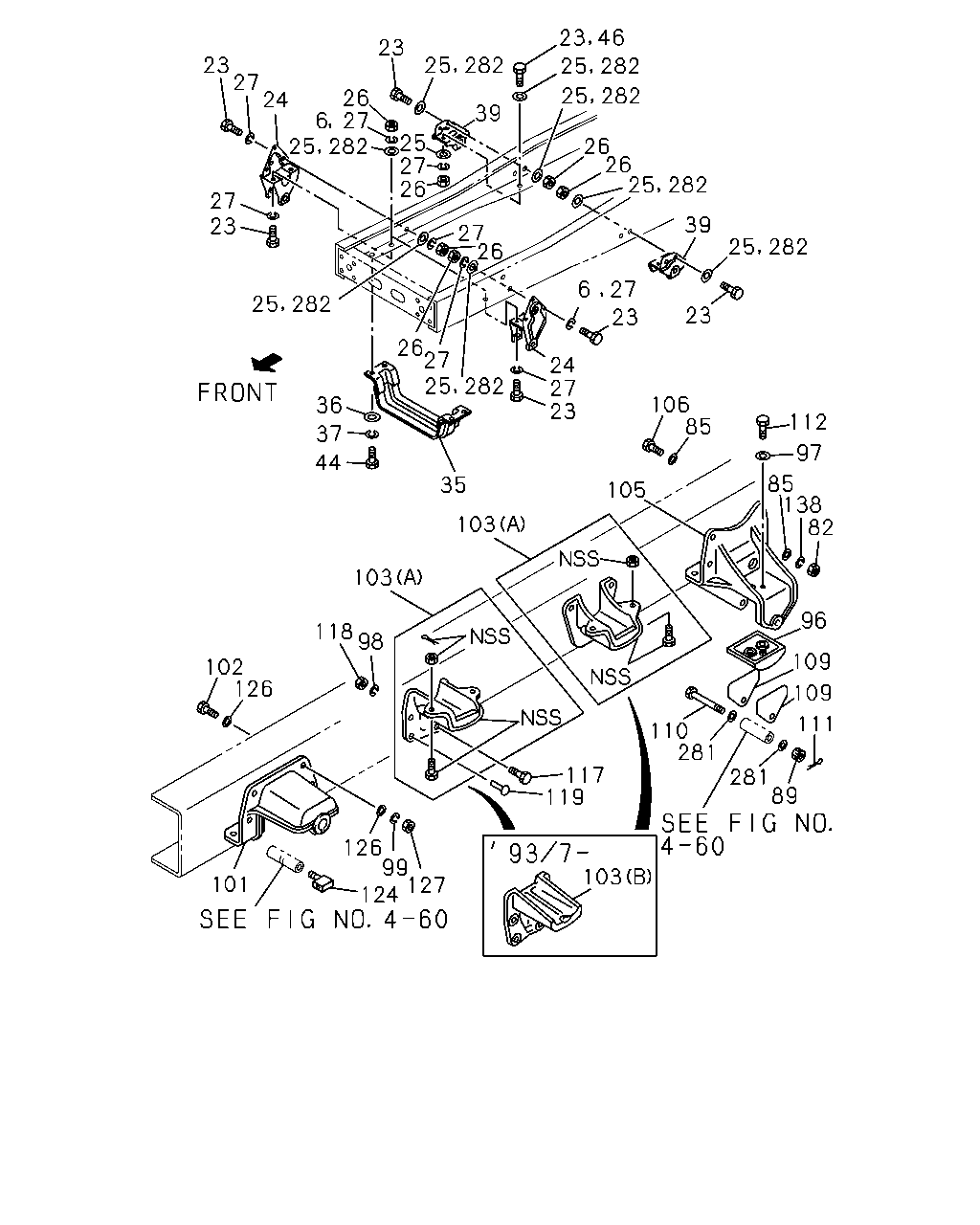

103 127 124 99 126 101 102 126 118 98 103 119 117 110 281 281 89 111 109 109 96 82 138 85 97 112 85 106 105 35 103 44 37 36 26 27 25 282 23 27 24 23 27 6 23 25 282 39 282 25 26 26 282 25 25 282 46 23 282 39 25 23 26 27 25 27 26 27 26 282 25 6 24 27 23 27 23 25 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	WASHER; LK,1ST C/MBR CONCRETE PUMP<RA5> ID=16.2	9-09150-616-0	02	1	9002-	●
23	BOLT; BRKT,SPR MIXER TRUCK<RA2> M14X50	9-91066-450-0	02	1	9002-9104		●
23	BOLT; BRKT,SPR MIXER TRUCK<RA2> M14X40	9-92061-440-0	06	1	9002-9104		●
23	BOLT; BRKT,SPR EXC. MIXER TRUCK<RA2> M14X50	9-91066-450-0	04	1	9002-9104		●
23	BOLT; BRKT,SPR M14X50	9-91066-450-0	04	1	9002-9104	●		●
23	BOLT; BRKT,SPR EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	04	1	9002-9104		●
23	BOLT; BRKT,SPR EXC. CONCRETE PUMP<RA5> M14X40	9-92061-440-0	04	1	9002-9104	●
23	BOLT; BRKT,SPR M14X40	9-92061-440-0	04	1	9002-9104			●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	06	1	9002-9306	●	●	●
23	BOLT; BRKT,SPR CONCRETE PUMP<RA5> M14X45	9-92061-445-0	04	1	9002-9104	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9002-	●		●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9307-	●		●
24	BRACKET; FRT SPR,FRT	1-53351-123-5	01	1	9002-9306	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-122-5	01	1	9002-9306	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-201-0	01	1	9307-9407	●		●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9408-	●		●
24	BRACKET; FRT SPR,FRT	1-53351-202-0	01	1	9307-9407	●		●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9408-	●		●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9002-	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	9002-9104	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9002-9104	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	20	1	9105-9306	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9307-	●		●
26	NUT; BRKT,SPR M14	9-99110-514-0	06	1	9002-9306	●	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9002-	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9307-	●		●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	08	1	9002-9104	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	06	1	9002-9104	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	14	1	9105-9306	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9002-	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	16	1	9307-	●
27	WASHER; LK,BRKT,FRT SPR CVR LONG CHASSIS&RHD(CVR5MF) ID=14.2	9-09150-614-0	16	1	9307-			●
27	WASHER; LK,BRKT,FRT SPR CVR LONG CHASSIS&LHD(CVR6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-614-0	16	1	9307-			●
27	WASHER; LK,BRKT,FRT SPR CVR LONG CHASSIS&LHD(CVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-614-0	14	1	9307-			●
35	MEMBER; UNDER	1-53174-174-1	01	1	9002-9306	●	●	●
35	MEMBER; UNDER	1-53174-188-2	01	1	9307-	●		●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9002-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9002-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-072-5	01	1	9002-9407	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9408-	●		●
39	BRACKET; FRT SPR,RR	1-53352-071-5	01	1	9002-9407	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9408-	●		●
44	BOLT; UNDER MBR M16X50	9-92061-650-0	04	1	9002-	●		●
46	BOLT; BRKT FIX MIXER TRUCK<RA2> M14X50	9-91066-450-0	02	1	9105-9306		●
46	BOLT; BRKT FIX MIXER TRUCK<RA2> M14X40	9-92061-440-0	06	1	9105-9106		●
46	BOLT; BRKT FIX MIXER TRUCK<RA2> M14X45	9-92061-445-0	06	1	9107-9306		●
46	BOLT; BRKT FIX EXC. MIXER TRUCK<RA2> M14X50	9-91066-450-0	04	1	9105-9306		●
46	BOLT; BRKT FIX M14X50	9-91066-450-0	04	1	9105-9306	●		●
46	BOLT; BRKT FIX EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	04	1	9105-9106		●
46	BOLT; BRKT FIX EXC. CONCRETE PUMP<RA5> M14X40	9-92061-440-0	04	1	9105-9106	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	04	1	9105-9106			●
46	BOLT; BRKT FIX EXC. MIXER TRUCK<RA2> M14X45	9-92061-445-0	04	1	9107-9306		●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	04	1	9107-9306	●		●
46	BOLT; BRKT FIX CONCRETE PUMP<RA5> M14X45	9-92061-445-0	04	1	9105-	●
46	BOLT; BRKT FIX CONCRETE PUMP<RA5> M14X50	9-91066-450-0	04	1	9307-	●
46	BOLT; BRKT FIX EXC. CONCRETE PUMP<RA5> M14X45	9-92061-445-0	08	1	9307-	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	9307-			●
82	NUT; BRKT M14	9-99110-514-0	12	1	9002-	●	●	●
85	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9002-	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9002-	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9002-	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9002-	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	08	1	9002-		●	●
98	WASHER; LK,STOPPER EXC. CONCRETE PUMP<RA5> ID=14.2	9-09150-614-0	08	1	9002-	●
98	WASHER; LK,STOPPER CONCRETE PUMP<RA5> ID=14.2	9-09150-614-0	16	1	9307-	●
99	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9002-	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9002-	●	●	●
102	BOLT; BRKT,RR SPR M14X45	9-92061-445-0	12	1	9002-	●	●	●
103	STOPPER; SUB SPR (A)	1-53356-044-0	04	1	9002-		●	●
103	STOPPER; SUB SPR EXC. CONCRETE PUMP<RA5> (A)	1-53356-044-0	04	1	9002-	●
103	STOPPER; SUB SPR CONCRETE PUMP<RA5> (A)	9-53356-020-2	04	1	9002-9110	●
103	STOPPER; SUB SPR CONCRETE PUMP<RA5> (A)	1-53356-053-1	04	1	9111-9306	●
103	STOPPER; SUB SPR CONCRETE PUMP<RA5> (B)	1-53356-057-0	04	1	9307-	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9002-	●	●	●
106	BOLT; BRKT M14X45	9-92061-445-0	12	1	9002-	●	●	●
109	SHIM; RR SPR T=4.5	1-53359-061-1	02	1	9002-	●	●	●
109	SHIM; RR SPR T=3.2	1-53359-062-1	02	1	9002-	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9002-	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9002-	●	●	●
112	BOLT; PAD M14X35	9-92051-435-0	04	1	9002-9005	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9006-	●	●	●
117	BOLT; STOPPER M14X55	9-92061-455-0	08	1	9002-		●	●
117	BOLT; STOPPER EXC. CONCRETE PUMP<RA5> M14X55	9-92061-455-0	08	1	9002-	●
117	BOLT; STOPPER CONCRETE PUMP<RA5> M14X50	9-92061-450-0	16	1	9307-	●
118	NUT; STOPPER M14	9-99110-514-0	08	1	9002-		●	●
118	NUT; STOPPER EXC. CONCRETE PUMP<RA5> M14	9-99110-514-0	08	1	9002-	●
118	NUT; STOPPER CONCRETE PUMP<RA5> M14	9-99110-514-0	16	1	9307-	●
119	RIVET; STOPPER	1-09730-125-0	16	1	9002-9212		●	●
119	RIVET; STOPPER EXC. CONCRETE PUMP<RA5>	1-09730-125-0	16	1	9002-9212	●
119	RIVET; STOPPER	1-09730-094-0	16	1	9301-		●	●
119	RIVET; STOPPER EXC. CONCRETE PUMP<RA5>	1-09730-094-0	16	1	9301-	●
119	RIVET; STOPPER CONCRETE PUMP<RA5>	1-09730-112-0	16	1	9002-9212	●
119	RIVET; STOPPER CONCRETE PUMP<RA5> D13X48	1-09730-092-0	16	1	9301-9306	●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9002-	●	●	●
127	NUT; BRKT M14	9-99110-514-0	12	1	9002-	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9002-	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9002-	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9002-		●	●
282	WASHER; PL,STOPPER EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	16	1	9002-	●
282	WASHER; PL,STOPPER CONCRETE PUMP<RA5> ID=15	9-09651-069-0	32	1	9002-	●

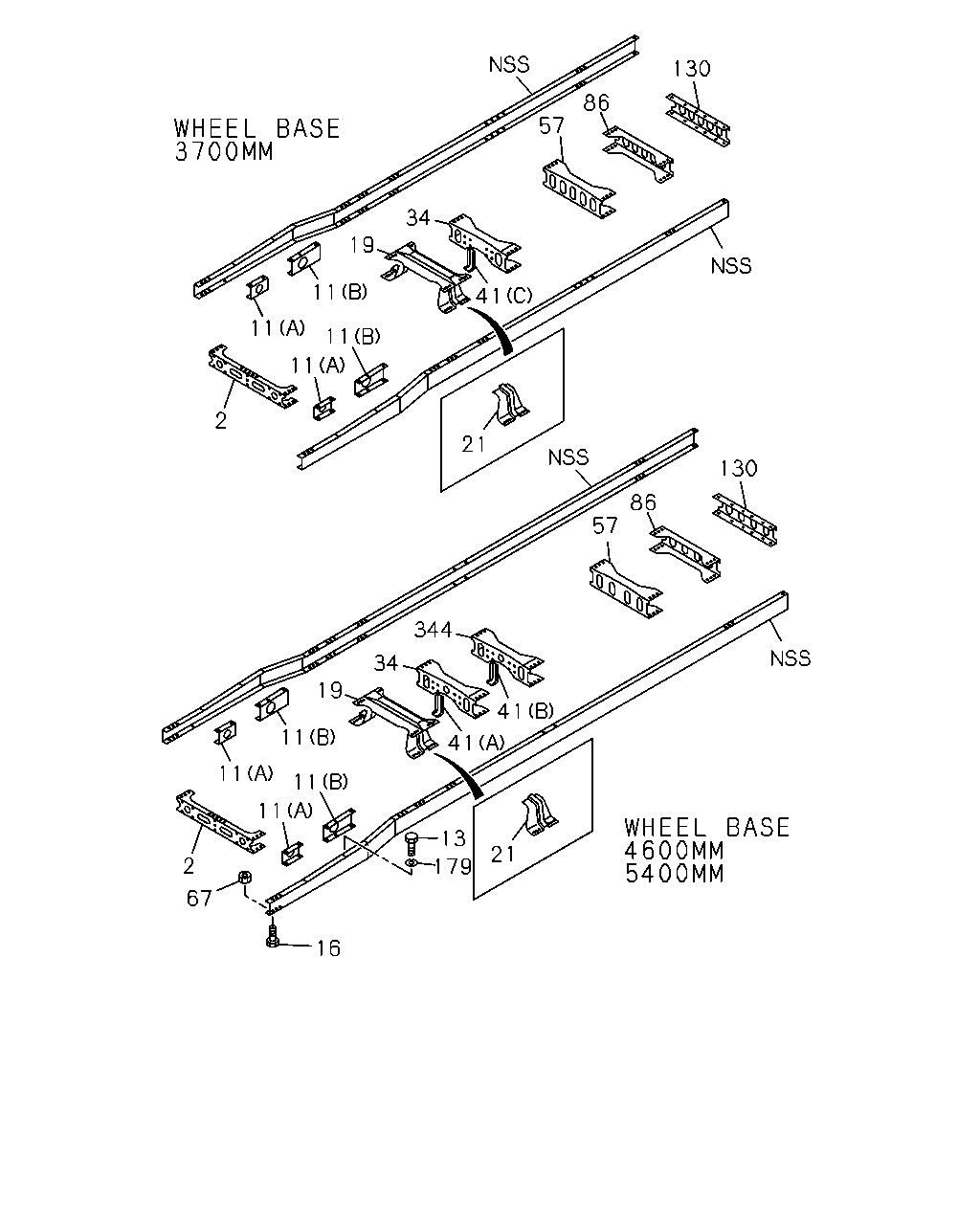

16 67 2 11 11 11 13 179 21 41 41 344 34 19 11 130 86 57 21 2 11 11 11 11 19 34 41 57 86 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-350-0	01	1	9002-9302	●	●	●
2	MEMBER; CROSS,1ST	1-53181-517-2	01	1	9303-9404	●	●	●
2	MEMBER; CROSS,1ST	1-53181-694-0	01	1	9405-	●		●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B) REAR	1-53219-207-2	01	1	9002-9306		●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B) REAR	1-53219-206-3	01	1	9002-9306		●
11	BRACKET; ENG MTG EXC. MIXER TRUCK<RA2> (B) REAR	1-53219-158-3	01	1	9002-		●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (B) REAR	1-53219-158-3	01	1	9002-	●
11	BRACKET; ENG MTG (B) REAR	1-53219-158-3	01	1	9002-			●
11	BRACKET; ENG MTG EXC. MIXER TRUCK<RA2> (B) REAR	1-53219-159-2	01	1	9002-		●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (B) REAR	1-53219-159-2	01	1	9002-	●
11	BRACKET; ENG MTG (B) REAR	1-53219-159-2	01	1	9002-			●
11	BRACKET; ENG MTG (A) FRONT	1-53219-162-2	01	1	9002-9306		●	●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (A) FRONT	1-53219-162-2	01	1	9002-9306	●
11	BRACKET; ENG MTG (A) FRONT	1-53219-163-3	01	1	9002-9306		●	●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (A) FRONT	1-53219-163-3	01	1	9002-9306	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (B) REAR	1-53219-150-3	01	1	9002-	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (A) FRONT	1-53219-290-0	01	1	9002-	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (B) REAR	1-53219-151-4	01	1	9002-	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (A) FRONT	1-53219-289-0	01	1	9002-	●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (A) FRONT	1-53219-462-0	01	1	9307-	●
11	BRACKET; ENG MTG (A) FRONT	1-53219-462-0	01	1	9307-			●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (A) FRONT	1-53219-461-0	01	1	9307-	●
11	BRACKET; ENG MTG (A) FRONT	1-53219-461-0	01	1	9307-			●
13	BOLT; BRKT,ENG MTG CONCRETE PUMP<RA5> M14X40	9-92061-440-0	01	1	9002-	●
16	BOLT; 1ST C/MBR TO S/MBR CONCRETE PUMP<RA5> M16X45	9-92061-645-0	02	1	9002-	●
19	MEMBER; CROSS,2ND	1-53174-155-0	01	1	9002-9404	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	9405-	●		●
21	GUSSET; 2ND CROSS	1-53164-183-0	02	1	9002-		●	●
21	GUSSET; 2ND CROSS EXC. CONCRETE PUMP<RA5>	1-53164-183-0	02	1	9002-	●
21	GUSSET; 2ND CROSS CONCRETE PUMP<RA5>	1-53164-184-0	02	1	9002-9404	●
21	GUSSET; 2ND CROSS CONCRETE PUMP<RA5>	1-53164-212-0	02	1	9405-	●
34	MEMBER; CROSS,3RD 6QA1 STD ENG(L24)	1-53171-803-1	01	1	9002-9306		●
34	MEMBER; CROSS,3RD 6RB1 STD ENG(07L)	1-53181-130-0	01	1	9002-9306		●
34	MEMBER; CROSS,3RD EXC. CONCRETE PUMP<RA5>	1-53171-673-3	01	1	9002-9404	●
34	MEMBER; CROSS,3RD	1-53171-673-3	01	1	9002-9404			●
34	MEMBER; CROSS,3RD EXC. CONCRETE PUMP<RA5>	1-53181-640-1	01	1	9405-	●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9405-			●
41	BRACKET; CENTER BRG,FRAME SIDE 6QA1 STD ENG(L24) (C)	1-53271-281-1	02	1	9002-9306		●
41	BRACKET; CENTER BRG,FRAME SIDE 6RB1 STD ENG(07L) (C)	1-53271-324-1	02	1	9002-9306		●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. CONCRETE PUMP<RA5> (A) L=305	1-53271-276-1	02	1	9002-	●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=305	1-53271-262-2	02	1	9002-			●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=365	1-53271-284-1	02	1	9002-			●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-788-4	01	1	9002-		●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. CONCRETE PUMP<RA5>	1-53171-788-4	01	1	9002-	●
57	MEMBER; CROSS,RR SUSP FRT CONCRETE PUMP<RA5>	1-53171-867-1	01	1	9002-	●
67	NUT; C/MBR CONCRETE PUMP<RA5> M16	9-99110-516-0	02	1	9002-	●
86	MEMBER; CROSS,RR SUSP RR	1-53171-868-1	01	1	9002-9302		●	●
86	MEMBER; CROSS,RR SUSP RR EXC. CONCRETE PUMP<RA5>	1-53171-868-1	01	1	9002-9302	●
86	MEMBER; CROSS,RR SUSP RR	1-53171-788-4	01	1	9303-		●	●
86	MEMBER; CROSS,RR SUSP RR EXC. CONCRETE PUMP<RA5>	1-53171-788-4	01	1	9303-	●
86	MEMBER; CROSS,RR SUSP RR CONCRETE PUMP<RA5>	1-53171-642-9	01	1	9002-9404	●
86	MEMBER; CROSS,RR SUSP RR CONCRETE PUMP<RA5>	1-53181-690-0	01	1	9405-	●
130	MEMBER; CROSS,END MIXER TRUCK<RA2>	1-53171-638-3	01	1	9002-9204		●
130	MEMBER; CROSS,END EXC. CONCRETE PUMP<RA5>	1-53171-638-3	01	1	9002-9204	●
130	MEMBER; CROSS,END	1-53171-638-3	01	1	9002-9204			●
130	MEMBER; CROSS,END MIXER TRUCK<RA2>	1-53181-391-2	01	1	9205-9404		●
130	MEMBER; CROSS,END EXC. CONCRETE PUMP<RA5>	1-53181-391-2	01	1	9205-9404	●
130	MEMBER; CROSS,END	1-53181-391-2	01	1	9205-9404			●
130	MEMBER; CROSS,END EXC. CONCRETE PUMP<RA5>	1-53181-537-0	01	1	9405-	●
130	MEMBER; CROSS,END	1-53181-537-0	01	1	9405-			●
130	MEMBER; CROSS,END CONCRETE PUMP<RA5>	1-53171-568-4	01	1	9002-9404	●
130	MEMBER; CROSS,END CONCRETE PUMP<RA5>	1-53181-613-0	01	1	9405-	●
179	WASHER; LK CONCRETE PUMP<RA5> ID=14.2	9-09150-614-0	01	1	9002-	●
344	MEMBER; CROSS,4TH	1-53171-673-3	01	1	9002-9404			●
344	MEMBER; CROSS,4TH	1-53181-640-1	01	1	9405-			●
