◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#30464) — 83 parça

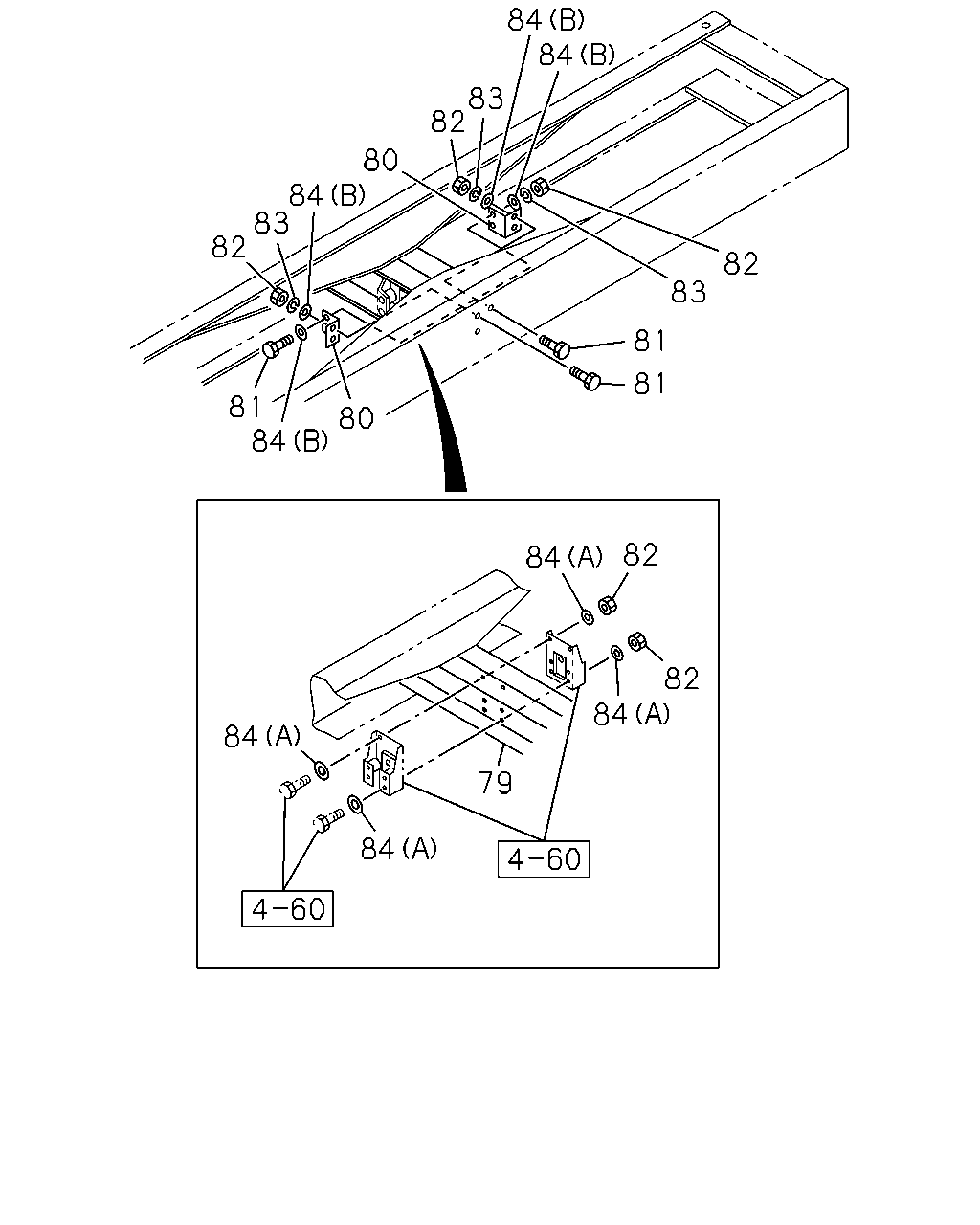

çizim 87683
84 84 83 82 80 84 83 82 82 83 81 81 81 80 84 82 84 82 84 84 79 84
BalonParca AdiParca NoAdetTipApplied Date
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 0407-
80 BRACKET; C/MBR 1-53167-610-0 04 1 0407-
81 BOLT; BRKT
M14X40 		9-92061-440-0 08 1 0407-0512
81 BOLT; BRKT
M14X40 		0-20951-440-0 08 1 0601-
81 BOLT; BRKT
M14X60 		9-92061-460-0 04 1 0407-0512
81 BOLT; BRKT
M14X60 		0-20951-460-0 04 1 0601-
82 NUT; BRKT
M14 		9-99110-514-0 04 1 0407-0512
82 NUT; BRKT
M14 		0-91110-514-0 04 1 0601-
82 NUT; BRKT
M14 		9-99110-514-0 12 1 0407-0512
82 NUT; BRKT
M14 		0-91110-514-0 12 1 0601-
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 12 1 0407-0603
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 12 1 0604-
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		9-09164-514-0 16 1 0407-1104
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		0-91614-514-0 16 1 1105-
84 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0407-1201
84 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1202-

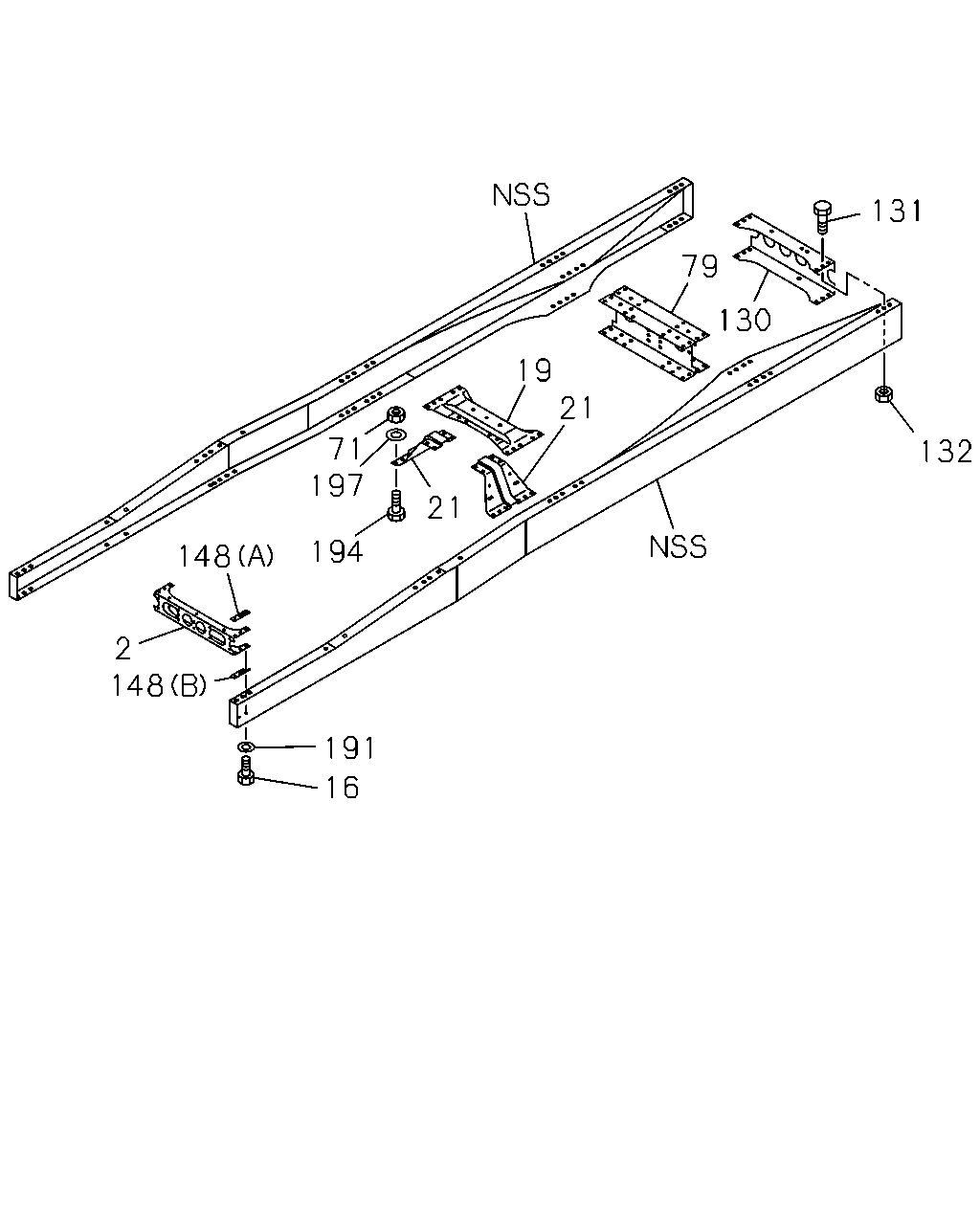

çizim 103766
131 79 130 19 21 71 197 132 21 194 148 2 148 191 16
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-983-2 01 1 0407-0511
2 MEMBER; CROSS,1ST 8-97604-960-3 01 1 0512-
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		9-92061-640-0 02 1 0407-0512
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 0601-
19 MEMBER; CROSS,2ND 1-53174-265-0 01 1 0407-
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 0407-
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 0407-
71 NUT; 2ND C/MBR
M14 		9-99110-514-0 08 1 0407-0512
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 0601-
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 0407-
130 MEMBER; CROSS,END 1-53181-646-8 01 1 0407-
131 BOLT; END C/MBR
M12X40 FLANGE 		0-28691-240-0 04 1 0407-0512
131 BOLT; END C/MBR
M12X40 FLANGE 		0-28661-240-0 04 1 0601-
132 NUT; END C/MBR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) M12 		0-91110-512-0 04 1 0512-0512
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0601-
132 NUT; END C/MBR
M12 		9-99110-512-0 04 1 0407-0511
132 NUT; END C/MBR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) M12 		9-99110-512-0 04 1 0512-0512
148 SPACER; C/MBR
(A) UPPER 		1-53168-400-1 02 1 0407-
148 SPACER; C/MBR
(B) LOWER 		1-53168-403-1 02 1 0407-
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 0407-
194 BOLT; 2ND C/MBR
M14X60 		9-92061-460-0 08 1 0407-0512
194 BOLT; 2ND C/MBR
M14X60 		0-20951-460-0 08 1 0601-
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 0407-1201
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1202-

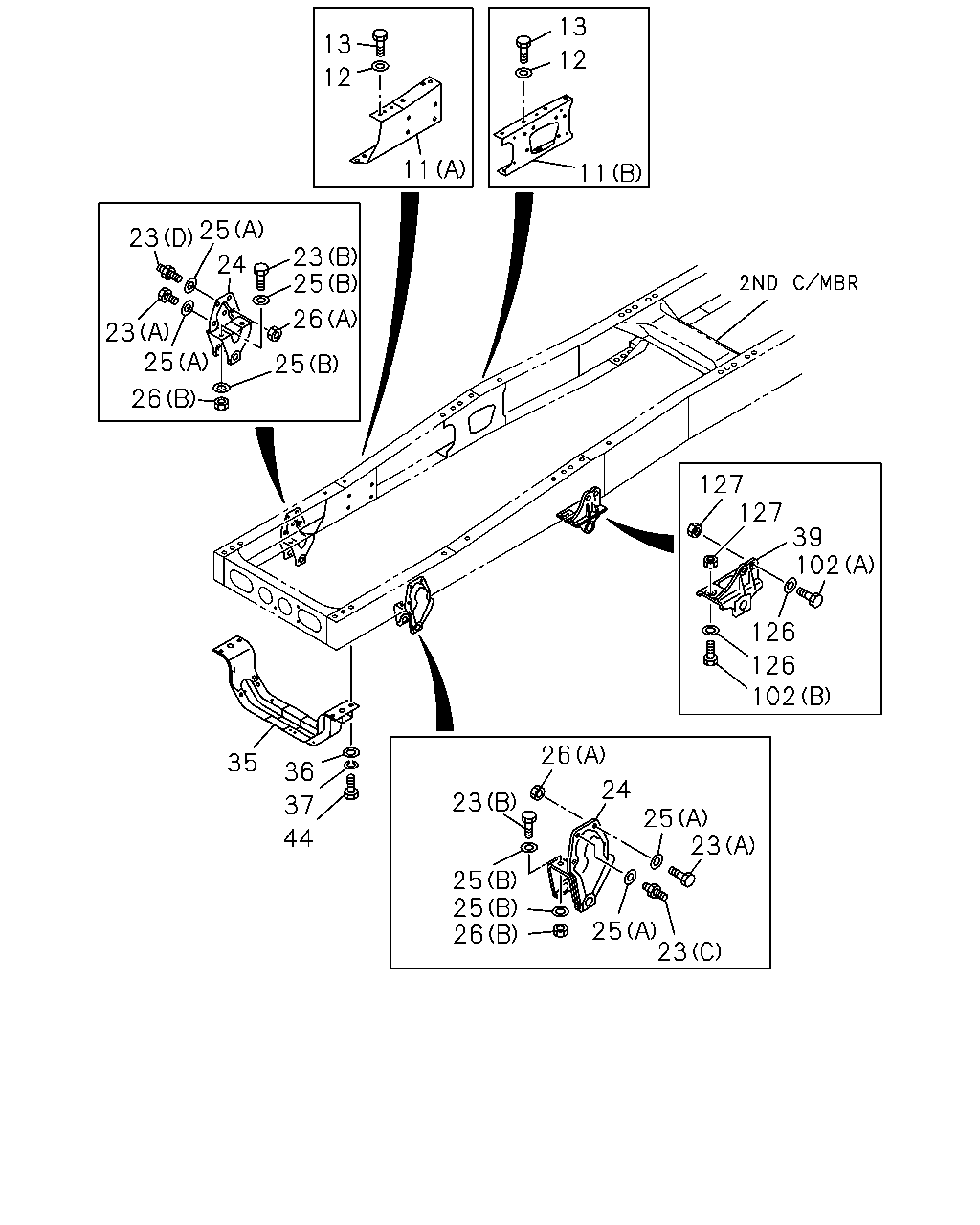

çizim 103767
13 13 12 12 11 11 25 23 23 25 24 26 23 25 25 26 127 127 39 102 126 126 102 26 35 36 24 23 37 25 23 44 25 25 26 25 23
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0407-
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0407-
11 BRACKET; ENG MTG
(B) 		1-53221-230-4 01 1 0407-
11 BRACKET; ENG MTG
(B) 		1-53221-231-4 01 1 0407-
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 06 1 0407-0407
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 04 1 0408-1201
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 04 1 1202-
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 06 1 0407-0407
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 04 1 0408-0512
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 0601-
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0407-
23 BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 0407-
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 05 1 0407-0512
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0601-
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0407-0512
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0407-
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0407-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0407-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0407-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1202-
26 NUT; BRKT,SPR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) (B) M16 		0-91110-516-0 04 1 0512-0512
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 08 1 0407-0512
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0601-
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0407-0511
26 NUT; BRKT,SPR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) M16 		9-99110-516-0 04 1 0512-0512
35 MEMBER; UNDER 1-53174-263-2 01 1 0407-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0407-
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 0407-0603
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0604-
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0407-
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0407-
44 BOLT; UNDER MBR
M16X60 		9-92061-660-0 04 1 0407-0512
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0601-
102 BOLT; BRKT,RR SPR
(A) M14X40 		9-92061-440-0 04 1 0407-0512
102 BOLT; BRKT,RR SPR
(A) M14X40 		0-20951-440-0 04 1 0601-
102 BOLT; BRKT,RR SPR
(B) M14X50 		9-92061-450-0 04 1 0407-0512
102 BOLT; BRKT,RR SPR
(B) M14X50 		0-20951-450-0 04 1 0601-
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0407-1201
126 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1202-
127 NUT; BRKT
M14 		9-99110-514-0 04 1 0407-0512
127 NUT; BRKT
M14 		0-91110-514-0 04 1 0601-
