4-65 — REAR LEAF SPRING (#30462) — 62 parça

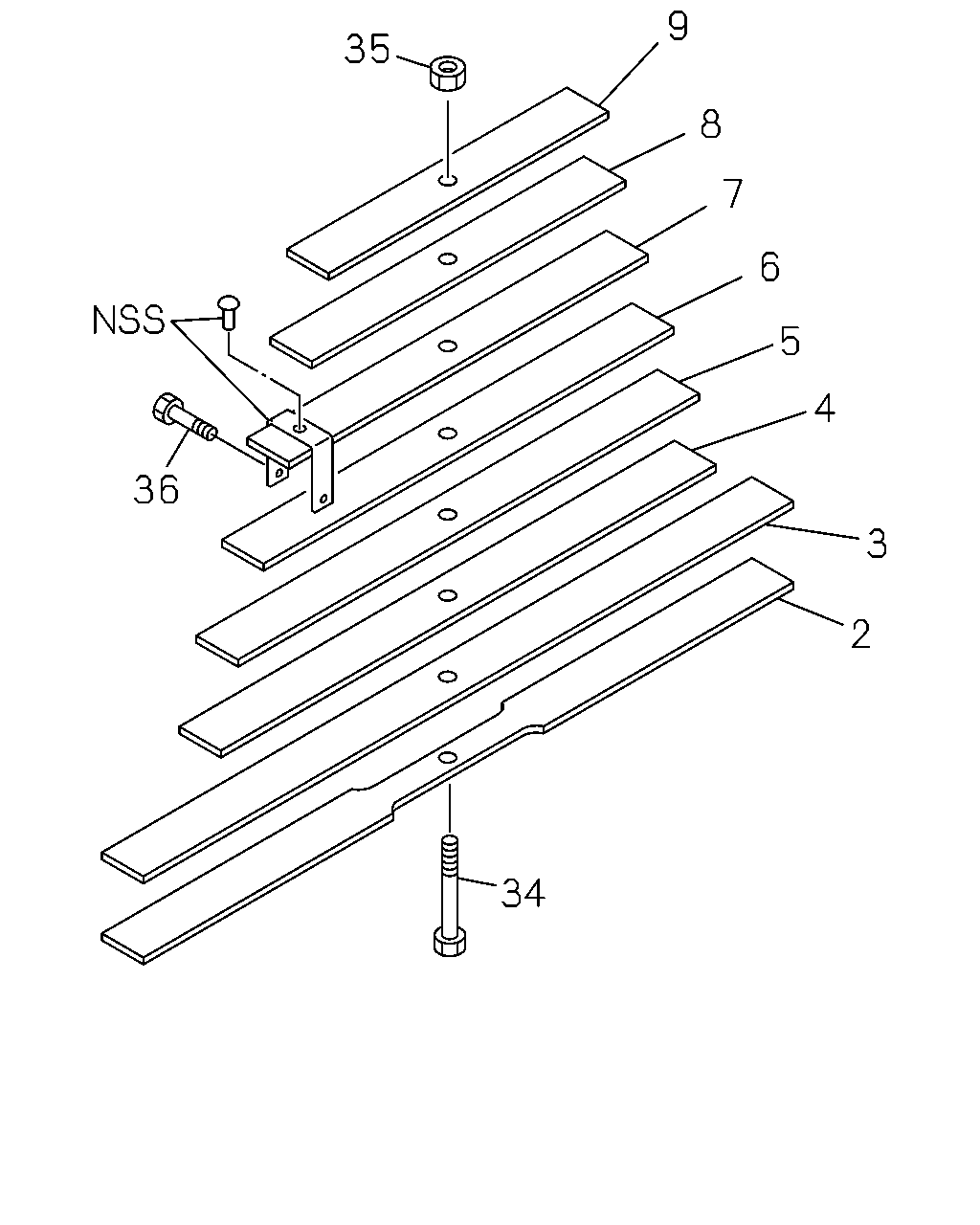

9 35 8 7 6 5 4 36 3 2 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51410-296-0	1-51411-296-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51410-297-0	1-51411-297-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-140-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51410-296-0	1-51412-296-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51410-297-0	1-51412-297-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-141-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51410-296-0	1-51413-296-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51410-297-0	1-51413-297-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-142-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51410-296-0	1-51414-296-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51410-297-0	1-51414-297-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-143-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51410-296-0	1-51415-296-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51410-297-0	1-51415-297-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-144-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51410-296-0	1-51416-296-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51410-297-0	1-51416-297-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-145-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51410-296-0	1-51417-296-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51410-297-0	1-51417-297-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-146-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51410-296-0	1-51418-296-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51410-297-0	1-51418-297-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-147-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51410-296-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=220 ASM PART: C = 8-97606-777-0	1-51356-125-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=180 ASM PART: B = 1-51410-297-0	1-51356-285-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51410-296-0, B = 1-51410-297-0, C = 8-97606-777-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-296-0, B = 1-51410-297-0, C = 8-97606-777-0	1-09000-326-0	01	1	-

35 11 10 9 36 8 7 6 5 4 3 34 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51410-296-0	1-51411-296-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51410-297-0	1-51411-297-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-140-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51410-296-0	1-51412-296-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51410-297-0	1-51412-297-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-141-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51410-296-0	1-51413-296-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51410-297-0	1-51413-297-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-142-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51410-296-0	1-51414-296-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51410-297-0	1-51414-297-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-143-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51410-296-0	1-51415-296-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51410-297-0	1-51415-297-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-144-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51410-296-0	1-51416-296-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51410-297-0	1-51416-297-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-145-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51410-296-0	1-51417-296-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51410-297-0	1-51417-297-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-146-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51410-296-0	1-51418-296-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51410-297-0	1-51418-297-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-147-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51410-296-0	1-51419-296-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-148-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51410-296-0	1-51421-296-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 8-97606-777-0	8-97607-149-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51410-296-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=220 ASM PART: C = 8-97606-777-0	1-51356-125-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=180 ASM PART: B = 1-51410-297-0	1-51356-285-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51410-296-0, B = 1-51410-297-0, C = 8-97606-777-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-296-0, B = 1-51410-297-0, C = 8-97606-777-0	1-09000-326-0	01	1	-
