◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#3046) — 65 parça

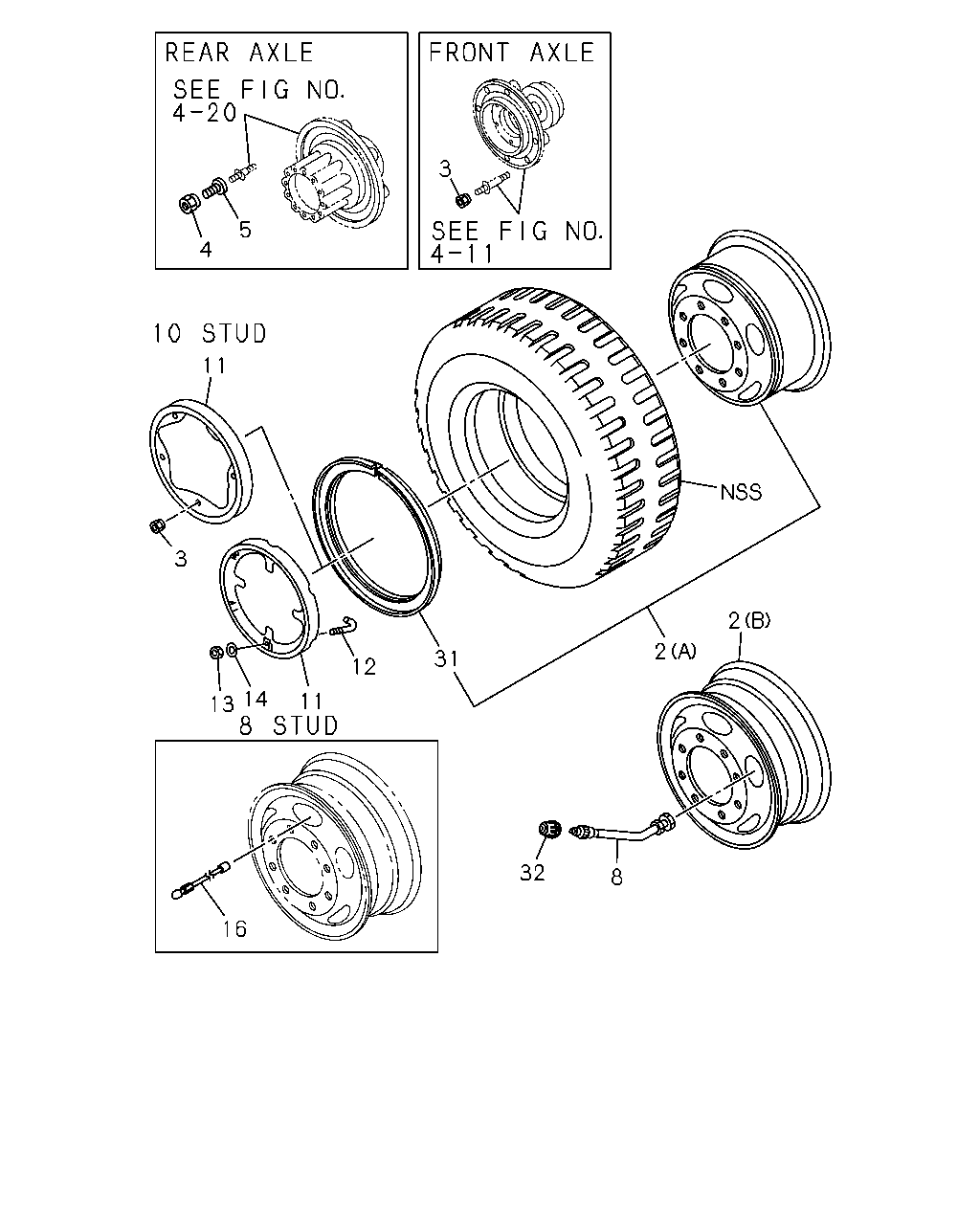

çizim 36740
8 32 16 13 14 8 11 12 31 2 2 3 11 3 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-13<QM8> WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-334-0 01 1 9004-9306 ● ● ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-334-0 01 1 9004-9306 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-13<QM8> EXC. WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-333-0 01 1 9002-9312 ● ● ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-333-0 01 1 9002-9312 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-471-0 01 1 9401- ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> (B) 		1-42350-471-0 01 1 9401- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-137-1 01 1 9002-9406 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-137-1 01 1 9002-9406 ● ● ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-496-0 01 1 9407- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-496-0 01 1 9407- ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-334-0 06 1 9004-9306 ● ● ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> EXC. WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-333-0 06 1 9002-9306 ● ● ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-333-0 06 1 9307-9312 ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-471-0 06 1 9401- ● ●
2 WHEEL; DISC
EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-137-1 06 1 9002-9406 ● ● ● ●
2 WHEEL; DISC
EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-496-0 06 1 9407- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-134-2 01 1 9002-9204 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-134-2 01 1 9002-9204 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-420-0 01 1 9205-9306 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-420-0 01 1 9205-9306 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-420-0 01 1 9307- ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-420-0 01 1 9307- ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-134-2 06 1 9002-9204 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-420-0 06 1 9205- ● ●
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-031-0 20 1 9002-9110 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-031-0 20 1 9002-9110 ● ●
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-040-0 20 1 9111- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-040-0 20 1 9111- ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M24 LH THREAD 		1-42334-022-0 08 1 9002- ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M24 		1-42333-022-0 08 1 9002- ● ●
4 NUT; WHEEL,RR AXLE
M22 		1-42333-031-0 20 1 9002-9110 ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-031-0 20 1 9002-9110 ● ●
4 NUT; WHEEL,RR AXLE
M22 		1-42333-040-0 20 1 9111- ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-040-0 20 1 9111- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M30 LH THREAD 		1-42334-023-0 08 1 9002- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M30 		1-42333-023-0 08 1 9002- ● ●
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9002- ● ●
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9002- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 01 1 9002- ● ● ● ●
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> 		1-42370-020-3 01 1 9002- ● ● ● ●
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 06 1 9002- ● ● ● ●
11 STEP; DISC WHEEL SIDE 1-43139-012-2 02 1 9002-9003 ● ●
11 STEP; DISC WHEEL SIDE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEELSTEP DELETE<SBH> 		1-43139-012-2 02 1 9002-9003 ● ●
11 STEP; DISC WHEEL SIDE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEELSTEP DELETE<SBH>,WHEEL PAINTED LIGHT ARGENT<SKD> 		1-43139-012-2 02 1 9004-9306 ● ● ● ●
11 STEP; DISC WHEEL SIDE
WHEEL PAINTED LIGHT ARGENT<SKD> 		1-43139-026-0 02 1 9004-9306 ● ●
11 STEP; DISC WHEEL SIDE
WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEELSTEP DELETE<SBH> 		1-43139-026-0 02 1 9004-9306 ● ●
11 STEP; DISC WHEEL SIDE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEELSTEP DELETE<SBH> 		1-43139-012-2 02 1 9307- ● ●
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> 		1-43139-002-2 02 1 9002-9003 ● ●
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH>,WHEEL PAINTED LIGHT ARGENT<SKD> 		1-43139-002-2 02 1 9004-9211 ● ●
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH>,WHEEL PAINTED LIGHT ARGENT<SKD> 		1-43139-028-0 02 1 9212-9306 ● ●
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL STEP DELETE<SBH> 		1-43139-024-0 02 1 9004-9211 ● ●
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL STEP DELETE<SBH> 		1-43139-029-0 02 1 9212-9306 ● ●
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> 		1-43139-028-0 02 1 9307- ●
12 U-BOLT; STEP DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> L=44 		9-43139-023-1 06 1 9002- ● ●
13 NUT; STEP DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> M10 		9-09110-510-0 06 1 9002- ● ●
14 WASHER; LK,STEP DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. DISC WHEEL STEP DELETE<SBH> ID=10.2 		9-09150-510-0 06 1 9002- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9002-9504 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> L=170 		1-42370-024-0 02 1 9002-9504 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9505- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 01 1 9002- ● ● ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 01 1 9002- ● ● ● ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 06 1 9002- ● ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304- ● ● ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 9304- ● ● ● ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9304- ● ● ● ●
