Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#30455) — 269 parça

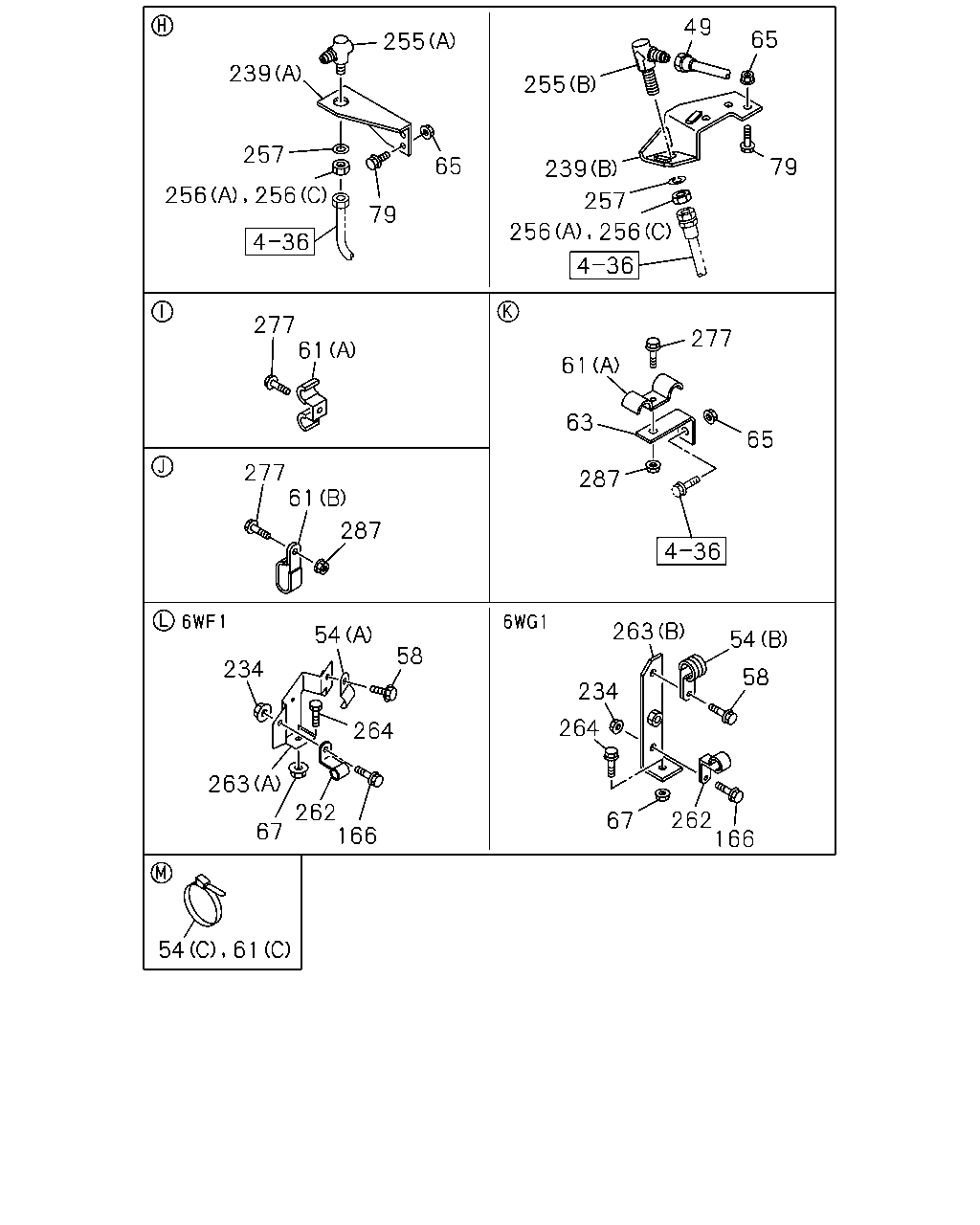

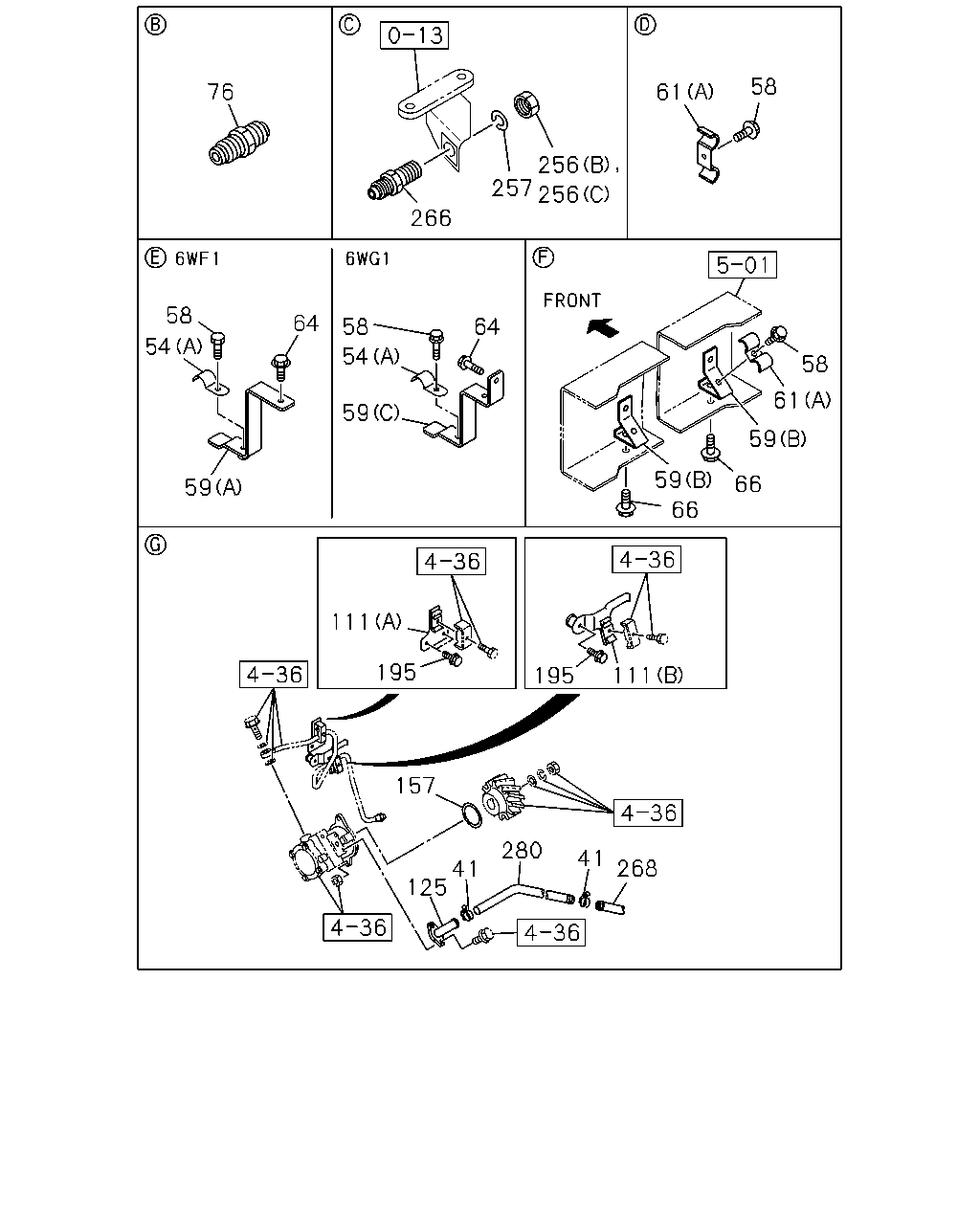

58 76 61 256 257 256 266 58 64 58 64 54 54 58 61 59 59 59 66 59 66 111 195 111 195 157 280 41 268 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0407-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-0703
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0704-
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (B) ID=26 L=27	1-09701-006-0	01	1	0512-0703
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=26 L=27	1-09701-006-0	01	1	0704-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0703
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0704-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0703
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0704-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0703
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0704-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-S(97L) (C)	1-47471-183-0	01	1	0512-0703
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-183-0	01	1	0704-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0407-0511
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	0512-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0407-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0606
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0407-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0407-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0407-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0407-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0407-
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0601-0703
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0704-
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0407-0512
195	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0407-0512
195	BOLT; BRKT M10X35 FLANGE	0-28151-035-0	01	1	0601-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0407-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0407-0512
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-0703
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0704-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0604-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0407-0603
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-S(97L)	1-21117-301-0	01	1	0604-0703
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-301-0	01	1	0704-

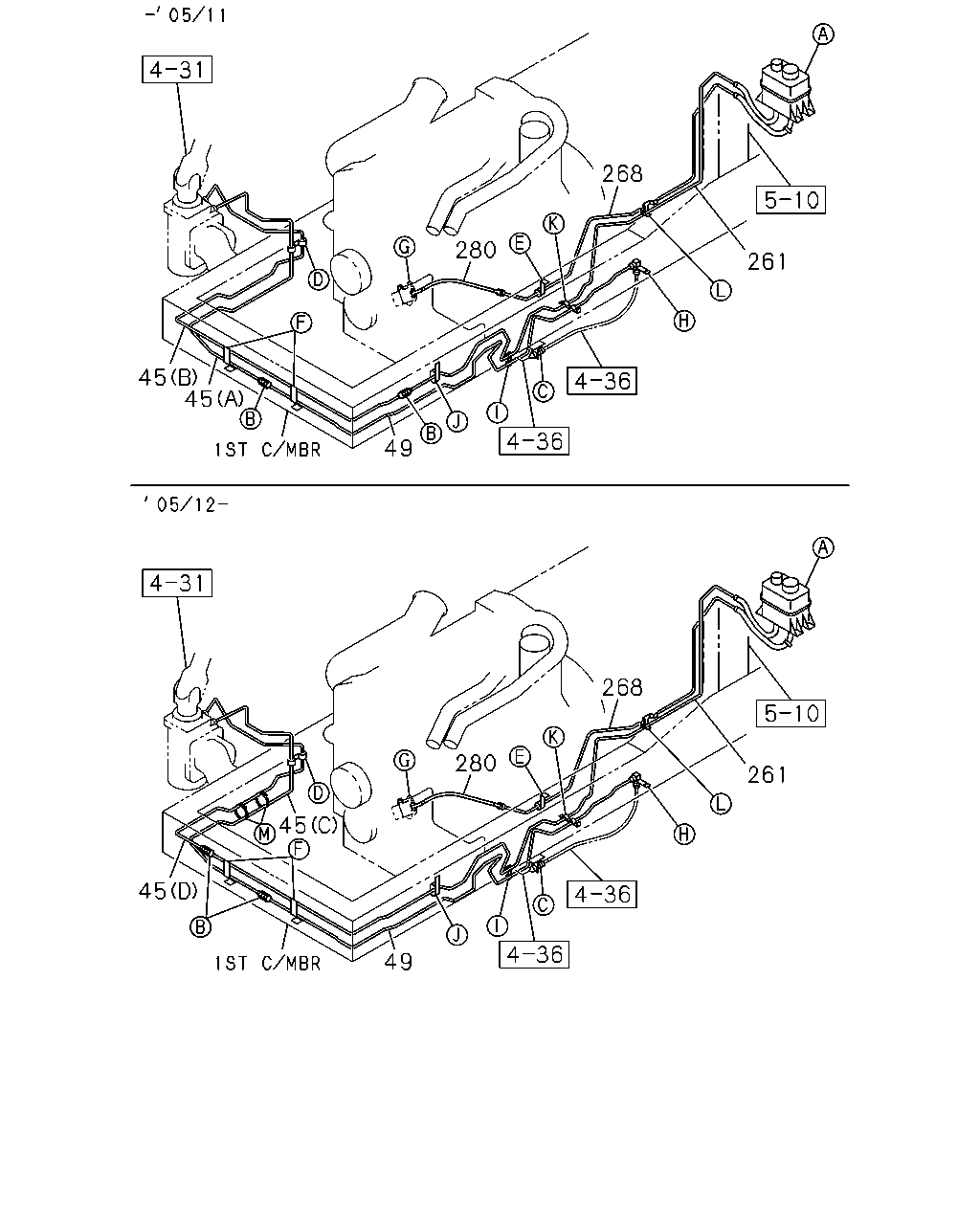

45 45 49 280 268 261 45 45 49 280 268 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0407-0505
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-0511
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1474	1-21117-739-0	01	1	0512-0611
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1404	1-21117-917-0	01	1	0612-1309
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1404	8-98257-625-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0407-0511
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1403	1-21117-738-0	01	1	0512-0611
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1475	1-21117-916-0	01	1	0612-1309
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1475	8-98257-624-0	01	1	1310-
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0512-0703
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0704-
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0407-0511
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0512-0703
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0704-
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0407-0511
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-0703
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0704-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0604-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0407-0603
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-S(97L)	1-21117-301-0	01	1	0604-0703
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-301-0	01	1	0704-

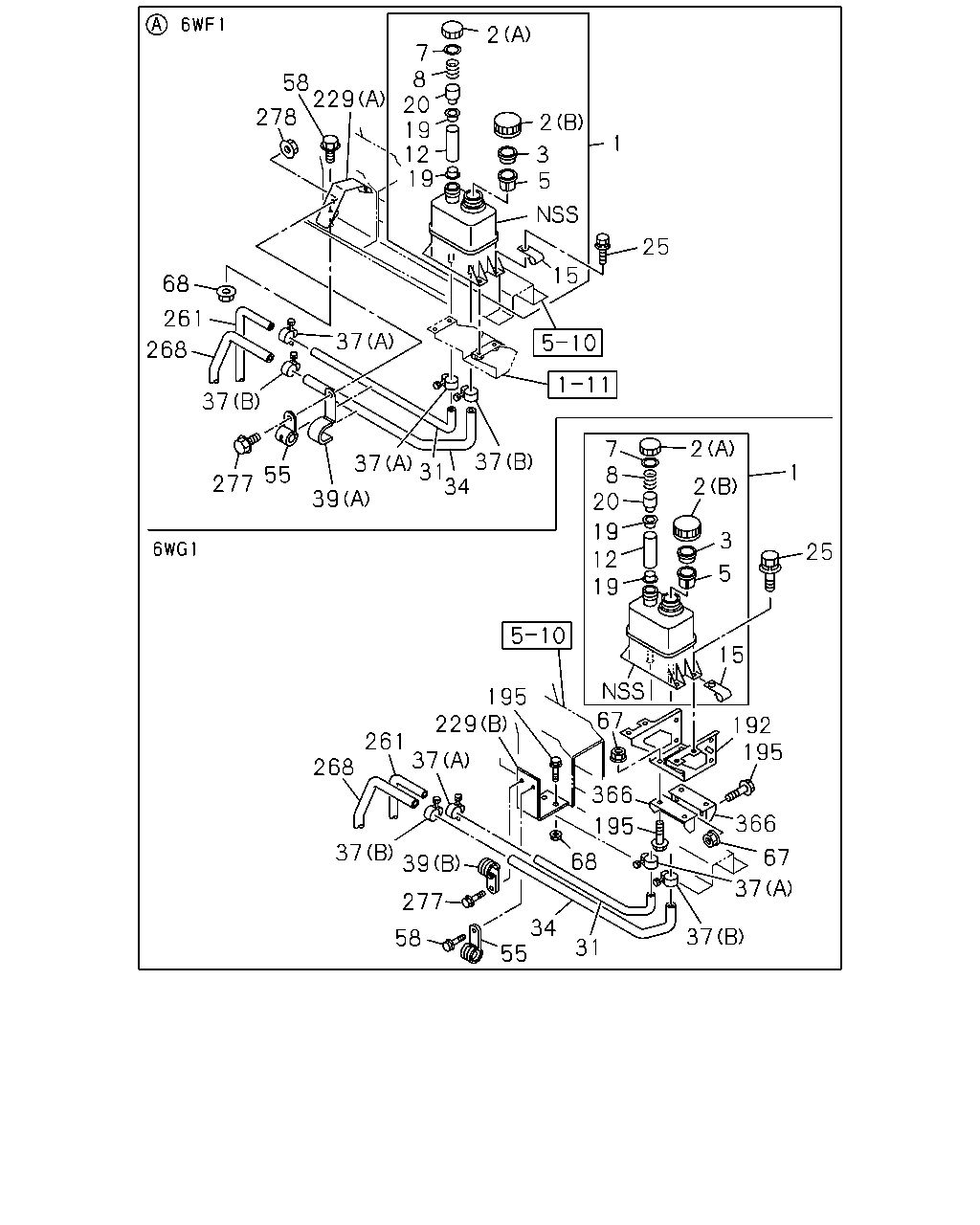

2 7 8 20 19 12 19 58 229 278 2 1 3 5 25 15 68 261 37 268 37 2 7 8 20 37 31 34 37 1 55 277 2 39 19 12 19 3 25 5 15 195 229 67 192 195 261 37 268 366 195 68 366 37 39 67 37 277 34 55 37 58 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0407-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0407-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0407-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0407-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0407-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0407-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0407-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0407-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0407-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0407-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL 6WG1 TC-S(97L)	1-21117-509-1	01	1	0512-0703
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-509-1	01	1	0704-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0407-0511
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8)	1-21114-284-0	01	1	0512-
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-S(97L)	1-21117-510-1	01	1	0512-0703
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-510-1	01	1	0704-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0407-0511
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0407-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0407-
39	CLIP; FLEX HOSE 6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0512-0703
39	CLIP; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0704-
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	0407-0511
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0512-
55	CLIP; P/S RUBBER HOSE 6WG1 TC-S(97L) ID=28 L=32	1-09701-107-1	01	1	0512-0703
55	CLIP; P/S RUBBER HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=28 L=32	1-09701-107-1	01	1	0704-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0407-0511
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) ID=28 L=30	1-09700-607-1	01	1	0512-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0703
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0704-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0703
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0704-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0703
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0704-
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-0703
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0704-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6WG1 TC-S(97L) M10 FLANGE	0-91150-210-0	02	1	0512-0602
68	NUT; CLIP,OIL PIPE 6WG1 TC-S(97L) M10 FLANGE	0-91180-210-0	02	1	0603-0703
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) M10 FLANGE	0-91180-210-0	02	1	0704-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-
192	BRACKET; P/S OIL TANK 6WG1 TC-S(97L)	1-21489-200-1	01	1	0512-0703
192	BRACKET; P/S OIL TANK 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-200-1	01	1	0704-
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0601-0703
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0704-
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0407-0512
195	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0407-0512
195	BOLT; BRKT M10X35 FLANGE	0-28151-035-0	01	1	0601-
229	BRACKET; HOSE,POWER STRG 6WG1 TC-S(97L) (B)	1-21464-780-0	01	1	0512-0703
229	BRACKET; HOSE,POWER STRG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21464-780-0	01	1	0704-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-407-1	01	1	0407-0511
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8) (A)	1-21464-407-1	01	1	0512-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0512-0703
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0704-
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0407-0511
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-0703
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0704-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0512-0512
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0407-0511
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-0703
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0704-
277	BOLT; HOSE CLIP M10X20 FLANGE	0-28681-020-0	01	1	0407-0511
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0407-0511
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91150-210-0	01	1	0512-0602
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-210-0	01	1	0603-
366	SPACER; BRKT TO MEMBER 6WG1 TC-S(97L)	1-21489-196-1	02	1	0512-0703
366	SPACER; BRKT TO MEMBER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-196-1	02	1	0704-

255 239 257 256 256 65 79 277 61 277 287 61 51 234 58 264 263 262 67 166 61 54 49 255 39 256 256 257 65 79 277 61 63 287 65 54 263 58 34 264 67 262 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-S(97L)	1-21117-510-1	01	1	0512-0703
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-510-1	01	1	0704-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0407-0511
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-
39	CLIP; FLEX HOSE 6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0512-0703
39	CLIP; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0704-
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	0407-0511
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0512-
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0512-0703
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0704-
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0407-0511
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-0703
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0704-
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (B) ID=26 L=27	1-09701-006-0	01	1	0512-0703
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=26 L=27	1-09701-006-0	01	1	0704-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0703
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0704-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0703
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0704-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0703
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0704-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0606
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0407-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-0703
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0704-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0407-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-
239	BRACKET; FLEX HOSE 6WG1 TC-S(97L) (B)	1-47471-227-0	01	1	0512-0703
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47471-227-0	01	1	0704-
239	BRACKET; FLEX HOSE (A)	1-47479-664-0	01	1	0407-0511
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (A)	1-47479-664-0	01	1	0512-
255	UNION; FLEX HOSE 6WG1 TC-S(97L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0512-0703
255	UNION; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0704-
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0407-0511
255	UNION; FLEX HOSE 6WF1 TC-C(1B8) (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0512-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0407-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0407-0512
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0407-0511
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0512-
263	BRACKET; P/S PIPE 6WG1 TC-S(97L) (B)	1-47471-191-1	01	1	0512-0703
263	BRACKET; P/S PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47471-191-1	01	1	0704-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0407-0511
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	0512-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0512-0512
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0407-0511
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-0703
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0704-
277	BOLT; HOSE CLIP M10X20 FLANGE	0-28681-020-0	01	1	0407-0511
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
