◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#30450) — 103 parça

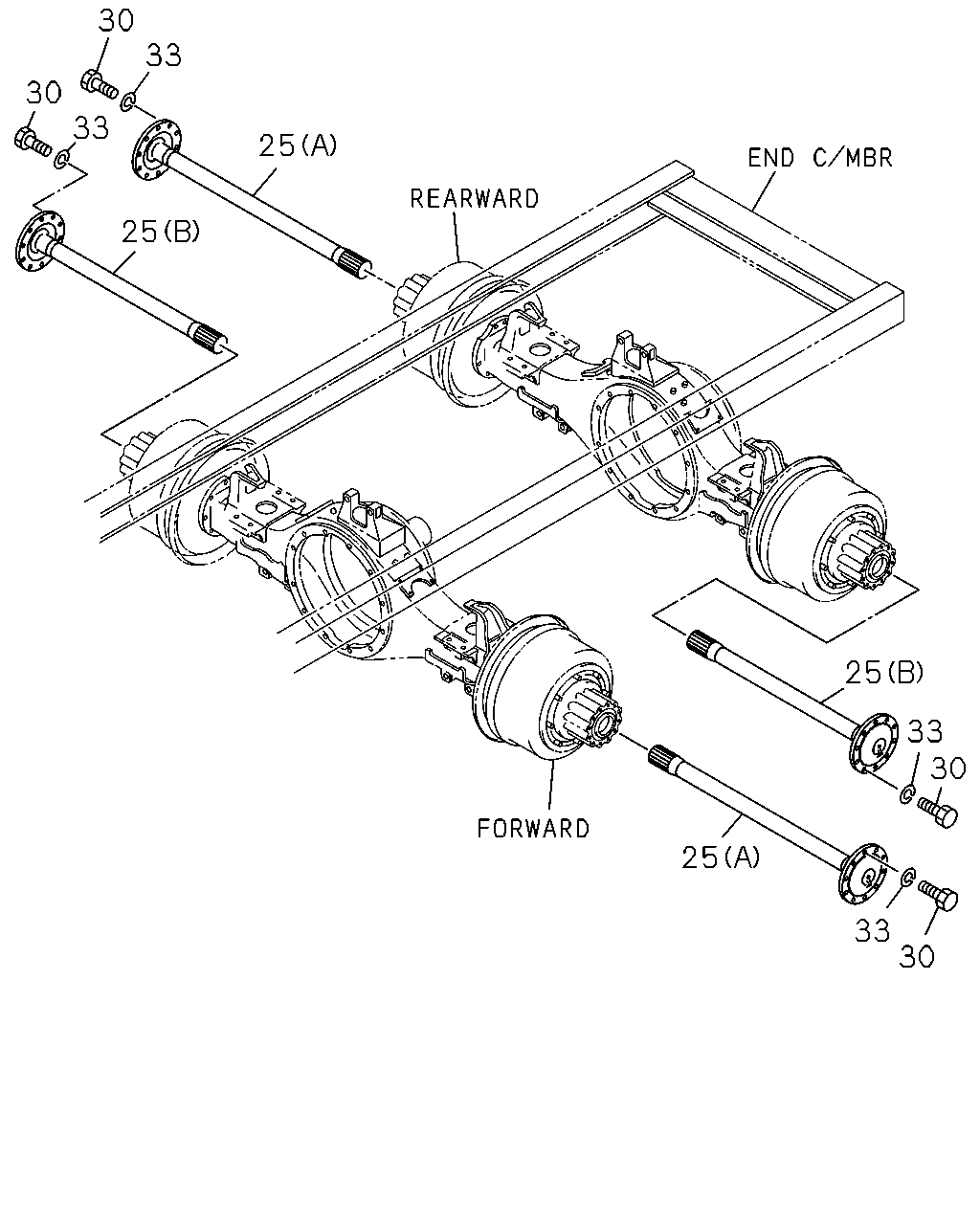

çizim 87912
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0407-0910
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0407-0910
25 SHAFT; AXLE,RR
(B) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0407-0910
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0407-0910
25 SHAFT; AXLE,RR
(A) L=1110 		8-98146-167-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=1110 		8-98146-167-0 01 1 0911-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0407-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0407-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0407-0603
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0407-0603
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-

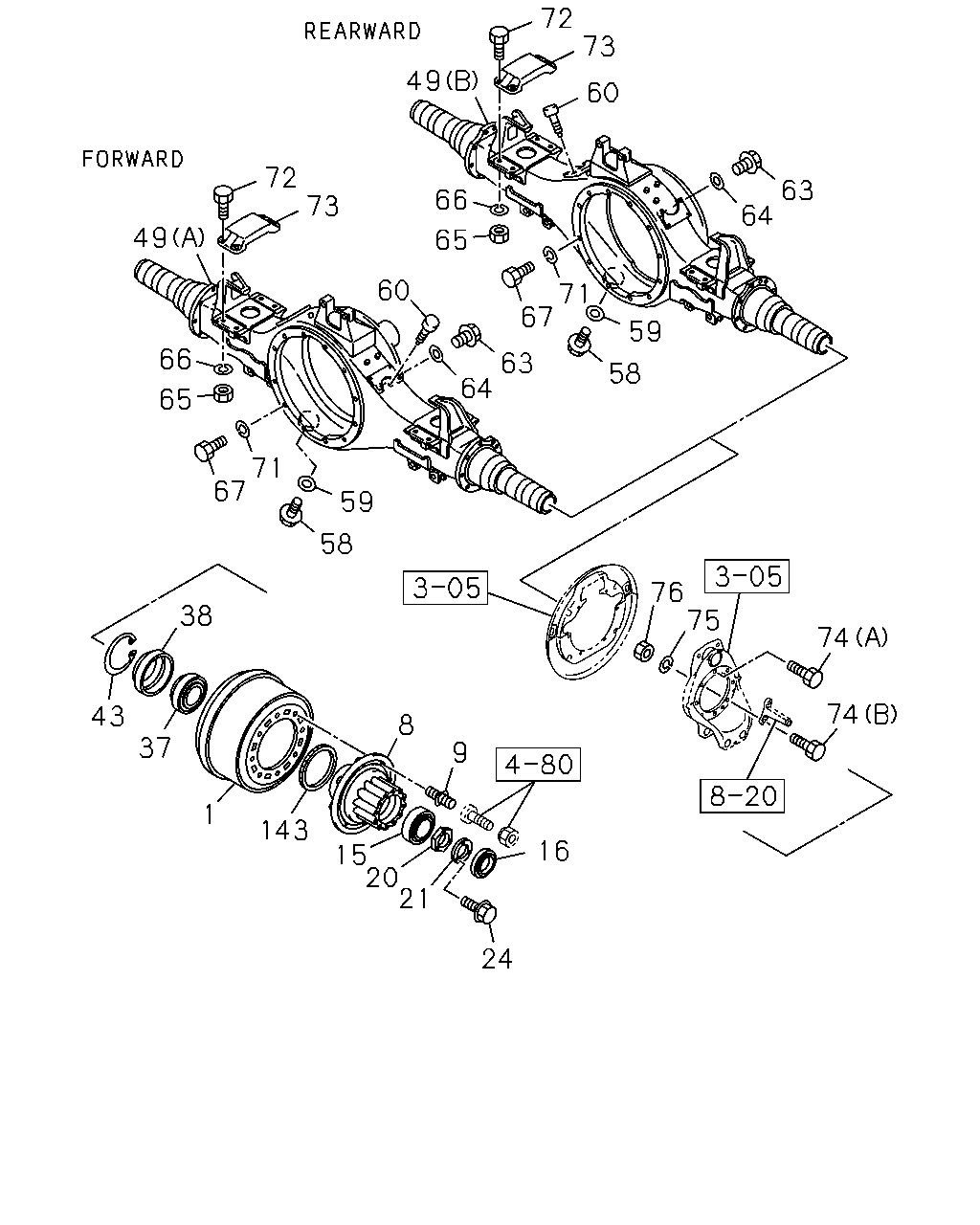

çizim 103661
72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 76 38 74 74 43 8 37 9 1 143 16 15 20 21 24 75
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-377-2 02 1 0407-
1 DRUM; BRK,RR 1-42315-377-2 02 1 0407-
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0407-
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0407-
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S),FINAL GEAR 41/10 17.5"(W5L) EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD 		1-42337-066-1 40 1 0607-0610
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X109 RH THREAD 		1-42337-071-0 20 1 0407-0501
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X109 RH THREAD 		1-42337-071-0 20 1 0407-0501
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X109 RH THREAD 		1-42337-076-1 20 1 0502-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X109 RH THREAD 		1-42337-076-1 20 1 0502-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD 		1-42337-066-1 20 1 0407-0606
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD 		1-42337-066-1 20 1 0407-0606
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S),FINAL GEAR 41/10 17.5"(W5L) ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD 		1-42337-066-1 20 1 0607-0610
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD 		1-42337-066-2 20 1 0611-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD 		1-42337-066-2 20 1 0611-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0407-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0407-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0407-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0407-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0407-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0407-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0407-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0407-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0407-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0407-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0407-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0407-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0407-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0407-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0407-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0407-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0407-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0407-
49 CASE; RR AXLE
(B) REARWARD 		1-42190-287-5 01 1 0407-
49 CASE; RR AXLE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD 		1-42190-483-1 01 1 0407-
49 CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD 		1-42190-330-4 01 1 0407-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0407-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0407-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0407-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0407-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0407-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0407-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0407-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0407-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0407-
65 NUT
M14 		9-99110-514-0 08 1 0407-0512
65 NUT
M14 		9-99110-514-0 08 1 0407-0512
65 NUT
M14 		0-91110-514-0 08 1 0601-
65 NUT
M14 		0-91110-514-0 08 1 0601-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0407-0603
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0407-0603
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0407-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0407-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0407-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0407-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0407-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0407-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0407-0805
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0407-0805
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0407-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0407-
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 16 1 0407-
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 12 1 0407-
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 0407-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0407-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0407-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0407-0512
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0407-0512
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
143 RING; EXCITER 1-42319-173-0 02 1 0407-
