3-78 — FIXING PARTS; AIR PIPING (#30443) — 323 parça

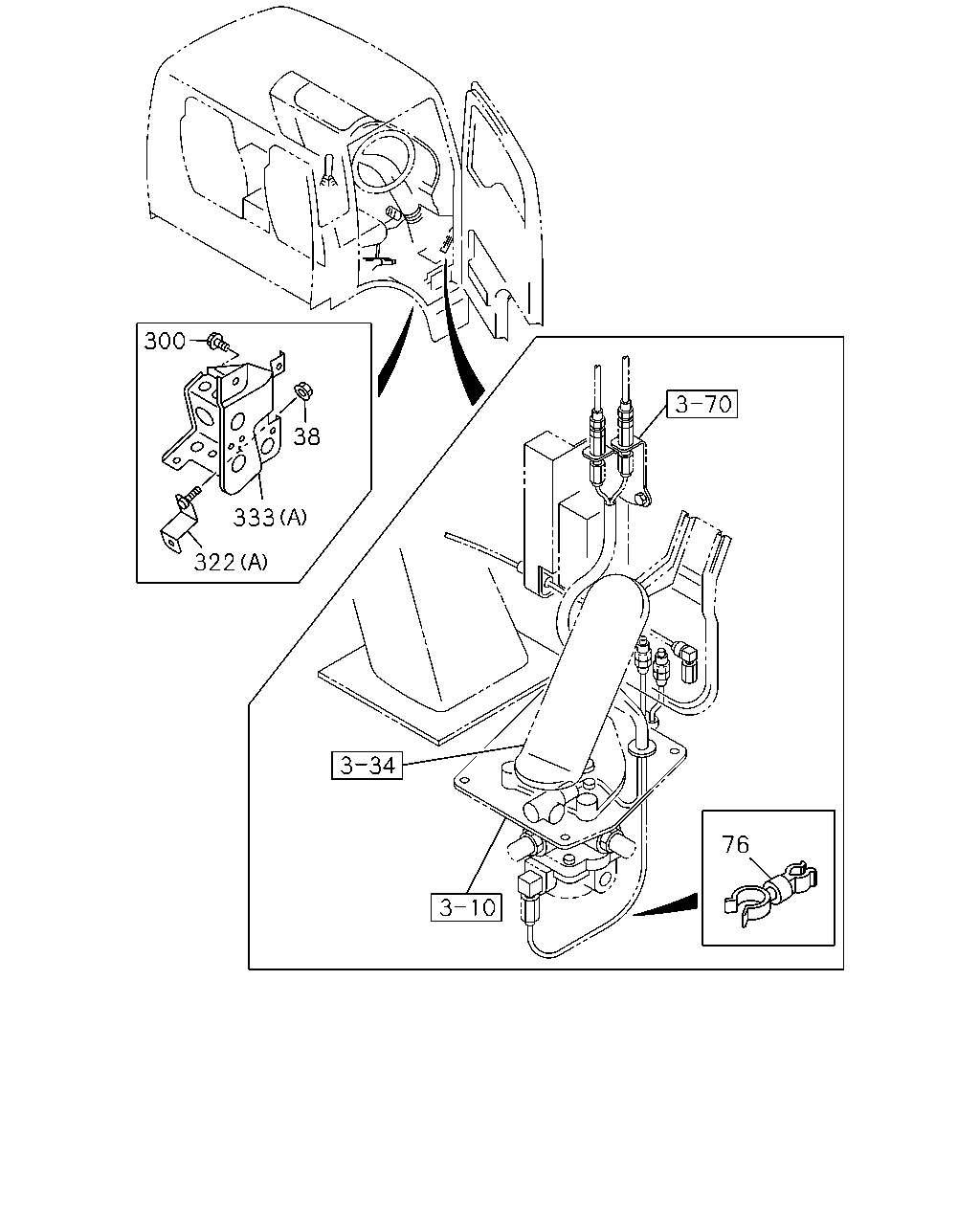

300 38 333 322 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702
76	CLIP; NYLON TUBE ID=6.35 & 6.35	1-09709-273-1	02	1	0407-0511
76	CLIP; NYLON TUBE 6WF1 TC-C(1B8) ID=6.35 & 6.35	1-09709-273-1	02	1	0512-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0407-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0407-0601
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-0702
322	BRACKET; CLIP (B) L=120 H=35	1-82699-970-0	01	1	0407-0511
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=120 H=35	1-82699-970-0	01	1	0512-0905
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82698-358-0	01	1	0906-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-
333	BRACKET; BRK AIR PIPE (A)	1-79907-110-0	01	1	0407-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-

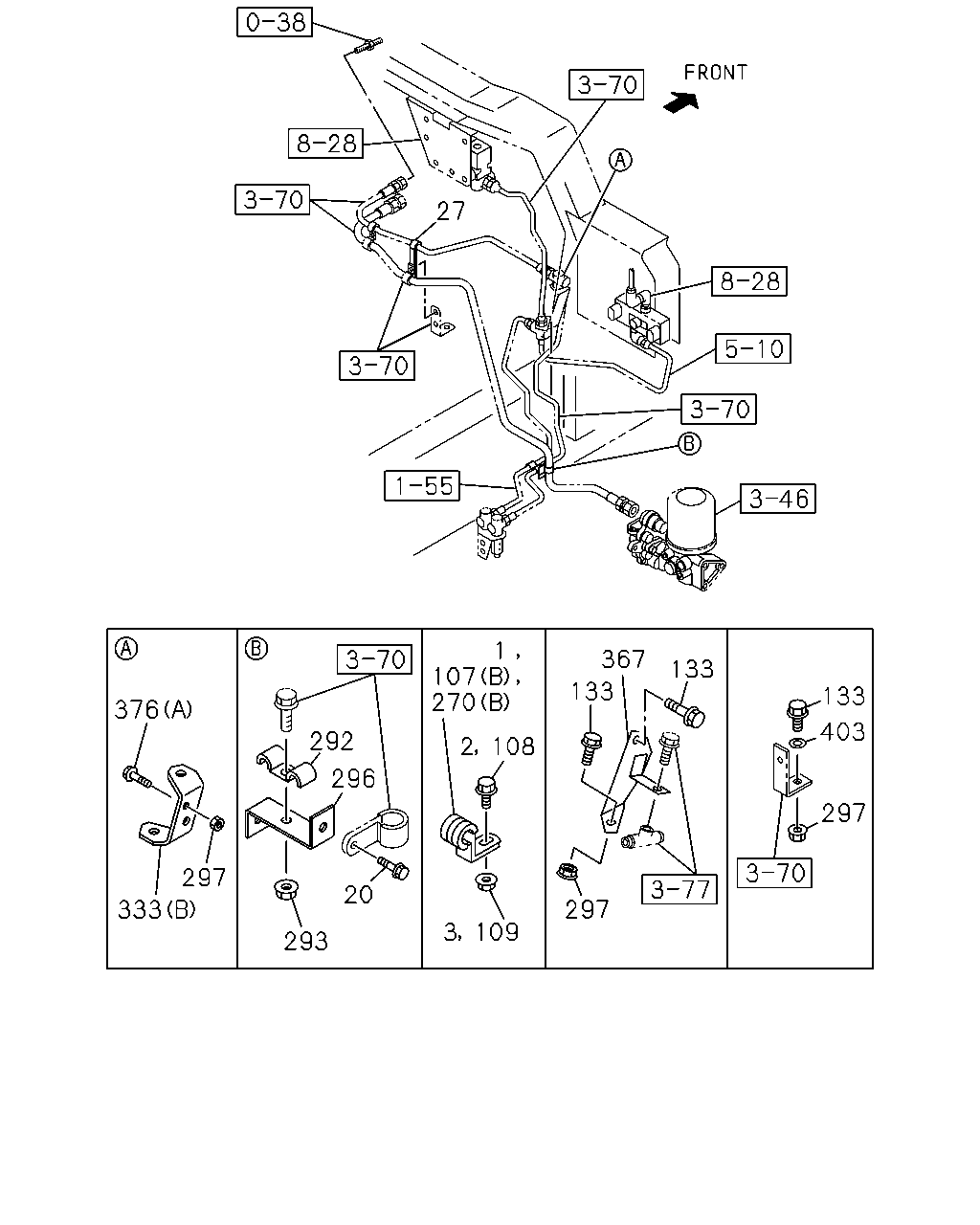

27 1 107 270 367 133 133 133 376 403 292 2 108 296 297 297 20 333 297 3 109 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0407-0511
1	CLIP; AIR PIPE 6WF1 TC-C(1B8) ID=6 H=20 L=20	1-09700-603-0	01	1	0512-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
27	CLIP; FLEX HOSE ID=11 L=50	9-09525-085-0	01	1	0407-0606
27	CLIP; FLEX HOSE ID=11 L=50	0-95235-085-0	01	1	0607-
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	09	1	0407-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	09	1	0601-
109	NUT; TUBE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0704-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0512-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0511
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	02	1	0512-0602
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	02	1	0603-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0601-0706
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0707-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0512-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0407-0511
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0407-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
296	BRACKET; CLIP	1-47479-698-0	01	1	0407-
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91150-212-0	01	1	0512-0602
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0407-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0706
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0707-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-
333	BRACKET; BRK AIR PIPE (A)	1-79907-110-0	01	1	0407-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-
367	BRACKET ASM	1-47479-692-1	01	1	0407-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
403	WASHER; PL SMOOTHER-G(C1W) ID=12.5 OD=26	9-09164-612-0	01	1	0512-

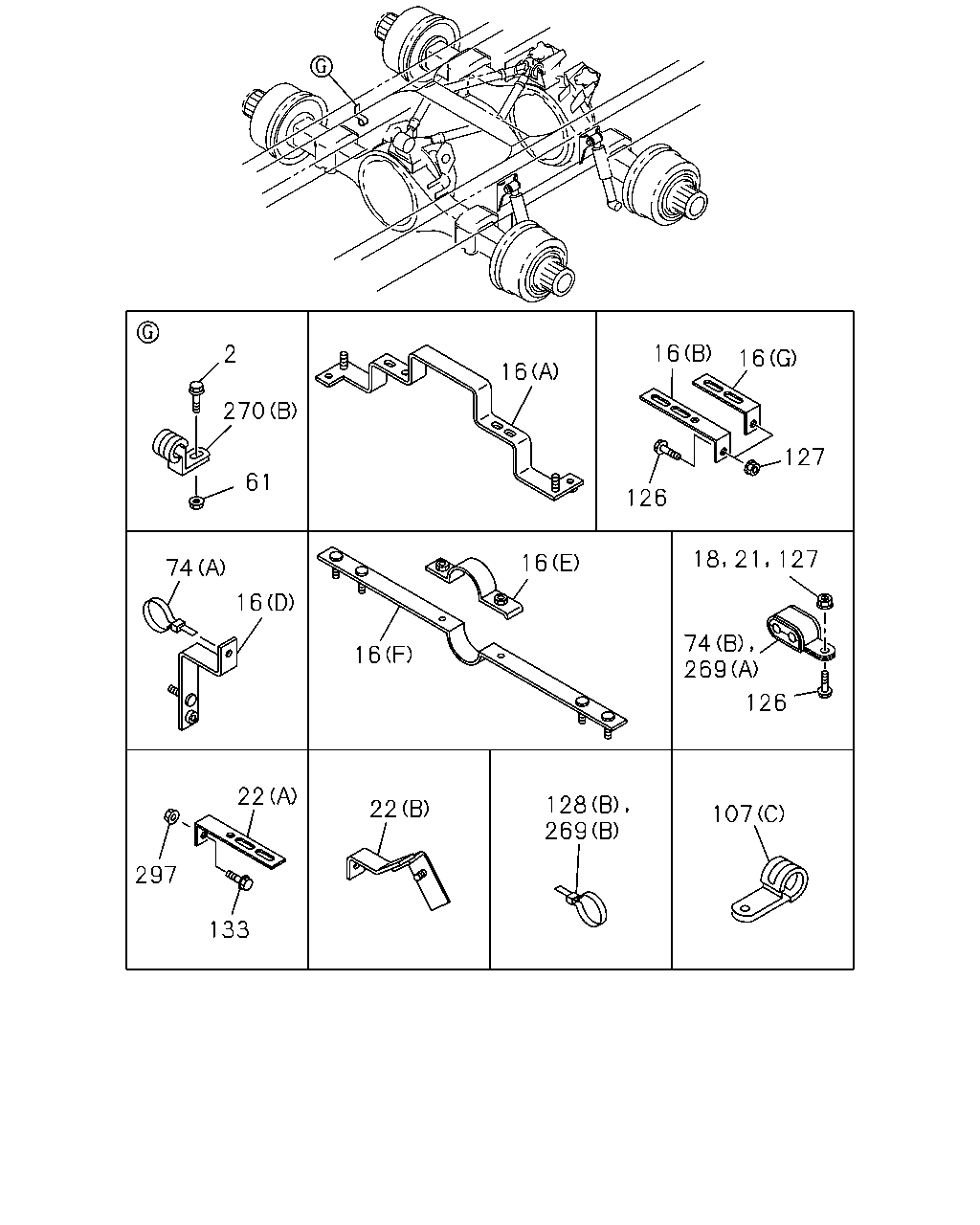

16 2 16 16 270 127 61 126 127 16 74 16 74 269 16 126 22 128 269 22 107 297 133 18 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0407-0511
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0512-0610
16	BRACKET; PIPE CLIP (G) L=80 H=30	8-97617-944-0	01	1	0611-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	06	1	0407-0706
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	05	1	0707-
16	BRACKET; PIPE CLIP (E)	1-47479-546-0	02	1	0407-
16	BRACKET; PIPE CLIP (C)	1-47479-693-0	02	1	0407-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0407-
16	BRACKET; PIPE CLIP (D)	1-47479-721-0	01	1	0407-
16	BRACKET; PIPE CLIP (A)	1-47479-898-0	02	1	0407-
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	0512-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0603-
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	06	1	0407-0706
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	04	1	0707-
22	BRACKET; CLIP (B)	1-47479-881-0	01	1	0407-
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0407-0602
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0407-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	0407-0407
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	10	1	0408-0511
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	11	1	0512-0706
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	0707-
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0512
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	0407-0512
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0601-0706
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	05	1	0707-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	07	1	0407-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0706
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0707-
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	05	1	0407-0706
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	0707-
128	CLIP; NYLON TUBE (A) ID=12 & 12	1-09709-280-1	02	1	0407-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0601-0706
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0707-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0512-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0407-0511
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0512-0703
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	02	1	0704-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0407-0511
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	02	1	0512-0703
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0704-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	05	1	0407-0511
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0512-0703
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0704-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	04	1	0407-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	0407-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91150-212-0	01	1	0512-0602
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0407-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0706
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0707-

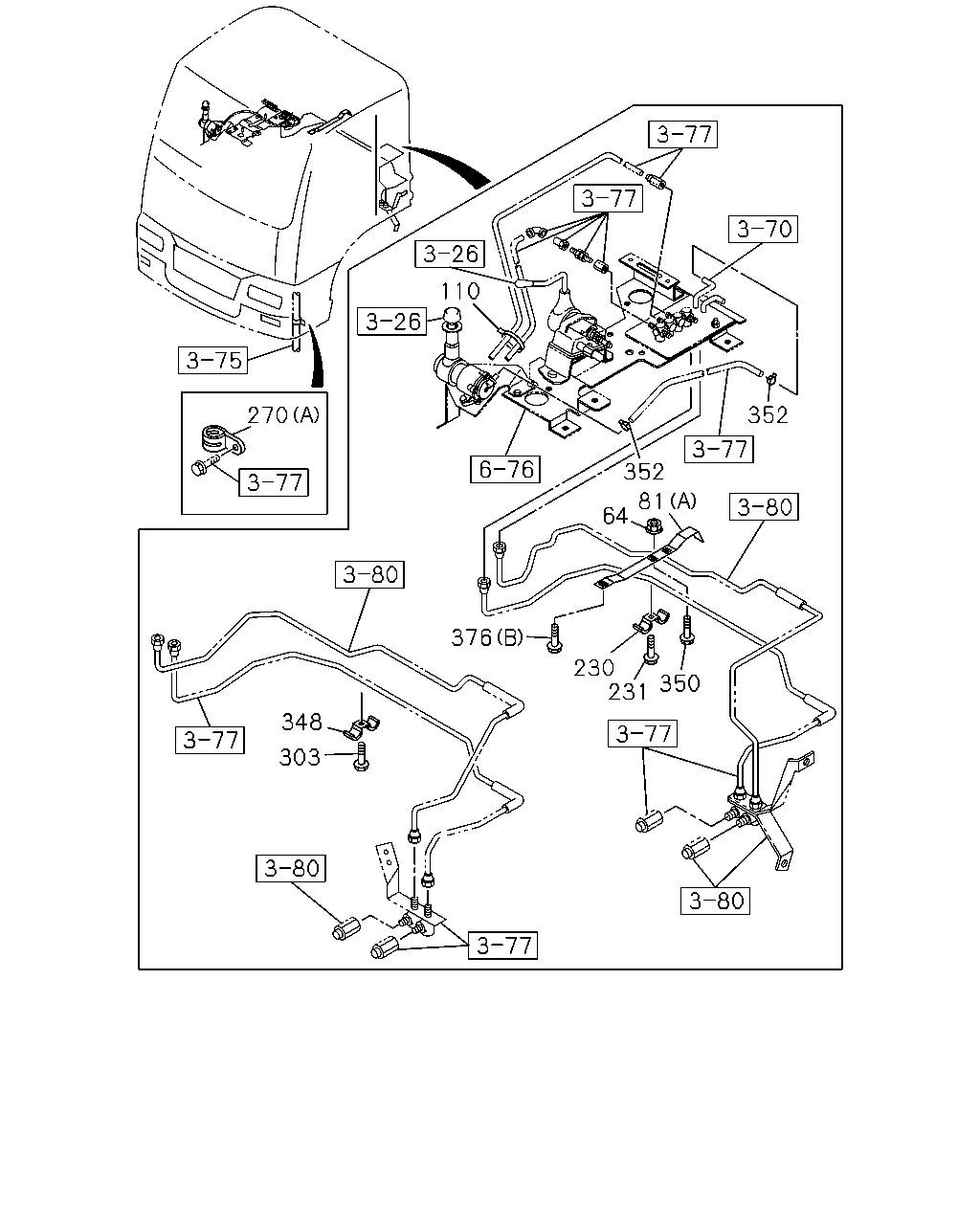

110 352 270 352 81 64 376 230 231 350 348 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0407-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-
81	BRACKET; CLIP (D)	1-47479-562-0	02	1	0407-0410
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0411-
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0407-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0407-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0407-
350	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0407-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0407-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-

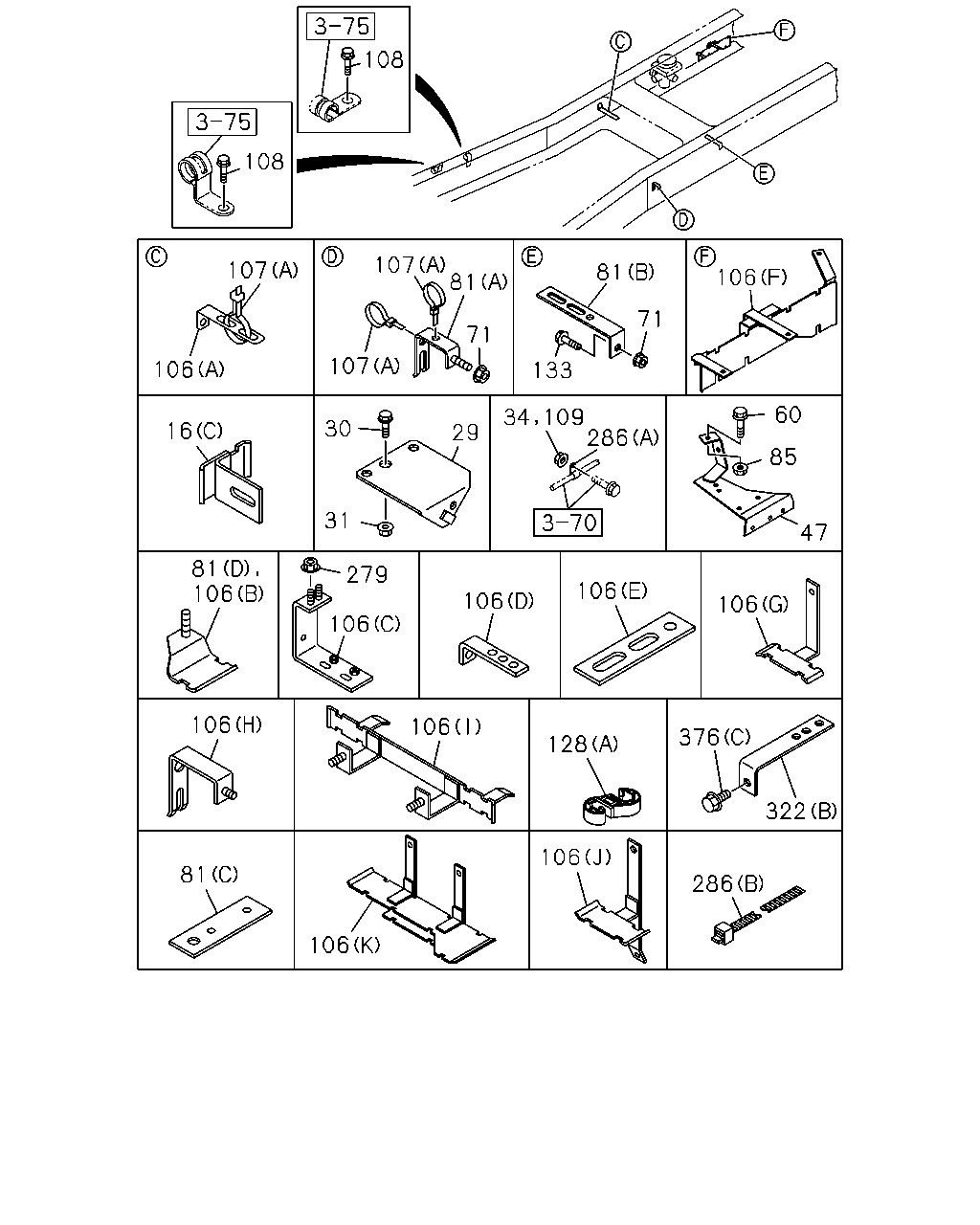

108 108 106 107 81 107 81 71 71 107 106 133 60 286 30 16 29 85 31 47 81 106 279 106 106 106 106 106 106 376 128 322 106 81 286 106 34 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0407-0511
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0512-0610
16	BRACKET; PIPE CLIP (G) L=80 H=30	8-97617-944-0	01	1	0611-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	06	1	0407-0706
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	05	1	0707-
16	BRACKET; PIPE CLIP (E)	1-47479-546-0	02	1	0407-
16	BRACKET; PIPE CLIP (C)	1-47479-693-0	02	1	0407-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0407-
16	BRACKET; PIPE CLIP (D)	1-47479-721-0	01	1	0407-
16	BRACKET; PIPE CLIP (A)	1-47479-898-0	02	1	0407-
29	BRACKET; CLIP,AIR PIPE	1-47479-408-0	01	1	0407-
30	BOLT; CLIP BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512
30	BOLT; CLIP BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28651-025-0	02	1	0601-
30	BOLT; CLIP BRKT M10X25 FLANGE	0-28681-025-0	01	1	0407-0511
30	BOLT; CLIP BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
30	BOLT; CLIP BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28651-025-0	01	1	0601-
31	NUT; CLIP BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	02	1	0512-0602
31	NUT; CLIP BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	02	1	0603-
31	NUT; CLIP BRKT M10 FLANGE	0-91150-210-0	01	1	0407-0511
31	NUT; CLIP BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	01	1	0512-0602
31	NUT; CLIP BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-210-0	01	1	0603-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511
34	NUT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0512-0602
34	NUT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-
47	BRACKET; PIPE CLIP	1-47479-325-0	01	1	0407-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0512
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-
71	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	0407-0602
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0407-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-
81	BRACKET; CLIP (D)	1-47479-562-0	02	1	0407-0410
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0411-
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0407-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	04	1	0407-
106	BRACKET; TUBE CLIP (H)	1-47479-381-2	01	1	0407-
106	BRACKET; TUBE CLIP (I)	1-47479-553-0	01	1	0407-
106	BRACKET; TUBE CLIP (B)	1-47479-562-0	02	1	0407-0410
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0411-
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0407-
106	BRACKET; TUBE CLIP (G)	1-47479-870-0	01	1	0407-0511
106	BRACKET; TUBE CLIP (J)	1-47471-060-0	01	1	0512-
106	BRACKET; TUBE CLIP (F)	1-47479-954-0	01	1	0407-0511
106	BRACKET; TUBE CLIP (K)	8-97609-025-0	01	1	0512-
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0407-0905
106	BRACKET; TUBE CLIP (D)	1-82698-358-0	01	1	0906-
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	09	1	0407-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	09	1	0601-
109	NUT; TUBE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0704-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0512-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0511
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	02	1	0512-0602
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	02	1	0603-
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	05	1	0407-0706
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	0707-
128	CLIP; NYLON TUBE (A) ID=12 & 12	1-09709-280-1	02	1	0407-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0601-0706
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0707-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0512-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0407-0511
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	16	1	0407-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	16	1	0603-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (B) L=250	1-09707-126-0	02	1	0704-
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0512-
286	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0407-0511
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0512-0703
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0704-
286	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=18 L=28	1-09701-067-0	01	1	0704-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0407-0601
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-0702
322	BRACKET; CLIP (B) L=120 H=35	1-82699-970-0	01	1	0407-0511
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=120 H=35	1-82699-970-0	01	1	0512-0905
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82698-358-0	01	1	0906-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
