◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#30440) — 241 parça

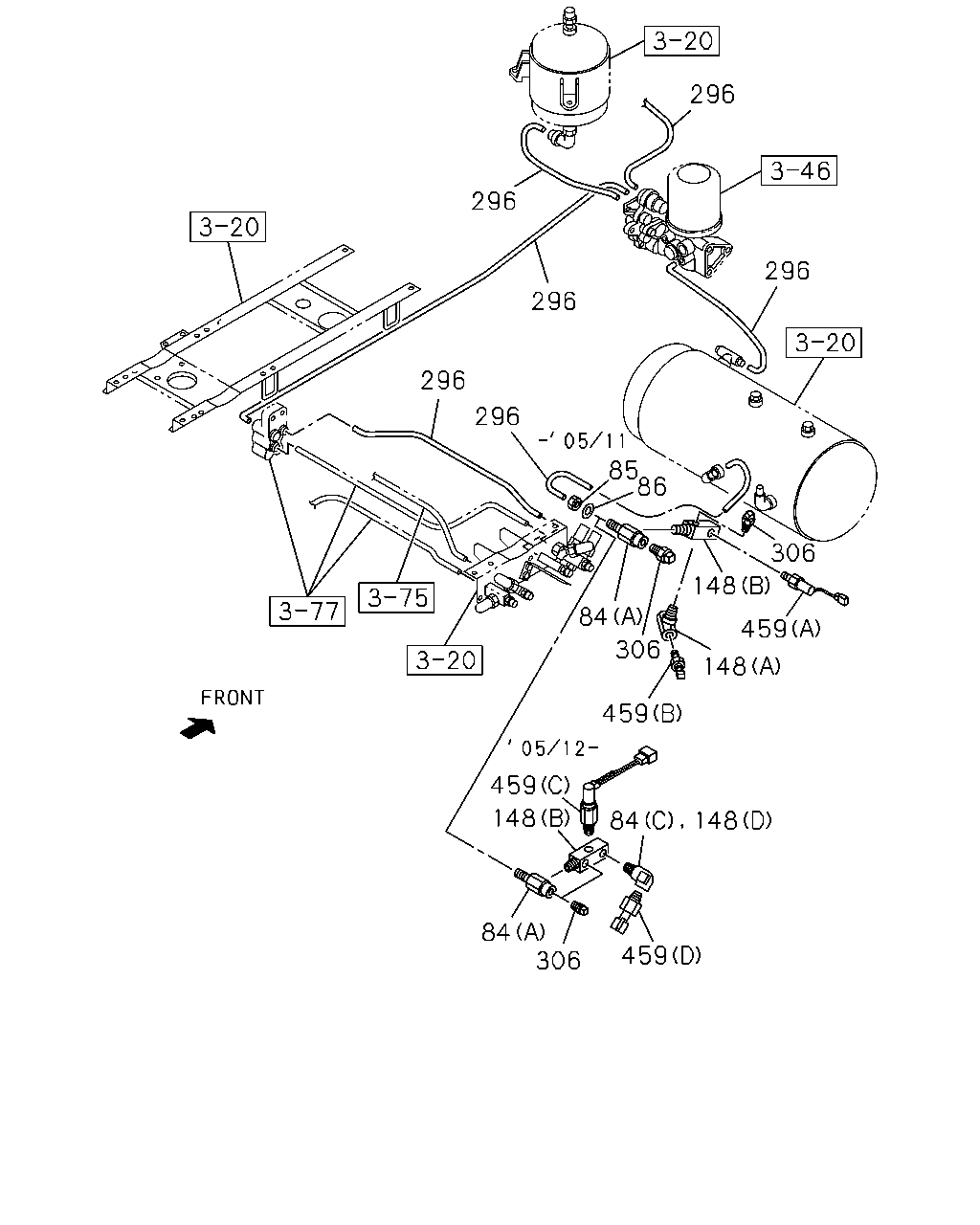

çizim 87644
296 296 296 296 296 296 85 86 306 148 84 459 306 148 459 459 148 84 148 84 306 459
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0512-0512
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0407-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-
85 NUT; UNION
M18 		9-99110-518-0 01 1 0407-0512
85 NUT; UNION
M18 		0-91110-518-0 01 1 0601-
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0407-0603
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604-
148 CONNECTOR; UNION
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0512-
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0407-0511
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0407-
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 0407-0511
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0512-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0407-
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0407-0511
459 SWITCH; PRESS
(C) 		1-48340-065-0 01 1 0512-
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0407-0511
459 SWITCH; PRESS
(D) THREAD R1/4 		1-80220-023-1 01 1 0512-

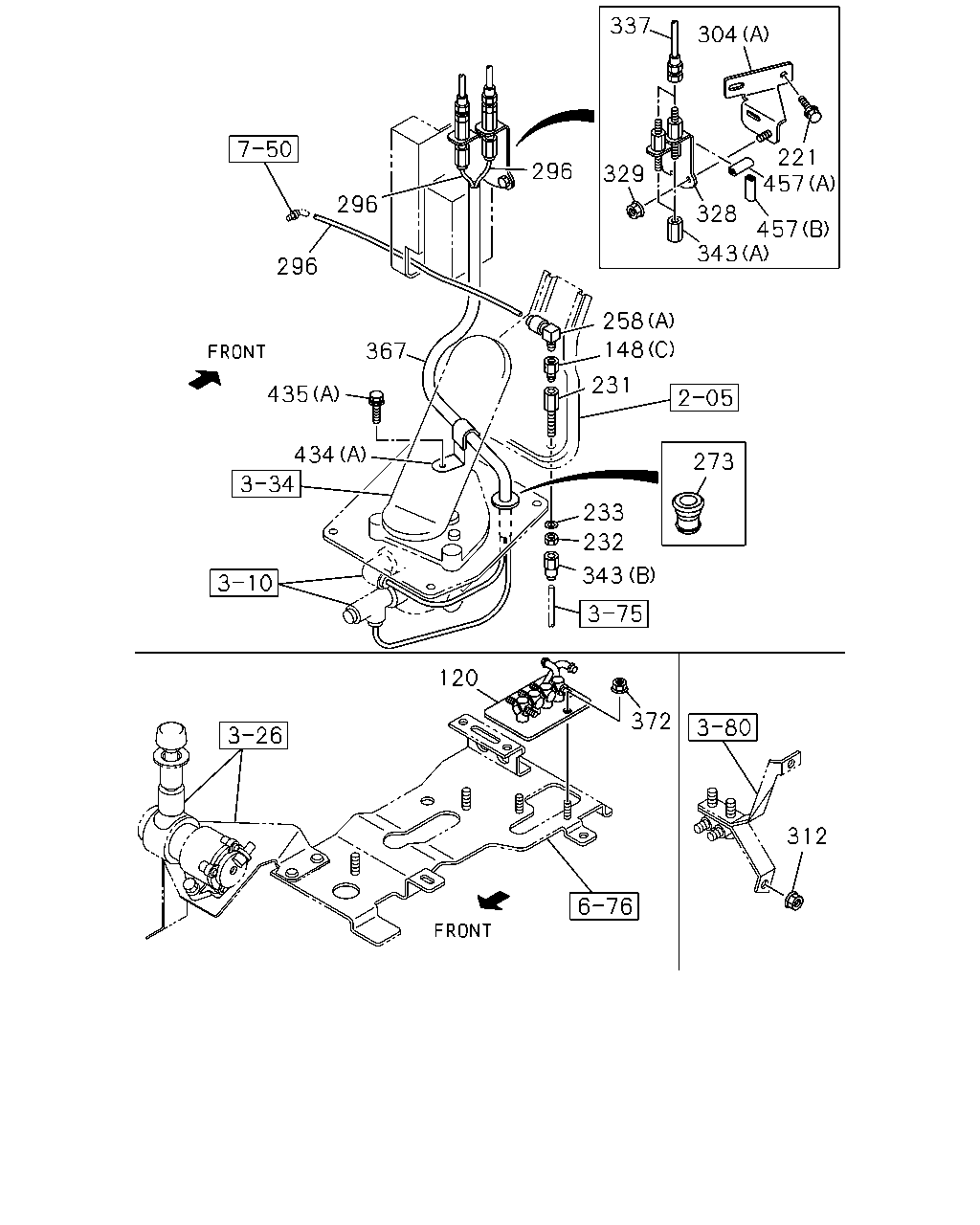

çizim 87881
337 304 221 457 296 329 328 457 343 296 258 148 367 231 435 434 273 233 232 343 120 372 312 296
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0407-
148 CONNECTOR; UNION
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0512-
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0407-0511
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0407-
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 0407-0511
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0512-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511
221 BOLT; BRKT
6WF1 TC-C(1B8) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512-
231 UNION; AIR PIPE 1-09656-713-2 01 1 0407-0511
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09656-713-2 01 1 0512-0703
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0512-0703
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09656-713-2 01 1 0704-0704
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0704-0704
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09656-713-2 01 1 0704-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0704-
231 UNION; AIR PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0704-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0407-0511
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 H=8 		1-09400-029-0 01 1 0512-0703
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0512-0703
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 H=8 		1-09400-029-0 01 1 0704-0704
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0704-0704
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 H=8 		1-09400-029-0 01 1 0704-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0704-
232 NUT; UNION,AIR PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0704-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 0407-0511
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		9-09150-510-0 01 1 0512-0603
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0512-0603
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		0-91510-510-0 01 1 0604-0703
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-0703
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		0-91510-510-0 01 1 0704-0704
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0704-0704
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		0-91510-510-0 01 1 0704-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0704-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0704-
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512-
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512-
273 GROMMET 1-09332-135-0 01 1 0407-0511
273 GROMMET
6WF1 TC-C(1B8) 		1-09332-135-0 01 1 0512-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407-
304 BRACKET; UNION
(B) 		1-47478-359-0 01 1 0407-
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512-
312 NUT; UNION
M8 		9-09110-408-0 01 1 0407-0512
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0407-0511
328 UNION; AIR PIPE
6WF1 TC-C(1B8) 		1-47470-442-0 01 1 0512-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0407-0511
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 01 1 0512-0602
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91180-106-0 01 1 0603-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=440 		0-07210-440-0 02 1 0407-0511
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-07210-440-0 02 1 0512-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-57210-440-0 02 1 0606-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0407-0511
343 UNION; NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-09660-796-1 02 1 0512-
343 UNION; NYLON TUBE
(B) 		1-09661-382-0 01 1 0407-0511
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-09661-382-0 01 1 0512-0703
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0512-0703
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-09661-382-0 01 1 0704-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0704-
343 UNION; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0704-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-
434 CLIP
(D) ID=24 L=27 		1-09700-809-0 03 1 0407-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0407-
434 CLIP
(A) 		1-09987-281-0 01 1 0407-0511
434 CLIP
6WF1 TC-C(1B8) (A) 		1-09987-281-0 01 1 0512-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
435 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
457 FINISHER; UNION
(A) L=50 		8-94270-377-1 01 1 0407-0511
457 FINISHER; UNION
6WF1 TC-C(1B8) (A) L=50 		8-94270-377-1 01 1 0512-
457 FINISHER; UNION
(B) L=50 		8-94270-377-1 01 1 0407-0511
457 FINISHER; UNION
6WF1 TC-C(1B8) (B) L=50 		8-94270-377-1 01 1 0512-

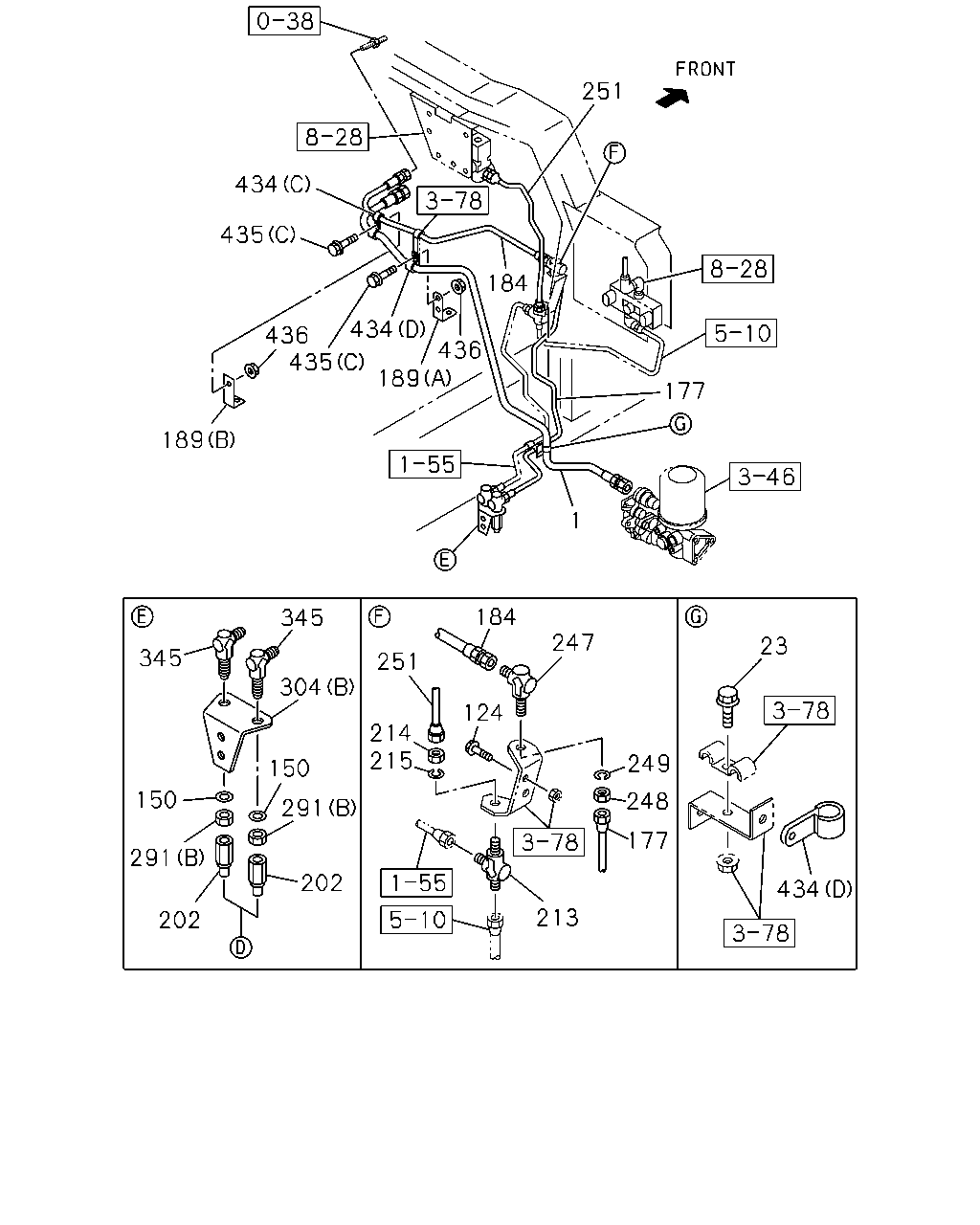

çizim 89453
251 434 435 184 434 436 435 436 189 177 189 1 184 345 247 23 345 251 304 124 214 215 249 150 150 248 291 177 291 202 434 213 202
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-903-1 01 1 0407-
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 0407-0512
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 0601-
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0512
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0407-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
177 PIPE; AIR,UNION TO UNION
L=650 SERVICED BY L=650 		1-47428-810-0 01 1 0407-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0407-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 0407-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 0407-
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0407-
213 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0407-0607
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0407-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0407-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0407-0607
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0407-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0407-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-S(97L) L=375 		1-49124-511-0 01 1 0512-0703
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) L=375 		1-49124-511-0 01 1 0704-
251 PIPE; AIR,UNION TO MAG VLV 1-49121-779-0 01 1 0407-0511
251 PIPE; AIR,UNION TO MAG VLV
6WF1 TC-C(1B8) 		1-49121-779-0 01 1 0512-
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0407-0602
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0407-
304 BRACKET; UNION
(B) 		1-47478-359-0 01 1 0407-
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0407-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-
434 CLIP
(D) ID=24 L=27 		1-09700-809-0 03 1 0407-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0407-
434 CLIP
(A) 		1-09987-281-0 01 1 0407-0511
434 CLIP
6WF1 TC-C(1B8) (A) 		1-09987-281-0 01 1 0512-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
435 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-

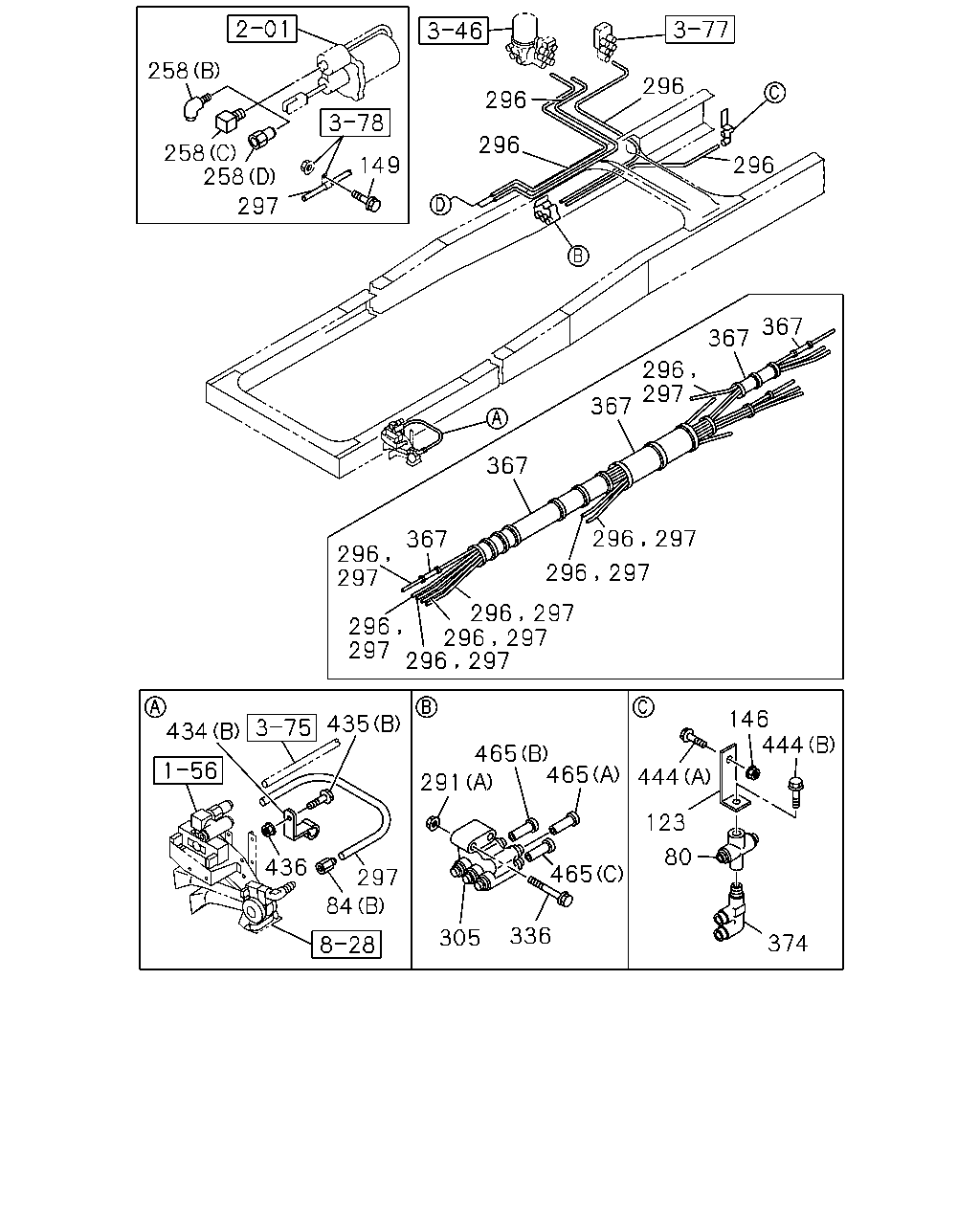

çizim 103656
258 296 296 296 258 258 296 149 297 367 367 296 297 367 367 367 296 297 296 297 434 146 444 435 465 465 444 291 123 80 436 465 297 84 336 305 374 296 297 297 296 296 297 297 296 296 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0407-0511
80 UNION; 3 WAY
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0512-
84 UNION; NYLON TUBE
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0512-0512
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0407-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-
123 BRACKET; UNION
L=50 		1-47475-663-1 01 1 0407-0511
123 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=50 		1-47475-663-1 01 1 0512-
146 NUT; UNION
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
146 NUT; UNION
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
146 NUT; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		0-91180-108-0 01 1 0603-
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE 		0-28650-825-0 01 1 0704-
149 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512-
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512-
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0407-0602
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0407-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0704-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0407-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0407-0512
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407-
374 CONNECTOR
DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511
374 CONNECTOR
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-
434 CLIP
(D) ID=24 L=27 		1-09700-809-0 03 1 0407-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0407-
434 CLIP
(A) 		1-09987-281-0 01 1 0407-0511
434 CLIP
6WF1 TC-C(1B8) (A) 		1-09987-281-0 01 1 0512-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
435 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0407-0511
444 BOLT; UNION
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512
444 BOLT; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511
444 BOLT; UNION
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
444 BOLT; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 0512-0703
465 PLUG
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) OD=12 		1-09661-617-0 01 1 0704-
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 0704-
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0407-0511
465 PLUG
SMOOTHER-G(C1W) (B) OD=8 		1-09661-616-0 01 1 0512-
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0512-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0407-0609
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), BRAKESYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 0407-0609
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0610-
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 0610-

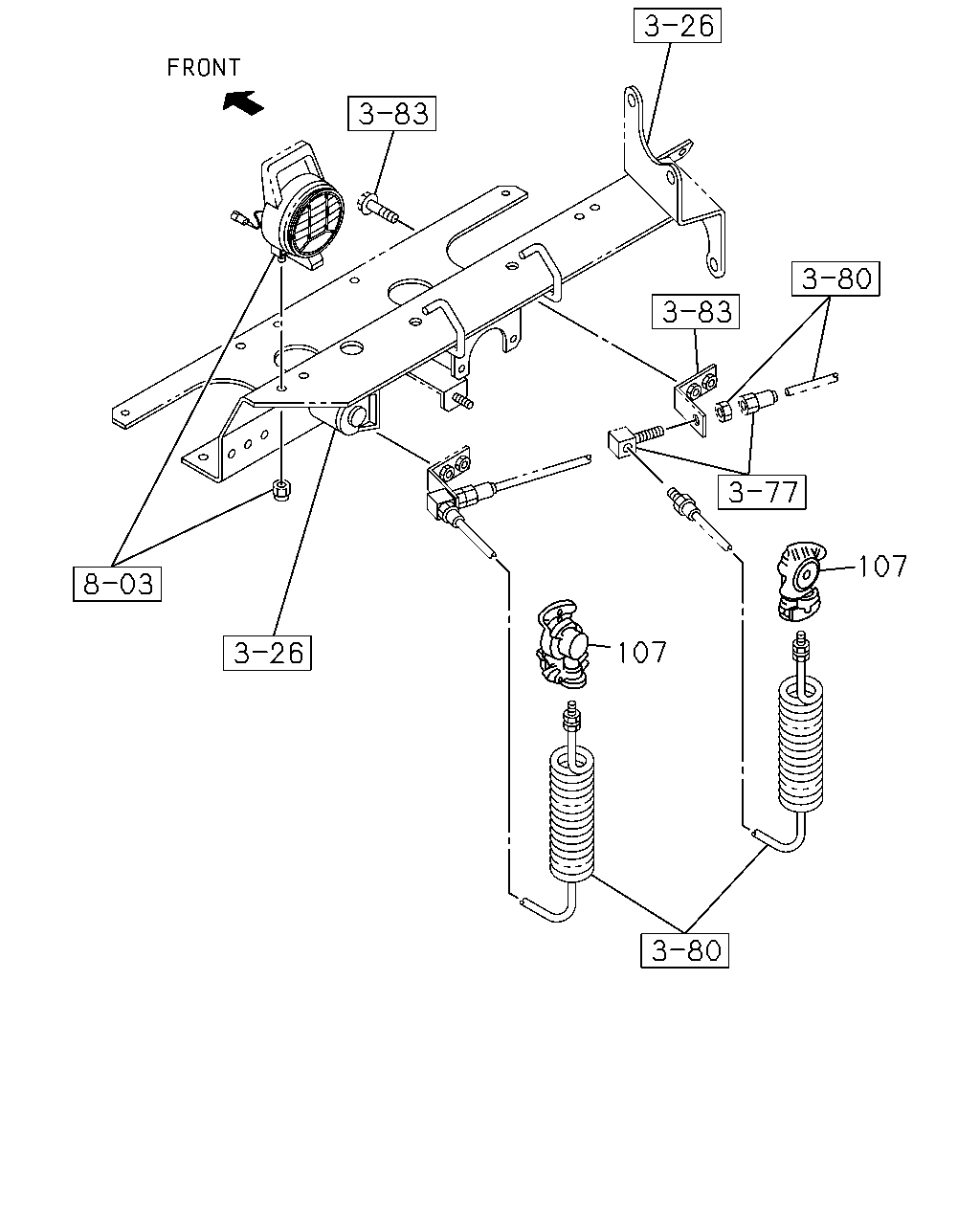

çizim 105278
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 0407-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
