◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#3044) — 37 parça

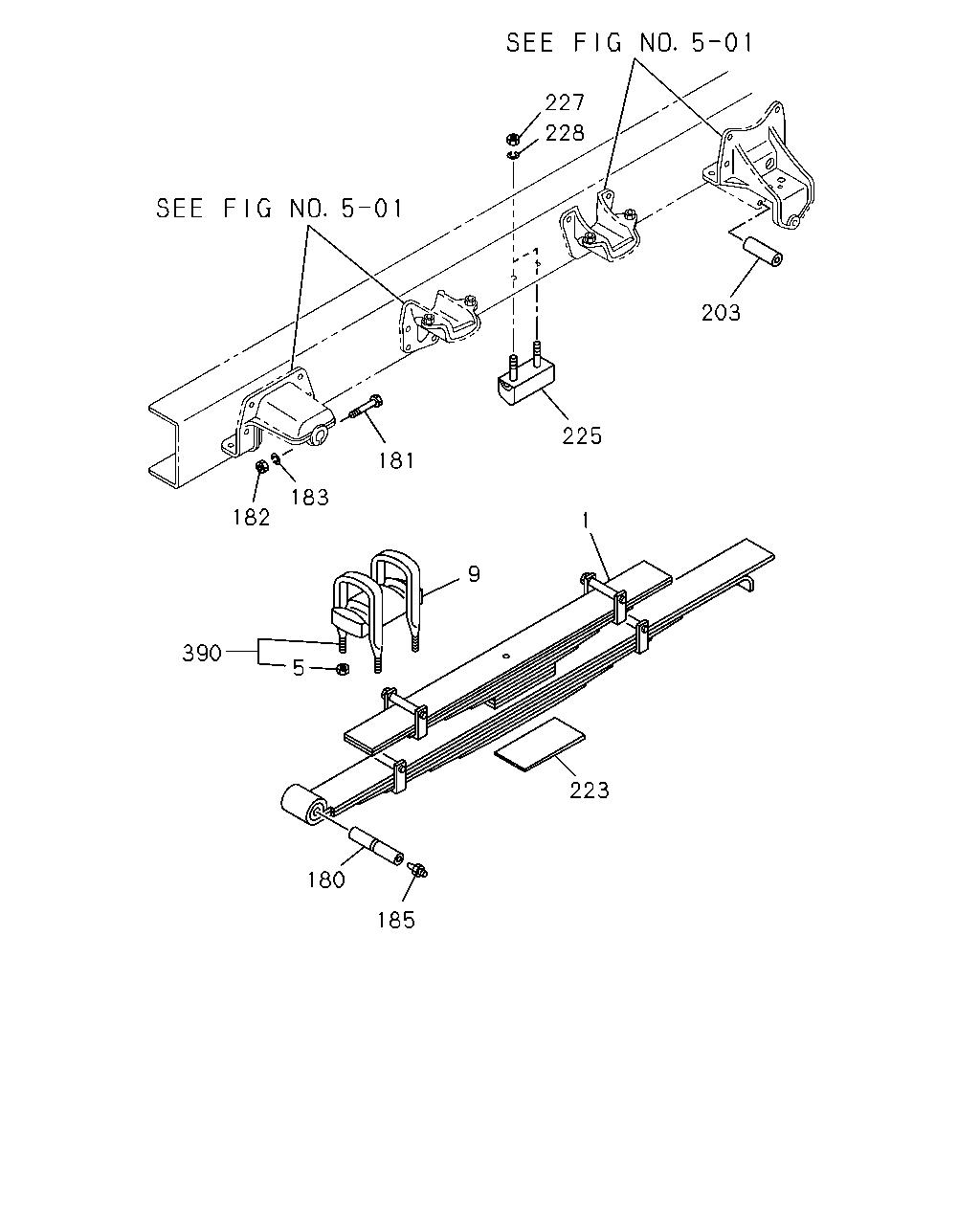

çizim 36994
185 180 223 1 9 390 5 182 183 181 225 203 228 227
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-261-0 02 1 9002-9306 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-165-4 02 1 9002- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-51300-165-4 02 1 9002- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-51300-236-0 02 1 9002- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CONCRETE PUMP<RA5> 12-LEAF 		1-51300-267-0 02 1 9002- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9002- ● ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9002- ● ● ●
9 PAD; U BOLT,RR SPR
EXC. CONCRETE PUMP<RA5> 		1-51372-030-0 02 1 9002- ●
9 PAD; U BOLT,RR SPR
CONCRETE PUMP<RA5> 		1-51372-045-1 02 1 9002- ●
180 PIN; RR SPR 1-51361-020-0 02 1 9002- ● ● ● ●
181 BOLT; SPR & SHACKLE
M14X80 		9-91056-480-0 02 1 9002-9005 ● ● ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9006- ● ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9002- ● ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9002- ● ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9002- ● ● ● ●
203 COLLAR; LEAF SPR STOPPER
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-53359-058-0 02 1 9002-9201 ● ●
203 COLLAR; LEAF SPR STOPPER
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-53359-058-0 02 1 9002-9201 ● ●
203 COLLAR; LEAF SPR STOPPER
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-53359-004-0 02 1 9202- ● ●
203 COLLAR; LEAF SPR STOPPER
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-53359-004-0 02 1 9202- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-204-0 02 1 9002-9402 ● ●
223 SPACER; U BOLT,RR SPR
CONCRETE PUMP<RA5> 		1-51377-204-0 02 1 9002-9402 ●
223 SPACER; U BOLT,RR SPR
CONCRETE PUMP<RA5> 		1-51377-296-0 02 1 9403- ●
223 SPACER; U BOLT,RR SPR 1-51377-057-3 02 1 9002- ●
223 SPACER; U BOLT,RR SPR
EXC. CONCRETE PUMP<RA5> 		1-51377-057-3 02 1 9002- ●
225 RUBBER; CUSHION,RR SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-53366-028-1 02 1 9002- ● ●
225 RUBBER; CUSHION,RR SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-53366-028-1 02 1 9002- ● ●
225 RUBBER; CUSHION,RR SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-53366-029-1 02 1 9002- ● ●
225 RUBBER; CUSHION,RR SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-53366-029-1 02 1 9002- ● ●
225 RUBBER; CUSHION,RR SPR
CONCRETE PUMP<RA5> 		1-53366-067-3 02 1 9002- ●
227 NUT; CUSHION RUBBER
M12 		9-99110-412-0 04 1 9002-9304 ● ● ● ●
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 04 1 9305- ● ● ● ●
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9002- ● ● ● ●
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-017-3 04 1 9002- ● ●
390 U-BOLT SET; RR SPRING
CONCRETE PUMP<RA5> L=470 		1-87870-017-3 04 1 9002- ●
390 U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=490 		1-87870-036-2 04 1 9002- ● ●
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> L=490 		1-87870-036-2 04 1 9002- ● ●
390 U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> L=470 		1-87870-092-1 04 1 9002- ● ●
