0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#30438) — 22 parça

25 79 107 80 26 24 71 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0612-
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	0612-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	04	1	0612-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	0612-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0612-
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0612-
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0612-
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0612-
107	CLIP; BAND L=140	5-09707-031-1	01	1	0612-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

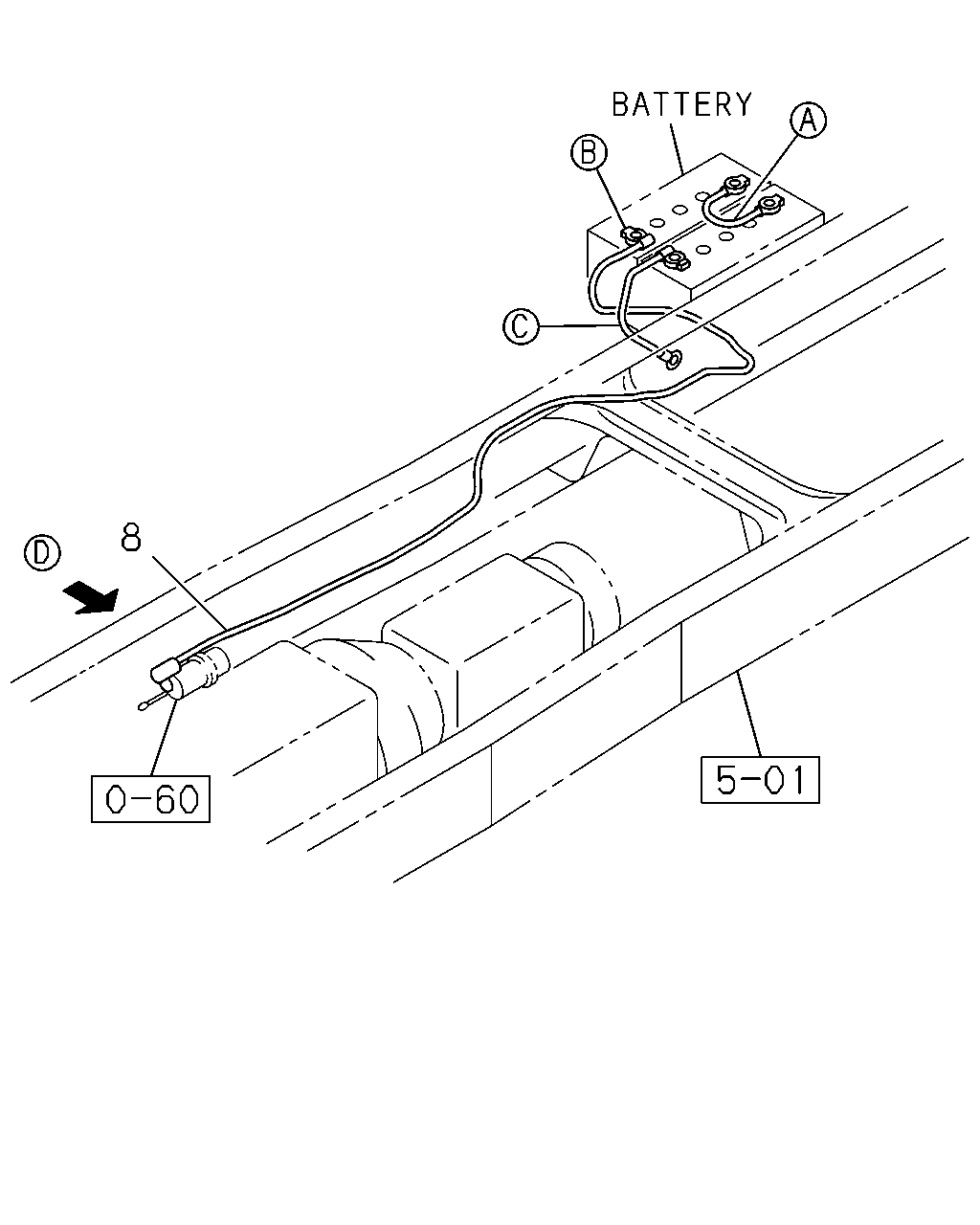

	8	CABLE; BATTERY,STARTER	8-97604-618-1	01	1	0612-

114 1 11 115 8 10 112 2 23 13 33 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=450	1-82650-389-1	01	1	0612-
2	CABLE; BATTERY L=380	8-97604-629-1	01	1	0612-
8	CABLE; BATTERY,STARTER	8-97604-618-1	01	1	0612-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0612-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0612-
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	0612-
23	BRACKET; CABLE CLIP TO FRAME (B) L=55	1-47475-304-0	01	1	0612-
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	03	1	0612-
33	CAP; INSULATOR	1-82699-431-0	01	1	0612-
112	TERMINAL; BATTERY <+>	1-82695-169-1	01	1	0612-
114	NUT; CABLE,BATTERY TERMINAL M8	0-91110-508-0	01	1	0612-
115	WASHER; LK,CABLE,BATTERY ID=8.2	0-91510-508-0	01	1	0612-
