◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#3043) — 156 parça

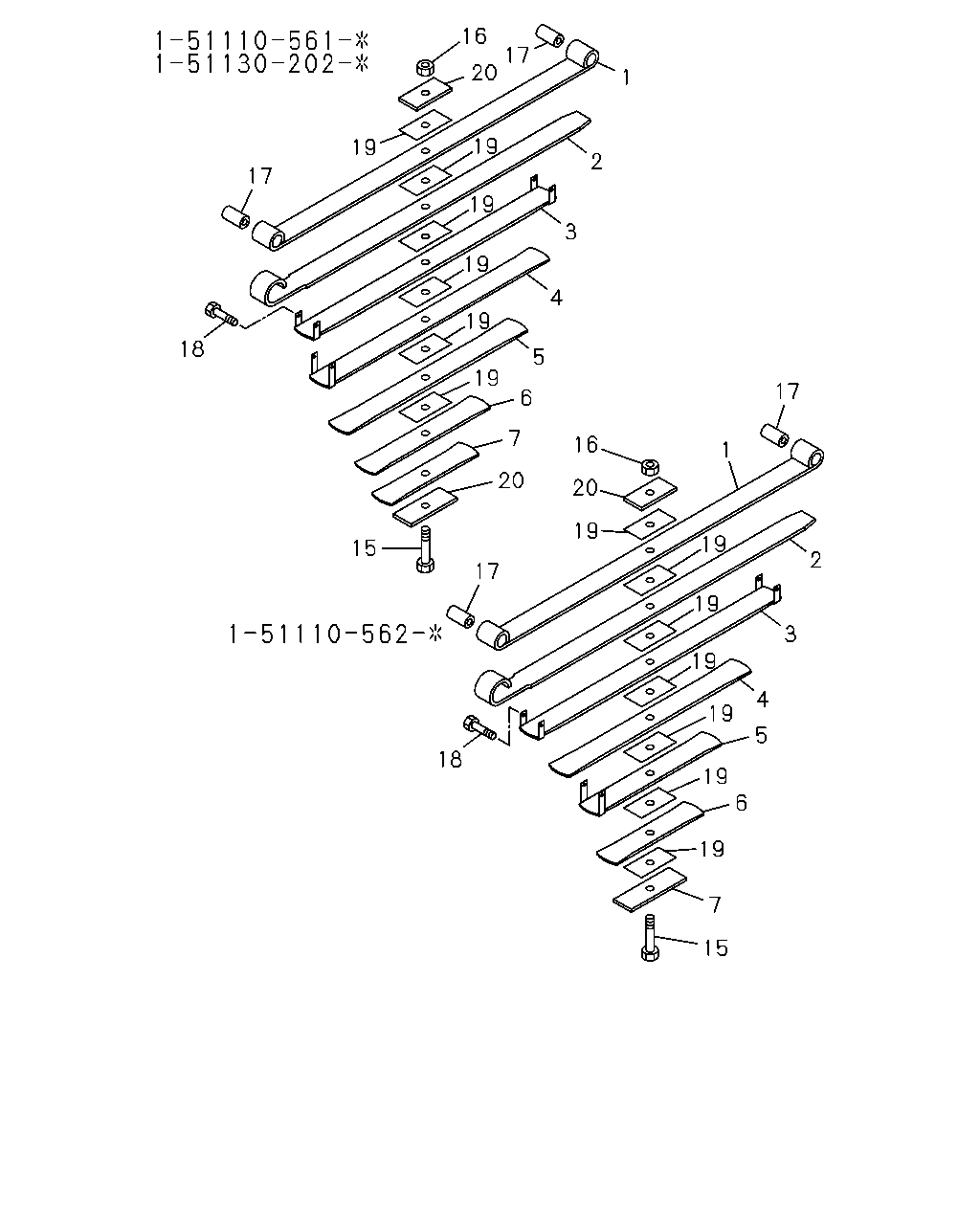

çizim 5411
15 7 19 6 19 5 19 4 19 3 2 19 19 19 20 16 1 17 18 17 15 20 7 6 19 5 4 19 19 3 19 19 2 1 17 16 20 19 17 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51110-513-1 		1-51111-513-1 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51110-514-1 		1-51111-514-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 1-51110-550-0 		1-51111-550-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 1-51110-561-2 		1-51111-561-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: E = 1-51110-562-0 		1-51111-562-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 1-51130-202-0 		1-51131-202-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: G = 1-51130-207-0 		1-51131-207-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: H = 1-51130-245-0 		1-51131-245-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51110-513-1 		1-51112-513-1 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51110-514-1 		1-51112-514-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 1-51110-550-0 		1-51112-550-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 1-51110-561-2 		1-51112-561-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: E = 1-51110-562-0 		1-51112-562-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 1-51130-202-0 		1-51132-202-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: G = 1-51130-207-0 		1-51132-207-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: H = 1-51130-245-0 		1-51132-245-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51110-513-1 		1-51113-513-1 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51110-514-1 		1-51113-514-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 1-51110-550-0 		1-51113-550-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 1-51110-561-2 		1-51113-561-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: E = 1-51110-562-0 		1-51113-562-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: F = 1-51130-202-0 		1-51133-202-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: G = 1-51130-207-0 		1-51133-207-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: H = 1-51130-245-0 		1-51133-245-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51110-513-1 		1-51114-513-1 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51110-514-1 		1-51114-514-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 1-51110-550-0 		1-51114-550-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: D = 1-51110-561-2 		1-51114-561-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: E = 1-51110-562-0 		1-51114-562-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: F = 1-51130-202-0 		1-51134-202-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: G = 1-51130-207-0 		1-51134-207-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: H = 1-51130-245-0 		1-51134-245-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51110-513-1 		1-51115-513-1 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51110-514-1 		1-51115-514-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 1-51110-550-0 		1-51115-550-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 1-51110-561-2 		1-51115-561-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: E = 1-51110-562-0 		1-51115-562-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: F = 1-51130-202-0 		1-51135-202-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: G = 1-51130-207-0 		1-51135-207-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: H = 1-51130-245-0 		1-51135-245-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51110-513-1 		1-51116-513-1 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51110-514-1 		1-51116-514-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 1-51110-550-0 		1-51116-550-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: D = 1-51110-561-2 		1-51116-561-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: E = 1-51110-562-0 		1-51116-562-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: F = 1-51130-202-0 		1-51136-202-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: G = 1-51130-207-0 		1-51136-207-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: H = 1-51130-245-0 		1-51136-245-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51110-513-1 		1-51117-513-1 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51110-514-1 		1-51117-514-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 1-51110-550-0 		1-51117-550-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: D = 1-51110-561-2 		1-51117-561-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: E = 1-51110-562-0 		1-51117-562-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: F = 1-51130-202-0 		1-51137-202-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: G = 1-51130-207-0 		1-51137-207-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: H = 1-51130-245-0 		1-51137-245-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51110-513-1 		1-51156-054-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: B = 1-51110-514-1, C = 1-51110-550-0 		1-51156-068-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: E = 1-51110-562-0 		1-51156-098-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: D = 1-51110-561-2 		1-51156-100-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: F = 1-51130-202-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=160 ASM PART: G = 1-51130-207-0 		1-51156-356-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: H = 1-51130-245-0 		1-51156-357-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: F = 1-51130-202-0, G = 1-51130-207-0, H = 1-51130-245-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: E = 1-51110-562-0 		1-09400-061-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: D = 1-51110-561-2 		1-09400-062-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-550-0 		9-99110-116-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-550-0, D = 1-51110-561-2, E = 1-51110-562-0, F = 1-51130-202-0, G = 1-51130-207-0, H = 1-51130-245-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X97 ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-550-0, G = 1-51130-207-0, H = 1-51130-245-0 		1-09000-294-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X98 ASM PART: E = 1-51110-562-0 		1-09000-325-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-561-2, F = 1-51130-202-0 		1-09000-328-0 03 1 -
19 SPACER; LEAF SPRING,FRT
ASM PART: E = 1-51110-562-0 		1-51177-032-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51110-561-2, F = 1-51130-202-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: G = 1-51130-207-0 		1-51177-033-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: H = 1-51130-245-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: D = 1-51110-561-2 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: F = 1-51130-202-0 		1-51177-107-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=13 ASM PART: E = 1-51110-562-0 		1-51179-034-0 01 1 -
çizim 36278
15 20 20 9 8 7 9 5 4 3 2 1 17 16 17 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51110-513-1 		1-51111-513-1 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51110-514-1 		1-51111-514-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 1-51110-550-0 		1-51111-550-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 1-51110-561-2 		1-51111-561-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: E = 1-51110-562-0 		1-51111-562-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 1-51130-202-0 		1-51131-202-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: G = 1-51130-207-0 		1-51131-207-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: H = 1-51130-245-0 		1-51131-245-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51110-513-1 		1-51112-513-1 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51110-514-1 		1-51112-514-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 1-51110-550-0 		1-51112-550-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 1-51110-561-2 		1-51112-561-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: E = 1-51110-562-0 		1-51112-562-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 1-51130-202-0 		1-51132-202-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: G = 1-51130-207-0 		1-51132-207-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: H = 1-51130-245-0 		1-51132-245-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51110-513-1 		1-51113-513-1 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51110-514-1 		1-51113-514-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 1-51110-550-0 		1-51113-550-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 1-51110-561-2 		1-51113-561-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: E = 1-51110-562-0 		1-51113-562-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: F = 1-51130-202-0 		1-51133-202-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: G = 1-51130-207-0 		1-51133-207-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: H = 1-51130-245-0 		1-51133-245-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51110-513-1 		1-51114-513-1 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51110-514-1 		1-51114-514-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 1-51110-550-0 		1-51114-550-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: D = 1-51110-561-2 		1-51114-561-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: E = 1-51110-562-0 		1-51114-562-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: F = 1-51130-202-0 		1-51134-202-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: G = 1-51130-207-0 		1-51134-207-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: H = 1-51130-245-0 		1-51134-245-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51110-513-1 		1-51115-513-1 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51110-514-1 		1-51115-514-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 1-51110-550-0 		1-51115-550-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 1-51110-561-2 		1-51115-561-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: E = 1-51110-562-0 		1-51115-562-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: F = 1-51130-202-0 		1-51135-202-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: G = 1-51130-207-0 		1-51135-207-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: H = 1-51130-245-0 		1-51135-245-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51110-513-1 		1-51117-513-1 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51110-514-1 		1-51117-514-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 1-51110-550-0 		1-51117-550-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: D = 1-51110-561-2 		1-51117-561-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: E = 1-51110-562-0 		1-51117-562-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: F = 1-51130-202-0 		1-51137-202-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: G = 1-51130-207-0 		1-51137-207-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: H = 1-51130-245-0 		1-51137-245-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51110-513-1 		1-51118-513-1 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: B = 1-51110-514-1 		1-51118-514-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: C = 1-51110-550-0 		1-51118-550-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: G = 1-51130-207-0 		1-51138-207-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: H = 1-51130-245-0 		1-51138-245-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: A = 1-51110-513-1 		1-51119-513-1 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: B = 1-51110-514-1 		1-51119-514-1 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: C = 1-51110-550-0 		1-51119-550-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: G = 1-51130-207-0 		1-51139-207-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: H = 1-51130-245-0 		1-51139-245-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51110-513-1 		1-51156-054-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: B = 1-51110-514-1, C = 1-51110-550-0 		1-51156-068-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: E = 1-51110-562-0 		1-51156-098-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: D = 1-51110-561-2 		1-51156-100-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: F = 1-51130-202-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=160 ASM PART: G = 1-51130-207-0 		1-51156-356-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: H = 1-51130-245-0 		1-51156-357-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: F = 1-51130-202-0, G = 1-51130-207-0, H = 1-51130-245-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: E = 1-51110-562-0 		1-09400-061-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: D = 1-51110-561-2 		1-09400-062-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-550-0 		9-99110-116-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-550-0, D = 1-51110-561-2, E = 1-51110-562-0, F = 1-51130-202-0, G = 1-51130-207-0, H = 1-51130-245-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X97 ASM PART: A = 1-51110-513-1, B = 1-51110-514-1, C = 1-51110-550-0, G = 1-51130-207-0, H = 1-51130-245-0 		1-09000-294-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X98 ASM PART: E = 1-51110-562-0 		1-09000-325-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-561-2, F = 1-51130-202-0 		1-09000-328-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: G = 1-51130-207-0 		1-51177-033-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: H = 1-51130-245-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: D = 1-51110-561-2 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: F = 1-51130-202-0 		1-51177-107-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=13 ASM PART: E = 1-51110-562-0 		1-51179-034-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
